ns3::SimpleDeviceEnergyModel Class Reference

#include <simple-device-energy-model.h>

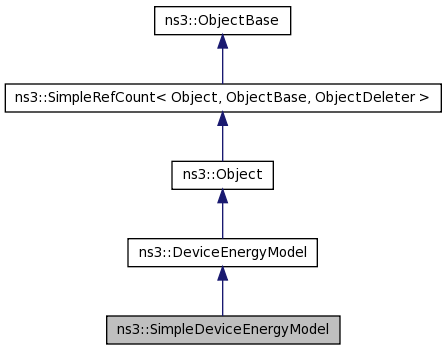

Inheritance diagram for ns3::SimpleDeviceEnergyModel:

[legend]

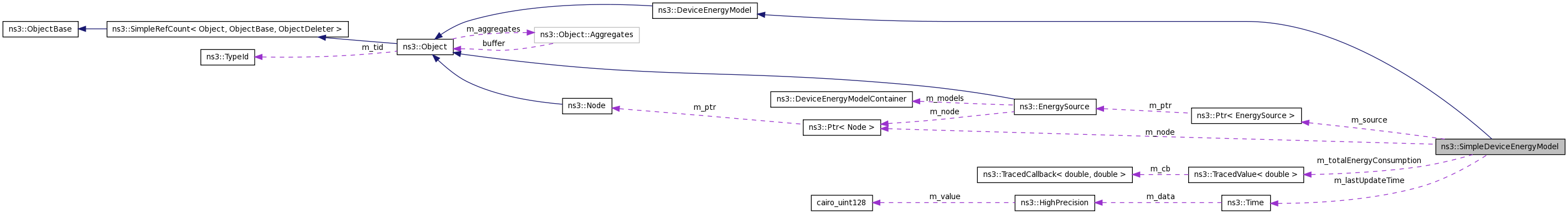

Collaboration diagram for ns3::SimpleDeviceEnergyModel:

[legend]

List of all members.

Public Member Functions
virtual void	SetNode (Ptr< Node > node)
	Sets pointer to node.
virtual Ptr< Node >	GetNode (void) const
	Gets pointer to node.
virtual void	SetEnergySource (Ptr< EnergySource > source)
	Sets pointer to EnergySouce installed on node.
virtual double	GetTotalEnergyConsumption (void) const
virtual void	ChangeState (int newState)
virtual void	HandleEnergyDepletion (void)
	Handles energy depletion.
void	SetCurrentA (double current)
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::SimpleDeviceEnergyModel.

---

Detailed Description

A simple device energy model where current drain can be set by the user.

It is supposed to be used as a testing model for energy sources.

---

Member Function Documentation

virtual void ns3::SimpleDeviceEnergyModel::ChangeState

(

int

newState

)

[inline, virtual]

Parameters:

newState

New state the device is in.

Not implemented

Implements ns3::DeviceEnergyModel.

virtual Ptr<Node> ns3::SimpleDeviceEnergyModel::GetNode

(

void

)

const [virtual]

Gets pointer to node.

Returns:

Pointer to node.

Implements DeviceEnergyModel::GetNode.

virtual double ns3::SimpleDeviceEnergyModel::GetTotalEnergyConsumption

(

void

)

const [virtual]

Returns:

Total energy consumption of the vehicle.

Implements DeviceEnergyModel::GetTotalEnergyConsumption.

Implements ns3::DeviceEnergyModel.

static TypeId ns3::SimpleDeviceEnergyModel::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::SimpleDeviceEnergyModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::DeviceEnergyModel/$ns3::SimpleDeviceEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::SimpleDeviceEnergyModel

No Attributes defined for this type.
TraceSources defined for this type:

• TotalEnergyConsumption: Total energy consumption of the radio device.

Reimplemented from ns3::DeviceEnergyModel.

virtual void ns3::SimpleDeviceEnergyModel::HandleEnergyDepletion

(

void

)

[inline, virtual]

Handles energy depletion.

Not implemented

Implements ns3::DeviceEnergyModel.

void ns3::SimpleDeviceEnergyModel::SetCurrentA

(

double

current

)

Parameters:

current

the current draw of device.

Set the actual current draw of the device.

virtual void ns3::SimpleDeviceEnergyModel::SetEnergySource

(

Ptr< EnergySource >

source

)

[virtual]

Sets pointer to EnergySouce installed on node.

Parameters:

source

Pointer to EnergySource installed on node.

Implements DeviceEnergyModel::SetEnergySource.

Implements ns3::DeviceEnergyModel.

virtual void ns3::SimpleDeviceEnergyModel::SetNode

(

Ptr< Node >

node

)

[virtual]

Sets pointer to node.

Parameters:

node

Pointer to node.

Implements DeviceEnergyModel::SetNode.

---

The documentation for this class was generated from the following files:

• src/contrib/energy/model/simple-device-energy-model.h
• doc/introspected-doxygen.h
