ns3::SsServiceFlowManager Class Reference

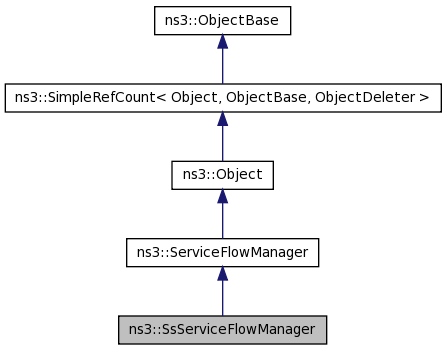

Inheritance diagram for ns3::SsServiceFlowManager:

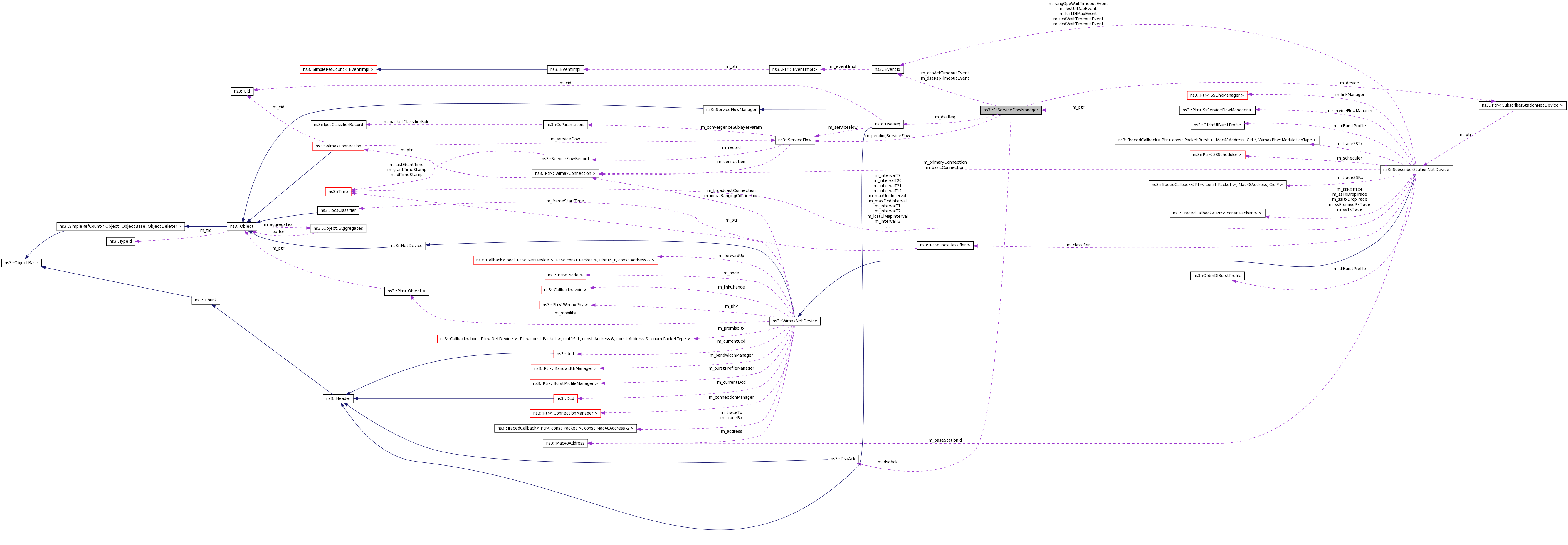

Collaboration diagram for ns3::SsServiceFlowManager:
Public Types | |
| enum | ConfirmationCode { CONFIRMATION_CODE_SUCCESS, CONFIRMATION_CODE_REJECT } |
Public Member Functions | |
| SsServiceFlowManager (Ptr< SubscriberStationNetDevice > device) | |
| creates a service flow manager and attaches it to a device | |
| void | DoDispose (void) |
| void | AddServiceFlow (ServiceFlow *serviceFlow) |
| add a service flow to the list | |
| void | AddServiceFlow (ServiceFlow serviceFlow) |
| add a service flow to the list | |
| void | SetMaxDsaReqRetries (uint8_t maxDsaReqRetries) |
| sets the maximum retries on DSA request message | |
| uint8_t | GetMaxDsaReqRetries (void) const |
| EventId | GetDsaRspTimeoutEvent (void) const |
| EventId | GetDsaAckTimeoutEvent (void) const |
| void | InitiateServiceFlows (void) |
| DsaReq | CreateDsaReq (const ServiceFlow *serviceFlow) |
| Ptr< Packet > | CreateDsaAck (void) |
| void | ScheduleDsaReq (const ServiceFlow *serviceFlow) |
| void | ProcessDsaRsp (const DsaRsp &dsaRsp) |
Constructor & Destructor Documentation
| ns3::SsServiceFlowManager::SsServiceFlowManager | ( | Ptr< SubscriberStationNetDevice > | device | ) |
creates a service flow manager and attaches it to a device
- Parameters:
-
device the device to which the service flow manager will be attached
Member Function Documentation
| void ns3::SsServiceFlowManager::AddServiceFlow | ( | ServiceFlow | serviceFlow | ) |
add a service flow to the list
- Parameters:
-
serviceFlow the service flow to add
| void ns3::SsServiceFlowManager::AddServiceFlow | ( | ServiceFlow * | serviceFlow | ) |
add a service flow to the list
- Parameters:
-
serviceFlow the service flow to add
Reimplemented from ns3::ServiceFlowManager.
| void ns3::SsServiceFlowManager::DoDispose | ( | void | ) | [virtual] |
This method is called by Object::Dispose or by the object's destructor, whichever comes first.
Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.
It is safe to call GetObject from within this method.
Reimplemented from ns3::ServiceFlowManager.
| uint8_t ns3::SsServiceFlowManager::GetMaxDsaReqRetries | ( | void | ) | const |
- Returns:
- the maximum retries on DSA request message
| void ns3::SsServiceFlowManager::SetMaxDsaReqRetries | ( | uint8_t | maxDsaReqRetries | ) |
sets the maximum retries on DSA request message
- Parameters:
-
maxDsaReqRetries the maximum retries on DSA request message
The documentation for this class was generated from the following file:
- src/devices/wimax/ss-service-flow-manager.h
