ns3::TcpRxBuffer Class Reference
[Tcp]

class for the reordering buffer that keeps the data from lower layer, i.e. TcpL4Protocol, sent to the application More...

#include <tcp-rx-buffer.h>

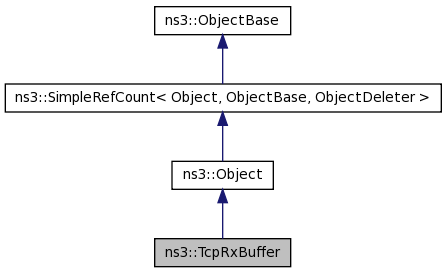

Inheritance diagram for ns3::TcpRxBuffer:

[legend]

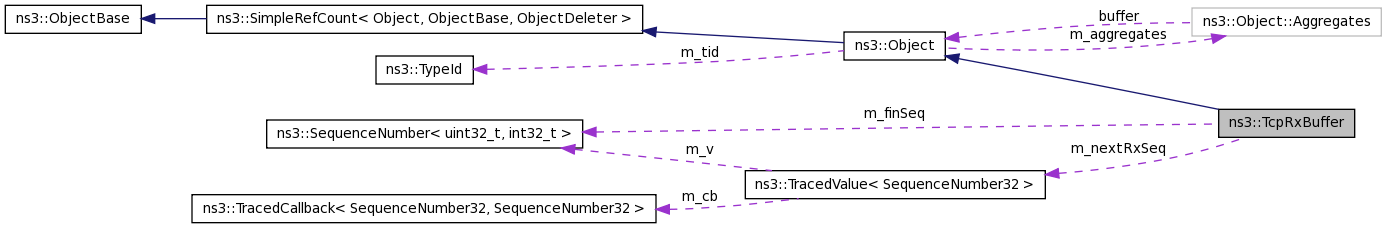

Collaboration diagram for ns3::TcpRxBuffer:

[legend]

List of all members.

Public Types
typedef std::map < SequenceNumber32, Ptr < Packet > >::iterator	BufIterator
Public Member Functions
	TcpRxBuffer (uint32_t n=0)
SequenceNumber32	NextRxSequence (void) const
SequenceNumber32	MaxRxSequence (void) const
void	IncNextRxSequence (void)
void	SetNextRxSequence (const SequenceNumber32 &s)
void	SetFinSequence (const SequenceNumber32 &s)
uint32_t	MaxBufferSize (void) const
void	SetMaxBufferSize (uint32_t s)
uint32_t	Size (void) const
uint32_t	Available () const
bool	Finished (void)
bool	Add (Ptr< Packet > p, TcpHeader const &tcph)
Ptr< Packet >	Extract (uint32_t maxSize)
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::Object.
Public Attributes
TracedValue< SequenceNumber32 >	m_nextRxSeq
SequenceNumber32	m_finSeq
bool	m_gotFin
uint32_t	m_size
uint32_t	m_maxBuffer
uint32_t	m_availBytes
std::map< SequenceNumber32, Ptr< Packet > >	m_data

---

Detailed Description

class for the reordering buffer that keeps the data from lower layer, i.e. TcpL4Protocol, sent to the application

---

Member Function Documentation

bool ns3::TcpRxBuffer::Add	(	Ptr< Packet >	p,
		TcpHeader const &	tcph
	)

Insert a packet into the buffer and update the availBytes counter to reflect the number of bytes ready to send to the application. This function handles overlap by triming the head of the inputted packet and removing data from the buffer that overlaps the tail of the inputted packet

Returns:

True when success, false otherwise.

Ptr<Packet> ns3::TcpRxBuffer::Extract

(

uint32_t

maxSize

)

Extract data from the head of the buffer as indicated by nextRxSeq. The extracted data is going to be forwarded to the application.

static TypeId ns3::TcpRxBuffer::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::Object.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

---

The documentation for this class was generated from the following file:

• src/internet-stack/tcp-rx-buffer.h
