ns3::ThreeLogDistancePropagationLossModel Class Reference
A log distance path loss propagation model with three distance fields. This model is the same as ns3::LogDistancePropagationLossModel except that it has three distance fields: near, middle and far with different exponents. More...
#include <propagation-loss-model.h>

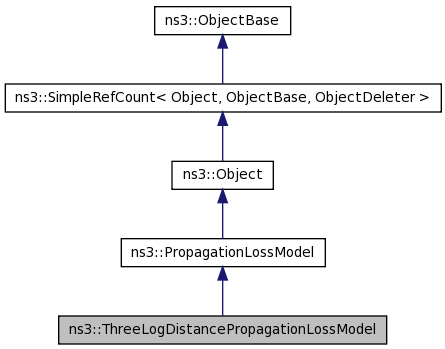

Inheritance diagram for ns3::ThreeLogDistancePropagationLossModel:

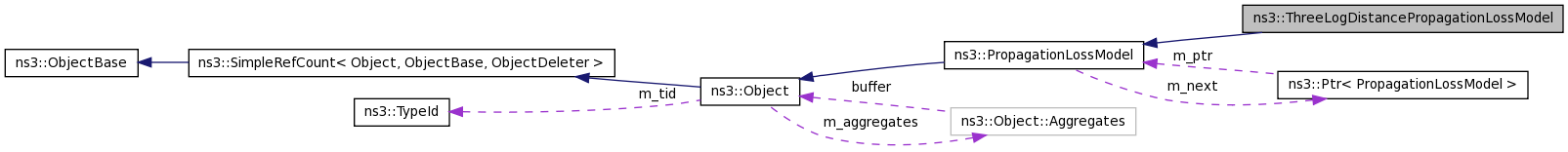

Collaboration diagram for ns3::ThreeLogDistancePropagationLossModel:
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::ThreeLogDistancePropagationLossModel. | |
Detailed Description
A log distance path loss propagation model with three distance fields. This model is the same as ns3::LogDistancePropagationLossModel except that it has three distance fields: near, middle and far with different exponents.
Within each field the reception power is calculated using the log-distance propagation equation:
![\[ L = L_0 + 10 \cdot n_0 log_{10}(\frac{d}{d_0})\]](form_29.png)
Each field begins where the previous ends and all together form a continuous function.
There are three valid distance fields: near, middle, far. Actually four: the first from 0 to the reference distance is invalid and returns txPowerDbm.
![\[ \underbrace{0 \cdots\cdots}_{=0} \underbrace{d_0 \cdots\cdots}_{n_0} \underbrace{d_1 \cdots\cdots}_{n_1} \underbrace{d_2 \cdots\cdots}_{n_2} \infty \]](form_30.png)
Complete formula for the path loss in dB:
![\[\displaystyle L = \begin{cases} 0 & d < d_0 \\ L_0 + 10 \cdot n_0 \log_{10}(\frac{d}{d_0}) & d_0 \leq d < d_1 \\ L_0 + 10 \cdot n_0 \log_{10}(\frac{d_1}{d_0}) + 10 \cdot n_1 \log_{10}(\frac{d}{d_1}) & d_1 \leq d < d_2 \\ L_0 + 10 \cdot n_0 \log_{10}(\frac{d_1}{d_0}) + 10 \cdot n_1 \log_{10}(\frac{d_2}{d_1}) + 10 \cdot n_2 \log_{10}(\frac{d}{d_2})& d_2 \leq d \end{cases}\]](form_31.png)
where:
: resulting path loss (dB)
: distance (m)
: three distance fields (m)
: path loss distance exponent for each field (unitless)
: path loss at reference distance (dB)
When the path loss is requested at a distance smaller than the reference distance
, the tx power (with no path loss) is returned. The reference distance defaults to 1m and reference loss defaults to ns3::FriisPropagationLossModel with 5.15 GHz and is thus = 46.67 dB.
Member Function Documentation
| static TypeId ns3::ThreeLogDistancePropagationLossModel::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::ThreeLogDistancePropagationLossModel.
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::ChannelListPriv/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WimaxPhy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WimaxPhy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel
Attributes defined for this type:
-
Distance0: Beginning of the first (near) distance field
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
-
Distance1: Beginning of the second (middle) distance field.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 200
- Flags: construct write read
-
Distance2: Beginning of the third (far) distance field.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 500
- Flags: construct write read
-
Exponent0: The exponent for the first field.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1.9
- Flags: construct write read
-
Exponent1: The exponent for the second field.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 3.8
- Flags: construct write read
-
Exponent2: The exponent for the third field.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 3.8
- Flags: construct write read
-
ReferenceLoss: The reference loss at distance d0 (dB). (Default is Friis at 1m with 5.15 GHz)
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 46.6777
- Flags: construct write read
No TraceSources defined for this type.
Reimplemented from ns3::PropagationLossModel.
The documentation for this class was generated from the following files:
- src/common/propagation-loss-model.h
- doc/introspected-doxygen.h
