ns3::UanMac Class Reference

Virtual base class for all UAN MAC protocols. More...

#include <uan-mac.h>

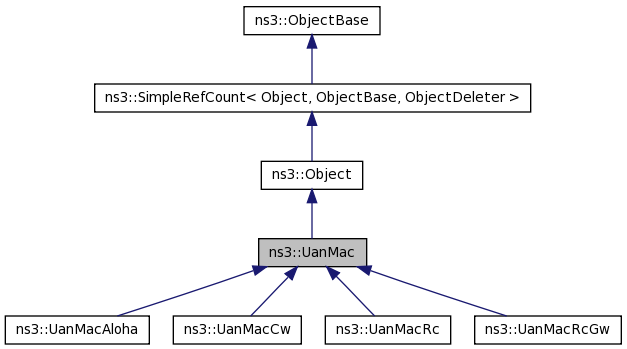

Inheritance diagram for ns3::UanMac:

[legend]

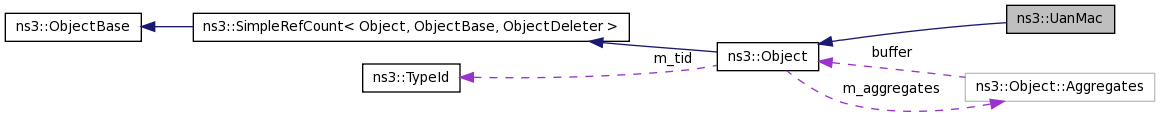

Collaboration diagram for ns3::UanMac:

[legend]

List of all members.

Public Member Functions
virtual Address	GetAddress (void)=0
virtual void	SetAddress (UanAddress addr)=0
virtual bool	Enqueue (Ptr< Packet > pkt, const Address &dest, uint16_t protocolNumber)=0
virtual void	SetForwardUpCb (Callback< void, Ptr< Packet >, const UanAddress & > cb)=0
virtual void	AttachPhy (Ptr< UanPhy > phy)=0
virtual Address	GetBroadcast (void) const =0
virtual void	Clear (void)=0

---

Detailed Description

Virtual base class for all UAN MAC protocols.

---

Member Function Documentation

virtual void ns3::UanMac::AttachPhy

(

Ptr< UanPhy >

phy

)

[pure virtual]

Attach PHY layer to this MAC. Some MACs may be designed to work with multiple PHY layers. Others may only work with one.

Parameters:

phy

Phy layer to attach to this MAC

Implemented in ns3::UanMacAloha, ns3::UanMacCw, ns3::UanMacRcGw, and ns3::UanMacRc.

virtual void ns3::UanMac::Clear

(

void

)

[pure virtual]

Clears all pointer references

Implemented in ns3::UanMacAloha, ns3::UanMacCw, ns3::UanMacRcGw, and ns3::UanMacRc.

virtual bool ns3::UanMac::Enqueue	(	Ptr< Packet >	pkt,
		const Address &	dest,
		uint16_t	protocolNumber
	)			[pure virtual]

Enqueue packet to be transmitted

Parameters:

	pkt	Packet to be transmitted
	dest	Destination address
	protocolNumber	Protocol #. Usage varies by MAC

Implemented in ns3::UanMacAloha, ns3::UanMacCw, ns3::UanMacRcGw, and ns3::UanMacRc.

virtual Address ns3::UanMac::GetAddress

(

void

)

[pure virtual]

Returns:

MAC Address

Implemented in ns3::UanMacAloha, ns3::UanMacCw, ns3::UanMacRcGw, and ns3::UanMacRc.

virtual Address ns3::UanMac::GetBroadcast

(

void

)

const [pure virtual]

Returns:

Broadcast address

Implemented in ns3::UanMacAloha, ns3::UanMacCw, ns3::UanMacRcGw, and ns3::UanMacRc.

virtual void ns3::UanMac::SetAddress

(

UanAddress

addr

)

[pure virtual]

Parameters:

addr

UanAddress for this MAC

Implemented in ns3::UanMacAloha, ns3::UanMacCw, ns3::UanMacRcGw, and ns3::UanMacRc.

virtual void ns3::UanMac::SetForwardUpCb

(

Callback< void, Ptr< Packet >, const UanAddress & >

cb

)

[pure virtual]

Parameters:

cb

Callback to be called when a packet is forwarded up to higher layer

Implemented in ns3::UanMacAloha, ns3::UanMacCw, ns3::UanMacRcGw, and ns3::UanMacRc.

---

The documentation for this class was generated from the following file:

• src/devices/uan/model/uan-mac.h
