ns3::UanPhyCalcSinrDefault Class Reference

Default SINR calculator for UanPhyGen The default ignores mode data and assumes that all rxpower transmitted is captured by the receiver, and that all signal power associated with interfering packets affects SINR identically to additional ambient noise. More...

#include <uan-phy-gen.h>

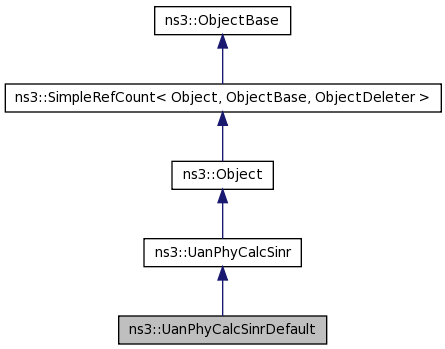

Inheritance diagram for ns3::UanPhyCalcSinrDefault:

[legend]

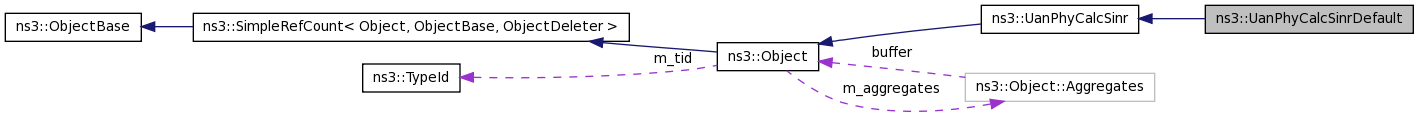

Collaboration diagram for ns3::UanPhyCalcSinrDefault:

[legend]

List of all members.

Public Member Functions
virtual double	CalcSinrDb (Ptr< Packet > pkt, Time arrTime, double rxPowerDb, double ambNoiseDb, UanTxMode mode, UanPdp pdp, const UanTransducer::ArrivalList &arrivalList) const
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::UanPhyCalcSinrDefault.

---

Detailed Description

Default SINR calculator for UanPhyGen The default ignores mode data and assumes that all rxpower transmitted is captured by the receiver, and that all signal power associated with interfering packets affects SINR identically to additional ambient noise.

---

Member Function Documentation

virtual double ns3::UanPhyCalcSinrDefault::CalcSinrDb	(	Ptr< Packet >	pkt,
		Time	arrTime,
		double	rxPowerDb,
		double	ambNoiseDb,
		UanTxMode	mode,
		UanPdp	pdp,
		const UanTransducer::ArrivalList &	arrivalList
	)			const [virtual]

This implementation simply adds all arriving signal power and assumes it acts identically to additional noise.

Parameters:

	pkt	Packet which is under consideration
	arrTime	Arrival time of packet pkt
	rxPowerDb	Received signal power at receiver
	ambNoiseDb	Ambient channel noise in dB re 1 uPa
	mode	TX mode used to transmit packet
	pdp	Power delay profile of arriving packet pkt
	arrivalList	List of other, simultaneously arriving packets

Returns:

Probability of packet error

Implements ns3::UanPhyCalcSinr.

static TypeId ns3::UanPhyCalcSinrDefault::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::UanPhyCalcSinrDefault.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::UanPhyCalcSinrDefault
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::UanPhyCalcSinrDefault

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

---

The documentation for this class was generated from the following files:

• src/devices/uan/model/uan-phy-gen.h
• doc/introspected-doxygen.h
