ns3::UdpServerHelper Class Reference

Create a server application which waits for input udp packets and uses the information carried into their payload to compute delay and to determine if some packets are lost. More...

#include <udp-client-server-helper.h>

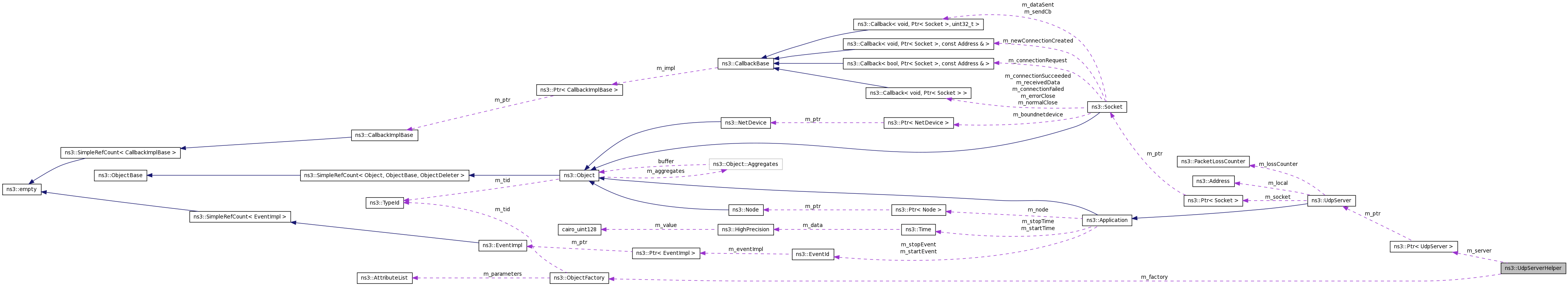

Collaboration diagram for ns3::UdpServerHelper:

[legend]

List of all members.

Public Member Functions
	UdpServerHelper ()
	UdpServerHelper (uint16_t port)
void	SetAttribute (std::string name, const AttributeValue &value)
ApplicationContainer	Install (NodeContainer c)
Ptr< UdpServer >	GetServer (void)

---

Detailed Description

Create a server application which waits for input udp packets and uses the information carried into their payload to compute delay and to determine if some packets are lost.

---

Constructor & Destructor Documentation

ns3::UdpServerHelper::UdpServerHelper

(

)

Create UdpServerHelper which will make life easier for people trying to set up simulations with udp-client-server application.

ns3::UdpServerHelper::UdpServerHelper

(

uint16_t

port

)

Create UdpServerHelper which will make life easier for people trying to set up simulations with udp-client-server application.

Parameters:

port

The port the server will wait on for incoming packets

---

Member Function Documentation

ApplicationContainer ns3::UdpServerHelper::Install

(

NodeContainer

c

)

Create one udp server application on each of the Nodes in the NodeContainer.

Parameters:

c

The nodes on which to create the Applications. The nodes are specified by a NodeContainer.

Returns:

The applications created, one Application per Node in the NodeContainer.

void ns3::UdpServerHelper::SetAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Record an attribute to be set in each Application after it is is created.

Parameters:

	name	the name of the attribute to set
	value	the value of the attribute to set

---

The documentation for this class was generated from the following file:

• src/helper/udp-client-server-helper.h
