ns3::Watchdog Class Reference
[Simulator]

a very simple watchdog More...

#include <watchdog.h>

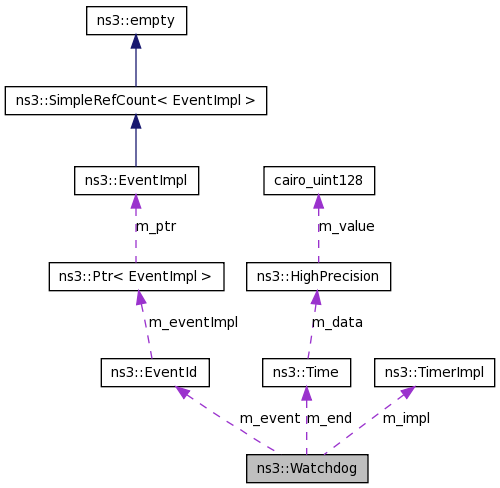

Collaboration diagram for ns3::Watchdog:

[legend]

List of all members.

Public Member Functions
void	Ping (Time delay)
template<typename FN >
void	SetFunction (FN fn)
template<typename MEM_PTR , typename OBJ_PTR >
void	SetFunction (MEM_PTR memPtr, OBJ_PTR objPtr)
template<typename T1 >
void	SetArguments (T1 a1)
template<typename T1 , typename T2 >
void	SetArguments (T1 a1, T2 a2)
template<typename T1 , typename T2 , typename T3 >
void	SetArguments (T1 a1, T2 a2, T3 a3)
template<typename T1 , typename T2 , typename T3 , typename T4 >
void	SetArguments (T1 a1, T2 a2, T3 a3, T4 a4)
template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >
void	SetArguments (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5)
template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >
void	SetArguments (T1 a1, T2 a2, T3 a3, T4 a4, T5 a5, T6 a6)

---

Detailed Description

a very simple watchdog

If you don't ping the watchdog sufficiently often, it triggers its listening function.

---

Member Function Documentation

void ns3::Watchdog::Ping

(

Time

delay

)

Parameters:

delay

the watchdog delay

After a call to this method, the watchdog will not be triggered until the delay specified has been expired. This operation is sometimes named "re-arming" a watchdog in some operating systems.

template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 , typename T6 >

void ns3::Watchdog::SetArguments	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5,
		T6	a6
	)			[inline]

Parameters:

	a1	the first argument
	a2	the second argument
	a3	the third argument
	a4	the fourth argument
	a5	the fifth argument
	a6	the sixth argument

Store these arguments in this Timer for later use by Timer::Schedule.

References NS_FATAL_ERROR.

template<typename T1 , typename T2 , typename T3 , typename T4 , typename T5 >

void ns3::Watchdog::SetArguments	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4,
		T5	a5
	)			[inline]

Parameters:

	a1	the first argument
	a2	the second argument
	a3	the third argument
	a4	the fourth argument
	a5	the fifth argument

Store these arguments in this Timer for later use by Timer::Schedule.

References NS_FATAL_ERROR.

template<typename T1 , typename T2 , typename T3 , typename T4 >

void ns3::Watchdog::SetArguments	(	T1	a1,
		T2	a2,
		T3	a3,
		T4	a4
	)			[inline]

Parameters:

	a1	the first argument
	a2	the second argument
	a3	the third argument
	a4	the fourth argument

Store these arguments in this Timer for later use by Timer::Schedule.

References NS_FATAL_ERROR.

template<typename T1 , typename T2 , typename T3 >

void ns3::Watchdog::SetArguments	(	T1	a1,
		T2	a2,
		T3	a3
	)			[inline]

Parameters:

	a1	the first argument
	a2	the second argument
	a3	the third argument

Store these arguments in this Timer for later use by Timer::Schedule.

References NS_FATAL_ERROR.

template<typename T1 , typename T2 >

void ns3::Watchdog::SetArguments	(	T1	a1,
		T2	a2
	)			[inline]

Parameters:

	a1	the first argument
	a2	the second argument

Store these arguments in this Timer for later use by Timer::Schedule.

References NS_FATAL_ERROR.

template<typename T1 >

void ns3::Watchdog::SetArguments

(

T1

a1

)

[inline]

Parameters:

a1

the first argument

Store this argument in this Timer for later use by Timer::Schedule.

References NS_FATAL_ERROR.

template<typename MEM_PTR , typename OBJ_PTR >

void ns3::Watchdog::SetFunction	(	MEM_PTR	memPtr,
		OBJ_PTR	objPtr
	)			[inline]

Parameters:

	memPtr	the member function pointer
	objPtr	the pointer to object

Store this function and object in this Timer for later use by Timer::Schedule.

template<typename FN >

void ns3::Watchdog::SetFunction

(

FN

fn

)

[inline]

Parameters:

fn

the function

Store this function in this Timer for later use by Timer::Schedule.

---

The documentation for this class was generated from the following file:

• src/simulator/watchdog.h
