ns3::WimaxMacQueue Class Reference

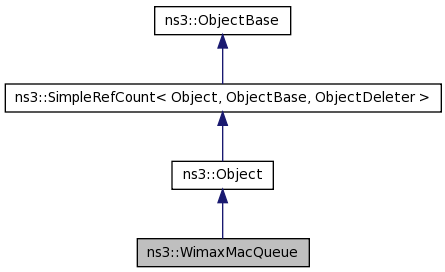

Inheritance diagram for ns3::WimaxMacQueue:
Inheritance graph
[legend]

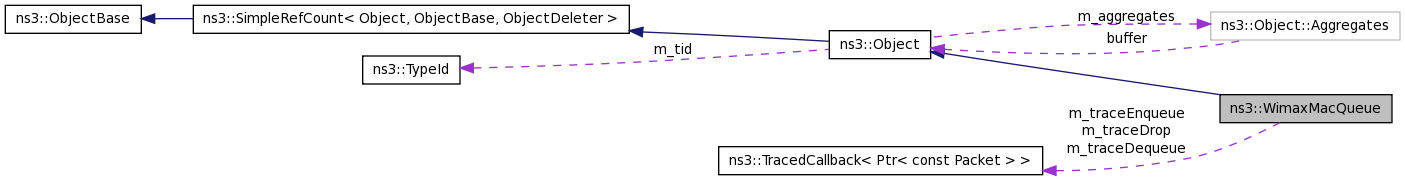

Collaboration diagram for ns3::WimaxMacQueue:
Collaboration graph
[legend]

List of all members.

Classes

struct  QueueElement

Public Member Functions

 WimaxMacQueue (uint32_t maxSize)
void SetMaxSize (uint32_t maxSize)
 set the maximum queue size
uint32_t GetMaxSize (void) const
bool Enqueue (Ptr< Packet > packet, const MacHeaderType &hdrType, const GenericMacHeader &hdr)
 Enqueue a packet.
Ptr< Packet > Dequeue (MacHeaderType::HeaderType packetType)
 Dequeue a packet of type packetType from the queue.
Ptr< Packet > Dequeue (MacHeaderType::HeaderType packetType, uint32_t availableByte)
 Dequeue a fragment of size availableByte from the queue.
Ptr< Packet > Peek (GenericMacHeader &hdr) const
 Same as Dequeue but does not pop from queue.
Ptr< Packet > Peek (GenericMacHeader &hdr, Time &timeStamp) const
Ptr< Packet > Peek (MacHeaderType::HeaderType packetType) const
 Two versions for SS without Generic MAC Header parameter, as SS's scheduler does not require to know the CID in Generic MAC Header.
Ptr< Packet > Peek (MacHeaderType::HeaderType packetType, Time &timeStamp) const
bool IsEmpty (void) const
bool IsEmpty (MacHeaderType::HeaderType packetType) const
uint32_t GetSize (void) const
uint32_t GetNBytes (void) const
bool CheckForFragmentation (MacHeaderType::HeaderType packetType)
 Fragmentation utilities.
uint32_t GetFirstPacketHdrSize (MacHeaderType::HeaderType packetType)
uint32_t GetFirstPacketPayloadSize (MacHeaderType::HeaderType packetType)
uint32_t GetFirstPacketRequiredByte (MacHeaderType::HeaderType packetType)
uint32_t GetQueueLengthWithMACOverhead (void)
void SetFragmentation (MacHeaderType::HeaderType packetType)
void SetFragmentNumber (MacHeaderType::HeaderType packetType)
void SetFragmentOffset (MacHeaderType::HeaderType packetType, uint32_t offset)
const WimaxMacQueue::PacketQueue & GetPacketQueue (void) const

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::WimaxMacQueue.

Member Function Documentation

Ptr<Packet> ns3::WimaxMacQueue::Dequeue ( MacHeaderType::HeaderType  packetType,
uint32_t  availableByte
)

Dequeue a fragment of size availableByte from the queue.

Parameters:
packetType the type of the packet
availableByte the size of the fragment
Returns:
the first packet in the queue if its size is lower than availableByte, the first availableByte of the first packet otherwise
Ptr<Packet> ns3::WimaxMacQueue::Dequeue ( MacHeaderType::HeaderType  packetType  )

Dequeue a packet of type packetType from the queue.

Parameters:
packetType the type of the packet
Returns:
the first packet in the queue
bool ns3::WimaxMacQueue::Enqueue ( Ptr< Packet >  packet,
const MacHeaderType &  hdrType,
const GenericMacHeader &  hdr
)

Enqueue a packet.

Parameters:
packet the packet to enqueue
hdrType the mac header type of the packet
hdr the header of the packet
uint32_t ns3::WimaxMacQueue::GetMaxSize ( void   )  const
Returns:
the maximum queue size
static TypeId ns3::WimaxMacQueue::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::WimaxMacQueue.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BroadcastConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/InitialRangingConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::WimaxMacQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::SubscriberStationNetDevice/BasicConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::SubscriberStationNetDevice/PrimaryConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::WimaxConnection/TxQueue
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::WimaxMacQueue

Attributes defined for this type:

  • MaxSize: Maximum size

TraceSources defined for this type:

  • Enqueue: Enqueue trace
  • Dequeue: Dequeue trace
  • Drop: Drop trace

Reimplemented from ns3::Object.

Ptr<Packet> ns3::WimaxMacQueue::Peek ( GenericMacHeader &  hdr  )  const

Same as Dequeue but does not pop from queue.

Exclusive for BS. Two versions of Peek function (with Generic MAC Header as parameter) only for BS, as BS's scheduler needs to know the CID in Generic MAC Header.

void ns3::WimaxMacQueue::SetMaxSize ( uint32_t  maxSize  )

set the maximum queue size

Parameters:
maxSize the max queue size
The documentation for this class was generated from the following files:
Generated on 6 Jan 2011 for NS-3 by  doxygen 1.6.1
