ns3::dot11s::HwmpProtocolMac Class Reference
[IEEE 802.11s draft]

Interface MAC plugin for HWMP -- 802.11s routing protocol. More...

#include <hwmp-protocol-mac.h>

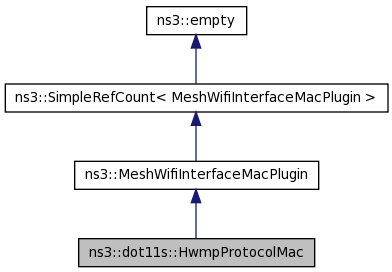

Inheritance diagram for ns3::dot11s::HwmpProtocolMac:

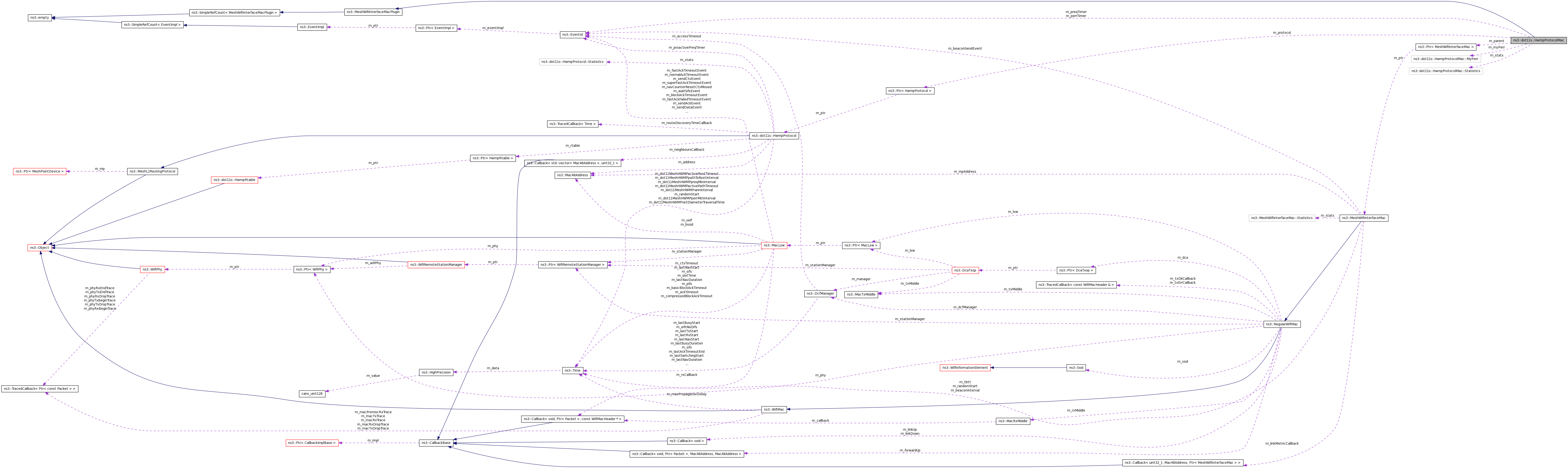

Collaboration diagram for ns3::dot11s::HwmpProtocolMac:

Classes
struct	MyPerr
struct	Statistics
Public Member Functions
	HwmpProtocolMac (uint32_t, Ptr< HwmpProtocol >)
Inherited from MAC plugin

void	SetParent (Ptr< MeshWifiInterfaceMac > parent)
	Each plugin must be installed on interface to work.
bool	Receive (Ptr< Packet > packet, const WifiMacHeader &header)
	Process received frame.
bool	UpdateOutcomingFrame (Ptr< Packet > packet, WifiMacHeader &header, Mac48Address from, Mac48Address to)
	Update frame before it will be forwarded down.
void	UpdateBeacon (MeshWifiBeacon &beacon) const
	Update beacon is empty, because HWMP does not know anything about beacons.
Friends
class	HwmpProtocol

Detailed Description

Interface MAC plugin for HWMP -- 802.11s routing protocol.

bool ns3::dot11s::HwmpProtocolMac::Receive	(	Ptr< Packet >	packet,
		const WifiMacHeader &	header
	)			`[virtual]`

Process received frame.

Returns:: false if (and only if) frame should be dropped TODO define when MAC call this

bool ns3::dot11s::HwmpProtocolMac::UpdateOutcomingFrame	(	Ptr< Packet >	packet,
		WifiMacHeader &	header,
		Mac48Address	from,
		Mac48Address	to
	)			`[virtual]`

Update frame before it will be forwarded down.

Returns:: false if (and only if) frame should be dropped TODO define when MAC call this, preconditions & postconditions

The documentation for this class was generated from the following file:
