ns3::Application Class Reference

The base class for all ns3 applications. More...

#include <application.h>

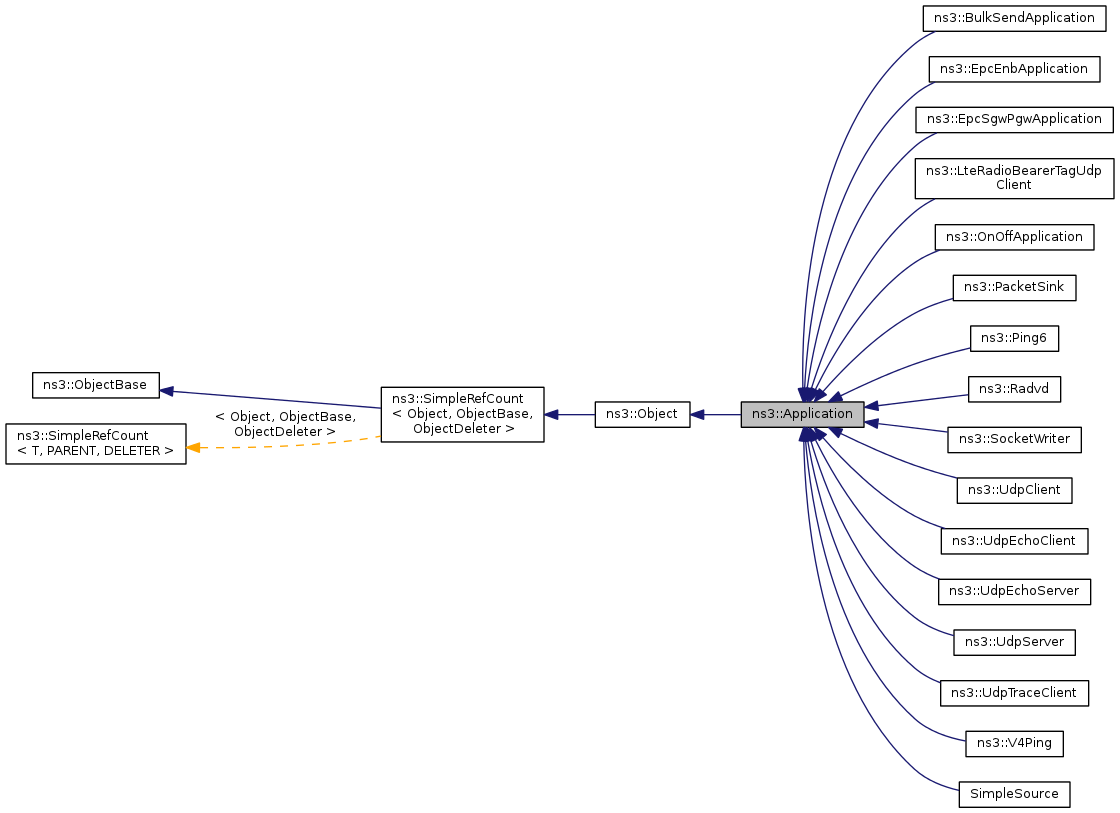

+ Inheritance diagram for ns3::Application:

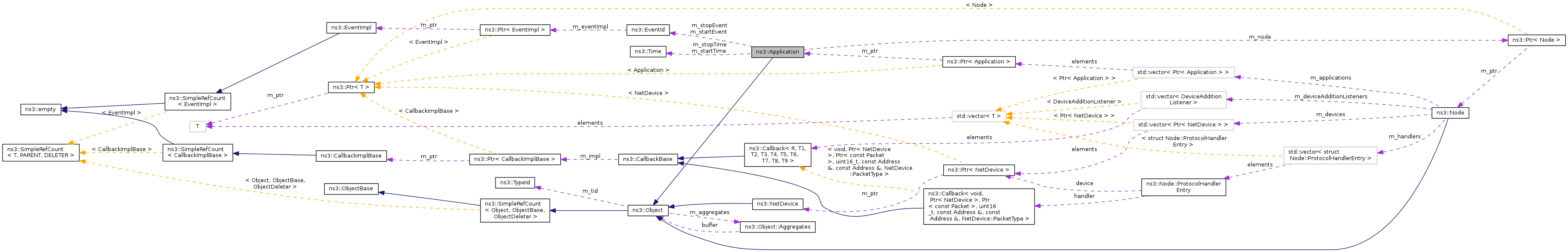

+ Collaboration diagram for ns3::Application:

Public Member Functions

 Application ()
virtual ~Application ()
Ptr< Node > GetNode () const
void SetNode (Ptr< Node > node)
void SetStartTime (Time start)
 Specify application start time.
void SetStopTime (Time stop)
 Specify application stop time.
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Start (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::Application.

Protected Member Functions

virtual void DoDispose (void)
virtual void DoStart (void)
- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void NotifyNewAggregate (void)

Protected Attributes

Ptr< Node > m_node
EventId m_startEvent
Time m_startTime
EventId m_stopEvent
Time m_stopTime

Private Member Functions

virtual void StartApplication (void)
 Application specific startup code.
virtual void StopApplication (void)
 Application specific shutdown code.

Detailed Description

The base class for all ns3 applications.

Definition at line 61 of file application.h.

Constructor & Destructor Documentation

ns3::Application::Application ( )

Definition at line 55 of file application.cc.

ns3::Application::~Application ( )
virtual

Definition at line 60 of file application.cc.

Member Function Documentation

void ns3::Application::DoDispose ( void  )
protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::UdpEchoClient, ns3::OnOffApplication, ns3::UdpTraceClient, ns3::Ping6, ns3::PacketSink, ns3::Radvd, ns3::LteRadioBearerTagUdpClient, ns3::BulkSendApplication, ns3::UdpServer, ns3::UdpClient, ns3::EpcSgwPgwApplication, and ns3::UdpEchoServer.

Definition at line 77 of file application.cc.

void ns3::Application::DoStart ( void  )
protectedvirtual

This method is called only once by Object::Start. If the user calls Object::Start multiple times, DoStart is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 86 of file application.cc.

References ns3::TimeStep().

+ Here is the call graph for this function:

Ptr< Node > ns3::Application::GetNode ( void  ) const
Returns
the Node to which this Application object is attached.

Definition at line 96 of file application.cc.

Referenced by ns3::V4Ping::GetApplicationId(), ns3::V4Ping::Receive(), ns3::V4Ping::Send(), ns3::Ping6::Send(), ns3::Radvd::Send(), ns3::V4Ping::StartApplication(), ns3::UdpEchoServer::StartApplication(), ns3::UdpClient::StartApplication(), ns3::UdpServer::StartApplication(), ns3::BulkSendApplication::StartApplication(), ns3::LteRadioBearerTagUdpClient::StartApplication(), ns3::Ping6::StartApplication(), ns3::Radvd::StartApplication(), ns3::UdpTraceClient::StartApplication(), and ns3::UdpEchoClient::StartApplication().

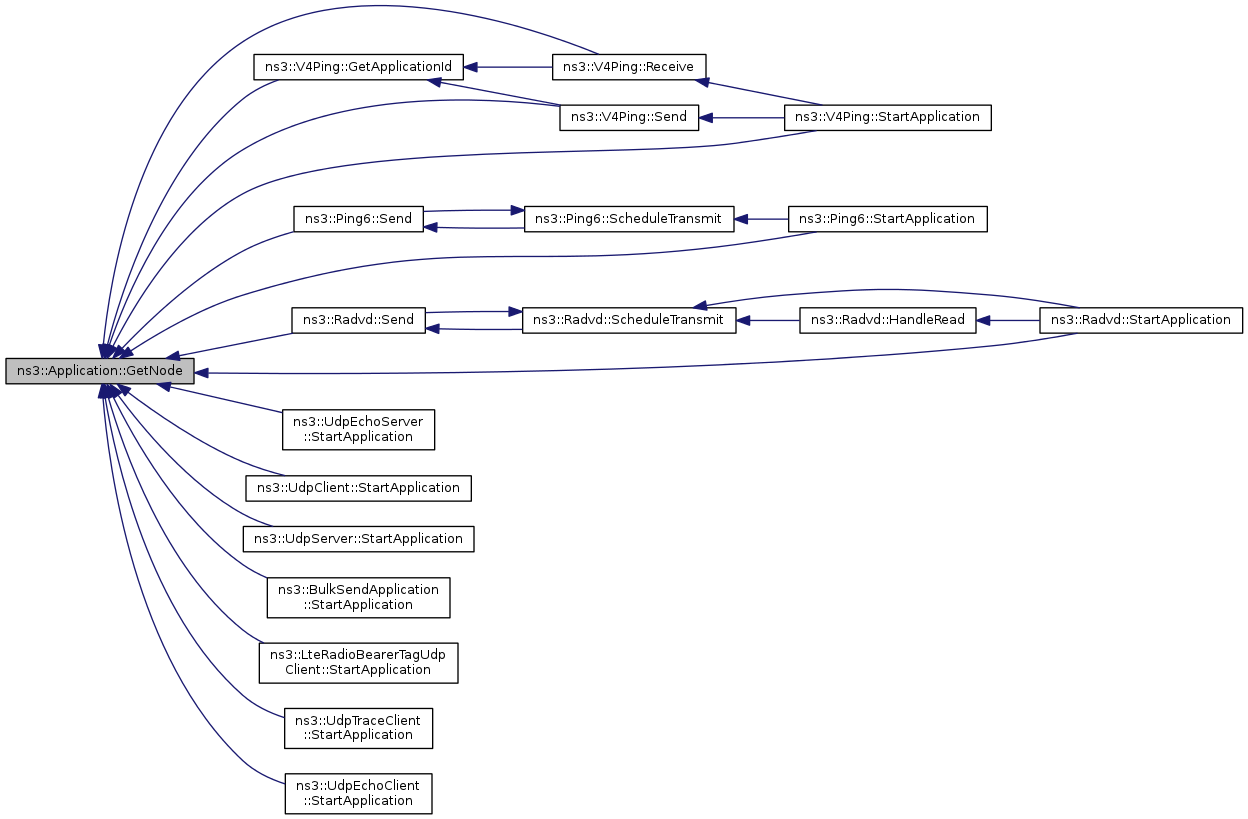

+ Here is the caller graph for this function:

TypeId ns3::Application::GetTypeId ( void  )
static

This method returns the TypeId associated to ns3::Application.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/ApplicationList/[i]

Attributes defined for this type:

  • StartTime: Time at which the application will start
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +0.0ns
    • Flags: construct write read
  • StopTime: Time at which the application will stop
    • Set with class: TimeValue
    • Underlying type: Time
    • Initial value: +0.0ns
    • Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Reimplemented in ns3::OnOffApplication, ns3::PacketSink, ns3::LteRadioBearerTagUdpClient, ns3::UdpTraceClient, ns3::Radvd, ns3::BulkSendApplication, ns3::Ping6, ns3::EpcSgwPgwApplication, ns3::EpcEnbApplication, ns3::UdpServer, ns3::UdpClient, ns3::UdpEchoServer, ns3::UdpEchoClient, and ns3::V4Ping.

Definition at line 38 of file application.cc.

References ns3::Seconds(), ns3::TypeId::SetParent(), and ns3::TimeStep().

+ Here is the call graph for this function:

void ns3::Application::SetNode ( Ptr< Node >  node)
Parameters
nodethe node to which this Application object is attached.

Definition at line 102 of file application.cc.

Referenced by ns3::Node::AddApplication().

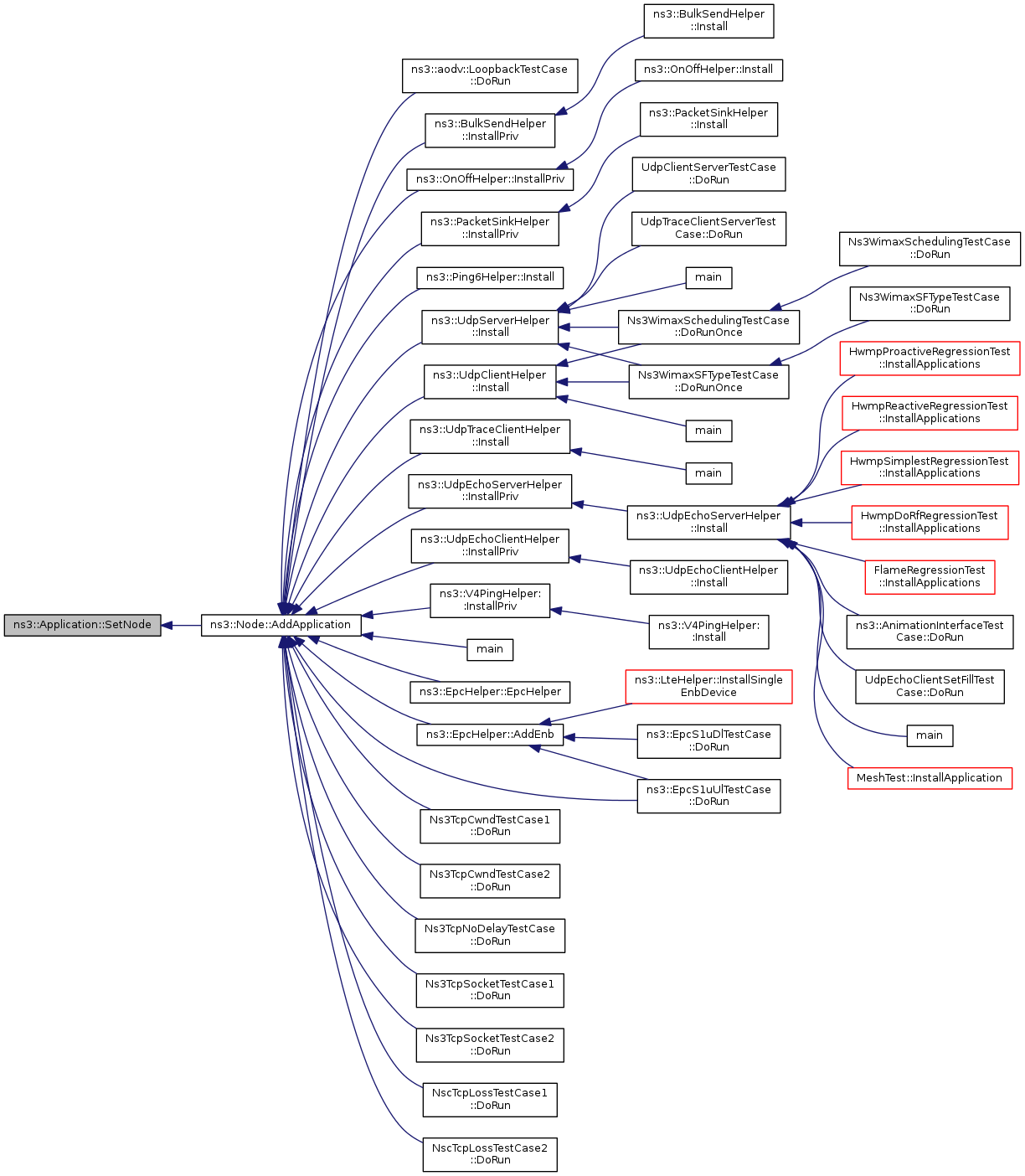

+ Here is the caller graph for this function:

void ns3::Application::SetStartTime ( Time  start)

Specify application start time.

Parameters
startStart time for this application, relative to the current simulation time.

Applications start at various times in the simulation scenario. The Start method specifies when the application should be started. The application subclasses should override the private "StartApplication" method defined below, which is called at the time specified, to cause the application to begin.

Definition at line 65 of file application.cc.

References visualizer.core::start().

Referenced by Ns3TcpNoDelayTestCase::DoRun(), Ns3TcpSocketTestCase1::DoRun(), NscTcpLossTestCase1::DoRun(), Ns3TcpSocketTestCase2::DoRun(), NscTcpLossTestCase2::DoRun(), Ns3TcpCwndTestCase1::DoRun(), Ns3TcpCwndTestCase2::DoRun(), main(), and ns3::ApplicationContainer::Start().

+ Here is the call graph for this function:

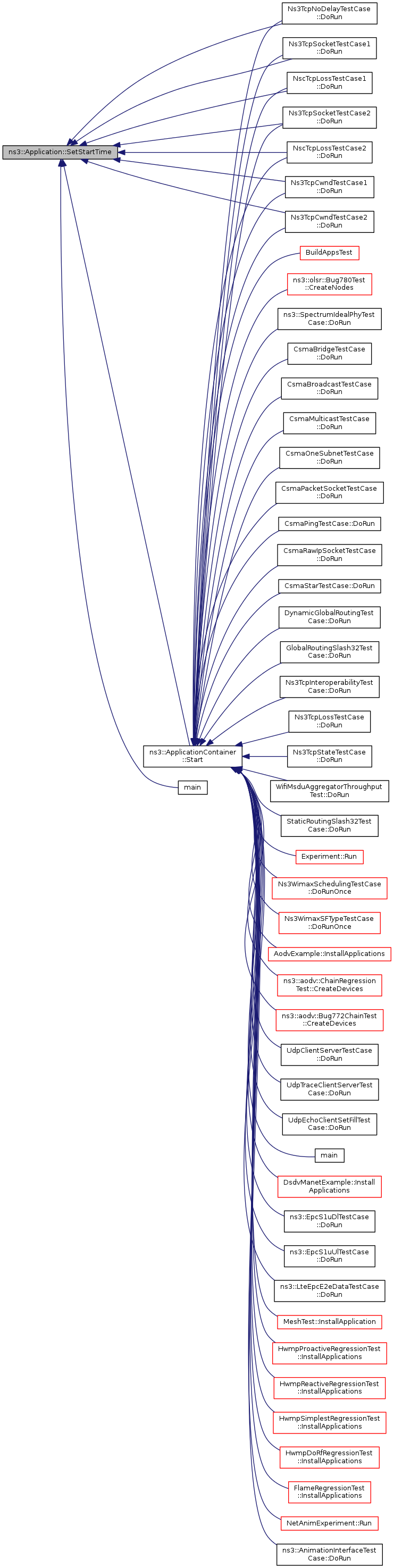

+ Here is the caller graph for this function:

void ns3::Application::SetStopTime ( Time  stop)

Specify application stop time.

Parameters
stopStop time for this application, relative to the current simulation time.

Once an application has started, it is sometimes useful to stop the application. The Stop method specifies when an application is to stop. The application subclasses should override the private StopApplication method, to be notified when that time has come.

Definition at line 70 of file application.cc.

Referenced by Ns3TcpNoDelayTestCase::DoRun(), Ns3TcpSocketTestCase1::DoRun(), NscTcpLossTestCase1::DoRun(), Ns3TcpSocketTestCase2::DoRun(), NscTcpLossTestCase2::DoRun(), Ns3TcpCwndTestCase1::DoRun(), Ns3TcpCwndTestCase2::DoRun(), main(), and ns3::ApplicationContainer::Stop().

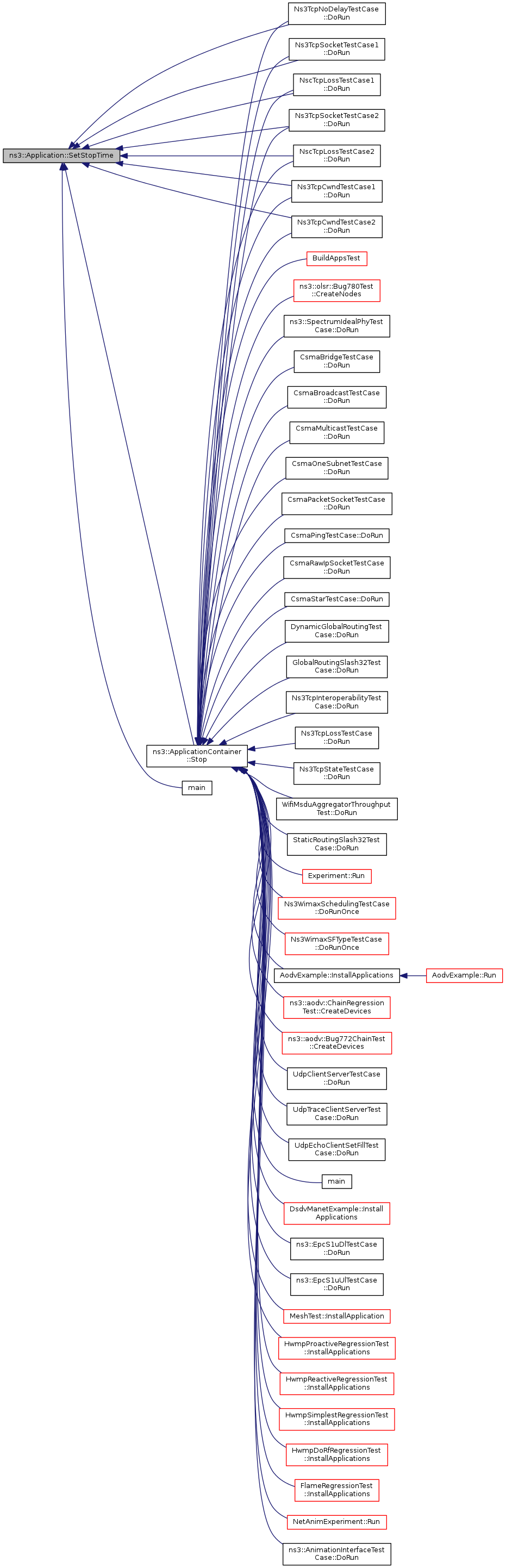

+ Here is the caller graph for this function:

void ns3::Application::StartApplication ( void  )
privatevirtual

Application specific startup code.

The StartApplication method is called at the start time specified by Start This method should be overridden by all or most application subclasses.

Definition at line 109 of file application.cc.

void ns3::Application::StopApplication ( void  )
privatevirtual

Application specific shutdown code.

The StopApplication method is called at the stop time specified by Stop This method should be overridden by all or most application subclasses.

Definition at line 113 of file application.cc.

Member Data Documentation

Ptr<Node> ns3::Application::m_node
protected

Definition at line 126 of file application.h.

EventId ns3::Application::m_startEvent
protected

Definition at line 129 of file application.h.

Time ns3::Application::m_startTime
protected

Definition at line 127 of file application.h.

EventId ns3::Application::m_stopEvent
protected

Definition at line 130 of file application.h.

Time ns3::Application::m_stopTime
protected

Definition at line 128 of file application.h.

The documentation for this class was generated from the following files:
