Base class for device energy models. More...

#include <device-energy-model.h>

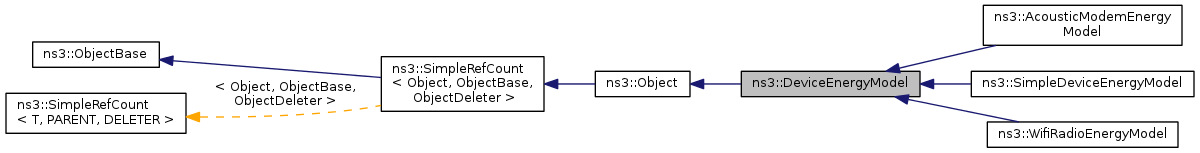

Inheritance diagram for ns3::DeviceEnergyModel:

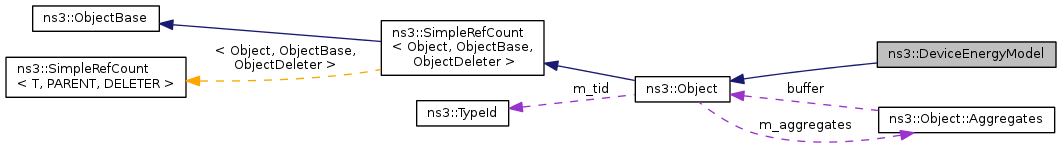

Collaboration diagram for ns3::DeviceEnergyModel:

Public Types
typedef Callback< void, int >	ChangeStateCallback

Public Member Functions
	DeviceEnergyModel ()
virtual	~DeviceEnergyModel ()
virtual void	ChangeState (int newState)=0
double	GetCurrentA (void) const
virtual double	GetTotalEnergyConsumption (void) const =0
virtual void	HandleEnergyDepletion (void)=0
virtual void	SetEnergySource (Ptr< EnergySource > source)=0
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::DeviceEnergyModel.

Private Member Functions
virtual double	DoGetCurrentA (void) const

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Base class for device energy models.

A device energy model should represent the energy consumption behavior of a specific device. It will update remaining energy stored in the EnergySource object installed on node. When energy is depleted, each DeviceEnergyModel object installed on the same node will be informed by the EnergySource.

Definition at line 43 of file device-energy-model.h.

Member Typedef Documentation

typedef Callback<void, int> ns3::DeviceEnergyModel::ChangeStateCallback

Callback type for ChangeState function. Devices uses this state to notify DeviceEnergyModel of a state change.

Definition at line 50 of file device-energy-model.h.

Constructor & Destructor Documentation

ns3::DeviceEnergyModel::DeviceEnergyModel ( )

Definition at line 36 of file device-energy-model.cc.

ns3::DeviceEnergyModel::~DeviceEnergyModel ( )

virtual

Definition at line 40 of file device-energy-model.cc.

Member Function Documentation

virtual void ns3::DeviceEnergyModel::ChangeState ( int newState )

pure virtual

Parameters

newState New state the device is in.

DeviceEnergyModel is a state based model. This function is implemented by all child of DeviceEnergyModel to change the model's state. States are to be defined by each child using an enum (int).

Implemented in ns3::WifiRadioEnergyModel, ns3::AcousticModemEnergyModel, and ns3::SimpleDeviceEnergyModel.

Referenced by ns3::AcousticModemEnergyModelHelper::DoInstall(), and ns3::WifiRadioEnergyModel::WifiRadioEnergyModel().

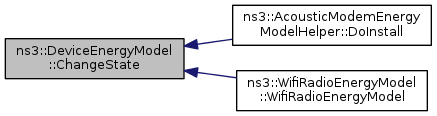

Here is the caller graph for this function:

double ns3::DeviceEnergyModel::DoGetCurrentA ( void ) const

privatevirtual

Returns: 0.0 as the current value, in Ampere.

Child class does not have to implement this method if current draw for its states are not know. This default method will always return 0.0A. For the devices who does know the current draw of its states, this method must be overwritten.

Definition at line 55 of file device-energy-model.cc.

Referenced by GetCurrentA().

Here is the caller graph for this function:

double ns3::DeviceEnergyModel::GetCurrentA ( void ) const

Returns: Current draw of the device, in Ampere.

This function returns the current draw at the device in its current state. This function is called from the EnergySource to obtain the total current draw at any given time during simulation.

Definition at line 45 of file device-energy-model.cc.

References DoGetCurrentA().

Here is the call graph for this function:
