Allocate buildings on a rectangular 2d grid. More...
#include <building-allocator.h>
Public Member Functions | |
GridBuildingAllocator () | |
virtual | ~GridBuildingAllocator () |
BuildingContainer | Create (uint32_t n) const |
void | SetBuildingAttribute (std::string n, const AttributeValue &v) |
![]() | |
Object () | |
virtual | ~Object () |
void | AggregateObject (Ptr< Object > other) |
void | Dispose (void) |
AggregateIterator | GetAggregateIterator (void) const |
virtual TypeId | GetInstanceTypeId (void) const |
template<typename T > | |
Ptr< T > | GetObject (void) const |
template<typename T > | |
Ptr< T > | GetObject (TypeId tid) const |
void | Start (void) |
![]() | |
SimpleRefCount () | |
SimpleRefCount (const SimpleRefCount &o) | |
uint32_t | GetReferenceCount (void) const |
SimpleRefCount & | operator= (const SimpleRefCount &o) |
void | Ref (void) const |
void | Unref (void) const |
![]() | |
virtual | ~ObjectBase () |
void | GetAttribute (std::string name, AttributeValue &value) const |
bool | GetAttributeFailSafe (std::string name, AttributeValue &attribute) const |
void | SetAttribute (std::string name, const AttributeValue &value) |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Static Public Member Functions | |
static TypeId | GetTypeId (void) |
This method returns the TypeId associated to ns3::GridBuildingAllocator. |
Private Member Functions | |
void | PushAttributes () const |
Private Attributes | |
ObjectFactory | m_buildingFactory |
uint32_t | m_current |
double | m_deltaX |
double | m_deltaY |
double | m_height |
enum GridPositionAllocator::LayoutType | m_layoutType |
double | m_lengthX |
double | m_lengthY |
Ptr< GridPositionAllocator > | m_lowerLeftPositionAllocator |
uint32_t | m_n |
Ptr< GridPositionAllocator > | m_upperRightPositionAllocator |
double | m_xMin |
double | m_yMin |
Additional Inherited Members | |
![]() | |
Object (const Object &o) | |
virtual void | DoDispose (void) |
virtual void | DoStart (void) |
virtual void | NotifyNewAggregate (void) |
Allocate buildings on a rectangular 2d grid.
This class allows to create a set of buildings positioned on a rectangular 2D grid. Under the hood, this class uses two instances of GridPositionAllocator.
Definition at line 44 of file building-allocator.h.
ns3::GridBuildingAllocator::GridBuildingAllocator | ( | ) |
Definition at line 36 of file building-allocator.cc.
References m_buildingFactory, m_lowerLeftPositionAllocator, m_upperRightPositionAllocator, and ns3::ObjectFactory::SetTypeId().
|
virtual |
Definition at line 44 of file building-allocator.cc.

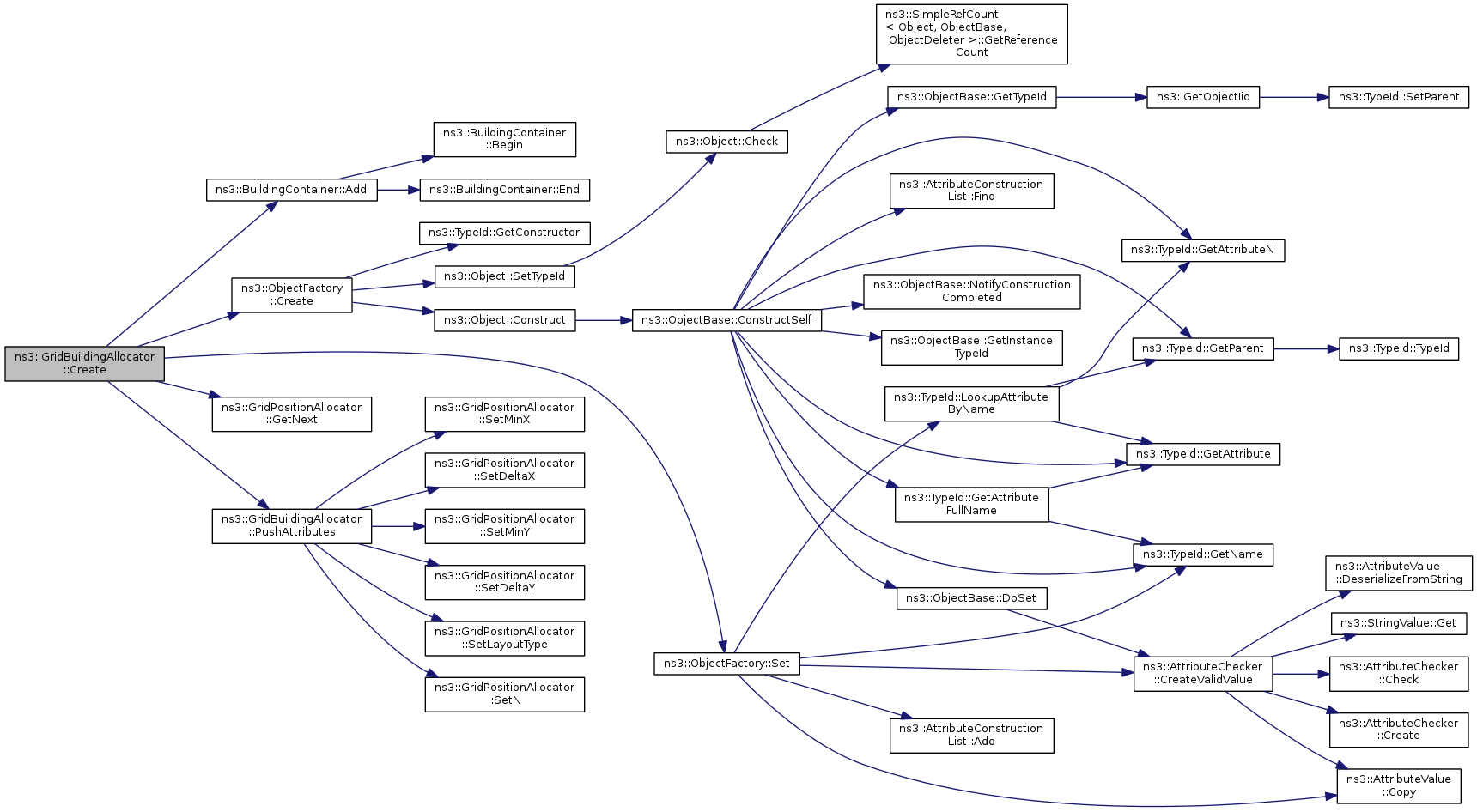

BuildingContainer ns3::GridBuildingAllocator::Create | ( | uint32_t | n | ) | const |
Create a set of buildings allocated on a grid
n | the number of buildings to create |
Definition at line 103 of file building-allocator.cc.
References ns3::BuildingContainer::Add(), ns3::ObjectFactory::Create(), ns3::GridPositionAllocator::GetNext(), m_buildingFactory, m_current, m_height, m_lowerLeftPositionAllocator, m_upperRightPositionAllocator, NS_LOG_FUNCTION, NS_LOG_LOGIC, PushAttributes(), ns3::ObjectFactory::Set(), ns3::Vector3D::x, and ns3::Vector3D::y.
Referenced by FemtocellBlockAllocator::Create().
|

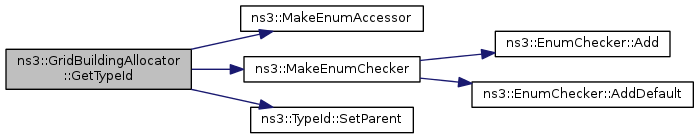

static |
This method returns the TypeId associated to ns3::GridBuildingAllocator.
Attributes defined for this type:
No TraceSources defined for this type.
Reimplemented from ns3::Object.
Definition at line 49 of file building-allocator.cc.
References ns3::GridPositionAllocator::COLUMN_FIRST, m_deltaX, m_deltaY, m_height, m_layoutType, m_lengthX, m_lengthY, m_n, m_xMin, m_yMin, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::GridPositionAllocator::ROW_FIRST, and ns3::TypeId::SetParent().
|

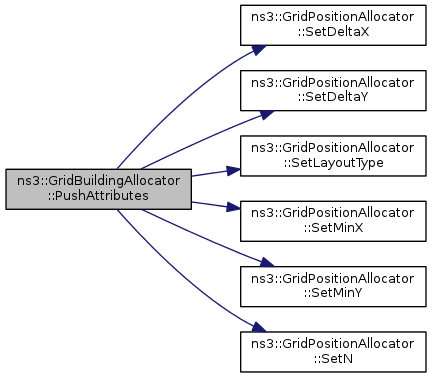

private |
Definition at line 124 of file building-allocator.cc.
References m_deltaX, m_deltaY, m_layoutType, m_lengthX, m_lengthY, m_lowerLeftPositionAllocator, m_n, m_upperRightPositionAllocator, m_xMin, m_yMin, NS_LOG_FUNCTION, ns3::GridPositionAllocator::SetDeltaX(), ns3::GridPositionAllocator::SetDeltaY(), ns3::GridPositionAllocator::SetLayoutType(), ns3::GridPositionAllocator::SetMinX(), ns3::GridPositionAllocator::SetMinY(), and ns3::GridPositionAllocator::SetN().
Referenced by Create().

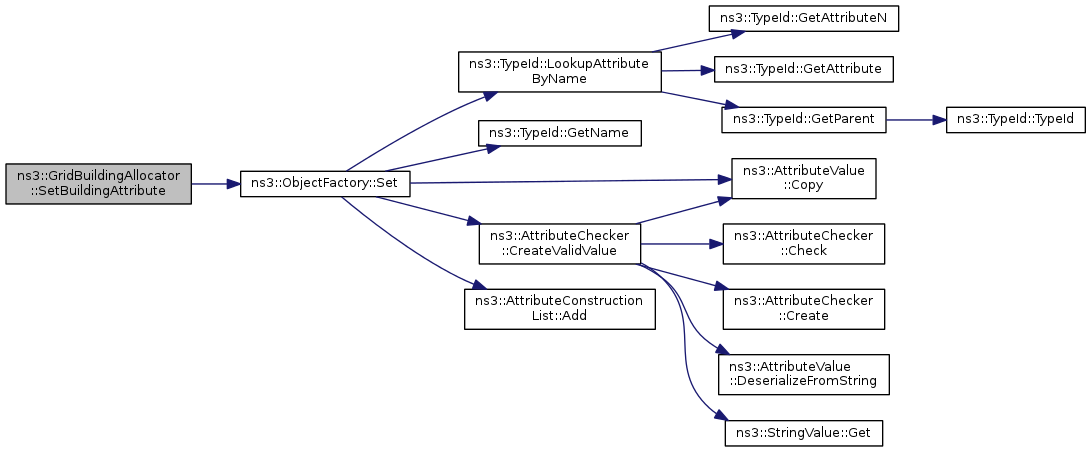

void ns3::GridBuildingAllocator::SetBuildingAttribute | ( | std::string | n, |
const AttributeValue & | v | ||
) |
Set an attribute to be used for each new building to be created
n | attribute name |
v | attribute value |
Definition at line 96 of file building-allocator.cc.
References m_buildingFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().
Referenced by FemtocellBlockAllocator::Create().
|
mutableprivate |
Definition at line 84 of file building-allocator.h.
Referenced by Create(), GridBuildingAllocator(), and SetBuildingAttribute().
|
mutableprivate |
Definition at line 73 of file building-allocator.h.
Referenced by Create().
|
private |
Definition at line 80 of file building-allocator.h.
Referenced by GetTypeId(), and PushAttributes().
|
private |
Definition at line 81 of file building-allocator.h.
Referenced by GetTypeId(), and PushAttributes().
|
private |
Definition at line 82 of file building-allocator.h.
Referenced by Create(), and GetTypeId().
|
private |
Definition at line 74 of file building-allocator.h.
Referenced by GetTypeId(), and PushAttributes().
|
private |
Definition at line 78 of file building-allocator.h.
Referenced by GetTypeId(), and PushAttributes().
|
private |
Definition at line 79 of file building-allocator.h.
Referenced by GetTypeId(), and PushAttributes().
|
private |
Definition at line 85 of file building-allocator.h.
Referenced by Create(), GridBuildingAllocator(), and PushAttributes().
|
private |
Definition at line 77 of file building-allocator.h.
Referenced by GetTypeId(), and PushAttributes().
|
private |
Definition at line 86 of file building-allocator.h.
Referenced by Create(), GridBuildingAllocator(), and PushAttributes().
|
private |
Definition at line 75 of file building-allocator.h.
Referenced by GetTypeId(), and PushAttributes().
|
private |
Definition at line 76 of file building-allocator.h.
Referenced by GetTypeId(), and PushAttributes().
