Header of IPv6 Extension Routing. More...

#include <ipv6-extension-header.h>

Inheritance diagram for ns3::Ipv6ExtensionRoutingHeader:

Collaboration diagram for ns3::Ipv6ExtensionRoutingHeader:

Public Member Functions
	Ipv6ExtensionRoutingHeader ()
	Constructor.
virtual	~Ipv6ExtensionRoutingHeader ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
uint8_t	GetSegmentsLeft () const
	Get the field "Segments left".
virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet.
uint8_t	GetTypeRouting () const
	Get the field "Type of Routing".
virtual void	Print (std::ostream &os) const
	Print some informations about the packet.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
void	SetSegmentsLeft (uint8_t segmentsLeft)
	Set the "Segments left" field.
void	SetTypeRouting (uint8_t typeRouting)
	Set the "Type of Routing" field.
Public Member Functions inherited from ns3::Ipv6ExtensionHeader
	Ipv6ExtensionHeader ()
	Constructor.
virtual	~Ipv6ExtensionHeader ()
	Destructor.
uint16_t	GetLength () const
	Get the length of the extension.
uint8_t	GetNextHeader () const
	Get the next header.
void	SetLength (uint16_t length)
void	SetNextHeader (uint8_t nextHeader)
	Set the "Next header" field.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.

Private Attributes
uint8_t	m_segmentsLeft
	Number of left segments.
uint8_t	m_typeRouting
	Type of routing.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Header of IPv6 Extension Routing.

Definition at line 432 of file ipv6-extension-header.h.

Constructor & Destructor Documentation

ns3::Ipv6ExtensionRoutingHeader::Ipv6ExtensionRoutingHeader ( )

Constructor.

Definition at line 420 of file ipv6-extension-header.cc.

ns3::Ipv6ExtensionRoutingHeader::~Ipv6ExtensionRoutingHeader ( )

virtual

Destructor.

Definition at line 426 of file ipv6-extension-header.cc.

Member Function Documentation

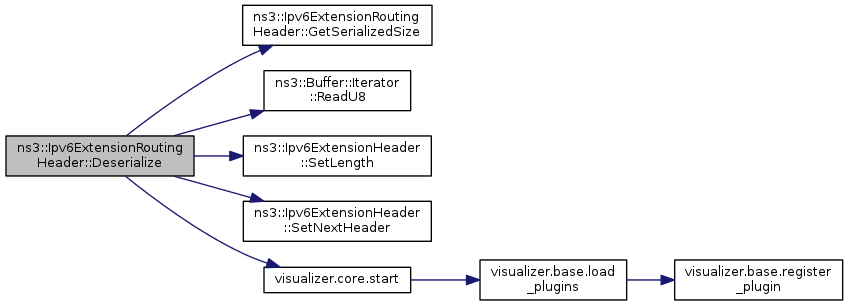

uint32_t ns3::Ipv6ExtensionRoutingHeader::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 471 of file ipv6-extension-header.cc.

References GetSerializedSize(), m_segmentsLeft, m_typeRouting, ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6ExtensionHeader::SetLength(), ns3::Ipv6ExtensionHeader::SetNextHeader(), and visualizer.core::start().

Here is the call graph for this function:

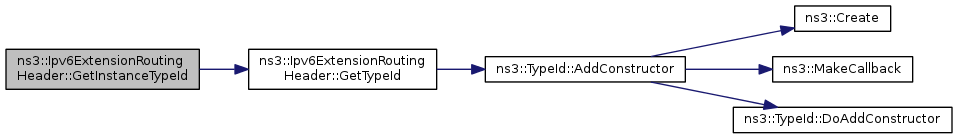

TypeId ns3::Ipv6ExtensionRoutingHeader::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 415 of file ipv6-extension-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint8_t ns3::Ipv6ExtensionRoutingHeader::GetSegmentsLeft ( ) const

Get the field "Segments left".

Returns: the number of segments left

Definition at line 445 of file ipv6-extension-header.cc.

References m_segmentsLeft.

Referenced by ns3::Ipv6ExtensionLooseRoutingHeader::Print(), ns3::Ipv6ExtensionLooseRouting::Process(), and ns3::Ipv6ExtensionLooseRoutingHeader::Serialize().

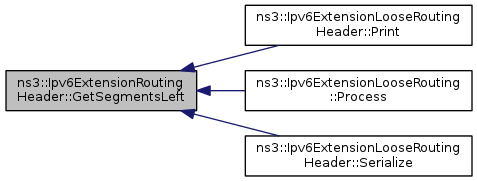

Here is the caller graph for this function:

uint32_t ns3::Ipv6ExtensionRoutingHeader::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 456 of file ipv6-extension-header.cc.

Referenced by Deserialize().

Here is the caller graph for this function:

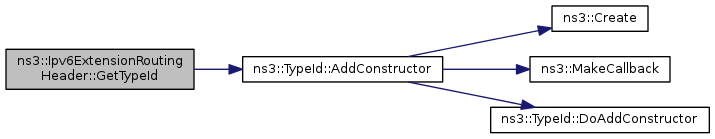

TypeId ns3::Ipv6ExtensionRoutingHeader::GetTypeId ( void )

static

Get the type identificator.

This method returns the TypeId associated to ns3::Ipv6ExtensionRoutingHeader.

Returns: type identificator

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 406 of file ipv6-extension-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

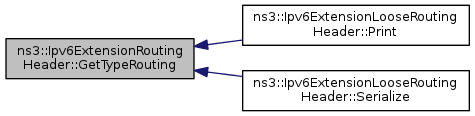

uint8_t ns3::Ipv6ExtensionRoutingHeader::GetTypeRouting ( ) const

Get the field "Type of Routing".

Returns: the type of routing

Definition at line 435 of file ipv6-extension-header.cc.

References m_typeRouting.

Referenced by ns3::Ipv6ExtensionLooseRoutingHeader::Print(), and ns3::Ipv6ExtensionLooseRoutingHeader::Serialize().

Here is the caller graph for this function:

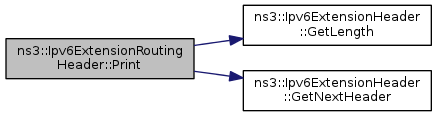

void ns3::Ipv6ExtensionRoutingHeader::Print ( std::ostream & os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns: info about this packet

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 450 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetLength(), ns3::Ipv6ExtensionHeader::GetNextHeader(), m_segmentsLeft, and m_typeRouting.

Here is the call graph for this function:

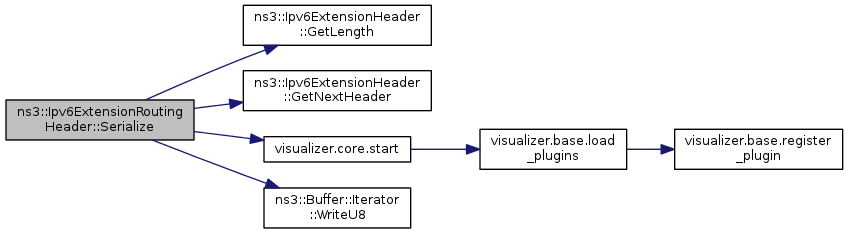

void ns3::Ipv6ExtensionRoutingHeader::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start Buffer iterator

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 461 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetLength(), ns3::Ipv6ExtensionHeader::GetNextHeader(), m_segmentsLeft, m_typeRouting, visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

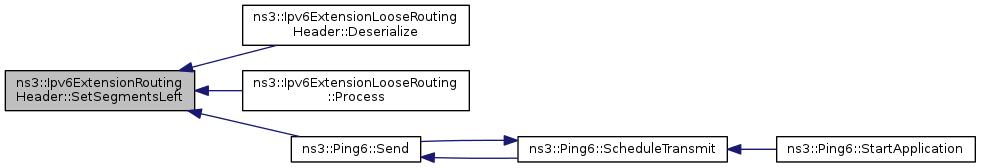

void ns3::Ipv6ExtensionRoutingHeader::SetSegmentsLeft ( uint8_t segmentsLeft )

Set the "Segments left" field.

Parameters

segmentsLeft the number of segments left

Definition at line 440 of file ipv6-extension-header.cc.

References m_segmentsLeft.

Referenced by ns3::Ipv6ExtensionLooseRoutingHeader::Deserialize(), ns3::Ipv6ExtensionLooseRouting::Process(), and ns3::Ping6::Send().

Here is the caller graph for this function:

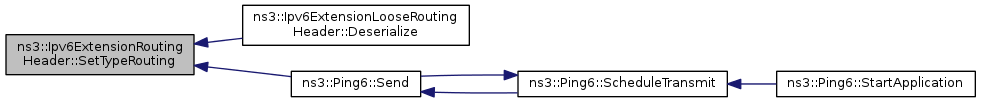

void ns3::Ipv6ExtensionRoutingHeader::SetTypeRouting ( uint8_t typeRouting )

Set the "Type of Routing" field.

Parameters

typeRouting the type of routing

Definition at line 430 of file ipv6-extension-header.cc.

References m_typeRouting.

Referenced by ns3::Ipv6ExtensionLooseRoutingHeader::Deserialize(), and ns3::Ping6::Send().

Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::Ipv6ExtensionRoutingHeader::m_segmentsLeft

private

Number of left segments.

Definition at line 516 of file ipv6-extension-header.h.

Referenced by Deserialize(), GetSegmentsLeft(), Print(), Serialize(), and SetSegmentsLeft().

uint8_t ns3::Ipv6ExtensionRoutingHeader::m_typeRouting

private

Type of routing.

Definition at line 511 of file ipv6-extension-header.h.

Referenced by Deserialize(), GetTypeRouting(), Print(), Serialize(), and SetTypeRouting().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-extension-header.h
doc/introspected-doxygen.h
src/internet/model/ipv6-extension-header.cc
