#include <lte-enb-mac.h>

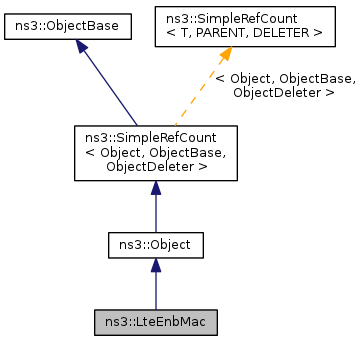

Inheritance diagram for ns3::LteEnbMac:

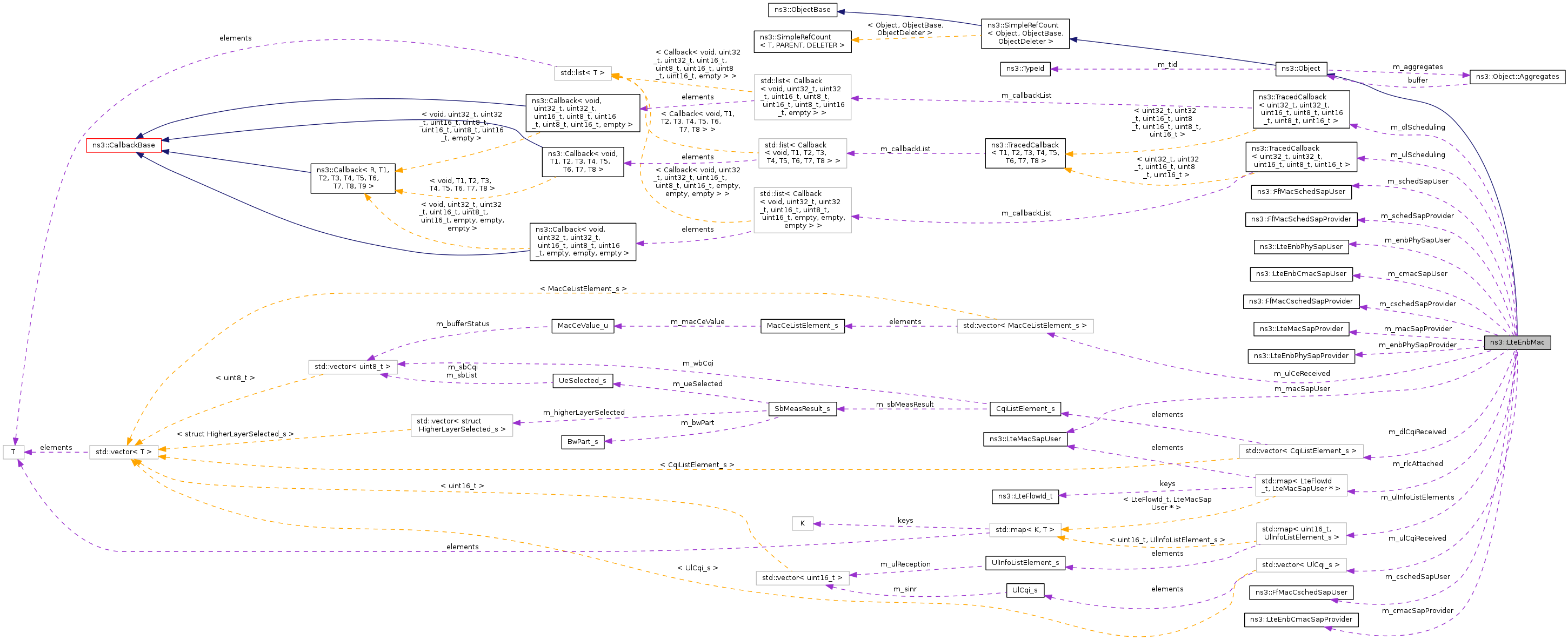

Collaboration diagram for ns3::LteEnbMac:

Public Member Functions
	LteEnbMac (void)
virtual	~LteEnbMac (void)
virtual void	DoDispose (void)
void	DoReceiveIdealControlMessage (Ptr< IdealControlMessage > msg)
void	DoReceivePhyPdu (Ptr< Packet > p)
	Forwarded from LtePhySapUser: receive a PHY-PDU.
void	DoUlCqiReport (UlCqi_s ulcqi)
FfMacCschedSapUser *	GetFfMacCschedSapUser (void)
	Get the control scheduler SAP user.
FfMacSchedSapUser *	GetFfMacSchedSapUser (void)
	Get the scheduler SAP user.
LteEnbCmacSapProvider *	GetLteEnbCmacSapProvider (void)
	Get the control MAC SAP provider.
LteEnbPhySapUser *	GetLteEnbPhySapUser ()
	Get the eNB-PHY SAP User.
LteMacSapProvider *	GetLteMacSapProvider (void)
	Get the MAC SAP provider.
void	ReceiveBsrMessage (MacCeListElement_s bsr)
	Receive a CE element containing the buffer status report.
void	ReceiveDlCqiIdealControlMessage (Ptr< DlCqiIdealControlMessage > msg)
	Receive a DL CQI ideal control message.
void	SetFfMacCschedSapProvider (FfMacCschedSapProvider *s)
	Set the control scheduler SAP provider.
void	SetFfMacSchedSapProvider (FfMacSchedSapProvider *s)
	Set the scheduler SAP provider.
void	SetLteEnbCmacSapUser (LteEnbCmacSapUser *s)
	Set the control MAC SAP user.
void	SetLteEnbPhySapProvider (LteEnbPhySapProvider *s)
	Set the PHY SAP Provider.
void	SetLteMacSapUser (LteMacSapUser *s)
	Set the MAC SAP user.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::LteEnbMac.

Private Member Functions
void	DoAddLc (LteEnbCmacSapProvider::LcInfo lcinfo, LteMacSapUser *msu)
void	DoAddUe (uint16_t rnti)
void	DoConfigureMac (uint8_t ulBandwidth, uint8_t dlBandwidth)
void	DoCschedCellConfigCnf (FfMacCschedSapUser::CschedCellConfigCnfParameters params)
void	DoCschedCellConfigUpdateInd (FfMacCschedSapUser::CschedCellConfigUpdateIndParameters params)
void	DoCschedLcConfigCnf (FfMacCschedSapUser::CschedLcConfigCnfParameters params)
void	DoCschedLcReleaseCnf (FfMacCschedSapUser::CschedLcReleaseCnfParameters params)
void	DoCschedUeConfigCnf (FfMacCschedSapUser::CschedUeConfigCnfParameters params)
void	DoCschedUeConfigUpdateInd (FfMacCschedSapUser::CschedUeConfigUpdateIndParameters params)
void	DoCschedUeReleaseCnf (FfMacCschedSapUser::CschedUeReleaseCnfParameters params)
void	DoReconfigureLc (LteEnbCmacSapProvider::LcInfo lcinfo)
void	DoReleaseLc (uint16_t rnti, uint8_t lcid)
void	DoReportBufferStatus (LteMacSapProvider::ReportBufferStatusParameters)
void	DoRrcUpdateConfigurationReq (FfMacCschedSapProvider::CschedUeConfigReqParameters params)
void	DoSchedDlConfigInd (FfMacSchedSapUser::SchedDlConfigIndParameters ind)
void	DoSchedUlConfigInd (FfMacSchedSapUser::SchedUlConfigIndParameters params)
void	DoSubframeIndication (uint32_t frameNo, uint32_t subframeNo)
	Forwarded from LteEnbPhySapUser: trigger the start from a new frame.
void	DoTransmitPdu (LteMacSapProvider::TransmitPduParameters)

Private Attributes
LteEnbCmacSapProvider *	m_cmacSapProvider
LteEnbCmacSapUser *	m_cmacSapUser
FfMacCschedSapProvider *	m_cschedSapProvider
FfMacCschedSapUser *	m_cschedSapUser
std::vector< CqiListElement_s >	m_dlCqiReceived
TracedCallback< uint32_t, uint32_t, uint16_t, uint8_t, uint16_t, uint8_t, uint16_t >	m_dlScheduling
LteEnbPhySapProvider *	m_enbPhySapProvider
LteEnbPhySapUser *	m_enbPhySapUser
uint32_t	m_frameNo
uint8_t	m_macChTtiDelay
LteMacSapProvider *	m_macSapProvider
LteMacSapUser *	m_macSapUser
std::map< LteFlowId_t, LteMacSapUser * >	m_rlcAttached
FfMacSchedSapProvider *	m_schedSapProvider
FfMacSchedSapUser *	m_schedSapUser
uint32_t	m_subframeNo
std::vector< MacCeListElement_s >	m_ulCeReceived
std::vector< UlCqi_s >	m_ulCqiReceived
std::map< uint16_t, UlInfoListElement_s >	m_ulInfoListElements
TracedCallback< uint32_t, uint32_t, uint16_t, uint8_t, uint16_t >	m_ulScheduling

Friends
class	EnbMacMemberFfMacCschedSapUser
class	EnbMacMemberFfMacSchedSapUser
class	EnbMacMemberLteEnbCmacSapProvider
class	EnbMacMemberLteEnbPhySapUser
class	EnbMacMemberLteMacSapProvider< LteEnbMac >

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

This class implements the MAC layer of the eNodeB device

Definition at line 48 of file lte-enb-mac.h.

Constructor & Destructor Documentation

ns3::LteEnbMac::LteEnbMac ( void )

Definition at line 288 of file lte-enb-mac.cc.

References EnbMacMemberFfMacCschedSapUser, EnbMacMemberFfMacSchedSapUser, EnbMacMemberLteEnbCmacSapProvider, EnbMacMemberLteEnbPhySapUser, m_cmacSapProvider, m_cschedSapUser, m_enbPhySapUser, m_macSapProvider, m_schedSapUser, and NS_LOG_FUNCTION.

ns3::LteEnbMac::~LteEnbMac ( void )

virtual

Definition at line 299 of file lte-enb-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteEnbMac::DoAddLc	(	LteEnbCmacSapProvider::LcInfo	lcinfo,
		LteMacSapUser *	msu
	)

private

Definition at line 645 of file lte-enb-mac.cc.

Referenced by ns3::EnbMacMemberLteEnbCmacSapProvider::AddLc().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbMac::DoAddUe ( uint16_t rnti )

private

Definition at line 634 of file lte-enb-mac.cc.

References ns3::FfMacCschedSapProvider::CschedUeConfigReq(), m_cschedSapProvider, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_rnti, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_transmissionMode, and NS_LOG_FUNCTION.

Referenced by ns3::EnbMacMemberLteEnbCmacSapProvider::AddUe().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbMac::DoConfigureMac	(	uint8_t	ulBandwidth,
		uint8_t	dlBandwidth
	)

private

Definition at line 620 of file lte-enb-mac.cc.

References ns3::FfMacCschedSapProvider::CschedCellConfigReq(), ns3::LteEnbPhySapProvider::GetMacChTtiDelay(), m_cschedSapProvider, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_dlBandwidth, m_enbPhySapProvider, m_macChTtiDelay, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, and NS_LOG_FUNCTION.

Referenced by ns3::EnbMacMemberLteEnbCmacSapProvider::ConfigureMac().

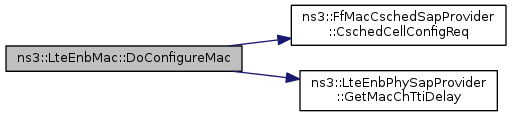

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbMac::DoCschedCellConfigCnf ( FfMacCschedSapUser::CschedCellConfigCnfParameters params )

private

Definition at line 828 of file lte-enb-mac.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::EnbMacMemberFfMacCschedSapUser::CschedCellConfigCnf().

Here is the caller graph for this function:

void ns3::LteEnbMac::DoCschedCellConfigUpdateInd ( FfMacCschedSapUser::CschedCellConfigUpdateIndParameters params )

private

Definition at line 884 of file lte-enb-mac.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::EnbMacMemberFfMacCschedSapUser::CschedCellConfigUpdateInd().

Here is the caller graph for this function:

void ns3::LteEnbMac::DoCschedLcConfigCnf ( FfMacCschedSapUser::CschedLcConfigCnfParameters params )

private

Definition at line 840 of file lte-enb-mac.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::EnbMacMemberFfMacCschedSapUser::CschedLcConfigCnf().

Here is the caller graph for this function:

void ns3::LteEnbMac::DoCschedLcReleaseCnf ( FfMacCschedSapUser::CschedLcReleaseCnfParameters params )

private

Definition at line 848 of file lte-enb-mac.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::EnbMacMemberFfMacCschedSapUser::CschedLcReleaseCnf().

Here is the caller graph for this function:

void ns3::LteEnbMac::DoCschedUeConfigCnf ( FfMacCschedSapUser::CschedUeConfigCnfParameters params )

private

Definition at line 834 of file lte-enb-mac.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::EnbMacMemberFfMacCschedSapUser::CschedUeConfigCnf().

Here is the caller graph for this function:

void ns3::LteEnbMac::DoCschedUeConfigUpdateInd ( FfMacCschedSapUser::CschedUeConfigUpdateIndParameters params )

private

Definition at line 860 of file lte-enb-mac.cc.

References m_cmacSapUser, ns3::LteUeConfig_t::m_rnti, ns3::FfMacCschedSapUser::CschedUeConfigUpdateIndParameters::m_rnti, ns3::LteUeConfig_t::m_transmissionMode, ns3::FfMacCschedSapUser::CschedUeConfigUpdateIndParameters::m_transmissionMode, NS_LOG_FUNCTION, and ns3::LteEnbCmacSapUser::RrcConfigurationUpdateInd().

Referenced by ns3::EnbMacMemberFfMacCschedSapUser::CschedUeConfigUpdateInd().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbMac::DoCschedUeReleaseCnf ( FfMacCschedSapUser::CschedUeReleaseCnfParameters params )

private

Definition at line 854 of file lte-enb-mac.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::EnbMacMemberFfMacCschedSapUser::CschedUeReleaseCnf().

Here is the caller graph for this function:

void ns3::LteEnbMac::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 305 of file lte-enb-mac.cc.

References m_cmacSapProvider, m_cschedSapUser, m_enbPhySapUser, m_macSapProvider, m_schedSapUser, and NS_LOG_FUNCTION.

void ns3::LteEnbMac::DoReceiveIdealControlMessage ( Ptr< IdealControlMessage > msg )

Definition at line 510 of file lte-enb-mac.cc.

References ns3::IdealControlMessage::BSR, ns3::IdealControlMessage::DL_CQI, ns3::IdealControlMessage::GetMessageType(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ReceiveBsrMessage(), and ReceiveDlCqiIdealControlMessage().

Referenced by ns3::EnbMacMemberLteEnbPhySapUser::ReceiveIdealControlMessage().

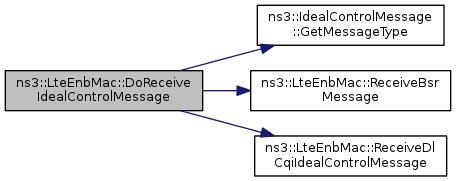

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbMac::DoReceivePhyPdu ( Ptr< Packet > p )

Forwarded from LtePhySapUser: receive a PHY-PDU.

Parameters

p	PHY-PDU received

Definition at line 565 of file lte-enb-mac.cc.

References ns3::LteRadioBearerTag::GetLcid(), ns3::LteRadioBearerTag::GetRnti(), ns3::Packet::GetSize(), UlInfoListElement_s::m_receptionStatus, m_rlcAttached, UlInfoListElement_s::m_rnti, UlInfoListElement_s::m_tpc, m_ulInfoListElements, UlInfoListElement_s::m_ulReception, MAX_LC_LIST, NS_ASSERT_MSG, NS_LOG_FUNCTION, UlInfoListElement_s::Ok, and ns3::Packet::RemovePacketTag().

Referenced by ns3::EnbMacMemberLteEnbPhySapUser::ReceivePhyPdu().

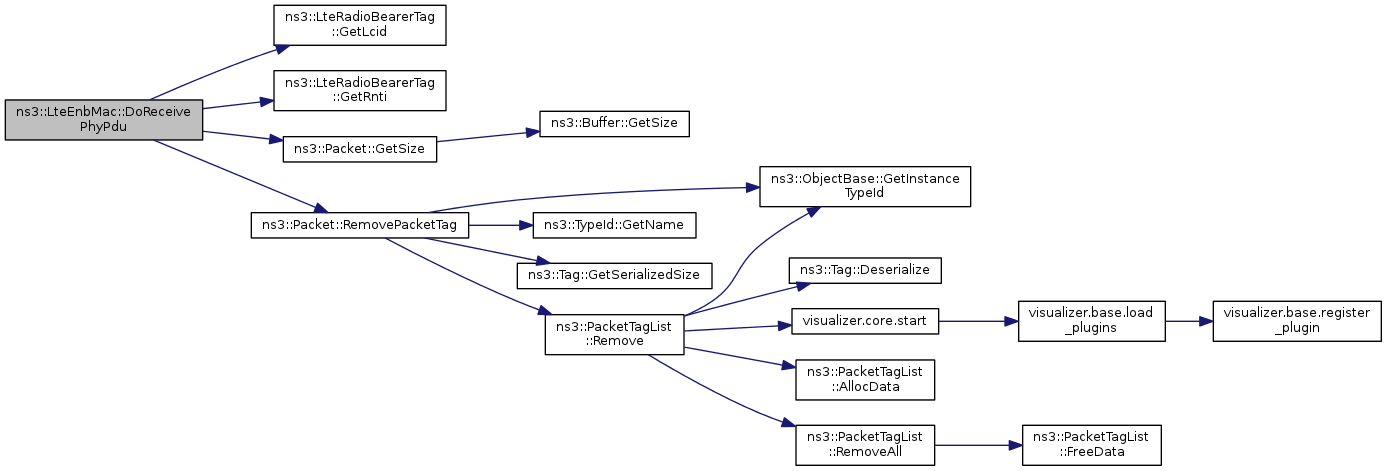

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbMac::DoReconfigureLc ( LteEnbCmacSapProvider::LcInfo lcinfo )

private

Definition at line 683 of file lte-enb-mac.cc.

References NS_FATAL_ERROR.

Referenced by ns3::EnbMacMemberLteEnbCmacSapProvider::ReconfigureLc().

Here is the caller graph for this function:

void ns3::LteEnbMac::DoReleaseLc	(	uint16_t	rnti,
		uint8_t	lcid
	)

private

Definition at line 689 of file lte-enb-mac.cc.

References NS_FATAL_ERROR.

Referenced by ns3::EnbMacMemberLteEnbCmacSapProvider::ReleaseLc().

Here is the caller graph for this function:

void ns3::LteEnbMac::DoReportBufferStatus ( LteMacSapProvider::ReportBufferStatusParameters params )

private

Definition at line 714 of file lte-enb-mac.cc.

References ns3::LteMacSapProvider::ReportBufferStatusParameters::lcid, ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_logicalChannelIdentity, ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_rlcRetransmissionHolDelay, ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_rlcRetransmissionQueueSize, ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_rlcStatusPduSize, ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_rlcTransmissionQueueHolDelay, ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_rlcTransmissionQueueSize, ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_rnti, m_schedSapProvider, NS_LOG_FUNCTION, ns3::LteMacSapProvider::ReportBufferStatusParameters::retxQueueHolDelay, ns3::LteMacSapProvider::ReportBufferStatusParameters::retxQueueSize, ns3::LteMacSapProvider::ReportBufferStatusParameters::rnti, ns3::FfMacSchedSapProvider::SchedDlRlcBufferReq(), ns3::LteMacSapProvider::ReportBufferStatusParameters::statusPduSize, ns3::LteMacSapProvider::ReportBufferStatusParameters::txQueueHolDelay, and ns3::LteMacSapProvider::ReportBufferStatusParameters::txQueueSize.

Here is the call graph for this function:

void ns3::LteEnbMac::DoRrcUpdateConfigurationReq ( FfMacCschedSapProvider::CschedUeConfigReqParameters params )

private

Definition at line 871 of file lte-enb-mac.cc.

References ns3::FfMacCschedSapProvider::CschedUeConfigReq(), m_cschedSapProvider, m_enbPhySapProvider, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_rnti, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_transmissionMode, NS_LOG_FUNCTION, and ns3::LteEnbPhySapProvider::SetTransmissionMode().

Referenced by ns3::EnbMacMemberLteEnbCmacSapProvider::RrcUpdateConfigurationReq().

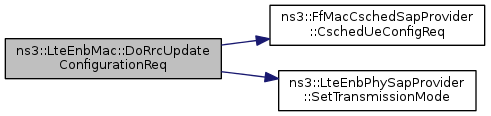

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbMac::DoSchedDlConfigInd ( FfMacSchedSapUser::SchedDlConfigIndParameters ind )

private

Definition at line 737 of file lte-enb-mac.cc.

References ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_buildDataList, m_dlScheduling, m_enbPhySapProvider, m_frameNo, m_rlcAttached, m_subframeNo, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::LteEnbPhySapProvider::SendIdealControlMessage().

Referenced by ns3::EnbMacMemberFfMacSchedSapUser::SchedDlConfigInd().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbMac::DoSchedUlConfigInd ( FfMacSchedSapUser::SchedUlConfigIndParameters params )

private

Definition at line 796 of file lte-enb-mac.cc.

References ns3::FfMacSchedSapUser::SchedUlConfigIndParameters::m_dciList, m_enbPhySapProvider, m_frameNo, m_subframeNo, m_ulScheduling, NS_LOG_FUNCTION, and ns3::LteEnbPhySapProvider::SendIdealControlMessage().

Referenced by ns3::EnbMacMemberFfMacSchedSapUser::SchedUlConfigInd().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbMac::DoSubframeIndication	(	uint32_t	frameNo,
		uint32_t	subframeNo
	)

private

Forwarded from LteEnbPhySapUser: trigger the start from a new frame.

Parameters

frameNo	frame number
subframeNo	subframe number

Definition at line 382 of file lte-enb-mac.cc.

Referenced by ns3::EnbMacMemberLteEnbPhySapUser::SubframeIndication().

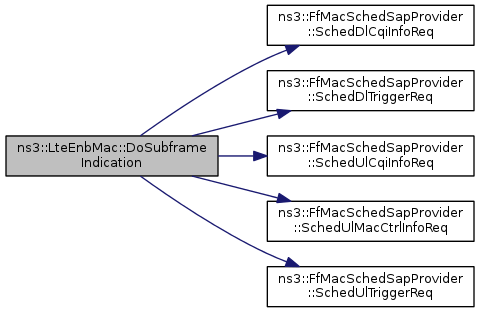

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbMac::DoTransmitPdu ( LteMacSapProvider::TransmitPduParameters params )

private

Definition at line 702 of file lte-enb-mac.cc.

References ns3::Packet::AddPacketTag(), ns3::LteMacSapProvider::TransmitPduParameters::layer, ns3::LteMacSapProvider::TransmitPduParameters::lcid, m_enbPhySapProvider, NS_LOG_FUNCTION, ns3::LteMacSapProvider::TransmitPduParameters::pdu, ns3::LteMacSapProvider::TransmitPduParameters::rnti, and ns3::LteEnbPhySapProvider::SendMacPdu().

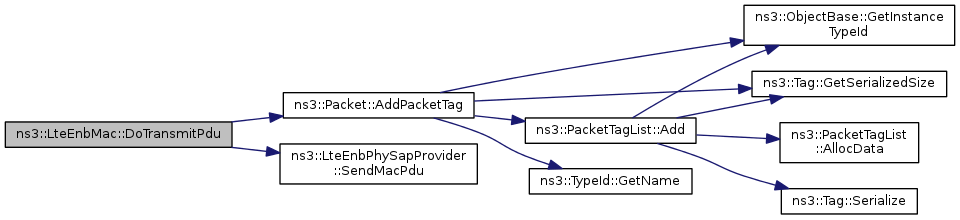

Here is the call graph for this function:

void ns3::LteEnbMac::DoUlCqiReport ( UlCqi_s ulcqi )

Definition at line 531 of file lte-enb-mac.cc.

References UlCqi_s::m_type, m_ulCqiReceived, NS_LOG_DEBUG, and UlCqi_s::PUSCH.

Referenced by ns3::EnbMacMemberLteEnbPhySapUser::UlCqiReport().

Here is the caller graph for this function:

FfMacCschedSapUser * ns3::LteEnbMac::GetFfMacCschedSapUser ( void )

Get the control scheduler SAP user.

Returns: a pointer to the control scheduler SAP user

Definition at line 335 of file lte-enb-mac.cc.

References m_cschedSapUser.

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

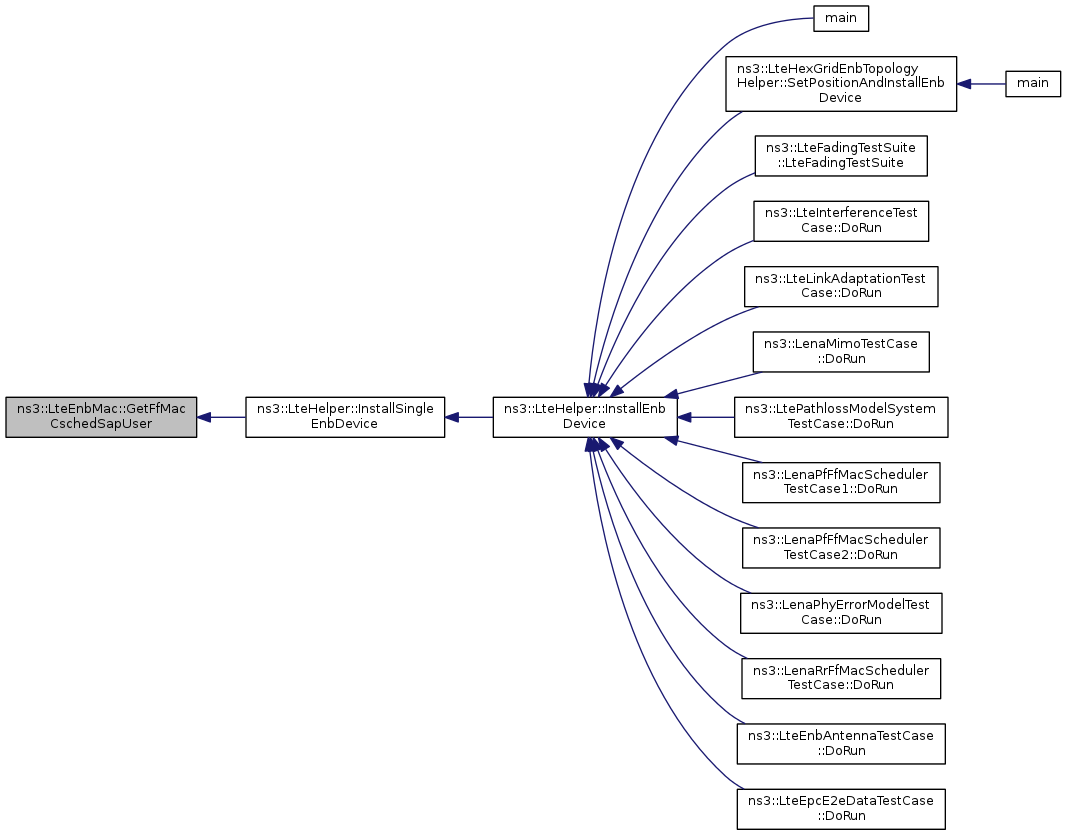

Here is the caller graph for this function:

FfMacSchedSapUser * ns3::LteEnbMac::GetFfMacSchedSapUser ( void )

Get the scheduler SAP user.

Returns: a pointer to the SAP user of the scheduler

Definition at line 323 of file lte-enb-mac.cc.

References m_schedSapUser.

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the caller graph for this function:

LteEnbCmacSapProvider * ns3::LteEnbMac::GetLteEnbCmacSapProvider ( void )

Get the control MAC SAP provider.

Returns: a pointer to the control MAC SAP provider

Definition at line 361 of file lte-enb-mac.cc.

References m_cmacSapProvider.

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

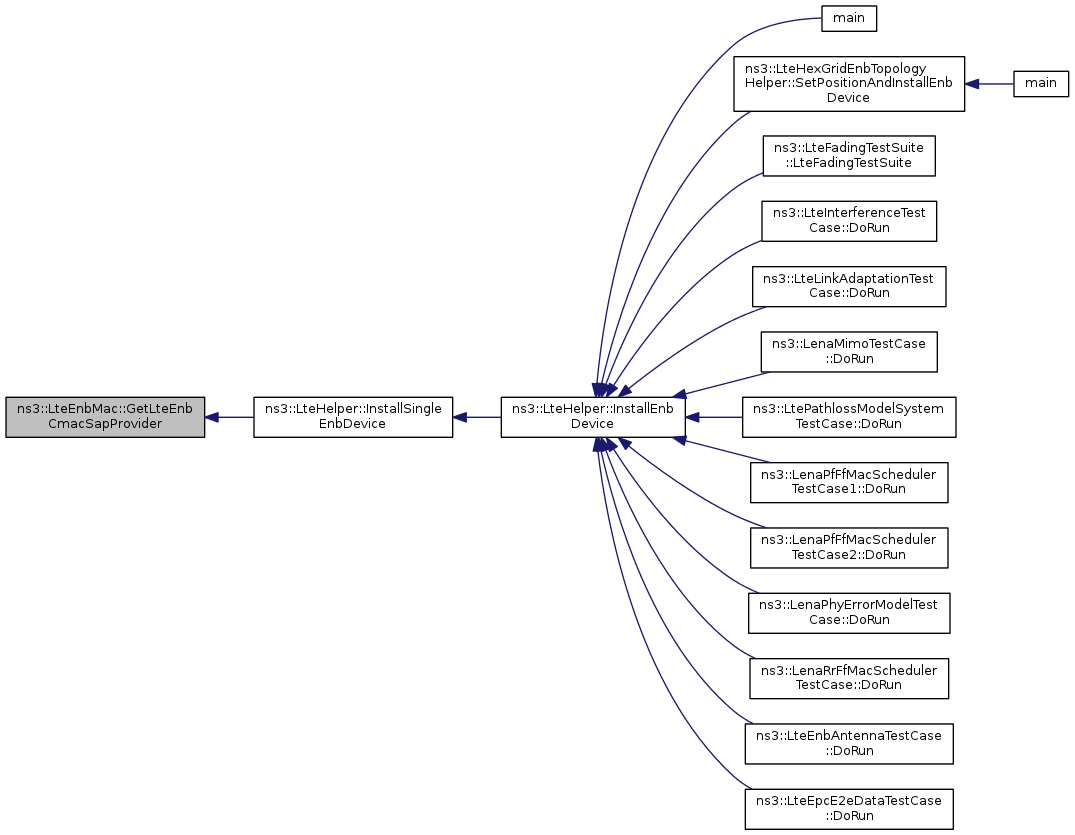

Here is the caller graph for this function:

LteEnbPhySapUser * ns3::LteEnbMac::GetLteEnbPhySapUser ( )

Get the eNB-PHY SAP User.

Returns: a pointer to the SAP User of the PHY

Definition at line 374 of file lte-enb-mac.cc.

References m_enbPhySapUser.

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the caller graph for this function:

LteMacSapProvider * ns3::LteEnbMac::GetLteMacSapProvider ( void )

Get the MAC SAP provider.

Returns: a pointer to the SAP provider of the MAC

Definition at line 349 of file lte-enb-mac.cc.

References m_macSapProvider.

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the caller graph for this function:

TypeId ns3::LteEnbMac::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::LteEnbMac.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbMac
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbMac

No Attributes defined for this type.
TraceSources defined for this type:

DlScheduling: Information regarding DL scheduling.
UlScheduling: Information regarding UL scheduling.

Reimplemented from ns3::Object.

Definition at line 271 of file lte-enb-mac.cc.

References m_dlScheduling, m_ulScheduling, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::LteEnbMac::ReceiveBsrMessage ( MacCeListElement_s bsr )

Receive a CE element containing the buffer status report.

Parameters

msg	the BSR message

Definition at line 555 of file lte-enb-mac.cc.

References m_ulCeReceived, and NS_LOG_FUNCTION.

Referenced by DoReceiveIdealControlMessage().

Here is the caller graph for this function:

void ns3::LteEnbMac::ReceiveDlCqiIdealControlMessage ( Ptr< DlCqiIdealControlMessage > msg )

Receive a DL CQI ideal control message.

Parameters

msg	the DL CQI message

Definition at line 543 of file lte-enb-mac.cc.

References m_dlCqiReceived, CqiListElement_s::m_rnti, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by DoReceiveIdealControlMessage().

Here is the caller graph for this function:

void ns3::LteEnbMac::SetFfMacCschedSapProvider ( FfMacCschedSapProvider * s )

Set the control scheduler SAP provider.

Parameters

s	a pointer to the control scheduler SAP provider

Definition at line 329 of file lte-enb-mac.cc.

References m_cschedSapProvider.

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the caller graph for this function:

void ns3::LteEnbMac::SetFfMacSchedSapProvider ( FfMacSchedSapProvider * s )

Set the scheduler SAP provider.

Parameters

s	a pointer SAP provider of the FF packet scheduler

Definition at line 317 of file lte-enb-mac.cc.

References m_schedSapProvider.

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the caller graph for this function:

void ns3::LteEnbMac::SetLteEnbCmacSapUser ( LteEnbCmacSapUser * s )

Set the control MAC SAP user.

Parameters

s	a pointer to the control MAC SAP user

Definition at line 355 of file lte-enb-mac.cc.

References m_cmacSapUser.

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the caller graph for this function:

void ns3::LteEnbMac::SetLteEnbPhySapProvider ( LteEnbPhySapProvider * s )

Set the PHY SAP Provider.

Parameters

s	a pointer to the PHY SAP provider

Definition at line 367 of file lte-enb-mac.cc.

References m_enbPhySapProvider.

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the caller graph for this function:

void ns3::LteEnbMac::SetLteMacSapUser ( LteMacSapUser * s )

Set the MAC SAP user.

Parameters

s	a pointer to the MAC SAP user

Definition at line 343 of file lte-enb-mac.cc.

References m_macSapUser.

Friends And Related Function Documentation

friend class EnbMacMemberFfMacCschedSapUser

friend

Definition at line 53 of file lte-enb-mac.h.

Referenced by LteEnbMac().

friend class EnbMacMemberFfMacSchedSapUser

friend

Definition at line 52 of file lte-enb-mac.h.

Referenced by LteEnbMac().

friend class EnbMacMemberLteEnbCmacSapProvider

friend

Definition at line 50 of file lte-enb-mac.h.

Referenced by LteEnbMac().

friend class EnbMacMemberLteEnbPhySapUser

friend

Definition at line 54 of file lte-enb-mac.h.

Referenced by LteEnbMac().

friend class EnbMacMemberLteMacSapProvider< LteEnbMac >

friend

Definition at line 51 of file lte-enb-mac.h.

Member Data Documentation

LteEnbCmacSapProvider* ns3::LteEnbMac::m_cmacSapProvider

private

Definition at line 203 of file lte-enb-mac.h.

Referenced by DoDispose(), GetLteEnbCmacSapProvider(), and LteEnbMac().

LteEnbCmacSapUser* ns3::LteEnbMac::m_cmacSapUser

private

Definition at line 205 of file lte-enb-mac.h.

Referenced by DoCschedUeConfigUpdateInd(), and SetLteEnbCmacSapUser().

FfMacCschedSapProvider* ns3::LteEnbMac::m_cschedSapProvider

private

Definition at line 209 of file lte-enb-mac.h.

Referenced by DoAddLc(), DoAddUe(), DoConfigureMac(), DoRrcUpdateConfigurationReq(), and SetFfMacCschedSapProvider().

FfMacCschedSapUser* ns3::LteEnbMac::m_cschedSapUser

private

Definition at line 211 of file lte-enb-mac.h.

Referenced by DoDispose(), GetFfMacCschedSapUser(), and LteEnbMac().

std::vector<CqiListElement_s> ns3::LteEnbMac::m_dlCqiReceived

private

Definition at line 190 of file lte-enb-mac.h.

Referenced by DoSubframeIndication(), and ReceiveDlCqiIdealControlMessage().

TracedCallback<uint32_t, uint32_t, uint16_t, uint8_t, uint16_t, uint8_t, uint16_t> ns3::LteEnbMac::m_dlScheduling

private

Trace information regarding DL scheduling Frame number, Subframe number, RNTI, MCS of TB1, size of TB1, MCS of TB2 (0 if not present), size of TB2 (0 if not present)

Definition at line 224 of file lte-enb-mac.h.

Referenced by DoSchedDlConfigInd(), and GetTypeId().

LteEnbPhySapProvider* ns3::LteEnbMac::m_enbPhySapProvider

private

Definition at line 214 of file lte-enb-mac.h.

Referenced by DoConfigureMac(), DoRrcUpdateConfigurationReq(), DoSchedDlConfigInd(), DoSchedUlConfigInd(), DoTransmitPdu(), and SetLteEnbPhySapProvider().
