#include <lte-enb-phy.h>

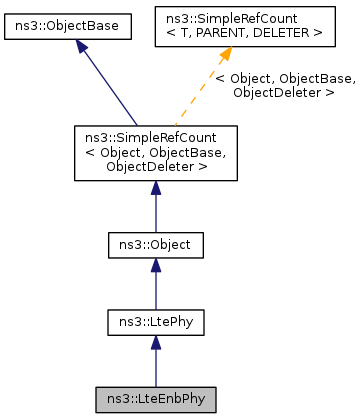

Inheritance diagram for ns3::LteEnbPhy:

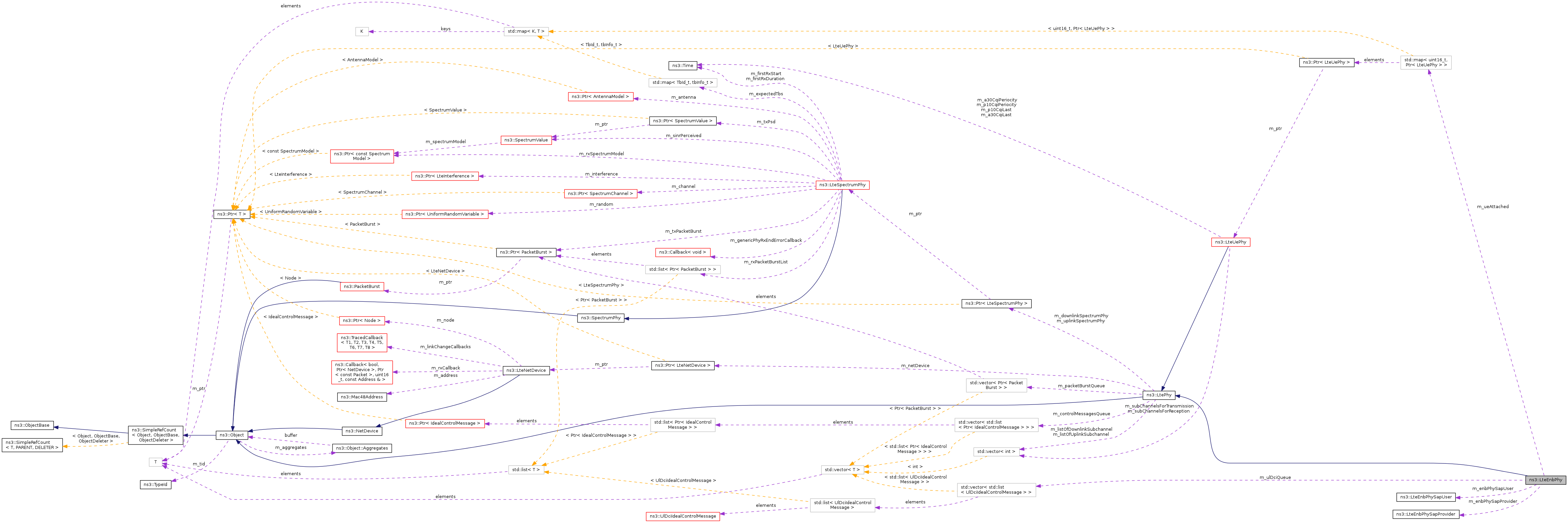

Collaboration diagram for ns3::LteEnbPhy:

Public Member Functions
	LteEnbPhy ()
	LteEnbPhy (Ptr< LteSpectrumPhy > dlPhy, Ptr< LteSpectrumPhy > ulPhy)
virtual	~LteEnbPhy ()
bool	AddUePhy (uint16_t rnti, Ptr< LteUePhy > phy)
void	CalcChannelQualityForUe (std::vector< double > sinr, Ptr< LteSpectrumPhy > ue)
	Calculate the channel quality for a given UE.
virtual Ptr< SpectrumValue >	CreateTxPowerSpectralDensity ()
	Create the PSD for TX.
UlCqi_s	CreateUlCqiReport (const SpectrumValue &sinr)
	Create the UL CQI feedback from SINR values perceived at the physical layer with the signal received from eNB.
bool	DeleteUePhy (uint16_t rnti)
std::list < UlDciIdealControlMessage >	DequeueUlDci (void)
virtual void	DoDispose (void)
virtual uint8_t	DoGetMacChTtiDelay ()
void	DoSendIdealControlMessage (Ptr< IdealControlMessage > msg)
virtual void	DoSendMacPdu (Ptr< Packet > p)
	Queue the MAC PDU to be sent.
void	DoSetDownlinkSubChannels ()
	do some operation after the set of a list of DL sub channels
virtual void	DoSetTransmissionMode (uint16_t rnti, uint8_t txMode)
virtual void	DoStart (void)
void	EndFrame (void)
	End a LTE frame.
void	EndSubFrame (void)
	End a LTE sub frame.
virtual void	GenerateCqiReport (const SpectrumValue &sinr)
LteEnbPhySapProvider *	GetLteEnbPhySapProvider ()
	Get the PHY SAP provider.
uint8_t	GetMacChDelay (void) const
double	GetNoiseFigure () const
double	GetTxPower () const

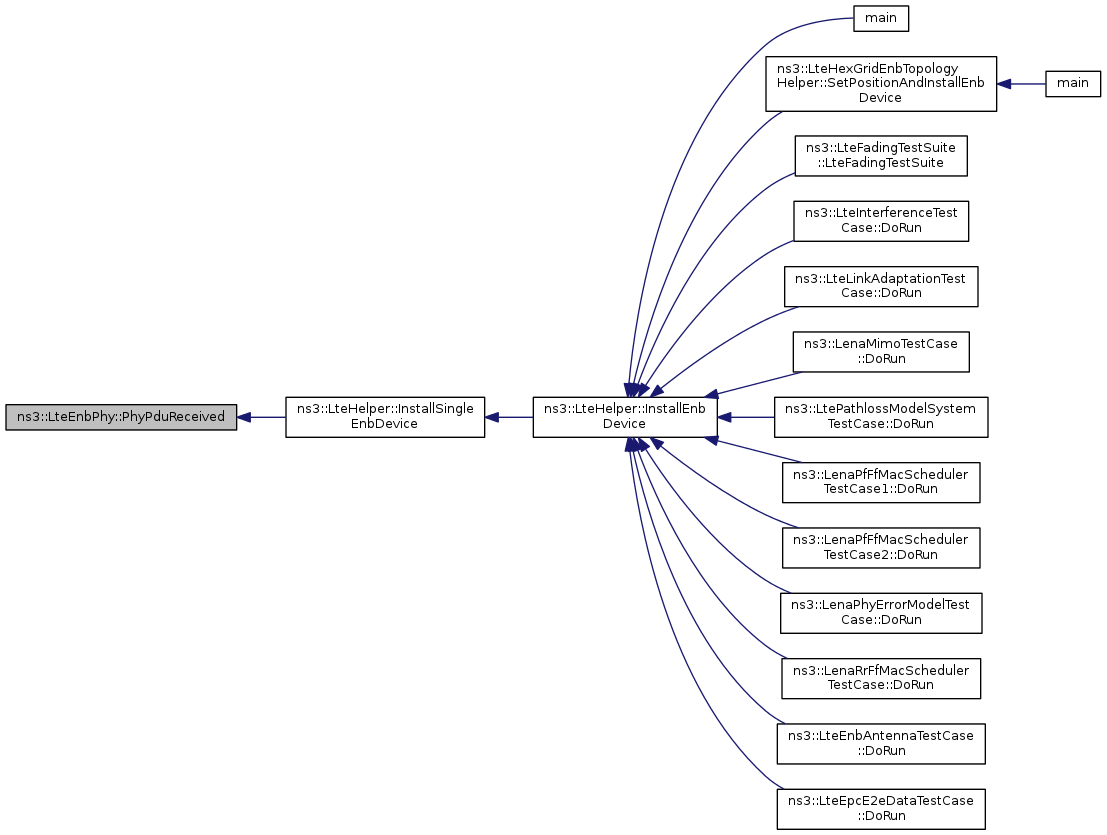

void	PhyPduReceived (Ptr< Packet > p)
	PhySpectrum received a new PHY-PDU.

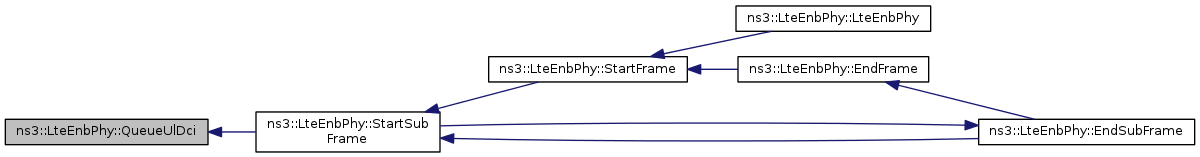

void	QueueUlDci (UlDciIdealControlMessage m)
virtual void	ReceiveIdealControlMessage (Ptr< IdealControlMessage > msg)
	Send the control message.
void	SetLteEnbPhySapUser (LteEnbPhySapUser *s)
	Set the PHY SAP User.
void	SetMacChDelay (uint8_t delay)
void	SetNoiseFigure (double pow)
void	SetTxPower (double pow)

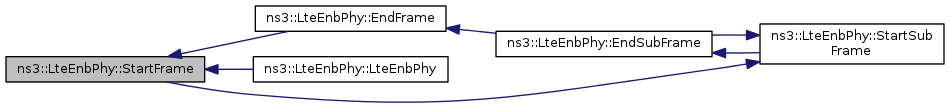

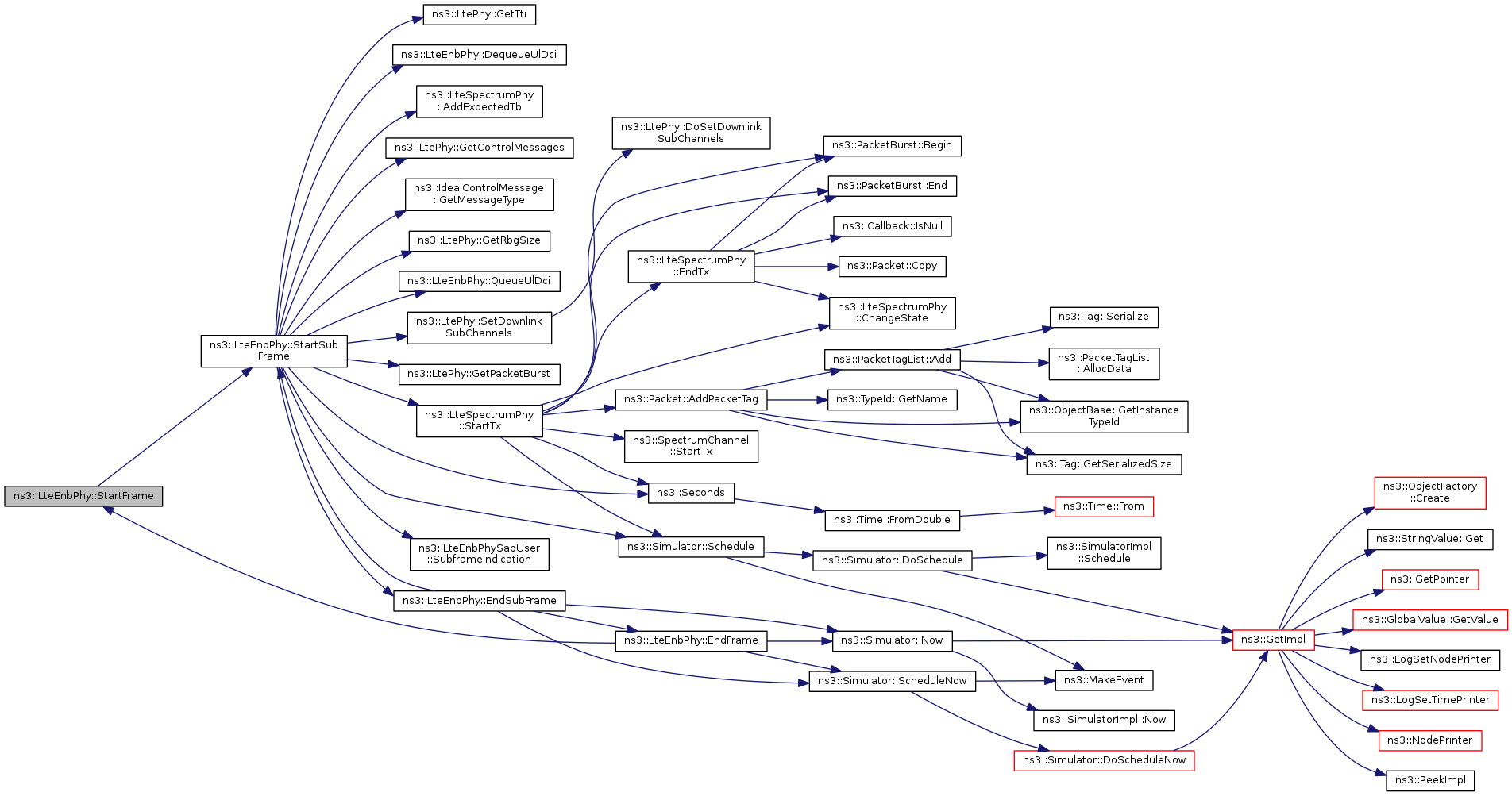

void	StartFrame (void)
	Start a LTE frame.
void	StartSubFrame (void)
	Start a LTE sub frame.
Public Member Functions inherited from ns3::LtePhy
	LtePhy ()
	LtePhy (Ptr< LteSpectrumPhy > dlPhy, Ptr< LteSpectrumPhy > ulPhy)
virtual	~LtePhy ()
void	DoSetBandwidth (uint8_t ulBandwidth, uint8_t dlBandwidth)
void	DoSetCellId (uint16_t cellId)
virtual void	DoSetEarfcn (uint16_t dlEarfcn, uint16_t ulEarfcn)
virtual void	DoSetUplinkSubChannels ()
	do some operation after the set of a list of UL sub channels
std::list< Ptr < IdealControlMessage > >	GetControlMessages (void)
Ptr< LteNetDevice >	GetDevice ()
	Get the device where the phy layer is attached.
Ptr< LteSpectrumPhy >	GetDownlinkSpectrumPhy ()
std::vector< int >	GetDownlinkSubChannels (void)
	get a list of sub channel to use in the downlink
Ptr< PacketBurst >	GetPacketBurst (void)
uint8_t	GetRbgSize (void) const
double	GetTti (void) const
Ptr< LteSpectrumPhy >	GetUplinkSpectrumPhy ()
std::vector< int >	GetUplinkSubChannels (void)
	get a list of sub channel to use in the downlink
void	SetControlMessages (Ptr< IdealControlMessage > m)
void	SetDevice (Ptr< LteNetDevice > d)
	Set the device where the phy layer is attached.
void	SetDownlinkChannel (Ptr< SpectrumChannel > c)
void	SetDownlinkSubChannels (std::vector< int > mask)
	set a list of sub channel to use in the downlink. A sub channel is composed by a couple of resource bloks (180KHz x 1 ms)
void	SetMacPdu (Ptr< Packet > p)
void	SetTti (double tti)
void	SetUplinkChannel (Ptr< SpectrumChannel > c)
void	SetUplinkSubChannels (std::vector< int > mask)
	set a list of sub channel to use in the uplink. A sub channel is composed by a couple of resource bloks (180KHz x 1 ms)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::LteEnbPhy.

Private Attributes
LteEnbPhySapProvider *	m_enbPhySapProvider
LteEnbPhySapUser *	m_enbPhySapUser
uint32_t	m_nrFrames
uint32_t	m_nrSubFrames
std::map< uint16_t, Ptr < LteUePhy > >	m_ueAttached
std::vector< std::list < UlDciIdealControlMessage > >	m_ulDciQueue

Friends
class	EnbMemberLteEnbPhySapProvider

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	NotifyNewAggregate (void)
Protected Attributes inherited from ns3::LtePhy
uint16_t	m_cellId
std::vector< std::list< Ptr < IdealControlMessage > > >	m_controlMessagesQueue
uint8_t	m_dlBandwidth
uint16_t	m_dlEarfcn
Ptr< LteSpectrumPhy >	m_downlinkSpectrumPhy
std::vector< int >	m_listOfDownlinkSubchannel
std::vector< int >	m_listOfUplinkSubchannel
uint8_t	m_macChTtiDelay
Ptr< LteNetDevice >	m_netDevice
double	m_noiseFigure
std::vector< Ptr< PacketBurst > >	m_packetBurstQueue
uint8_t	m_rbgSize
double	m_tti
double	m_txPower
uint8_t	m_ulBandwidth
uint16_t	m_ulEarfcn
Ptr< LteSpectrumPhy >	m_uplinkSpectrumPhy

Detailed Description

LteEnbPhy models the physical layer for the eNodeB

Definition at line 40 of file lte-enb-phy.h.

Constructor & Destructor Documentation

ns3::LteEnbPhy::LteEnbPhy ( )

Warning: the default constructor should not be used

Definition at line 119 of file lte-enb-phy.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

ns3::LteEnbPhy::LteEnbPhy	(	Ptr< LteSpectrumPhy >	dlPhy,
		Ptr< LteSpectrumPhy >	ulPhy
	)

Parameters

dlPhy	the downlink LteSpectrumPhy instance
ulPhy	the uplink LteSpectrumPhy instance

Definition at line 125 of file lte-enb-phy.cc.

References EnbMemberLteEnbPhySapProvider, m_enbPhySapProvider, ns3::Simulator::ScheduleNow(), and StartFrame().

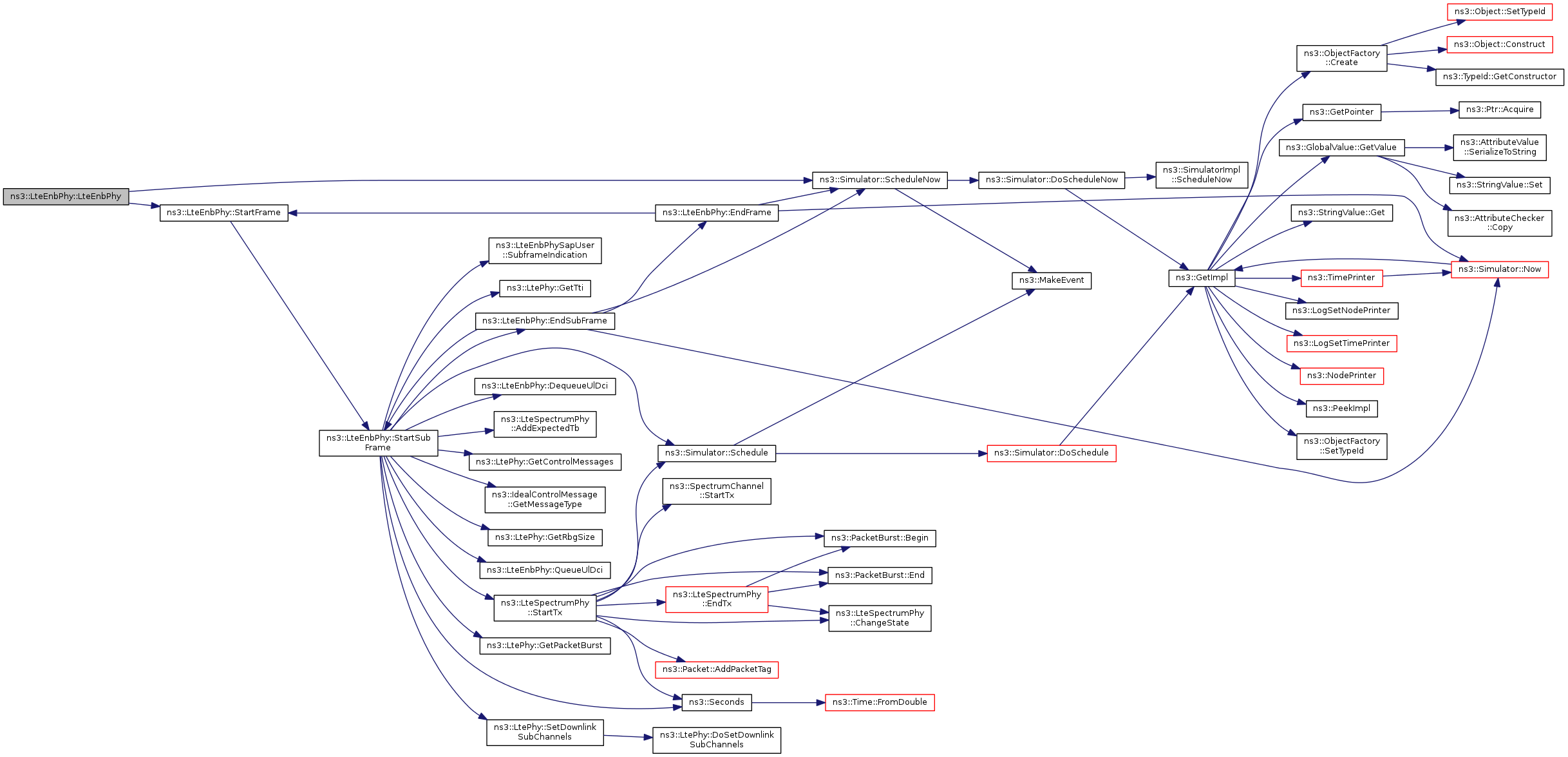

Here is the call graph for this function:

ns3::LteEnbPhy::~LteEnbPhy ( )

virtual

Definition at line 169 of file lte-enb-phy.cc.

Member Function Documentation

bool ns3::LteEnbPhy::AddUePhy	(	uint16_t	rnti,
		Ptr< LteUePhy >	phy
	)

Definition at line 259 of file lte-enb-phy.cc.

References m_ueAttached, and NS_LOG_ERROR.

void ns3::LteEnbPhy::CalcChannelQualityForUe	(	std::vector< double >	sinr,
		Ptr< LteSpectrumPhy >	ue
	)

Calculate the channel quality for a given UE.

Parameters

sinr	a list of computed SINR
ue	the UE

Definition at line 336 of file lte-enb-phy.cc.

References NS_LOG_FUNCTION.

Ptr< SpectrumValue > ns3::LteEnbPhy::CreateTxPowerSpectralDensity ( )

virtual

Create the PSD for TX.

Implements ns3::LtePhy.

Definition at line 325 of file lte-enb-phy.cc.

References ns3::LtePhy::GetDownlinkSubChannels(), ns3::LtePhy::m_dlBandwidth, ns3::LtePhy::m_dlEarfcn, ns3::LtePhy::m_txPower, and NS_LOG_FUNCTION.

Referenced by DoSetDownlinkSubChannels().

Here is the call graph for this function:

Here is the caller graph for this function:

UlCqi_s ns3::LteEnbPhy::CreateUlCqiReport ( const SpectrumValue & sinr )

Create the UL CQI feedback from SINR values perceived at the physical layer with the signal received from eNB.

Parameters

sinr	SINR values vector

Definition at line 527 of file lte-enb-phy.cc.

References ns3::SpectrumValue::ConstValuesBegin(), ns3::SpectrumValue::ConstValuesEnd(), ns3::LteFfConverter::double2fpS11dot3(), UlCqi_s::m_sinr, UlCqi_s::m_type, NS_LOG_FUNCTION, and UlCqi_s::PUSCH.

Referenced by GenerateCqiReport().

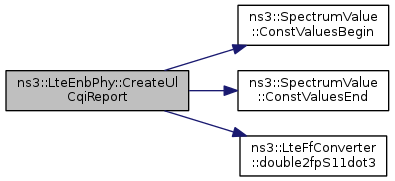

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::LteEnbPhy::DeleteUePhy ( uint16_t rnti )

Definition at line 276 of file lte-enb-phy.cc.

References m_ueAttached, and NS_LOG_ERROR.

std::list< UlDciIdealControlMessage > ns3::LteEnbPhy::DequeueUlDci ( void )

Returns: the list of UL-CQI to be processed

Definition at line 562 of file lte-enb-phy.cc.

References m_ulDciQueue, and NS_LOG_FUNCTION.

Referenced by StartSubFrame().

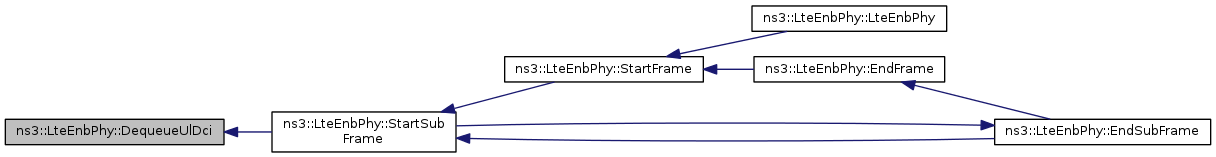

Here is the caller graph for this function:

void ns3::LteEnbPhy::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::LtePhy.

Definition at line 174 of file lte-enb-phy.cc.

References m_enbPhySapProvider, m_ueAttached, and NS_LOG_FUNCTION.

uint8_t ns3::LteEnbPhy::DoGetMacChTtiDelay ( )

virtual

Definition at line 302 of file lte-enb-phy.cc.

References ns3::LtePhy::m_macChTtiDelay.

Referenced by ns3::EnbMemberLteEnbPhySapProvider::GetMacChTtiDelay().

Here is the caller graph for this function:

void ns3::LteEnbPhy::DoSendIdealControlMessage ( Ptr< IdealControlMessage > msg )

Definition at line 343 of file lte-enb-phy.cc.

References NS_LOG_FUNCTION, and ns3::LtePhy::SetControlMessages().

Referenced by ns3::EnbMemberLteEnbPhySapProvider::SendIdealControlMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::DoSendMacPdu ( Ptr< Packet > p )

virtual

Queue the MAC PDU to be sent.

Parameters

p	the MAC PDU to sent

Implements ns3::LtePhy.

Definition at line 295 of file lte-enb-phy.cc.

References NS_LOG_FUNCTION, and ns3::LtePhy::SetMacPdu().

Referenced by ns3::EnbMemberLteEnbPhySapProvider::SendMacPdu().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::DoSetDownlinkSubChannels ( )

virtual

do some operation after the set of a list of DL sub channels

Reimplemented from ns3::LtePhy.

Definition at line 316 of file lte-enb-phy.cc.

References CreateTxPowerSpectralDensity(), ns3::LtePhy::m_downlinkSpectrumPhy, NS_LOG_FUNCTION, and ns3::LteSpectrumPhy::SetTxPowerSpectralDensity().

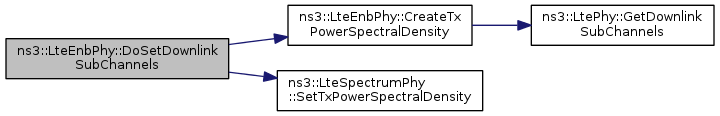

Here is the call graph for this function:

void ns3::LteEnbPhy::DoSetTransmissionMode	(	uint16_t	rnti,
		uint8_t	txMode
	)

virtual

Definition at line 548 of file lte-enb-phy.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::EnbMemberLteEnbPhySapProvider::SetTransmissionMode().

Here is the caller graph for this function:

void ns3::LteEnbPhy::DoStart ( void )

virtual

This method is called only once by Object::Start. If the user calls Object::Start multiple times, DoStart is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 183 of file lte-enb-phy.cc.

References ns3::LteSpectrumValueHelper::CreateNoisePowerSpectralDensity(), ns3::LtePhy::m_noiseFigure, ns3::LtePhy::m_ulBandwidth, ns3::LtePhy::m_ulEarfcn, ns3::LtePhy::m_uplinkSpectrumPhy, NS_LOG_FUNCTION, and ns3::LteSpectrumPhy::SetNoisePowerSpectralDensity().

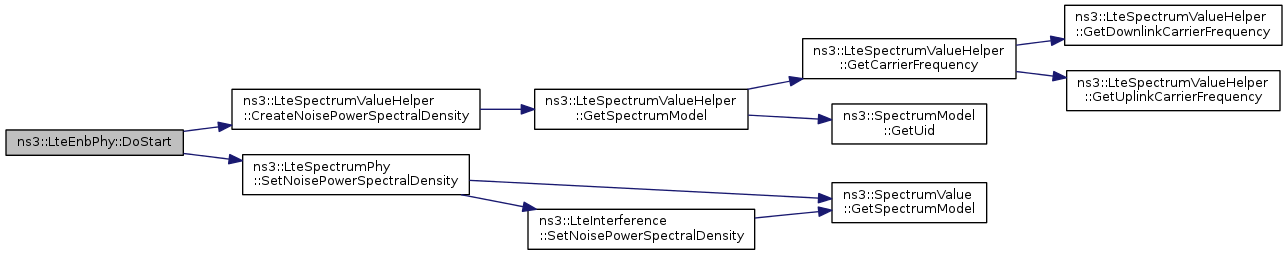

Here is the call graph for this function:

void ns3::LteEnbPhy::EndFrame ( void )

End a LTE frame.

Definition at line 511 of file lte-enb-phy.cc.

References ns3::Simulator::Now(), NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and StartFrame().

Referenced by EndSubFrame().

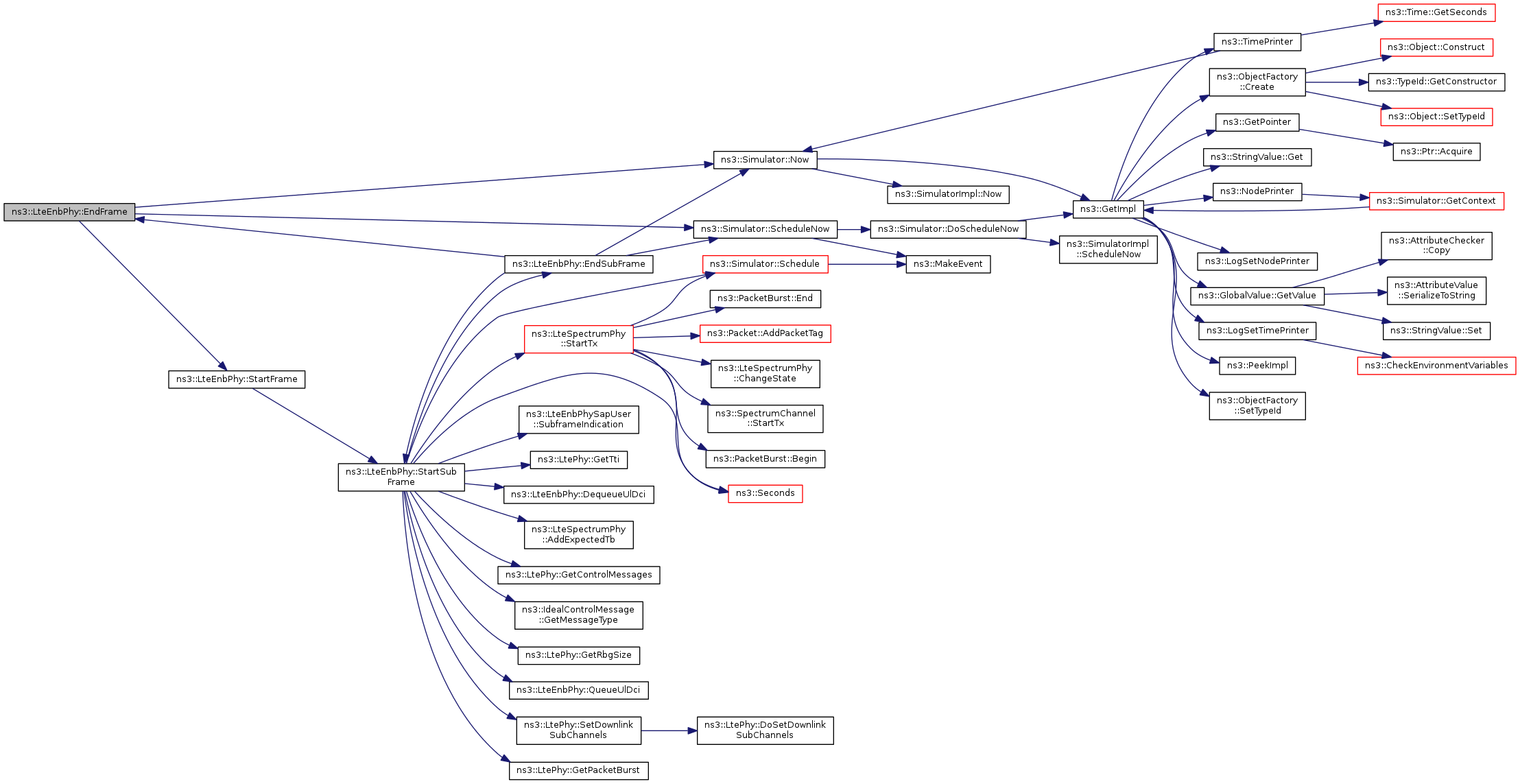

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::EndSubFrame ( void )

End a LTE sub frame.

Definition at line 496 of file lte-enb-phy.cc.

References EndFrame(), m_nrSubFrames, ns3::Simulator::Now(), NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and StartSubFrame().

Referenced by StartSubFrame().

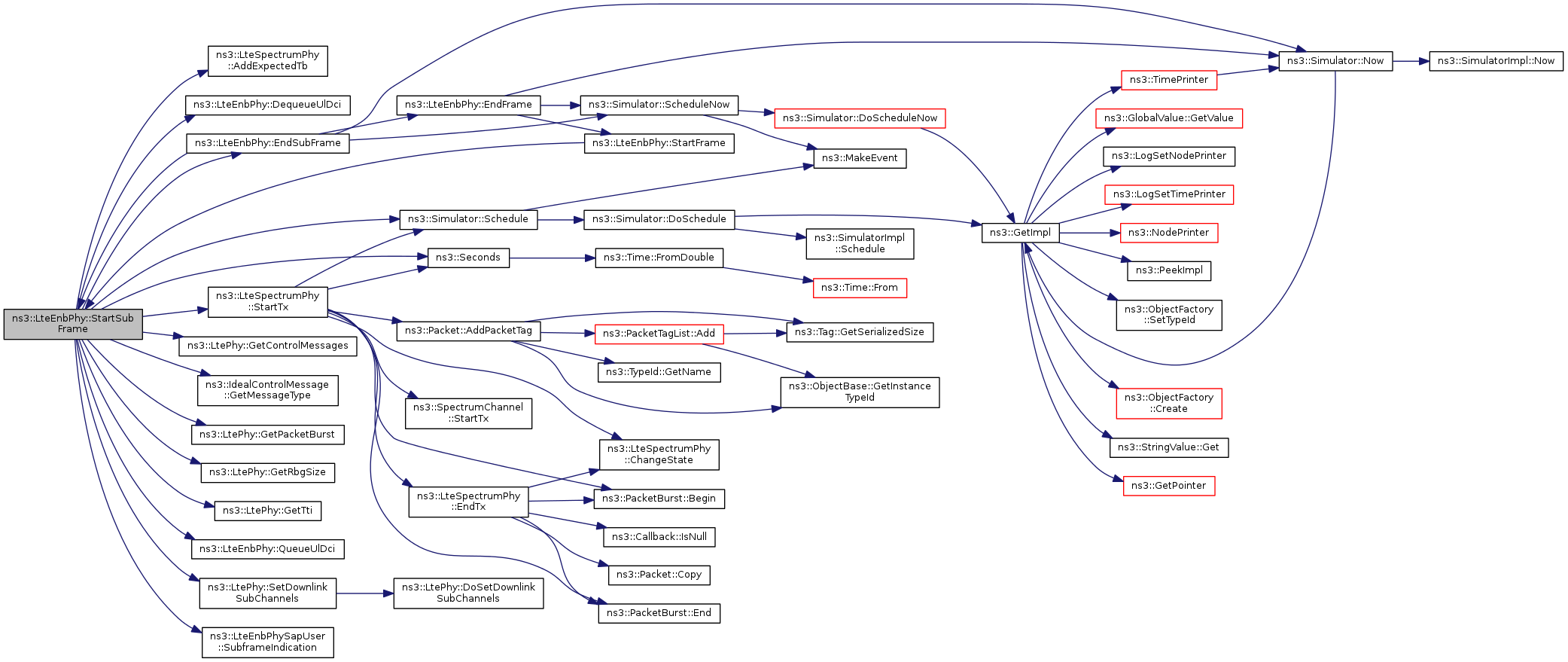

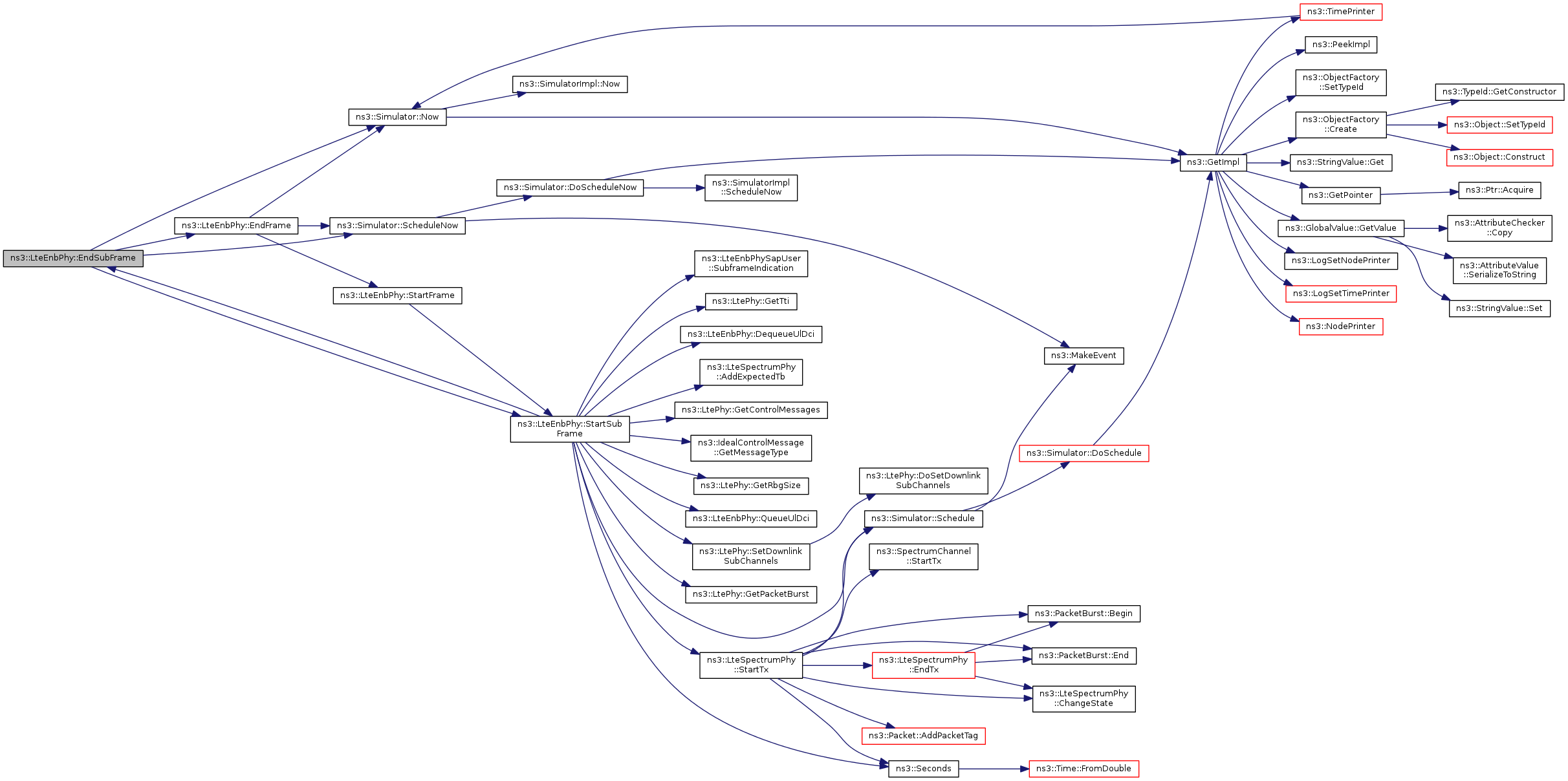

Here is the call graph for this function:

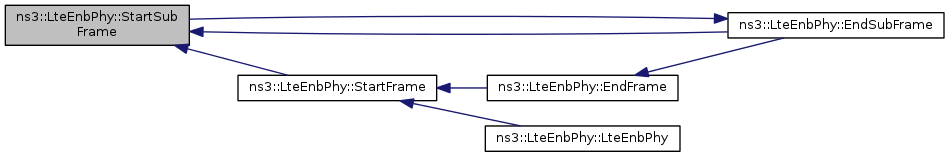

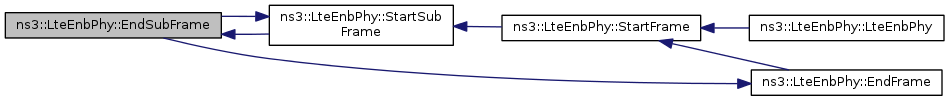

Here is the caller graph for this function:

void ns3::LteEnbPhy::GenerateCqiReport ( const SpectrumValue & sinr )

virtual

generate a CQI report based on the given SINR

Parameters

sinr	the SINR vs frequency measured by the device

Implements ns3::LtePhy.

Definition at line 519 of file lte-enb-phy.cc.

References CreateUlCqiReport(), m_enbPhySapUser, NS_LOG_FUNCTION, and ns3::LteEnbPhySapUser::UlCqiReport().

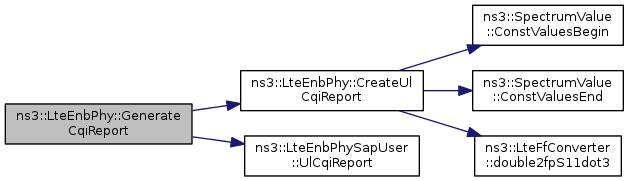

Here is the call graph for this function:

LteEnbPhySapProvider * ns3::LteEnbPhy::GetLteEnbPhySapProvider ( )

Get the PHY SAP provider.

Returns: a pointer to the SAP Provider of the PHY

Definition at line 199 of file lte-enb-phy.cc.

References m_enbPhySapProvider.

uint8_t ns3::LteEnbPhy::GetMacChDelay ( void ) const

Returns: the TTI delay between MAC and channel

Definition at line 253 of file lte-enb-phy.cc.

References ns3::LtePhy::m_macChTtiDelay.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::LteEnbPhy::GetNoiseFigure ( ) const

Returns: the noise figure in dB

Definition at line 226 of file lte-enb-phy.cc.

References ns3::LtePhy::m_noiseFigure, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::LteEnbPhy::GetTxPower ( ) const

Returns: the transmission power in dBm

Definition at line 212 of file lte-enb-phy.cc.

References ns3::LtePhy::m_txPower, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

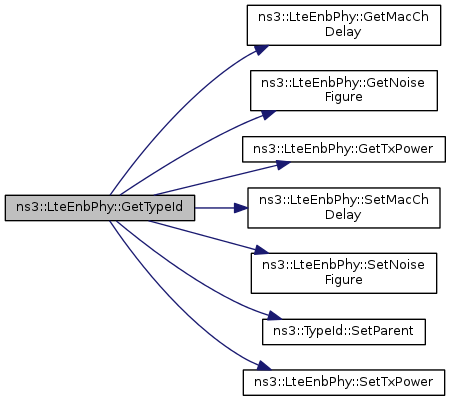

TypeId ns3::LteEnbPhy::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::LteEnbPhy.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbPhy
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbPhy

Attributes defined for this type:

TxPower: Transmission power in dBm
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 30
- Flags: construct write read
NoiseFigure: Loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. According to Wikipedia (http://en.wikipedia.org/wiki/Noise_figure), this is "the difference in decibels (dB) between the noise output of the actual receiver to the noise output of an ideal receiver with the same overall gain and bandwidth when the receivers are connected to sources at the standard noise temperature T0." In this model, we consider T0 = 290K.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 5
- Flags: construct write read
MacToChannelDelay: The delay in TTI units that occurs between a scheduling decision in the MAC and the actual start of the transmission by the PHY. This is intended to be used to model the latency of real PHY and MAC implementations.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 2
- Flags: construct write read
