ns3::LteSinrChunkProcessor Class Reference

#include <lte-sinr-chunk-processor.h>

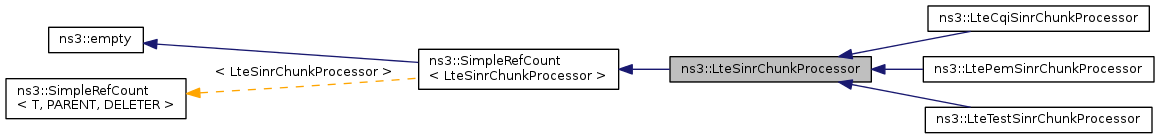

Inheritance diagram for ns3::LteSinrChunkProcessor:

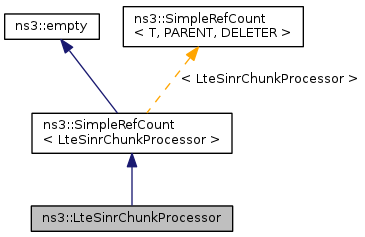

Collaboration diagram for ns3::LteSinrChunkProcessor:

Public Member Functions
virtual	~LteSinrChunkProcessor ()
virtual void	End ()=0
virtual void	EvaluateSinrChunk (const SpectrumValue &sinr, Time duration)=0
virtual void	Start ()=0
Public Member Functions inherited from ns3::SimpleRefCount< LteSinrChunkProcessor >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< LteSinrChunkProcessor >
static void	Cleanup (void)

Detailed Description

This abstract class is used to process the time-vs-frequency SINR chunk of a received LTE signal which was calculated by the LteInterference object.

Definition at line 43 of file lte-sinr-chunk-processor.h.

Constructor & Destructor Documentation

ns3::LteSinrChunkProcessor::~LteSinrChunkProcessor ( )

virtual

Definition at line 30 of file lte-sinr-chunk-processor.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

virtual void ns3::LteSinrChunkProcessor::End ( )

pure virtual

Implemented in ns3::LtePemSinrChunkProcessor, ns3::LteCqiSinrChunkProcessor, and ns3::LteTestSinrChunkProcessor.

virtual void ns3::LteSinrChunkProcessor::EvaluateSinrChunk ( const SpectrumValue &  sinr, Time  duration  )

pure virtual

Implemented in ns3::LtePemSinrChunkProcessor, ns3::LteCqiSinrChunkProcessor, and ns3::LteTestSinrChunkProcessor.

virtual void ns3::LteSinrChunkProcessor::Start ( )

pure virtual

Implemented in ns3::LtePemSinrChunkProcessor, ns3::LteCqiSinrChunkProcessor, and ns3::LteTestSinrChunkProcessor.

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-sinr-chunk-processor.h
• src/lte/model/lte-sinr-chunk-processor.cc
