#include <lte-test-ue-phy.h>

Inheritance diagram for ns3::LteTestUePhy:

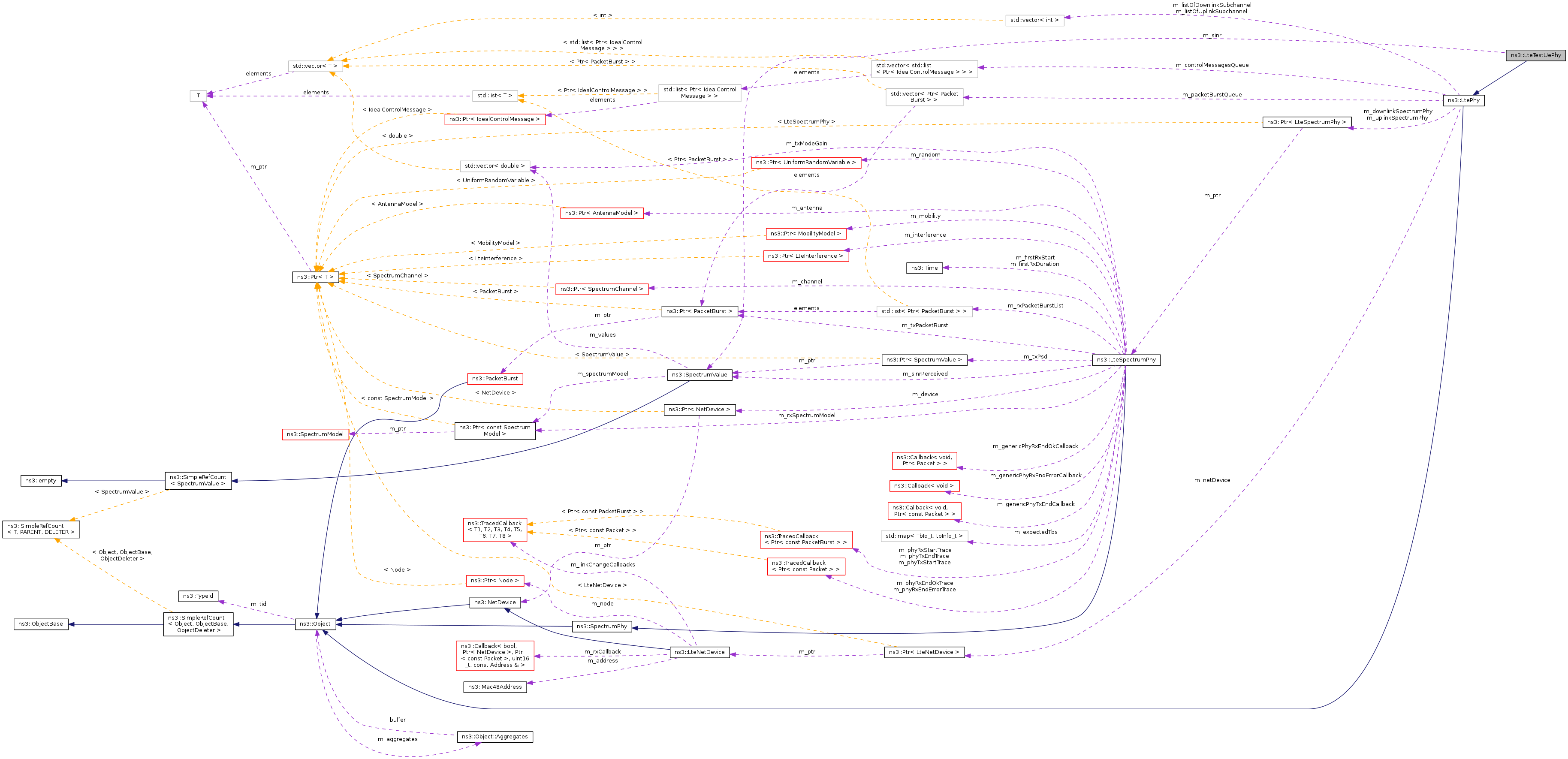

Collaboration diagram for ns3::LteTestUePhy:

Public Member Functions
	LteTestUePhy ()
	LteTestUePhy (Ptr< LteSpectrumPhy > dlPhy, Ptr< LteSpectrumPhy > ulPhy)
virtual	~LteTestUePhy ()
virtual Ptr< SpectrumValue >	CreateTxPowerSpectralDensity ()
	Create the PSD for the TX.
virtual void	DoDispose ()
virtual void	DoSendMacPdu (Ptr< Packet > p)
	Queue the MAC PDU to be sent.
virtual void	GenerateCqiReport (const SpectrumValue &sinr)
SpectrumValue	GetSinr ()
virtual void	ReceiveIdealControlMessage (Ptr< IdealControlMessage > msg)
	Receive SendIdealControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.
Public Member Functions inherited from ns3::LtePhy
	LtePhy ()
	LtePhy (Ptr< LteSpectrumPhy > dlPhy, Ptr< LteSpectrumPhy > ulPhy)
virtual	~LtePhy ()
void	DoSetBandwidth (uint8_t ulBandwidth, uint8_t dlBandwidth)
void	DoSetCellId (uint16_t cellId)
virtual void	DoSetDownlinkSubChannels ()
	do some operation after the set of a list of DL sub channels
virtual void	DoSetEarfcn (uint16_t dlEarfcn, uint16_t ulEarfcn)
virtual void	DoSetUplinkSubChannels ()
	do some operation after the set of a list of UL sub channels
std::list< Ptr < IdealControlMessage > >	GetControlMessages (void)
Ptr< LteNetDevice >	GetDevice ()
	Get the device where the phy layer is attached.
Ptr< LteSpectrumPhy >	GetDownlinkSpectrumPhy ()
std::vector< int >	GetDownlinkSubChannels (void)
	get a list of sub channel to use in the downlink
Ptr< PacketBurst >	GetPacketBurst (void)
uint8_t	GetRbgSize (void) const
double	GetTti (void) const
Ptr< LteSpectrumPhy >	GetUplinkSpectrumPhy ()
std::vector< int >	GetUplinkSubChannels (void)
	get a list of sub channel to use in the downlink
void	SetControlMessages (Ptr< IdealControlMessage > m)
void	SetDevice (Ptr< LteNetDevice > d)
	Set the device where the phy layer is attached.
void	SetDownlinkChannel (Ptr< SpectrumChannel > c)
void	SetDownlinkSubChannels (std::vector< int > mask)
	set a list of sub channel to use in the downlink. A sub channel is composed by a couple of resource bloks (180KHz x 1 ms)
void	SetMacPdu (Ptr< Packet > p)
void	SetTti (double tti)
void	SetUplinkChannel (Ptr< SpectrumChannel > c)
void	SetUplinkSubChannels (std::vector< int > mask)
	set a list of sub channel to use in the uplink. A sub channel is composed by a couple of resource bloks (180KHz x 1 ms)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::LtePhy.

Private Attributes
SpectrumValue	m_sinr

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)
Protected Attributes inherited from ns3::LtePhy
uint16_t	m_cellId
std::vector< std::list< Ptr < IdealControlMessage > > >	m_controlMessagesQueue
uint8_t	m_dlBandwidth
uint16_t	m_dlEarfcn
Ptr< LteSpectrumPhy >	m_downlinkSpectrumPhy
std::vector< int >	m_listOfDownlinkSubchannel
std::vector< int >	m_listOfUplinkSubchannel
uint8_t	m_macChTtiDelay
Ptr< LteNetDevice >	m_netDevice
double	m_noiseFigure
std::vector< Ptr< PacketBurst > >	m_packetBurstQueue
uint8_t	m_rbgSize
double	m_tti
double	m_txPower
uint8_t	m_ulBandwidth
uint16_t	m_ulEarfcn
Ptr< LteSpectrumPhy >	m_uplinkSpectrumPhy

Detailed Description

Definition at line 30 of file lte-test-ue-phy.h.

Constructor & Destructor Documentation

ns3::LteTestUePhy::LteTestUePhy ( )

Warning: the default constructor should not be used

Definition at line 31 of file lte-test-ue-phy.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

ns3::LteTestUePhy::LteTestUePhy	(	Ptr< LteSpectrumPhy >	dlPhy,
		Ptr< LteSpectrumPhy >	ulPhy
	)

Parameters

dlPhy	the downlink LteSpectrumPhy instance
ulPhy	the uplink LteSpectrumPhy instance

Definition at line 37 of file lte-test-ue-phy.cc.

References NS_LOG_FUNCTION.

ns3::LteTestUePhy::~LteTestUePhy ( )

virtual

Definition at line 43 of file lte-test-ue-phy.cc.

Member Function Documentation

Ptr< SpectrumValue > ns3::LteTestUePhy::CreateTxPowerSpectralDensity ( )

virtual

Create the PSD for the TX.

Returns: the pointer to the PSD

Implements ns3::LtePhy.

Definition at line 72 of file lte-test-ue-phy.cc.

References NS_LOG_FUNCTION.

void ns3::LteTestUePhy::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::LtePhy.

Definition at line 48 of file lte-test-ue-phy.cc.

References NS_LOG_FUNCTION.

void ns3::LteTestUePhy::DoSendMacPdu ( Ptr< Packet > p )

virtual

Queue the MAC PDU to be sent.

Parameters
