#include <mgt-headers.h>

Inheritance diagram for ns3::MgtAddBaResponseHeader:

Collaboration diagram for ns3::MgtAddBaResponseHeader:

Public Member Functions
	MgtAddBaResponseHeader ()
virtual uint32_t	Deserialize (Buffer::Iterator start)
uint16_t	GetBufferSize (void) const
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
StatusCode	GetStatusCode (void) const
uint8_t	GetTid (void) const
uint16_t	GetTimeout (void) const
bool	IsAmsduSupported (void) const
bool	IsImmediateBlockAck (void) const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (Buffer::Iterator start) const
void	SetAmsduSupport (bool supported)
void	SetBufferSize (uint16_t size)
void	SetDelayedBlockAck ()
void	SetImmediateBlockAck ()
void	SetStatusCode (StatusCode code)
void	SetTid (uint8_t tid)
void	SetTimeout (uint16_t timeout)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::MgtAddBaResponseHeader.

Private Member Functions
uint16_t	GetParameterSet (void) const
void	SetParameterSet (uint16_t params)

Private Attributes
uint8_t	m_amsduSupport
uint16_t	m_bufferSize
StatusCode	m_code
uint8_t	m_dialogToken
uint8_t	m_policy
uint8_t	m_tid
uint16_t	m_timeoutValue

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Implement the header for management frames of type add block ack response.

Definition at line 310 of file mgt-headers.h.

Constructor & Destructor Documentation

ns3::MgtAddBaResponseHeader::MgtAddBaResponseHeader ( )

Definition at line 754 of file mgt-headers.cc.

Member Function Documentation

uint32_t ns3::MgtAddBaResponseHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 805 of file mgt-headers.cc.

References ns3::StatusCode::Deserialize(), ns3::Buffer::Iterator::GetDistanceFrom(), m_code, m_dialogToken, m_timeoutValue, ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadU8(), SetParameterSet(), and visualizer.core::start().

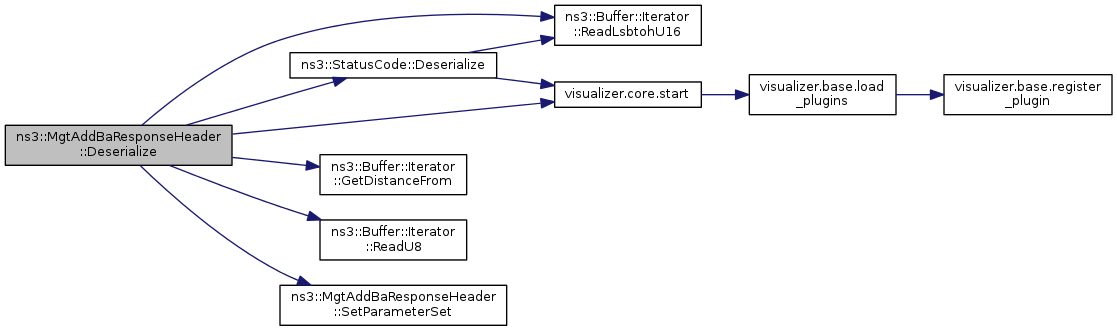

Here is the call graph for this function:

uint16_t ns3::MgtAddBaResponseHeader::GetBufferSize ( void ) const

Definition at line 883 of file mgt-headers.cc.

References m_bufferSize.

Referenced by ns3::MacLow::CreateBlockAckAgreement(), and ns3::BlockAckManager::UpdateAgreement().

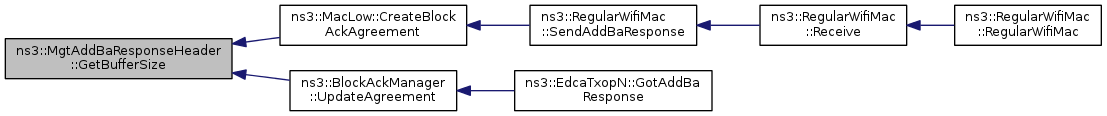

Here is the caller graph for this function:

TypeId ns3::MgtAddBaResponseHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 772 of file mgt-headers.cc.

References GetTypeId().

Here is the call graph for this function:

uint16_t ns3::MgtAddBaResponseHeader::GetParameterSet ( void ) const

private

Definition at line 895 of file mgt-headers.cc.

References m_amsduSupport, m_bufferSize, m_policy, and m_tid.

Referenced by Serialize().

Here is the caller graph for this function:

uint32_t ns3::MgtAddBaResponseHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 784 of file mgt-headers.cc.

References ns3::StatusCode::GetSerializedSize(), and m_code.

Here is the call graph for this function:

StatusCode ns3::MgtAddBaResponseHeader::GetStatusCode ( void ) const

Definition at line 859 of file mgt-headers.cc.

References m_code.

Referenced by ns3::EdcaTxopN::GotAddBaResponse().

Here is the caller graph for this function:

uint8_t ns3::MgtAddBaResponseHeader::GetTid ( void ) const

Definition at line 865 of file mgt-headers.cc.

References m_tid.

Referenced by ns3::MacLow::CreateBlockAckAgreement(), ns3::EdcaTxopN::GotAddBaResponse(), ns3::RegularWifiMac::Receive(), and ns3::BlockAckManager::UpdateAgreement().

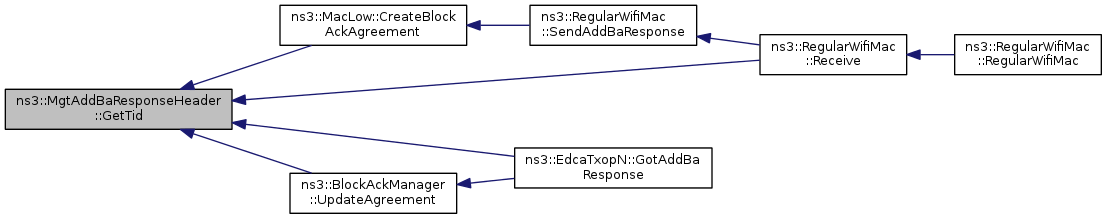

Here is the caller graph for this function:

uint16_t ns3::MgtAddBaResponseHeader::GetTimeout ( void ) const

Definition at line 877 of file mgt-headers.cc.

References m_timeoutValue.

Referenced by ns3::MacLow::CreateBlockAckAgreement(), and ns3::BlockAckManager::UpdateAgreement().

Here is the caller graph for this function:

TypeId ns3::MgtAddBaResponseHeader::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::MgtAddBaResponseHeader.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 762 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::MgtAddBaResponseHeader::IsAmsduSupported ( void ) const

Definition at line 889 of file mgt-headers.cc.

References m_amsduSupport.

Referenced by ns3::MacLow::CreateBlockAckAgreement(), and ns3::BlockAckManager::UpdateAgreement().

Here is the caller graph for this function:

bool ns3::MgtAddBaResponseHeader::IsImmediateBlockAck ( void ) const

Definition at line 871 of file mgt-headers.cc.

References m_policy.

Referenced by ns3::MacLow::CreateBlockAckAgreement(), and ns3::BlockAckManager::UpdateAgreement().

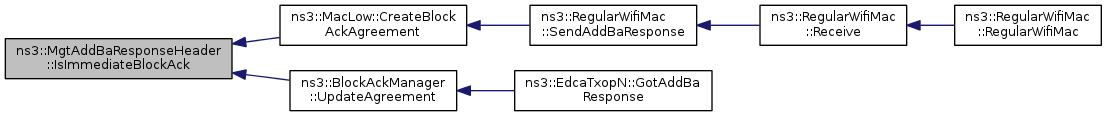

Here is the caller graph for this function:

void ns3::MgtAddBaResponseHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 778 of file mgt-headers.cc.

References m_code.

void ns3::MgtAddBaResponseHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 795 of file mgt-headers.cc.

References GetParameterSet(), m_code, m_dialogToken, m_timeoutValue, ns3::StatusCode::Serialize(), visualizer.core::start(), ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::Buffer::Iterator::WriteU8().

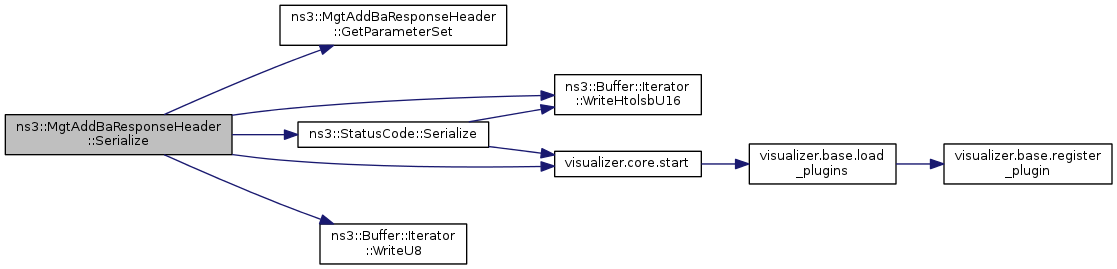

Here is the call graph for this function:
