#include <mpi-receiver.h>

Inheritance diagram for ns3::MpiReceiver:

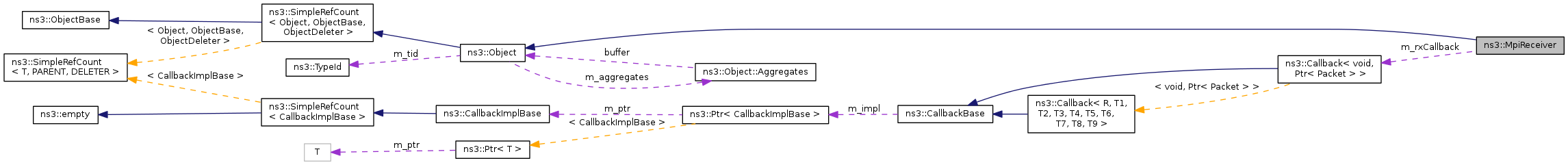

Collaboration diagram for ns3::MpiReceiver:

Public Member Functions
virtual	~MpiReceiver ()
void	Receive (Ptr< Packet > p)
	Direct an incoming packet to the device Receive() method.
void	SetReceiveCallback (Callback< void, Ptr< Packet > > callback)
	Set the receive callback to get packets to net devices.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::Object.

Private Attributes
Callback< void, Ptr< Packet > >	m_rxCallback

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Class to aggregate to a NetDevice if it supports MPI capability

MpiInterface::ReceiveMessages () needs to send packets to a NetDevice Receive() method. Since each NetDevice's Receive() method is specific to the derived class, and since we do not know whether such a NetDevice is MPI-capable, we aggregate one of these objects to each MPI-capable device. In addition, we must hook up a NetDevice::Receive() method to the callback. So the two steps to enable MPI capability are to aggregate this object to a NetDevice, and to set the callback.

Definition at line 42 of file mpi-receiver.h.
