Concrete IPv6 specific PbbMessage class. More...

#include <packetbb.h>

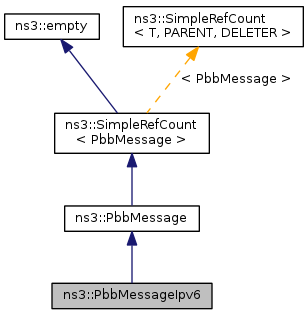

Inheritance diagram for ns3::PbbMessageIpv6:

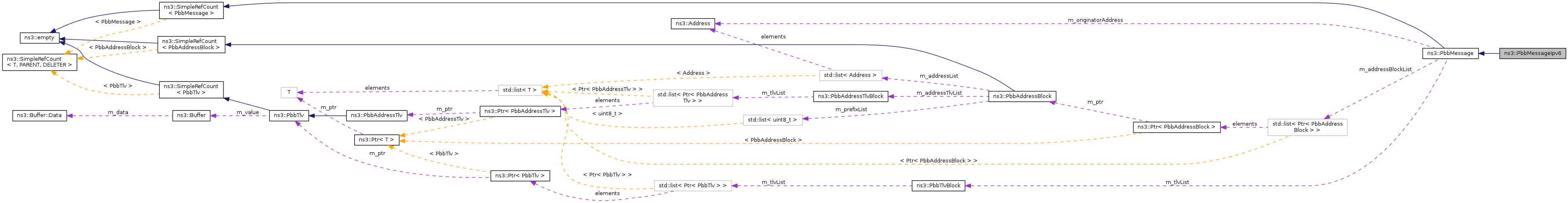

Collaboration diagram for ns3::PbbMessageIpv6:

Public Member Functions
	PbbMessageIpv6 ()
virtual	~PbbMessageIpv6 ()
Public Member Functions inherited from ns3::PbbMessage
	PbbMessage ()
virtual	~PbbMessage ()
Ptr< PbbAddressBlock >	AddressBlockBack (void)
const Ptr< PbbAddressBlock >	AddressBlockBack (void) const
AddressBlockIterator	AddressBlockBegin ()
ConstAddressBlockIterator	AddressBlockBegin () const
void	AddressBlockClear (void)
	Removes all address blocks from this message.
bool	AddressBlockEmpty (void) const
AddressBlockIterator	AddressBlockEnd ()
ConstAddressBlockIterator	AddressBlockEnd () const
AddressBlockIterator	AddressBlockErase (AddressBlockIterator position)
	Removes the address block at the specified position.
AddressBlockIterator	AddressBlockErase (AddressBlockIterator first, AddressBlockIterator last)
	Removes all address blocks from [first, last) (includes first, not includes last).
Ptr< PbbAddressBlock >	AddressBlockFront (void)
const Ptr< PbbAddressBlock >	AddressBlockFront (void) const
void	AddressBlockPopBack (void)
	Removes an address block from the back of this message.
void	AddressBlockPopFront (void)
	Removes an address block from the front of this message.
void	AddressBlockPushBack (Ptr< PbbAddressBlock > block)
	Appends an address block to the front of this message.
void	AddressBlockPushFront (Ptr< PbbAddressBlock > block)
	Prepends an address block to the front of this message.
int	AddressBlockSize (void) const
void	Deserialize (Buffer::Iterator &start)
	Deserializes a message from the specified buffer.
uint8_t	GetHopCount (void) const
uint8_t	GetHopLimit (void) const
Address	GetOriginatorAddress (void) const
uint16_t	GetSequenceNumber (void) const
uint32_t	GetSerializedSize (void) const
uint8_t	GetType (void) const
bool	HasHopCount (void) const
	Tests whether or not this message has a hop count.
bool	HasHopLimit (void) const
	Tests whether or not this message has a hop limit.
bool	HasOriginatorAddress (void) const
	Tests whether or not this message has an originator address.
bool	HasSequenceNumber (void) const
	Tests whether or not this message has a sequence number.
bool	operator!= (const PbbMessage &other) const
bool	operator== (const PbbMessage &other) const
void	Print (std::ostream &os) const
	Pretty-prints the contents of this message.
void	Print (std::ostream &os, int level) const
	Pretty-prints the contents of this message, with specified indentation.
void	Serialize (Buffer::Iterator &start) const
	Serializes this message into the specified buffer.
void	SetHopCount (uint8_t hopcount)
	Sets the current number of hops this message has traveled.
void	SetHopLimit (uint8_t hoplimit)
	Sets the maximum number of hops this message should travel.
void	SetOriginatorAddress (Address address)
	Sets the address for the node that created this packet.
void	SetSequenceNumber (uint16_t seqnum)
	Sets the sequence number of this message.
void	SetType (uint8_t type)
	Sets the type for this message.
Ptr< PbbTlv >	TlvBack (void)
const Ptr< PbbTlv >	TlvBack (void) const
TlvIterator	TlvBegin ()
ConstTlvIterator	TlvBegin () const
void	TlvClear (void)
	Removes all message TLVs from this block.
bool	TlvEmpty (void) const
TlvIterator	TlvEnd ()
ConstTlvIterator	TlvEnd () const
TlvIterator	TlvErase (TlvIterator position)
	Removes the message TLV at the specified position.
TlvIterator	TlvErase (TlvIterator first, TlvIterator last)
	Removes all message TLVs from [first, last) (includes first, not includes last).
Ptr< PbbTlv >	TlvFront (void)
const Ptr< PbbTlv >	TlvFront (void) const
void	TlvPopBack (void)
	Removes a message TLV from the back of this message.
void	TlvPopFront (void)
	Removes a message TLV from the front of this message.
void	TlvPushBack (Ptr< PbbTlv > tlv)
	Appends a message TLV to the back of this message.
void	TlvPushFront (Ptr< PbbTlv > tlv)
	Prepends a message TLV to the front of this message.
int	TlvSize (void) const
Public Member Functions inherited from ns3::SimpleRefCount< PbbMessage >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Protected Member Functions

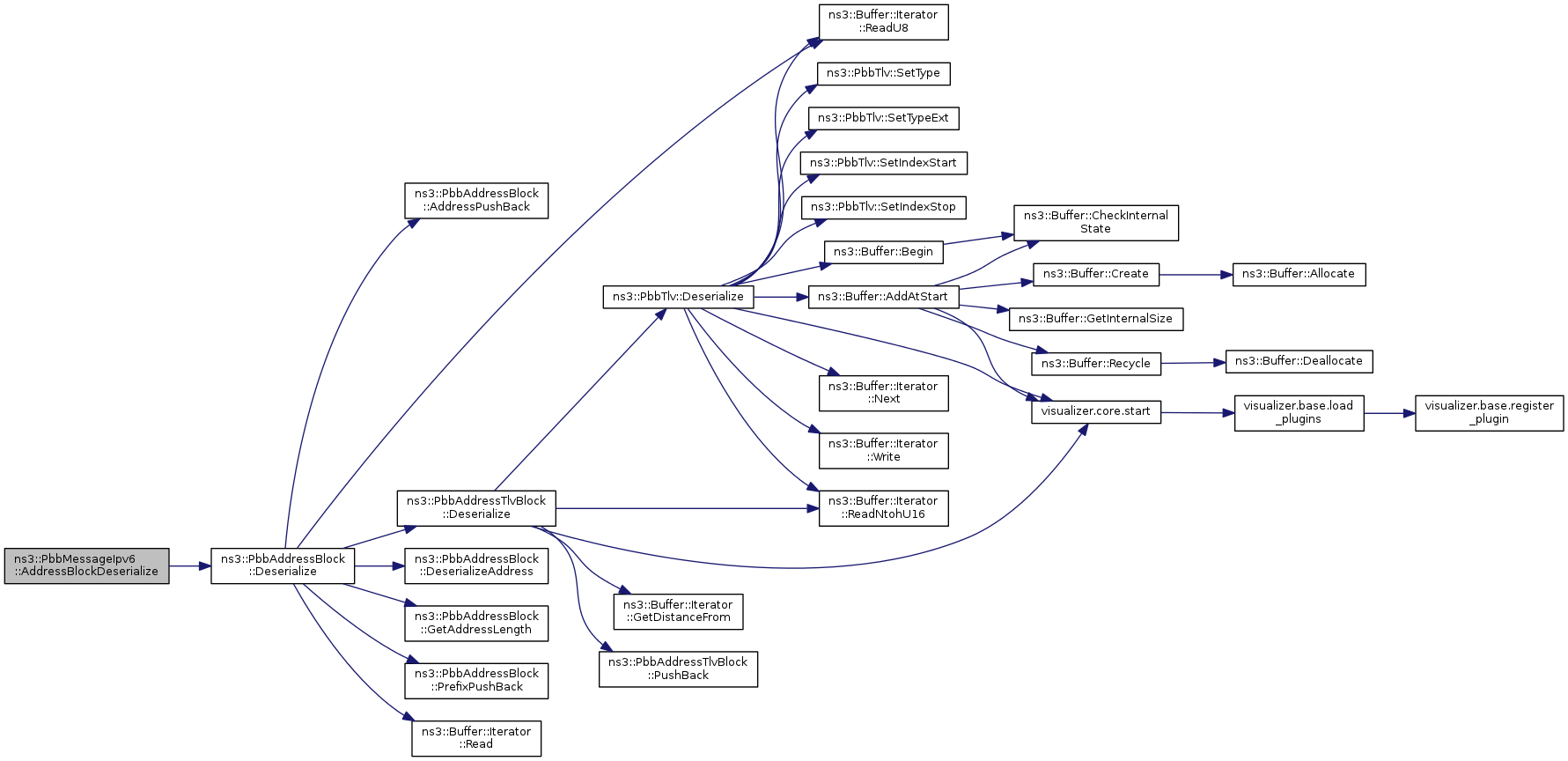

virtual Ptr< PbbAddressBlock >	AddressBlockDeserialize (Buffer::Iterator &start) const

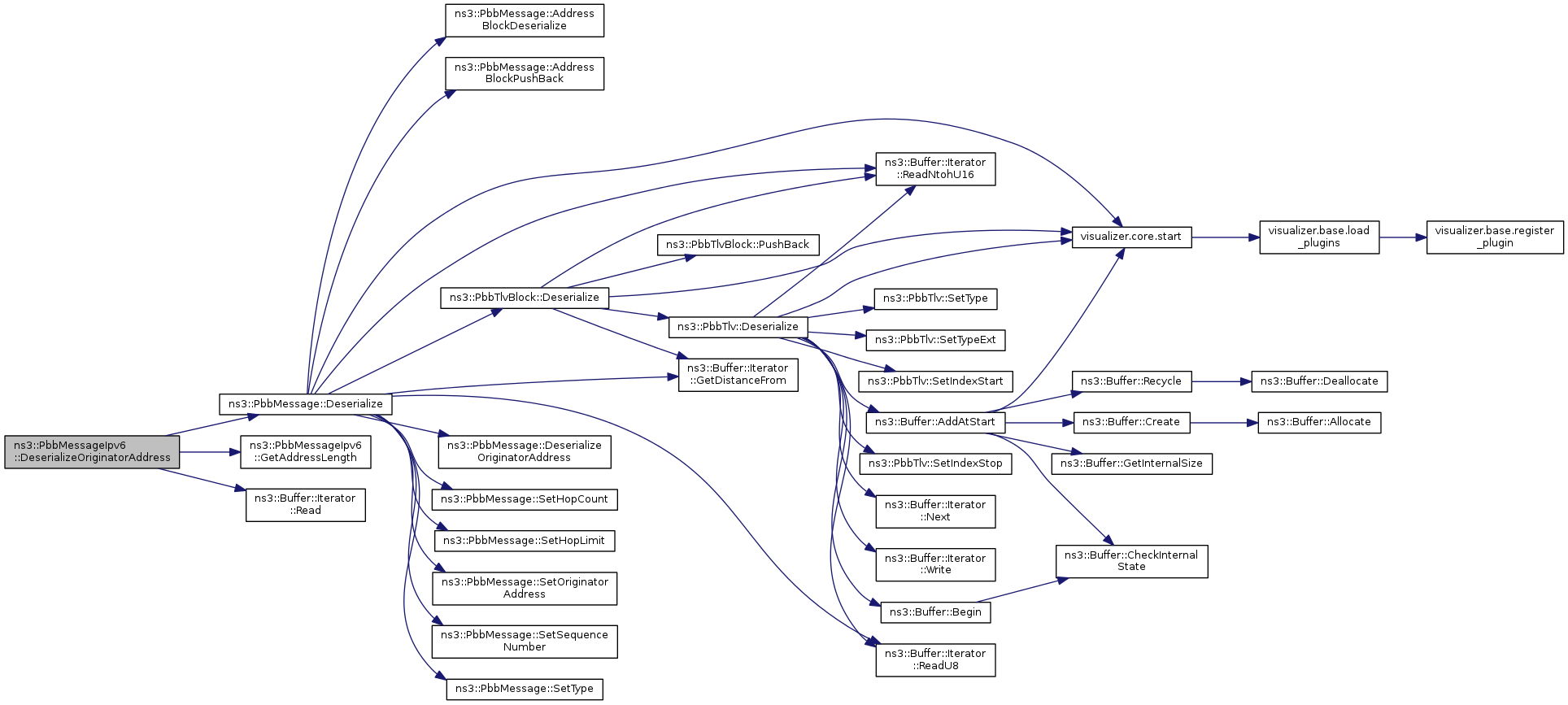

virtual Address	DeserializeOriginatorAddress (Buffer::Iterator &start) const

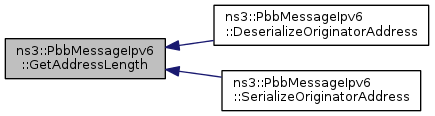

virtual PbbAddressLength	GetAddressLength (void) const

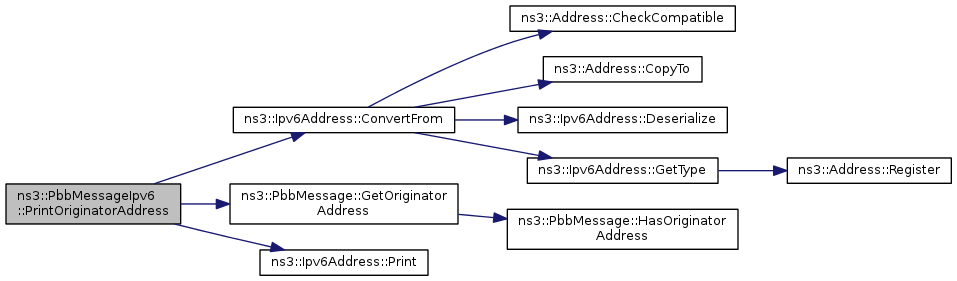

virtual void	PrintOriginatorAddress (std::ostream &os) const

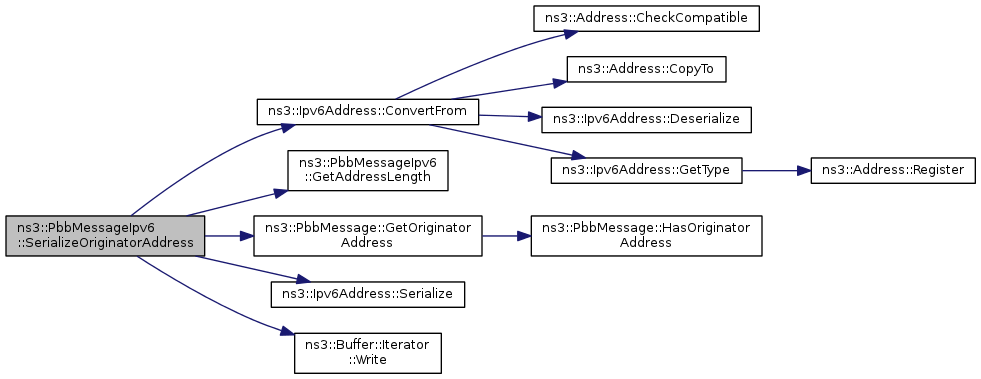

virtual void	SerializeOriginatorAddress (Buffer::Iterator &start) const

Additional Inherited Members
Public Types inherited from ns3::PbbMessage
typedef std::list< Ptr < PbbAddressBlock > >::iterator	AddressBlockIterator
typedef std::list< Ptr < PbbAddressBlock > >::const_iterator	ConstAddressBlockIterator
typedef std::list< Ptr< PbbTlv > >::const_iterator	ConstTlvIterator
typedef std::list< Ptr< PbbTlv > >::iterator	TlvIterator
Static Public Member Functions inherited from ns3::PbbMessage
static Ptr< PbbMessage >	DeserializeMessage (Buffer::Iterator &start)
	Deserializes a message, returning the correct object depending on whether it is an IPv4 message or an IPv6 message.
