#include <ss-scheduler.h>

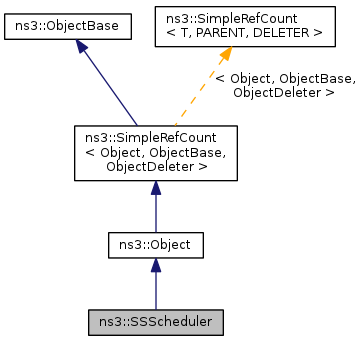

Inheritance diagram for ns3::SSScheduler:

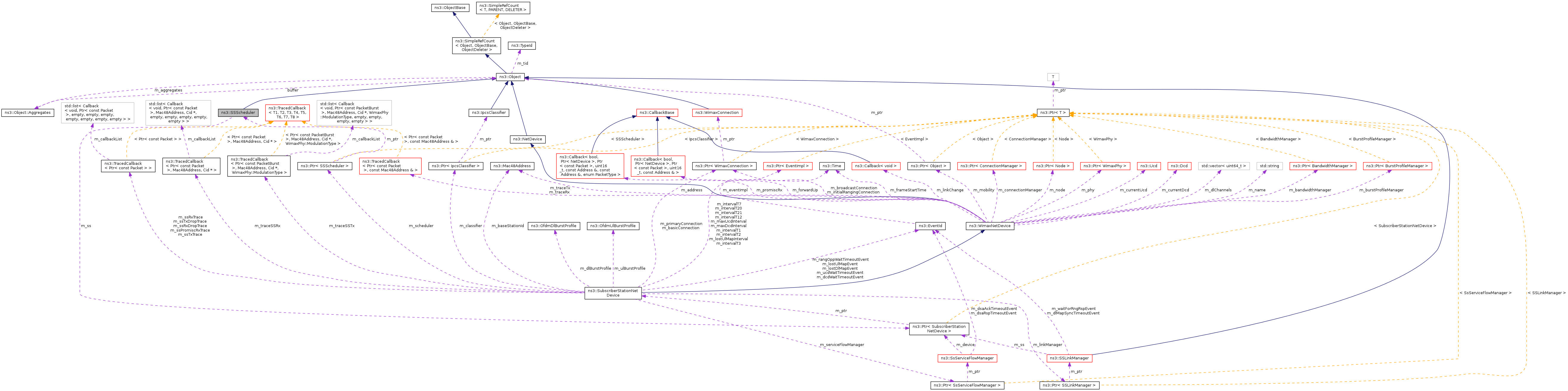

Collaboration diagram for ns3::SSScheduler:

Public Member Functions
	SSScheduler (Ptr< SubscriberStationNetDevice > ss)
	~SSScheduler (void)
void	DoDispose (void)
bool	GetPollMe (void) const
Ptr< PacketBurst >	Schedule (uint16_t availableSymbols, WimaxPhy::ModulationType modulationType, MacHeaderType::HeaderType packetType, Ptr< WimaxConnection > &connection)
void	SetPollMe (bool pollMe)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::SSScheduler.

Private Member Functions
	SSScheduler (const SSScheduler &)
SSScheduler &	operator= (const SSScheduler &)
Ptr< WimaxConnection >	SelectConnection (void)

Private Attributes
bool	m_pollMe
Ptr< SubscriberStationNetDevice >	m_ss

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Definition at line 40 of file ss-scheduler.h.

Constructor & Destructor Documentation

ns3::SSScheduler::SSScheduler ( Ptr< SubscriberStationNetDevice > ss )

Definition at line 46 of file ss-scheduler.cc.

ns3::SSScheduler::~SSScheduler ( void )

Definition at line 52 of file ss-scheduler.cc.

ns3::SSScheduler::SSScheduler ( const SSScheduler & )

private

Member Function Documentation

void ns3::SSScheduler::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 57 of file ss-scheduler.cc.

References m_ss.

bool ns3::SSScheduler::GetPollMe ( void ) const

Definition at line 69 of file ss-scheduler.cc.

References m_pollMe.

Referenced by ns3::SubscriberStationNetDevice::Enqueue().

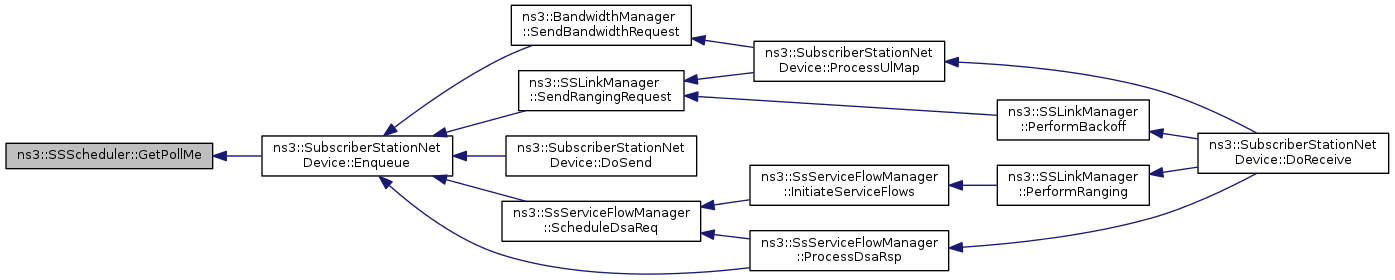

Here is the caller graph for this function:

TypeId ns3::SSScheduler::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::SSScheduler.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

Definition at line 39 of file ss-scheduler.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

SSScheduler& ns3::SSScheduler::operator= ( const SSScheduler & )

private

Ptr< PacketBurst > ns3::SSScheduler::Schedule	(	uint16_t	availableSymbols,
		WimaxPhy::ModulationType	modulationType,
		MacHeaderType::HeaderType	packetType,
		Ptr< WimaxConnection > &	connection
	)

Returns: a list of packet to be sent in the next opportunity

Parameters

availableSymbols	the available resources in symbols
modulationType	the used modulation
packetType	the type of packets to select from
connection	the connection from wich packets will be selected

Definition at line 75 of file ss-scheduler.cc.

References ns3::PacketBurst::AddPacket(), ns3::WimaxMacQueue::CheckForFragmentation(), ns3::WimaxConnection::Dequeue(), ns3::WimaxMacQueue::GetFirstPacketHdrSize(), ns3::WimaxMacQueue::GetFirstPacketRequiredByte(), ns3::WimaxNetDevice::GetPhy(), ns3::WimaxConnection::GetQueue(), ns3::Packet::GetSize(), ns3::WimaxConnection::GetType(), ns3::WimaxConnection::HasPackets(), m_ss, NS_ASSERT_MSG, NS_LOG_INFO, SelectConnection(), and ns3::Cid::TRANSPORT.
