#include <spectrum-phy.h>

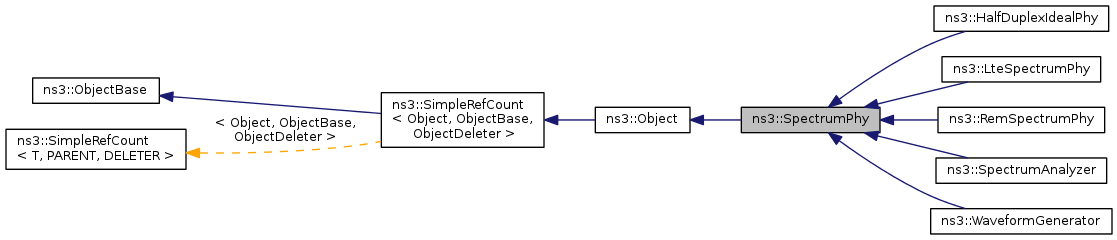

Inheritance diagram for ns3::SpectrumPhy:

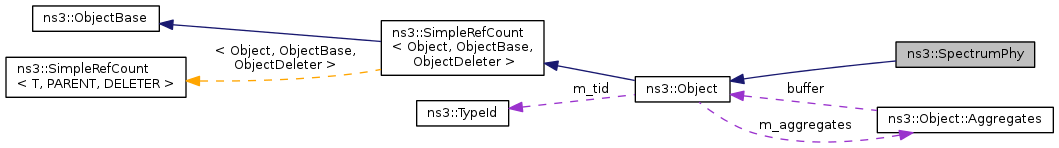

Collaboration diagram for ns3::SpectrumPhy:

Public Member Functions
	SpectrumPhy ()
virtual	~SpectrumPhy ()
virtual Ptr< NetDevice >	GetDevice ()=0
virtual Ptr< MobilityModel >	GetMobility ()=0
virtual Ptr< AntennaModel >	GetRxAntenna ()=0
virtual Ptr< const SpectrumModel >	GetRxSpectrumModel () const =0
virtual void	SetChannel (Ptr< SpectrumChannel > c)=0
virtual void	SetDevice (Ptr< NetDevice > d)=0
virtual void	SetMobility (Ptr< MobilityModel > m)=0
virtual void	StartRx (Ptr< SpectrumSignalParameters > params)=0
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::SpectrumPhy.

Private Member Functions
	SpectrumPhy (SpectrumPhy const &)
SpectrumPhy &	operator= (SpectrumPhy const &)

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Abstract base class for Spectrum-aware PHY layers

Definition at line 45 of file spectrum-phy.h.

Constructor & Destructor Documentation

ns3::SpectrumPhy::SpectrumPhy ( )

Definition at line 45 of file spectrum-phy.cc.

References NS_LOG_FUNCTION.

ns3::SpectrumPhy::~SpectrumPhy ( )

virtual

Definition at line 50 of file spectrum-phy.cc.

References NS_LOG_FUNCTION.

ns3::SpectrumPhy::SpectrumPhy ( SpectrumPhy const & )

private

Member Function Documentation

virtual Ptr<NetDevice> ns3::SpectrumPhy::GetDevice ( )

pure virtual

get the associated NetDevice instance

Returns: a Ptr to the associated NetDevice instance

Implemented in ns3::LteSpectrumPhy, ns3::HalfDuplexIdealPhy, ns3::RemSpectrumPhy, ns3::WaveformGenerator, and ns3::SpectrumAnalyzer.

Referenced by DownlinkGlobalPathlossDatabase::UpdatePathloss(), and UplinkGlobalPathlossDatabase::UpdatePathloss().

Here is the caller graph for this function:

virtual Ptr<MobilityModel> ns3::SpectrumPhy::GetMobility ( )

pure virtual

get the associated MobilityModel instance

Returns: a Ptr to the associated MobilityModel instance

Implemented in ns3::LteSpectrumPhy, ns3::HalfDuplexIdealPhy, ns3::RemSpectrumPhy, ns3::WaveformGenerator, and ns3::SpectrumAnalyzer.

Referenced by GlobalPathlossDatabase::UpdatePathloss().

Here is the caller graph for this function:

virtual Ptr<AntennaModel> ns3::SpectrumPhy::GetRxAntenna ( )

pure virtual

get the AntennaModel used by the NetDevice for reception

Returns: a Ptr to the AntennaModel used by the NetDevice for reception

Implemented in ns3::LteSpectrumPhy, ns3::HalfDuplexIdealPhy, ns3::RemSpectrumPhy, ns3::WaveformGenerator, and ns3::SpectrumAnalyzer.

virtual Ptr<const SpectrumModel> ns3::SpectrumPhy::GetRxSpectrumModel ( ) const

pure virtual

Returns: returns the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Implemented in ns3::LteSpectrumPhy, ns3::HalfDuplexIdealPhy, ns3::RemSpectrumPhy, ns3::WaveformGenerator, and ns3::SpectrumAnalyzer.

Referenced by ns3::MultiModelSpectrumChannel::AddRx().

Here is the caller graph for this function:
