Default SINR calculator for UanPhyGen The default ignores mode data and assumes that all rxpower transmitted is captured by the receiver, and that all signal power associated with interfering packets affects SINR identically to additional ambient noise. More...

#include <uan-phy-gen.h>

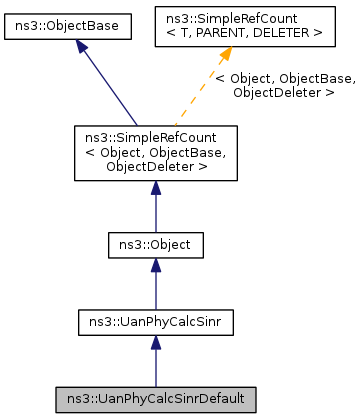

Inheritance diagram for ns3::UanPhyCalcSinrDefault:

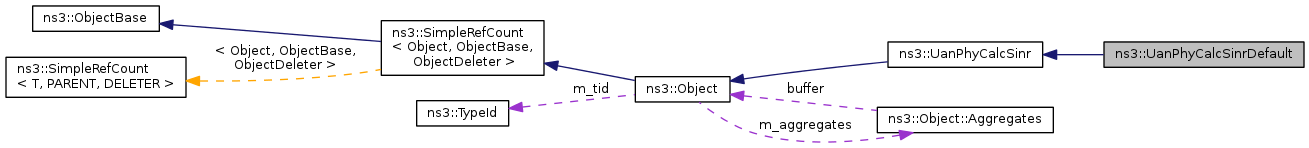

Collaboration diagram for ns3::UanPhyCalcSinrDefault:

Public Member Functions
	UanPhyCalcSinrDefault ()
virtual	~UanPhyCalcSinrDefault ()
virtual double	CalcSinrDb (Ptr< Packet > pkt, Time arrTime, double rxPowerDb, double ambNoiseDb, UanTxMode mode, UanPdp pdp, const UanTransducer::ArrivalList &arrivalList) const
Public Member Functions inherited from ns3::UanPhyCalcSinr
virtual void	Clear (void)
double	DbToKp (double db) const
	Converts dB re 1 uPa to kilopascals.
virtual void	DoDispose (void)
double	KpToDb (double kp) const
	Converts kilopascals to dB re 1 uPa.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::UanPhyCalcSinrDefault.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Default SINR calculator for UanPhyGen The default ignores mode data and assumes that all rxpower transmitted is captured by the receiver, and that all signal power associated with interfering packets affects SINR identically to additional ambient noise.

Definition at line 93 of file uan-phy-gen.h.

Constructor & Destructor Documentation

ns3::UanPhyCalcSinrDefault::UanPhyCalcSinrDefault ( )

Definition at line 51 of file uan-phy-gen.cc.

ns3::UanPhyCalcSinrDefault::~UanPhyCalcSinrDefault ( )

virtual

Definition at line 55 of file uan-phy-gen.cc.

Member Function Documentation

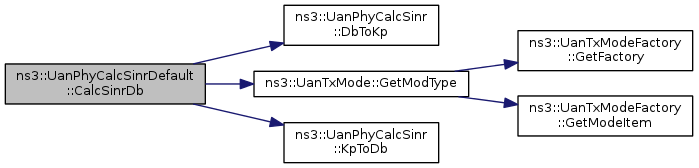

double ns3::UanPhyCalcSinrDefault::CalcSinrDb	(	Ptr< Packet >	pkt,
		Time	arrTime,
		double	rxPowerDb,
		double	ambNoiseDb,
		UanTxMode	mode,
		UanPdp	pdp,
		const UanTransducer::ArrivalList &	arrivalList
	)		const

virtual

This implementation simply adds all arriving signal power and assumes it acts identically to additional noise.

Parameters

pkt	Packet which is under consideration
arrTime	Arrival time of packet pkt
rxPowerDb	Received signal power at receiver
ambNoiseDb	Ambient channel noise in dB re 1 uPa
mode	TX mode used to transmit packet
pdp	Power delay profile of arriving packet pkt
arrivalList	List of other, simultaneously arriving packets
