The packet header for an ARP packet. More...

#include <arp-header.h>

Inheritance diagram for ns3::ArpHeader:

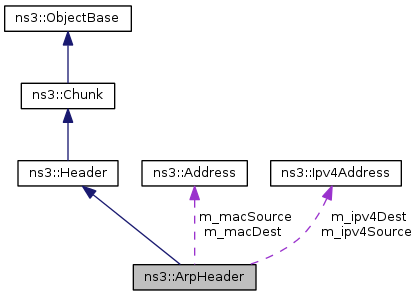

Collaboration diagram for ns3::ArpHeader:

Public Types
enum	ArpType_e { ARP_TYPE_REQUEST = 1, ARP_TYPE_REPLY = 2 }

Public Member Functions
virtual uint32_t	Deserialize (Buffer::Iterator start)
Address	GetDestinationHardwareAddress (void)
Ipv4Address	GetDestinationIpv4Address (void)
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
Address	GetSourceHardwareAddress (void)
Ipv4Address	GetSourceIpv4Address (void)
bool	IsReply (void) const
bool	IsRequest (void) const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (Buffer::Iterator start) const
void	SetReply (Address sourceHardwareAddress, Ipv4Address sourceProtocolAddress, Address destinationHardwareAddress, Ipv4Address destinationProtocolAddress)
void	SetRequest (Address sourceHardwareAddress, Ipv4Address sourceProtocolAddress, Address destinationHardwareAddress, Ipv4Address destinationProtocolAddress)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::ArpHeader.

Public Attributes
Ipv4Address	m_ipv4Dest
Ipv4Address	m_ipv4Source
Address	m_macDest
Address	m_macSource
uint16_t	m_type

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

The packet header for an ARP packet.

Definition at line 34 of file arp-header.h.

Member Enumeration Documentation

enum ns3::ArpHeader::ArpType_e

Enumerator:

ARP_TYPE_REQUEST
ARP_TYPE_REPLY

Definition at line 59 of file arp-header.h.

Member Function Documentation

uint32_t ns3::ArpHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 153 of file arp-header.cc.

References GetSerializedSize(), m_ipv4Dest, m_ipv4Source, m_macDest, m_macSource, m_type, ns3::Buffer::Iterator::Next(), ns3::ReadFrom(), ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

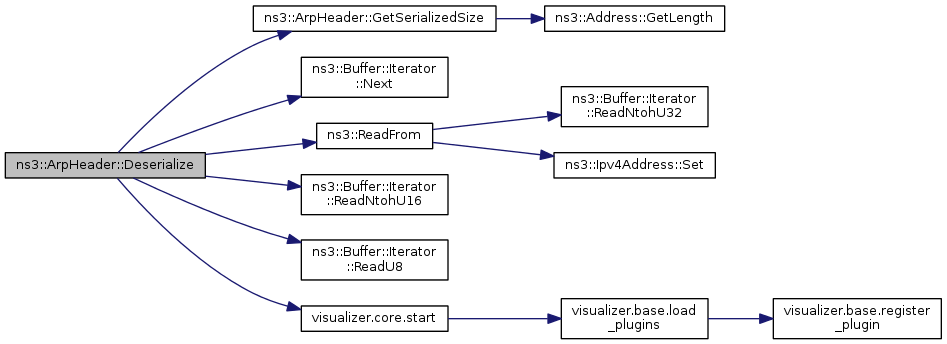

Here is the call graph for this function:

Address ns3::ArpHeader::GetDestinationHardwareAddress ( void )

Definition at line 69 of file arp-header.cc.

References m_macDest.

Referenced by ns3::ArpL3Protocol::Receive().

Here is the caller graph for this function:

Ipv4Address ns3::ArpHeader::GetDestinationIpv4Address ( void )

Definition at line 79 of file arp-header.cc.

References m_ipv4Dest.

Referenced by ns3::ArpL3Protocol::Receive().

Here is the caller graph for this function:

TypeId ns3::ArpHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 95 of file arp-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::ArpHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 122 of file arp-header.cc.

References ns3::Address::GetLength(), m_macDest, m_macSource, and NS_ASSERT.

Referenced by Deserialize().

Here is the call graph for this function:

Here is the caller graph for this function:

Address ns3::ArpHeader::GetSourceHardwareAddress ( void )

Definition at line 64 of file arp-header.cc.

References m_macSource.

Referenced by ns3::ArpL3Protocol::Receive().

Here is the caller graph for this function:

Ipv4Address ns3::ArpHeader::GetSourceIpv4Address ( void )

Definition at line 74 of file arp-header.cc.

References m_ipv4Source.

Referenced by ns3::ArpL3Protocol::Receive().

Here is the caller graph for this function:

TypeId ns3::ArpHeader::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::ArpHeader.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 86 of file arp-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::ArpHeader::IsReply ( void ) const

Definition at line 59 of file arp-header.cc.

References ARP_TYPE_REPLY, and m_type.

Referenced by Print(), and ns3::ArpL3Protocol::Receive().

Here is the caller graph for this function:

bool ns3::ArpHeader::IsRequest ( void ) const

Definition at line 54 of file arp-header.cc.

References ARP_TYPE_REQUEST, and m_type.

Referenced by Print(), and ns3::ArpL3Protocol::Receive().

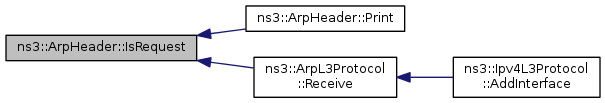

Here is the caller graph for this function:

void ns3::ArpHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 100 of file arp-header.cc.

References IsReply(), IsRequest(), m_ipv4Dest, m_ipv4Source, m_macDest, m_macSource, and NS_ASSERT.

Here is the call graph for this function:

void ns3::ArpHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 134 of file arp-header.cc.

References ns3::Address::GetLength(), m_ipv4Dest, m_ipv4Source, m_macDest, m_macSource, m_type, NS_ASSERT, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

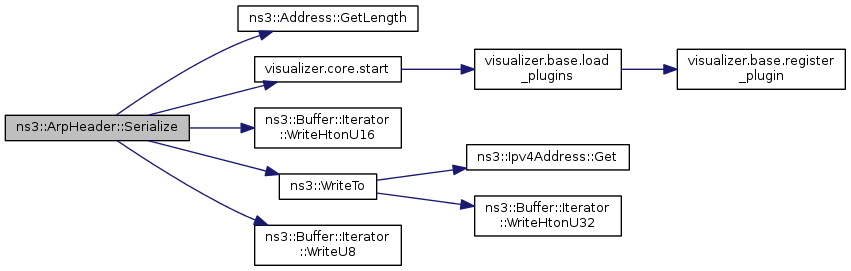

Here is the call graph for this function:

void ns3::ArpHeader::SetReply	(	Address	sourceHardwareAddress,
		Ipv4Address	sourceProtocolAddress,
		Address	destinationHardwareAddress,
		Ipv4Address	destinationProtocolAddress
	)

Definition at line 42 of file arp-header.cc.

References ARP_TYPE_REPLY, m_ipv4Dest, m_ipv4Source, m_macDest, m_macSource, and m_type.

Referenced by ns3::ArpL3Protocol::SendArpReply().

Here is the caller graph for this function:

void ns3::ArpHeader::SetRequest	(	Address	sourceHardwareAddress,
		Ipv4Address	sourceProtocolAddress,
		Address	destinationHardwareAddress,
		Ipv4Address	destinationProtocolAddress
	)
