private implementation detail of the ChannelList API. More...

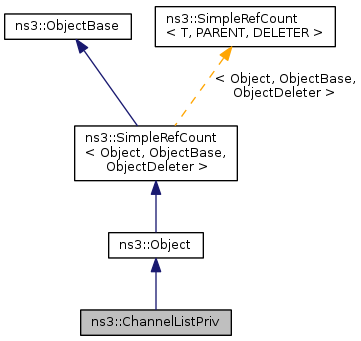

Inheritance diagram for ns3::ChannelListPriv:

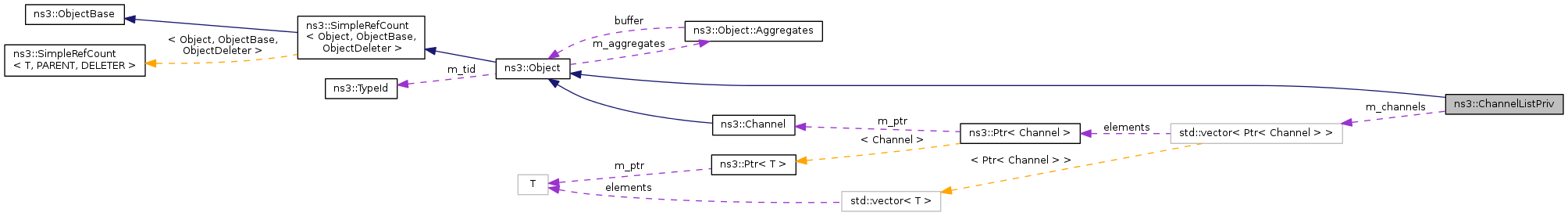

Collaboration diagram for ns3::ChannelListPriv:

Public Member Functions
	ChannelListPriv ()
	~ChannelListPriv ()
uint32_t	Add (Ptr< Channel > channel)
ChannelList::Iterator	Begin (void) const
ChannelList::Iterator	End (void) const
Ptr< Channel >	GetChannel (uint32_t n)
uint32_t	GetNChannels (void)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static Ptr< ChannelListPriv >	Get (void)
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::ChannelListPriv.

Private Member Functions
virtual void	DoDispose (void)

Static Private Member Functions
static void	Delete (void)
static Ptr< ChannelListPriv > *	DoGet (void)

Private Attributes
std::vector< Ptr< Channel > >	m_channels

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

private implementation detail of the ChannelList API.

Definition at line 34 of file channel-list.cc.

Constructor & Destructor Documentation

ns3::ChannelListPriv::ChannelListPriv ( )

Definition at line 100 of file channel-list.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::ChannelListPriv::~ChannelListPriv ( )

Definition at line 105 of file channel-list.cc.

Member Function Documentation

uint32_t ns3::ChannelListPriv::Add ( Ptr< Channel > channel )

Definition at line 124 of file channel-list.cc.

References m_channels.

ChannelList::Iterator ns3::ChannelListPriv::Begin ( void ) const

Definition at line 133 of file channel-list.cc.

References m_channels.

void ns3::ChannelListPriv::Delete ( void )

staticprivate

Definition at line 93 of file channel-list.cc.

References DoGet(), Get(), NS_LOG_FUNCTION_NOARGS, and ns3::Config::UnregisterRootNamespaceObject().

Referenced by DoGet().

Here is the call graph for this function:

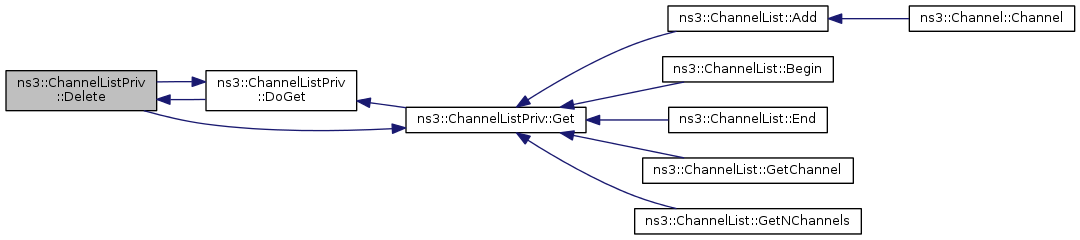

Here is the caller graph for this function:

void ns3::ChannelListPriv::DoDispose ( void )

privatevirtual

Definition at line 109 of file channel-list.cc.

References ns3::Object::Dispose(), m_channels, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

Ptr< ChannelListPriv > * ns3::ChannelListPriv::DoGet ( void )

staticprivate

Definition at line 80 of file channel-list.cc.

References Delete(), ns3::Config::RegisterRootNamespaceObject(), and ns3::Simulator::ScheduleDestroy().

Referenced by Delete(), and Get().

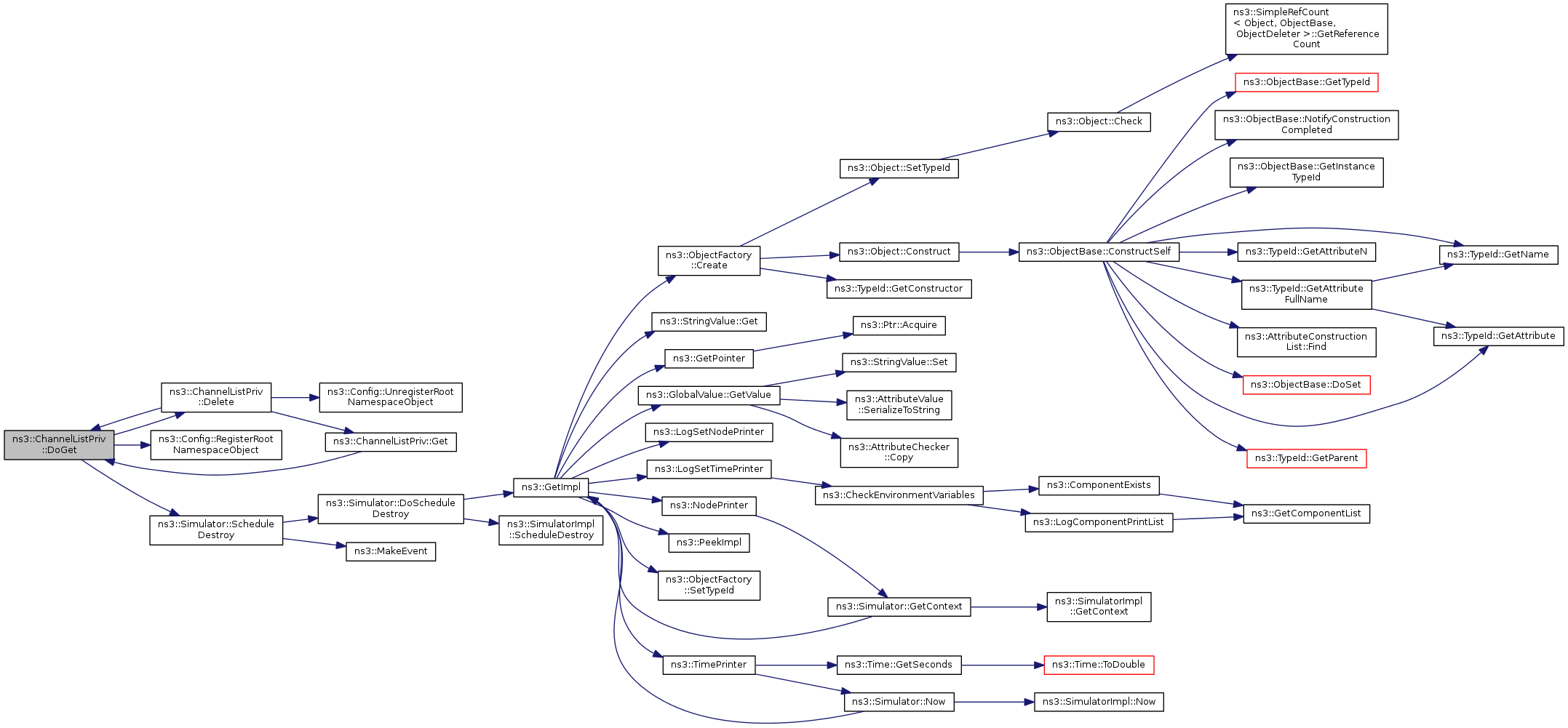

Here is the call graph for this function:

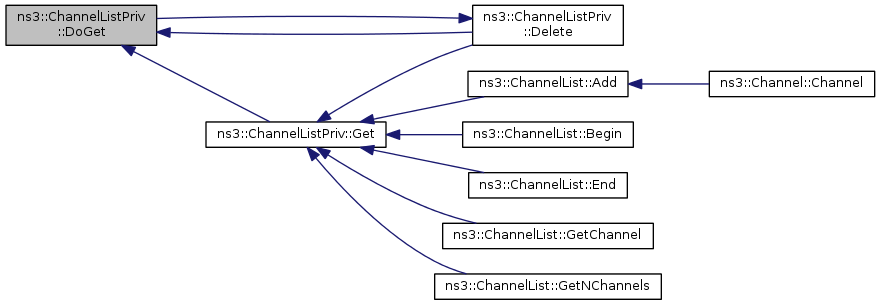

Here is the caller graph for this function:

ChannelList::Iterator ns3::ChannelListPriv::End ( void ) const

Definition at line 139 of file channel-list.cc.

References m_channels.

Ptr< ChannelListPriv > ns3::ChannelListPriv::Get ( void )

static

Definition at line 74 of file channel-list.cc.

References DoGet().

Referenced by ns3::ChannelList::Add(), ns3::ChannelList::Begin(), Delete(), ns3::ChannelList::End(), ns3::ChannelList::GetChannel(), and ns3::ChannelList::GetNChannels().

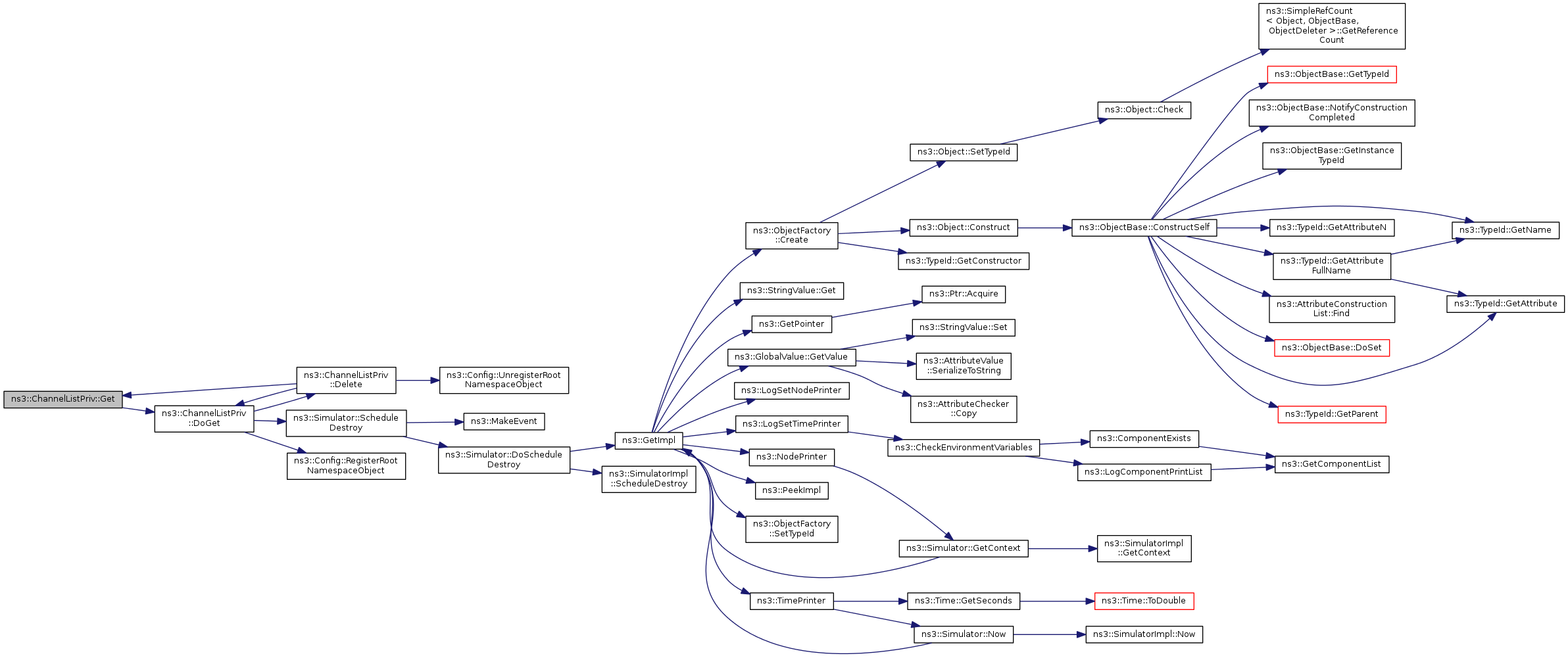

Here is the call graph for this function:

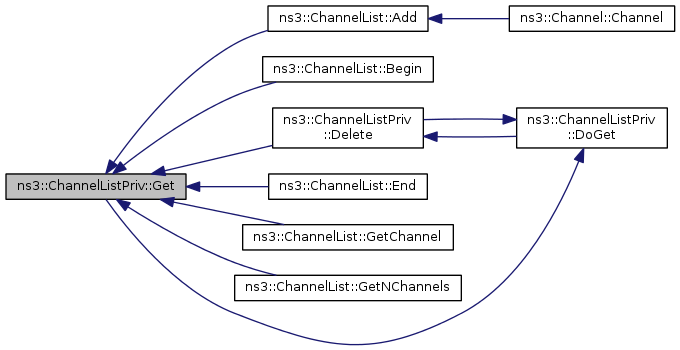

Here is the caller graph for this function:

Ptr< Channel > ns3::ChannelListPriv::GetChannel ( uint32_t n )

Definition at line 151 of file channel-list.cc.

References m_channels, and NS_ASSERT_MSG.

uint32_t ns3::ChannelListPriv::GetNChannels ( void )

Definition at line 145 of file channel-list.cc.

References m_channels.

TypeId ns3::ChannelListPriv::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::ChannelListPriv.

Attributes defined for this type:

ChannelList: The list of all channels created during the simulation.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::Channel >
- Flags: read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Definition at line 61 of file channel-list.cc.

References m_channels, ns3::MakeObjectVectorAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:
