Mobility model for which the current speed does not change once it has been set and until it is set again explicitely to a new value. More...

#include <constant-velocity-mobility-model.h>

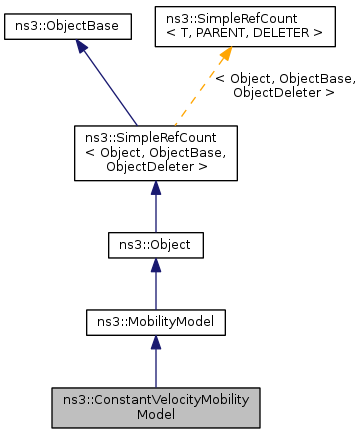

Inheritance diagram for ns3::ConstantVelocityMobilityModel:

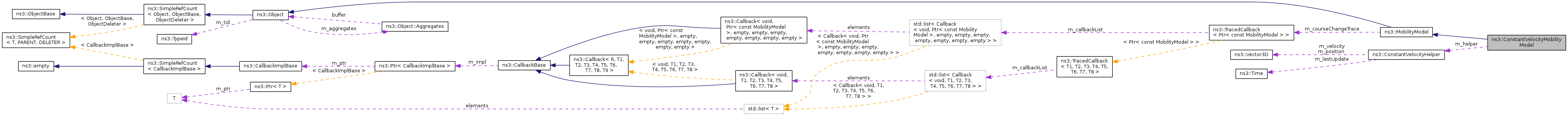

Collaboration diagram for ns3::ConstantVelocityMobilityModel:

Public Member Functions
	ConstantVelocityMobilityModel ()
virtual	~ConstantVelocityMobilityModel ()
void	SetVelocity (const Vector &speed)
Public Member Functions inherited from ns3::MobilityModel
	MobilityModel ()
virtual	~MobilityModel ()=0
int64_t	AssignStreams (int64_t stream)
double	GetDistanceFrom (Ptr< const MobilityModel > position) const
Vector	GetPosition (void) const
double	GetRelativeSpeed (Ptr< const MobilityModel > other) const
Vector	GetVelocity (void) const
void	SetPosition (const Vector &position)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::ConstantVelocityMobilityModel.

Private Member Functions
virtual Vector	DoGetPosition (void) const
virtual Vector	DoGetVelocity (void) const
virtual void	DoSetPosition (const Vector &position)
void	Update (void) const

Private Attributes
ConstantVelocityHelper	m_helper

Additional Inherited Members
Protected Member Functions inherited from ns3::MobilityModel
void	NotifyCourseChange (void) const

Detailed Description

Mobility model for which the current speed does not change once it has been set and until it is set again explicitely to a new value.

Definition at line 35 of file constant-velocity-mobility-model.h.

Constructor & Destructor Documentation

ns3::ConstantVelocityMobilityModel::ConstantVelocityMobilityModel ( )

Create position located at coordinates (0,0,0) with speed (0,0,0).

Definition at line 35 of file constant-velocity-mobility-model.cc.

ns3::ConstantVelocityMobilityModel::~ConstantVelocityMobilityModel ( )

virtual

Definition at line 39 of file constant-velocity-mobility-model.cc.

Member Function Documentation

Vector ns3::ConstantVelocityMobilityModel::DoGetPosition ( void ) const

privatevirtual

Definition at line 54 of file constant-velocity-mobility-model.cc.

References ns3::ConstantVelocityHelper::GetCurrentPosition(), m_helper, and ns3::ConstantVelocityHelper::Update().

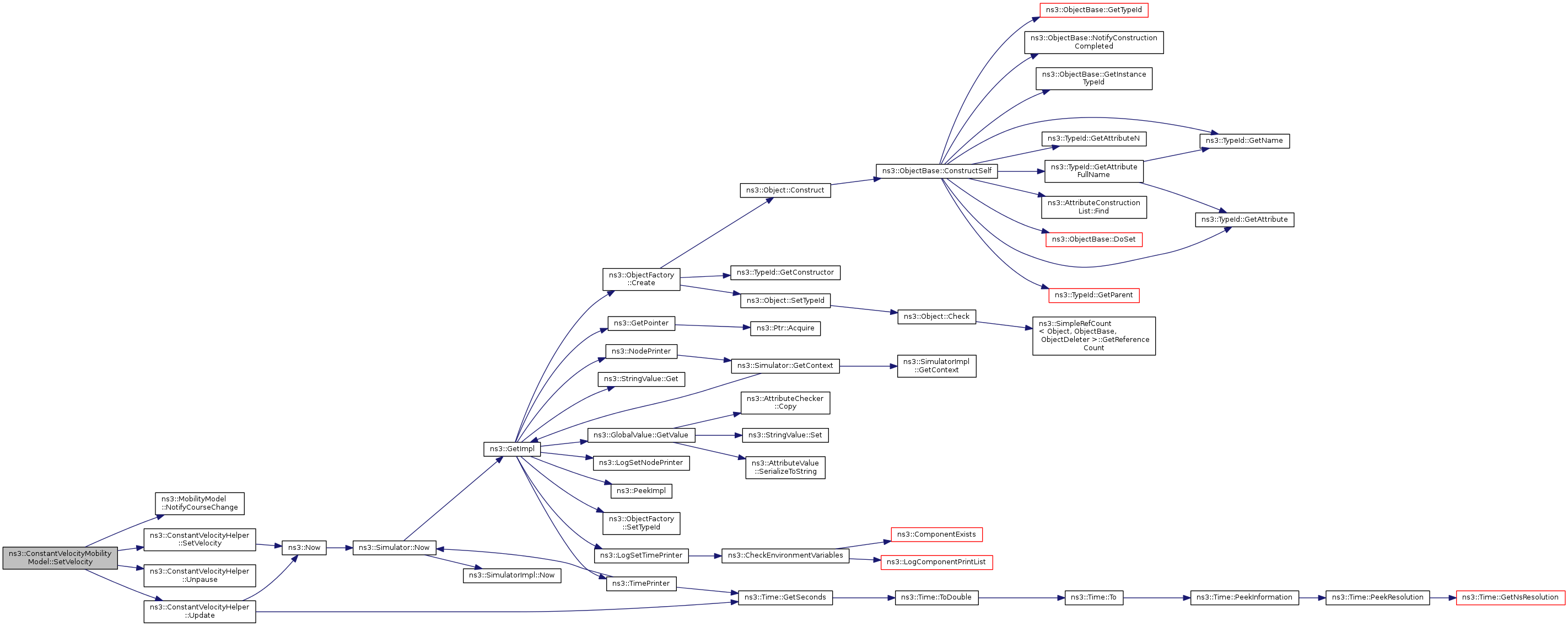

Here is the call graph for this function:

Vector ns3::ConstantVelocityMobilityModel::DoGetVelocity ( void ) const

privatevirtual

Definition at line 66 of file constant-velocity-mobility-model.cc.

References ns3::ConstantVelocityHelper::GetVelocity(), and m_helper.

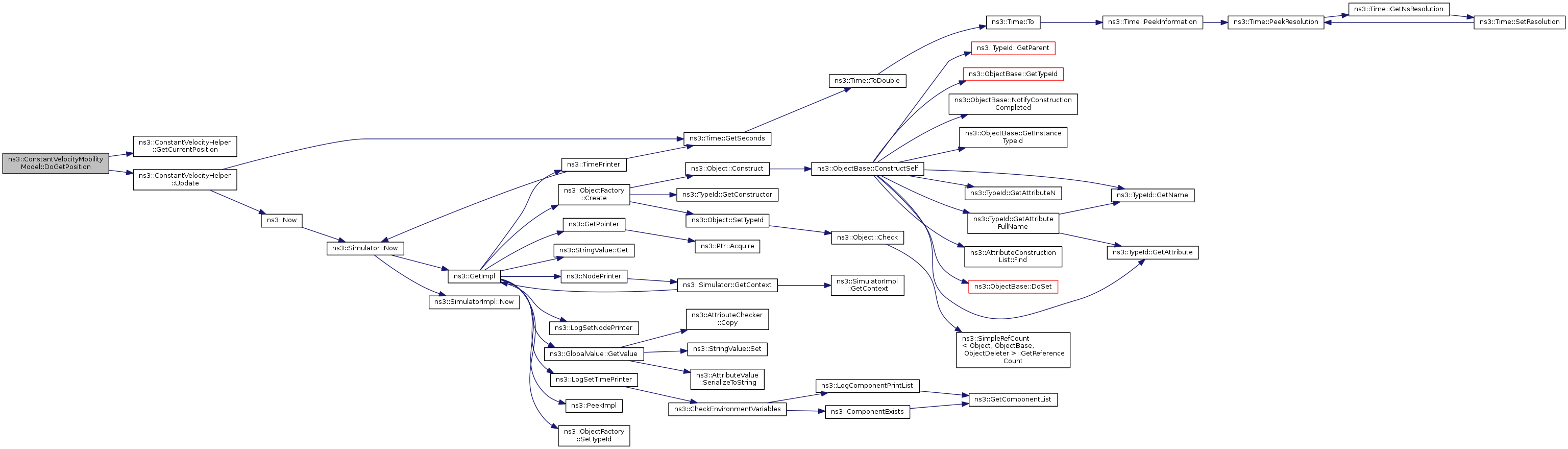

Here is the call graph for this function:

void ns3::ConstantVelocityMobilityModel::DoSetPosition ( const Vector & position )

privatevirtual

Definition at line 60 of file constant-velocity-mobility-model.cc.

References m_helper, ns3::MobilityModel::NotifyCourseChange(), and ns3::ConstantVelocityHelper::SetPosition().

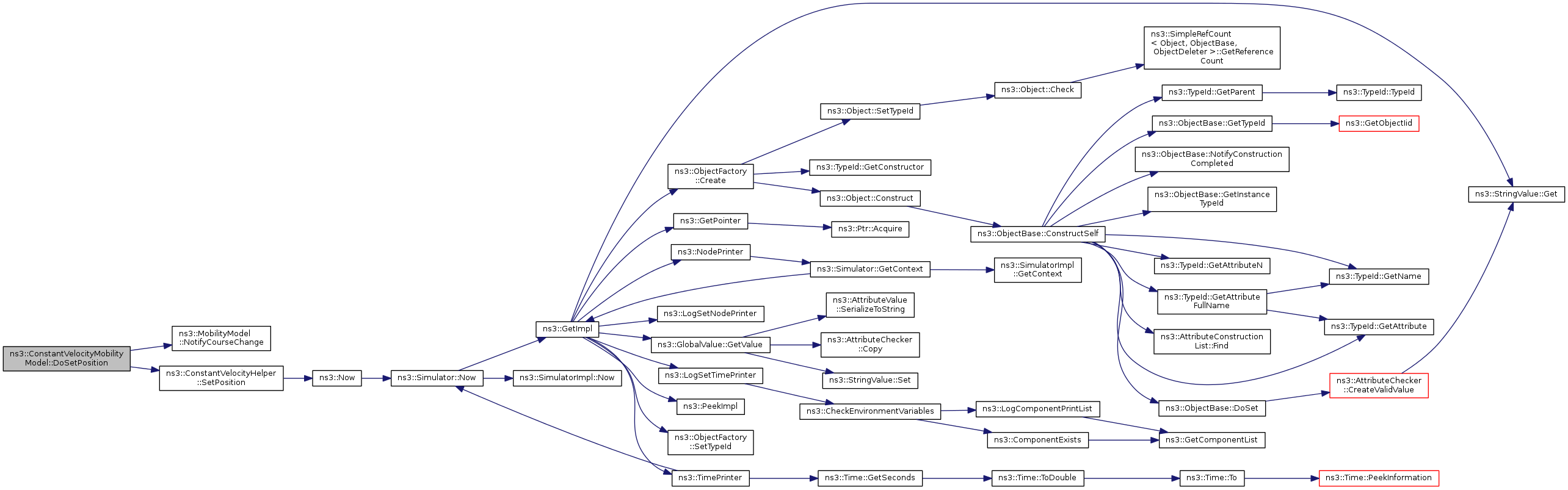

Here is the call graph for this function:

TypeId ns3::ConstantVelocityMobilityModel::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::ConstantVelocityMobilityModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::MobilityModel/$ns3::ConstantVelocityMobilityModel

No Attributes defined for this type.
Attributes defined in parent class ns3::MobilityModel:

Position: The current position of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: write read
Velocity: The current velocity of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: read
