ns3::DcaTxop::Dcf Class Reference

Inheritance diagram for ns3::DcaTxop::Dcf:

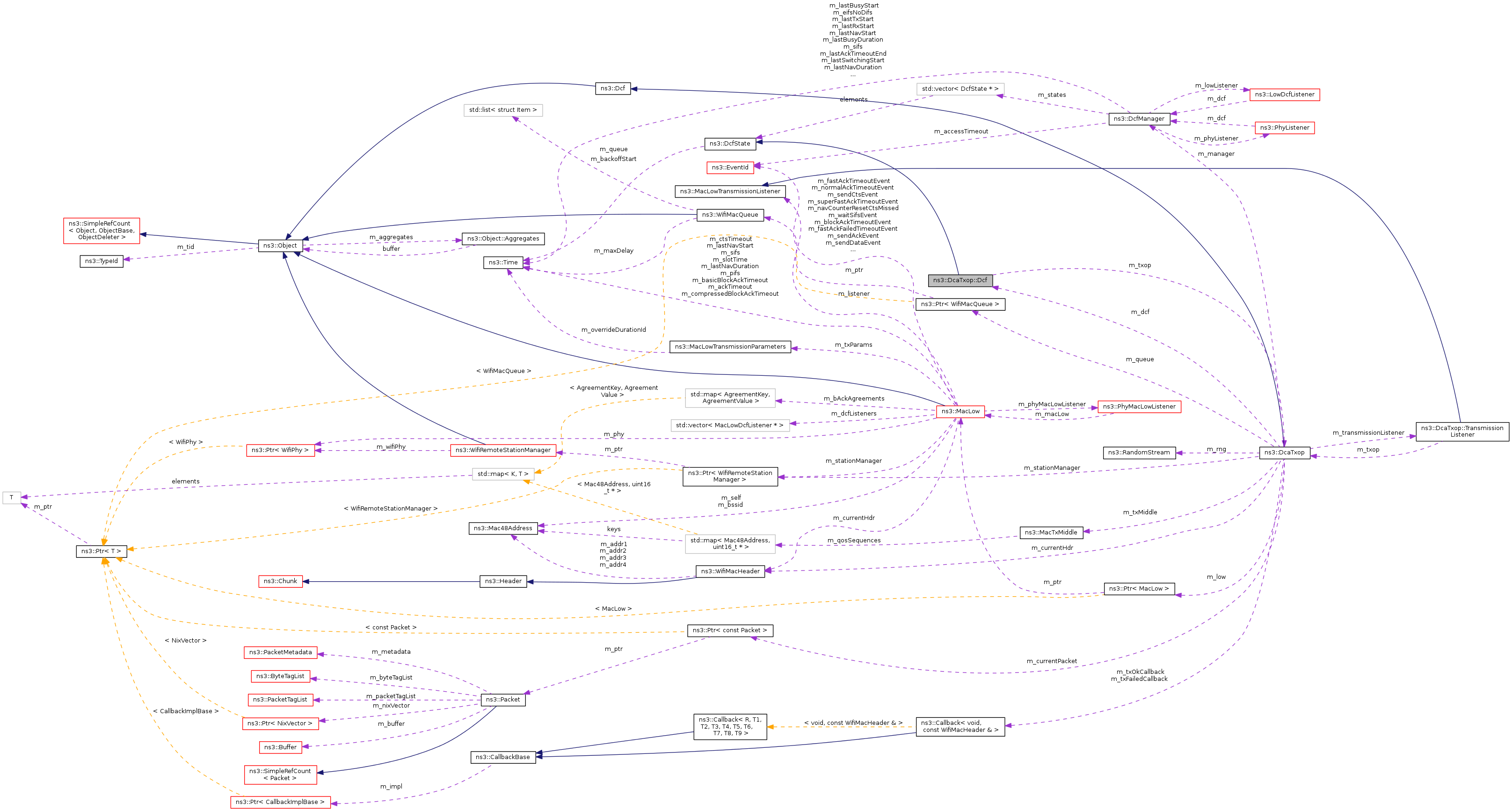

Collaboration diagram for ns3::DcaTxop::Dcf:

Public Member Functions
	Dcf (DcaTxop *txop)
Public Member Functions inherited from ns3::DcfState
	DcfState ()
virtual	~DcfState ()
uint32_t	GetAifsn (void) const
uint32_t	GetCw (void) const
uint32_t	GetCwMax (void) const
uint32_t	GetCwMin (void) const
bool	IsAccessRequested (void) const
void	ResetCw (void)
void	SetAifsn (uint32_t aifsn)
void	SetCwMax (uint32_t maxCw)
void	SetCwMin (uint32_t minCw)
void	StartBackoffNow (uint32_t nSlots)
void	UpdateFailedCw (void)

Private Member Functions
virtual void	DoNotifyAccessGranted (void)
virtual void	DoNotifyChannelSwitching (void)
virtual void	DoNotifyCollision (void)
virtual void	DoNotifyInternalCollision (void)

Private Attributes
DcaTxop *	m_txop

Detailed Description

Definition at line 45 of file dca-txop.cc.

Constructor & Destructor Documentation

ns3::DcaTxop::Dcf::Dcf ( DcaTxop *  txop )

inline

Definition at line 48 of file dca-txop.cc.

Member Function Documentation

virtual void ns3::DcaTxop::Dcf::DoNotifyAccessGranted ( void  )

inlineprivatevirtual

Definition at line 53 of file dca-txop.cc.

References m_txop, and ns3::DcaTxop::NotifyAccessGranted().

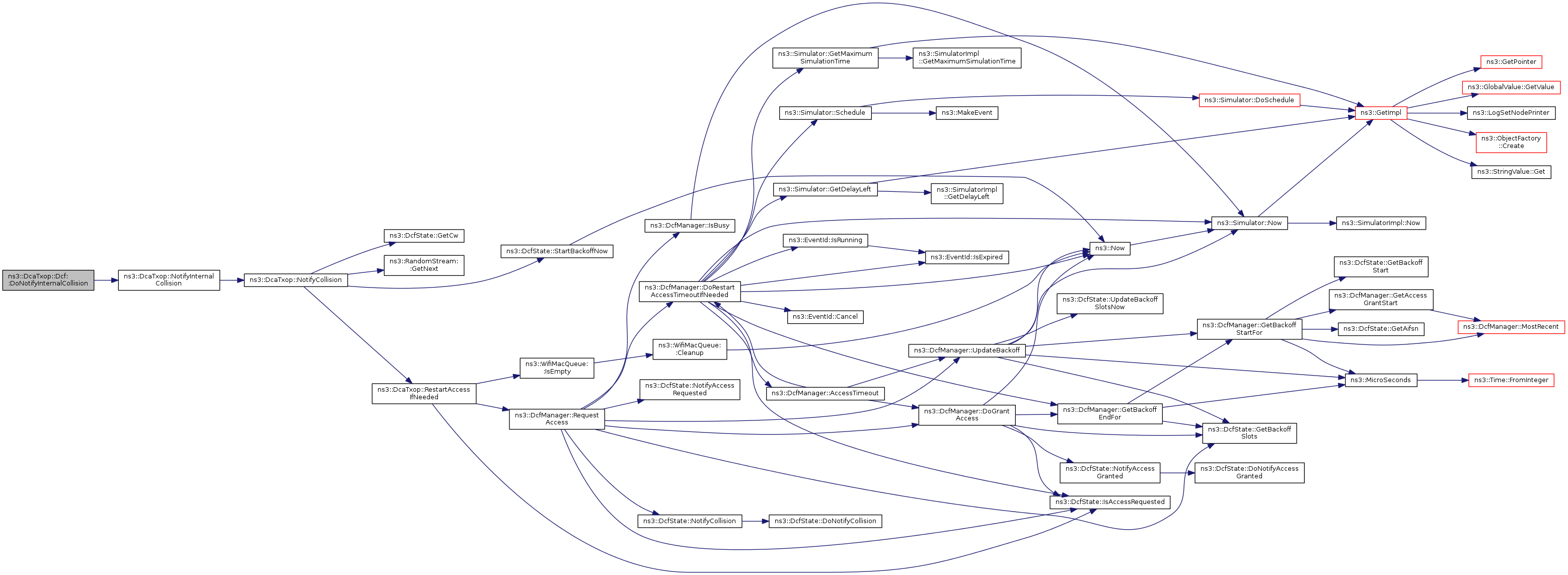

Here is the call graph for this function:

virtual void ns3::DcaTxop::Dcf::DoNotifyChannelSwitching ( void  )

inlineprivatevirtual

Definition at line 65 of file dca-txop.cc.

References m_txop, and ns3::DcaTxop::NotifyChannelSwitching().

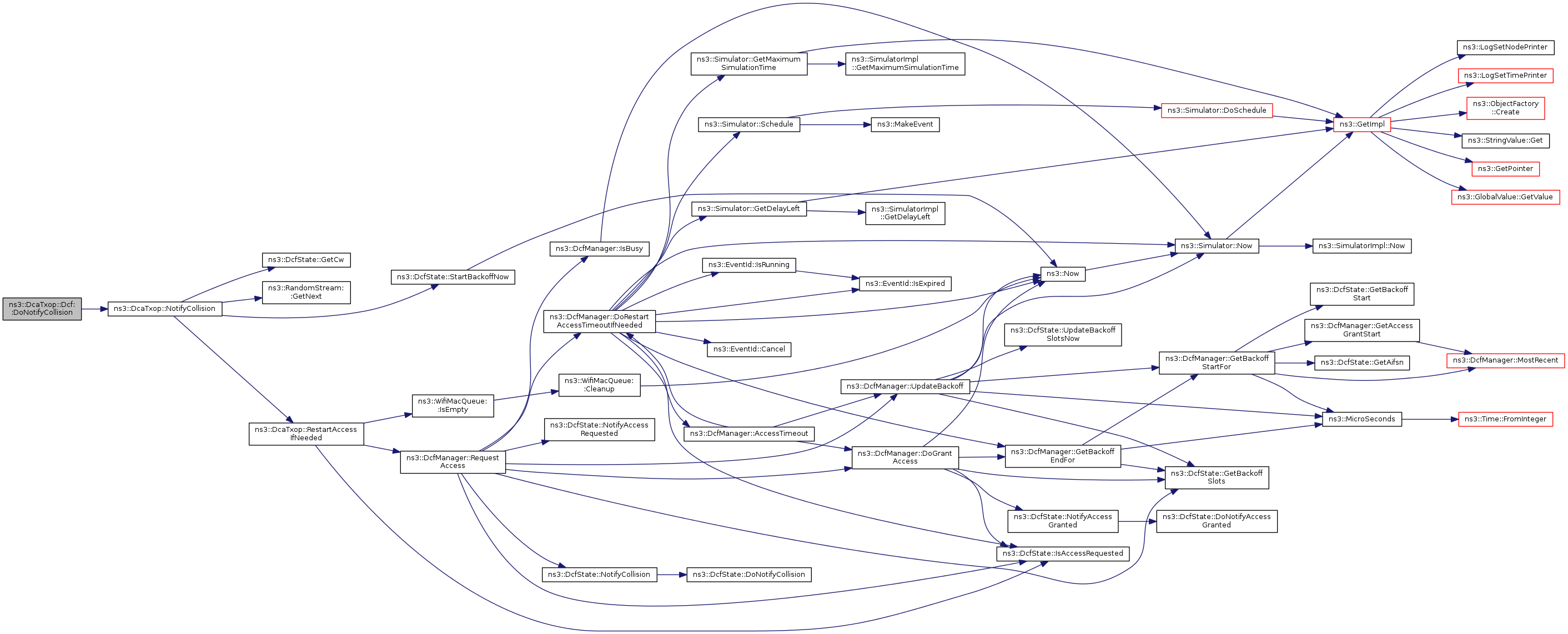

Here is the call graph for this function:

virtual void ns3::DcaTxop::Dcf::DoNotifyCollision ( void  )

inlineprivatevirtual

Definition at line 61 of file dca-txop.cc.

References m_txop, and ns3::DcaTxop::NotifyCollision().

Here is the call graph for this function:

virtual void ns3::DcaTxop::Dcf::DoNotifyInternalCollision ( void  )

inlineprivatevirtual

Definition at line 57 of file dca-txop.cc.

References m_txop, and ns3::DcaTxop::NotifyInternalCollision().

Here is the call graph for this function:

Member Data Documentation

DcaTxop* ns3::DcaTxop::Dcf::m_txop

private

Definition at line 69 of file dca-txop.cc.

Referenced by DoNotifyAccessGranted(), DoNotifyChannelSwitching(), DoNotifyCollision(), and DoNotifyInternalCollision().

---

The documentation for this class was generated from the following file:

• src/wifi/model/dca-txop.cc
