ICMPv6 Router Advertisement header. More...

#include <icmpv6-header.h>

Inheritance diagram for ns3::Icmpv6RA:

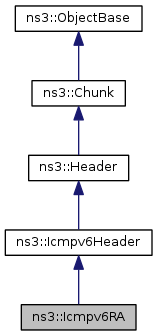

Collaboration diagram for ns3::Icmpv6RA:

Public Member Functions
	Icmpv6RA ()
	Constructor.
virtual	~Icmpv6RA ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
uint8_t	GetCurHopLimit () const
	Get the IPv6 maximum number of jumps.
bool	GetFlagH () const
	Get the H flag.
bool	GetFlagM () const
	Get the M flag.
bool	GetFlagO () const
	Get the O flag.
uint8_t	GetFlags () const
	Getflags.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
uint16_t	GetLifeTime () const
	Get the node Life time (Neighbor Discovery).
uint32_t	GetReachableTime () const
	Get the node Reachable time (Neighbor Discovery).
uint32_t	GetRetransmissionTime () const
	Get the node Retransmission time (Neighbor Discovery).
virtual uint32_t	GetSerializedSize () const
	Get the serialized size.
virtual void	Print (std::ostream &os) const
	Print informations.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
void	SetCurHopLimit (uint8_t m)
	Set the IPv6 maximum number of jumps.
void	SetFlagH (bool h)
	Set the H flag.
void	SetFlagM (bool m)
	Set the M flag.
void	SetFlagO (bool o)
	Set the O flag.
void	SetFlags (uint8_t f)
	Setflags.
void	SetLifeTime (uint16_t l)
	Set the node Life time (Neighbor Discovery).
void	SetReachableTime (uint32_t r)
	Set the node Reachable time (Neighbor Discovery).
void	SetRetransmissionTime (uint32_t r)
	Set the node Retransmission time (Neighbor Discovery).
Public Member Functions inherited from ns3::Icmpv6Header
	Icmpv6Header ()
	Constructor.
virtual	~Icmpv6Header ()
	Destructor.
void	CalculatePseudoHeaderChecksum (Ipv6Address src, Ipv6Address dst, uint16_t length, uint8_t protocol)
	Calculate pseudo header checksum for IPv6.
uint16_t	GetChecksum () const
	Get the checksum.
uint8_t	GetCode () const
	Get the code field.
uint8_t	GetType () const
	Get the type field.
void	SetChecksum (uint16_t checksum)
	Set the checksum.
void	SetCode (uint8_t code)
	Set the code field.
void	SetType (uint8_t type)
	Set the type.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class.

Private Attributes
uint8_t	m_curHopLimit
	The max jumps.
bool	m_flagH
	The H flag.
bool	m_flagM
	The M flag.
bool	m_flagO
	The O flag.
uint8_t	m_flags
	The flags field value.
uint16_t	m_LifeTime
	The lifetime value.
uint32_t	m_ReachableTime
	The reachable time value.
uint32_t	m_RetransmissionTimer
	The retransmission timer.

Additional Inherited Members
Public Types inherited from ns3::Icmpv6Header
enum	ErrorDestinationUnreachable_e { ICMPV6_NO_ROUTE = 0, ICMPV6_ADM_PROHIBITED, ICMPV6_NOT_NEIGHBOUR, ICMPV6_ADDR_UNREACHABLE, ICMPV6_PORT_UNREACHABLE }
	ICMPv6 error code : Destination Unreachable. More...
enum	ErrorParameterError_e { ICMPV6_MALFORMED_HEADER = 0, ICMPV6_UNKNOWN_NEXT_HEADER, ICMPV6_UNKNOWN_OPTION }
	ICMPv6 error code : Parameter Error. More...
enum	ErrorTimeExceeded_e { ICMPV6_HOPLIMIT = 0, ICMPV6_FRAGTIME }
	ICMPv6 error code : Time Exceeded. More...
enum	OptionType_e { ICMPV6_OPT_LINK_LAYER_SOURCE = 1, ICMPV6_OPT_LINK_LAYER_TARGET, ICMPV6_OPT_PREFIX, ICMPV6_OPT_REDIRECTED, ICMPV6_OPT_MTU }
	ICMPv6 Option type code. More...
enum	Type_e { ICMPV6_ERROR_DESTINATION_UNREACHABLE = 1, ICMPV6_ERROR_PACKET_TOO_BIG, ICMPV6_ERROR_TIME_EXCEEDED, ICMPV6_ERROR_PARAMETER_ERROR, ICMPV6_ECHO_REQUEST = 128, ICMPV6_ECHO_REPLY, ICMPV6_SUBSCRIBE_REQUEST, ICMPV6_SUBSCRIBE_REPORT, ICMPV6_SUBSCRIVE_END, ICMPV6_ND_ROUTER_SOLICITATION, ICMPV6_ND_ROUTER_ADVERTISEMENT, ICMPV6_ND_NEIGHBOR_SOLICITATION, ICMPV6_ND_NEIGHBOR_ADVERTISEMENT, ICMPV6_ND_REDIRECTION, ICMPV6_ROUTER_RENUMBER, ICMPV6_INFORMATION_REQUEST, ICMPV6_INFORMATION_RESPONSE, ICMPV6_INVERSE_ND_SOLICITATION, ICMPV6_INVERSE_ND_ADVERSTISEMENT, ICMPV6_MLDV2_SUBSCRIBE_REPORT, ICMPV6_MOBILITY_HA_DISCOVER_REQUEST, ICMPV6_MOBILITY_HA_DISCOVER_RESPONSE, ICMPV6_MOBILITY_MOBILE_PREFIX_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_ADVERTISEMENT, ICMPV6_EXPERIMENTAL_MOBILITY }
	ICMPv6 type code. More...
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
Protected Attributes inherited from ns3::Icmpv6Header
bool	m_calcChecksum
	Checksum enable or not.
uint16_t	m_checksum
	The checksum.

Detailed Description

ICMPv6 Router Advertisement header.

Definition at line 569 of file icmpv6-header.h.

Constructor & Destructor Documentation

ns3::Icmpv6RA::Icmpv6RA ( )

Constructor.

Definition at line 453 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_ND_ROUTER_ADVERTISEMENT, ns3::Icmpv6Header::SetCode(), SetCurHopLimit(), SetFlagH(), SetFlagM(), SetFlagO(), SetFlags(), SetLifeTime(), SetReachableTime(), SetRetransmissionTime(), and ns3::Icmpv6Header::SetType().

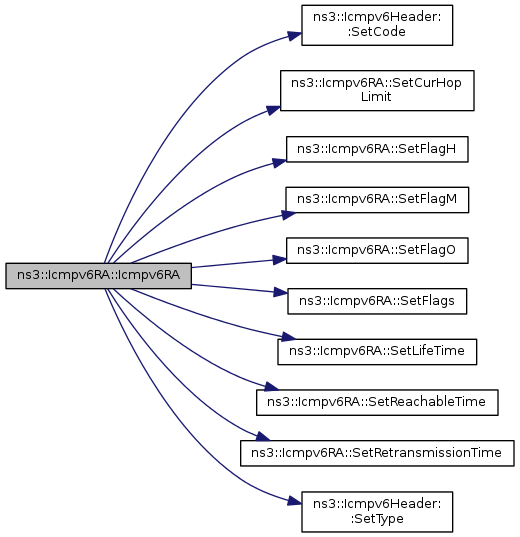

Here is the call graph for this function:

ns3::Icmpv6RA::~Icmpv6RA ( )

virtual

Destructor.

Definition at line 467 of file icmpv6-header.cc.

Member Function Documentation

uint32_t ns3::Icmpv6RA::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start start offset

Returns: length of packet

Reimplemented from ns3::Icmpv6Header.

Definition at line 599 of file icmpv6-header.cc.

References GetSerializedSize(), ns3::Icmpv6Header::m_checksum, m_flagH, m_flagM, m_flagO, m_flags, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), ns3::Icmpv6Header::SetCode(), SetCurHopLimit(), SetLifeTime(), SetReachableTime(), SetRetransmissionTime(), ns3::Icmpv6Header::SetType(), and visualizer.core::start().

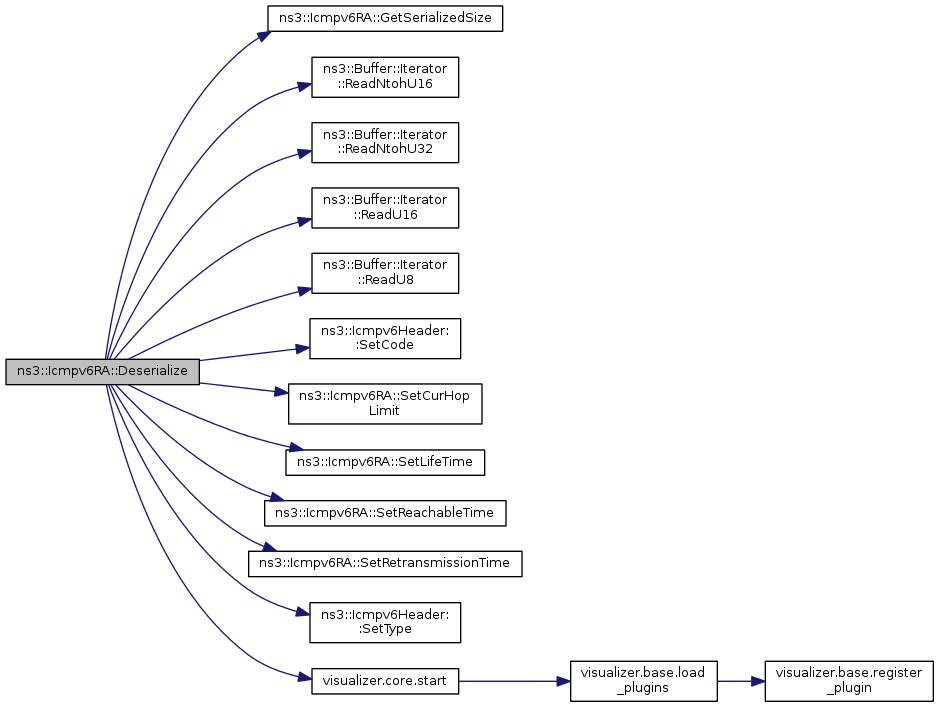

Here is the call graph for this function:

uint8_t ns3::Icmpv6RA::GetCurHopLimit ( ) const

Get the IPv6 maximum number of jumps.

Returns: maximum jumps

Definition at line 476 of file icmpv6-header.cc.

References m_curHopLimit.

bool ns3::Icmpv6RA::GetFlagH ( ) const

Get the H flag.

Returns: H flag

Definition at line 531 of file icmpv6-header.cc.

References m_flagH.

bool ns3::Icmpv6RA::GetFlagM ( ) const

Get the M flag.

Returns: M flag

Definition at line 511 of file icmpv6-header.cc.

References m_flagM.

bool ns3::Icmpv6RA::GetFlagO ( ) const

Get the O flag.

Returns: O flag

Definition at line 521 of file icmpv6-header.cc.

References m_flagO.

uint8_t ns3::Icmpv6RA::GetFlags ( ) const

Getflags.

Returns: the flags value

Definition at line 541 of file icmpv6-header.cc.

References m_flags.

TypeId ns3::Icmpv6RA::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Icmpv6Header.

Definition at line 448 of file icmpv6-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint16_t ns3::Icmpv6RA::GetLifeTime ( ) const

Get the node Life time (Neighbor Discovery).

Returns: life time

Definition at line 481 of file icmpv6-header.cc.

References m_LifeTime.

Referenced by Serialize().

Here is the caller graph for this function:

uint32_t ns3::Icmpv6RA::GetReachableTime ( ) const

Get the node Reachable time (Neighbor Discovery).

Returns: reachable time

Definition at line 486 of file icmpv6-header.cc.

References m_ReachableTime.

Referenced by Serialize().

Here is the caller graph for this function:

uint32_t ns3::Icmpv6RA::GetRetransmissionTime ( ) const

Get the node Retransmission time (Neighbor Discovery).

Returns: retransmission time

Definition at line 491 of file icmpv6-header.cc.

References m_RetransmissionTimer.

Referenced by Serialize().

Here is the caller graph for this function:

uint32_t ns3::Icmpv6RA::GetSerializedSize ( void ) const

virtual

Get the serialized size.

Returns: serialized size

Reimplemented from ns3::Icmpv6Header.

Definition at line 556 of file icmpv6-header.cc.

Referenced by Deserialize().

Here is the caller graph for this function:

TypeId ns3::Icmpv6RA::GetTypeId ( void )

static

Get the UID of this class.

This method returns the TypeId associated to ns3::Icmpv6RA.

Returns: UID

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Icmpv6Header.

Definition at line 439 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6RA::Print ( std::ostream & os ) const

virtual

Print informations.

Parameters

os	output stream

Reimplemented from ns3::Icmpv6Header.

Definition at line 551 of file icmpv6-header.cc.

References ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), and ns3::Icmpv6Header::GetType().

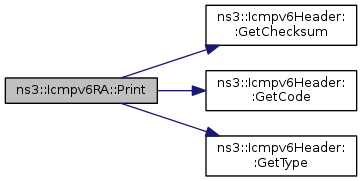

Here is the call graph for this function:

void ns3::Icmpv6RA::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start start offset

Reimplemented from ns3::Icmpv6Header.

Definition at line 561 of file icmpv6-header.cc.

References ns3::Buffer::Iterator::CalculateIpChecksum(), ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), GetLifeTime(), GetReachableTime(), GetRetransmissionTime(), ns3::Buffer::Iterator::GetSize(), ns3::Icmpv6Header::GetType(), m_curHopLimit, m_flagH, m_flagM, m_flagO, ns3::Buffer::Iterator::Next(), visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

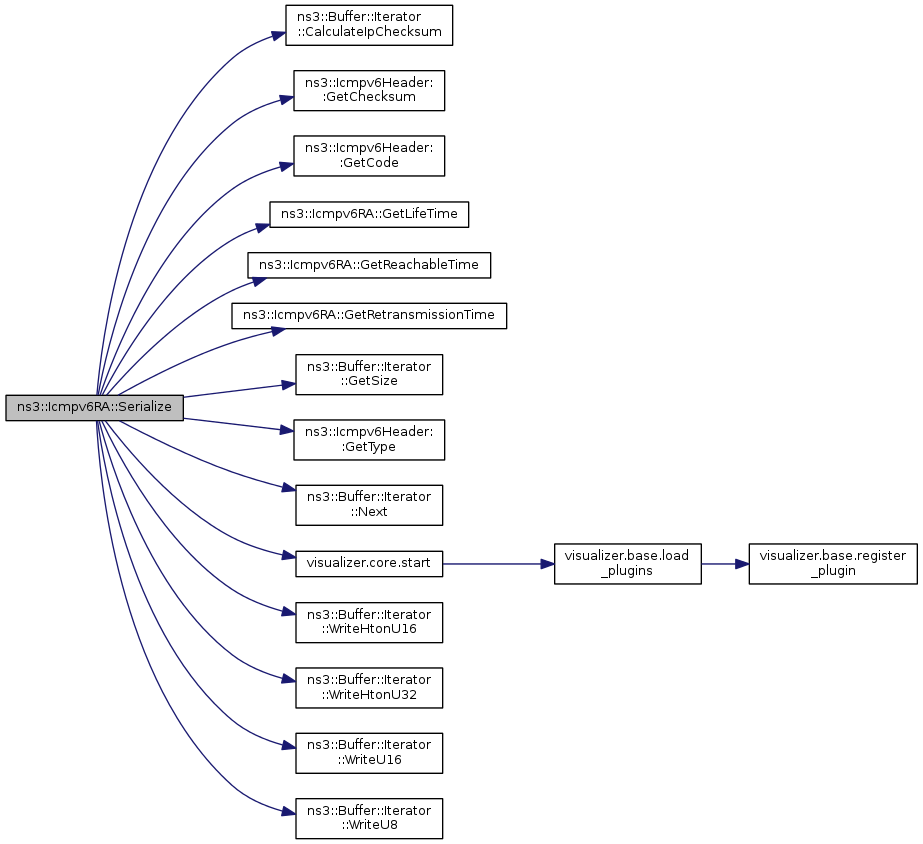

Here is the call graph for this function:

void ns3::Icmpv6RA::SetCurHopLimit ( uint8_t m )

Set the IPv6 maximum number of jumps.

Parameters

m	maximum jumps

Definition at line 471 of file icmpv6-header.cc.

References m_curHopLimit.

Referenced by Deserialize(), and Icmpv6RA().

Here is the caller graph for this function:

void ns3::Icmpv6RA::SetFlagH ( bool h )

Set the H flag.

Parameters

h value

Definition at line 536 of file icmpv6-header.cc.

References m_flagH.

Referenced by Icmpv6RA().

Here is the caller graph for this function:

void ns3::Icmpv6RA::SetFlagM ( bool m )

Set the M flag.

Parameters

m value

Definition at line 516 of file icmpv6-header.cc.

References m_flagM.

Referenced by Icmpv6RA().

Here is the caller graph for this function:

void ns3::Icmpv6RA::SetFlagO ( bool o )

Set the O flag.

Parameters

o value

Definition at line 526 of file icmpv6-header.cc.

References m_flagO.

Referenced by Icmpv6RA().

Here is the caller graph for this function:

void ns3::Icmpv6RA::SetFlags ( uint8_t f )

Setflags.

Parameters

f	the flags value

Definition at line 546 of file icmpv6-header.cc.

References m_flags.

Referenced by Icmpv6RA().

Here is the caller graph for this function:

void ns3::Icmpv6RA::SetLifeTime ( uint16_t l )

Set the node Life time (Neighbor Discovery).

Parameters

l life time

Definition at line 496 of file icmpv6-header.cc.

References m_LifeTime.

Referenced by Deserialize(), and Icmpv6RA().

Here is the caller graph for this function:

void ns3::Icmpv6RA::SetReachableTime ( uint32_t r )

Set the node Reachable time (Neighbor Discovery).

Parameters

r	Reachable time

Definition at line 501 of file icmpv6-header.cc.

References m_ReachableTime.

Referenced by Deserialize(), and Icmpv6RA().

Here is the caller graph for this function:

void ns3::Icmpv6RA::SetRetransmissionTime ( uint32_t r )

Set the node Retransmission time (Neighbor Discovery).

Parameters

r	Retransmission time

Definition at line 506 of file icmpv6-header.cc.

References m_RetransmissionTimer.

Referenced by Deserialize(), and Icmpv6RA().

Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::Icmpv6RA::m_curHopLimit

private

The max jumps.

Definition at line 754 of file icmpv6-header.h.

Referenced by GetCurHopLimit(), Serialize(), and SetCurHopLimit().

bool ns3::Icmpv6RA::m_flagH

private

The H flag.

Definition at line 729 of file icmpv6-header.h.

Referenced by Deserialize(), GetFlagH(), Serialize(), and SetFlagH().

bool ns3::Icmpv6RA::m_flagM

private

The M flag.

Definition at line 719 of file icmpv6-header.h.

Referenced by Deserialize(), GetFlagM(), Serialize(), and SetFlagM().

bool ns3::Icmpv6RA::m_flagO

private

The O flag.

Definition at line 724 of file icmpv6-header.h.

Referenced by Deserialize(), GetFlagO(), Serialize(), and SetFlagO().

uint8_t ns3::Icmpv6RA::m_flags

private

The flags field value.

Definition at line 734 of file icmpv6-header.h.

Referenced by Deserialize(), GetFlags(), and SetFlags().

uint16_t ns3::Icmpv6RA::m_LifeTime

private

The lifetime value.

Definition at line 739 of file icmpv6-header.h.

Referenced by GetLifeTime(), and SetLifeTime().

uint32_t ns3::Icmpv6RA::m_ReachableTime

private

The reachable time value.

Definition at line 744 of file icmpv6-header.h.

Referenced by GetReachableTime(), and SetReachableTime().

uint32_t ns3::Icmpv6RA::m_RetransmissionTimer

private

The retransmission timer.

Definition at line 749 of file icmpv6-header.h.

Referenced by GetRetransmissionTime(), and SetRetransmissionTime().

The documentation for this class was generated from the following files:

src/internet/model/icmpv6-header.h
doc/introspected-doxygen.h
src/internet/model/icmpv6-header.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
