ns3::Icmpv6Redirection Class Reference

ICMPv6 Redirection header. More...

#include <icmpv6-header.h>

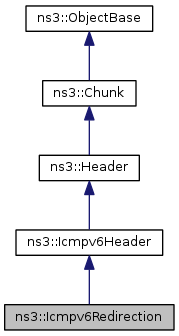

+ Inheritance diagram for ns3::Icmpv6Redirection:

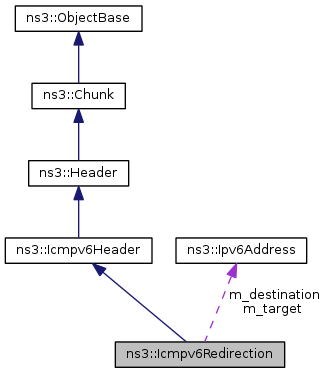

+ Collaboration diagram for ns3::Icmpv6Redirection:

Public Member Functions

 Icmpv6Redirection ()
 Constructor.
virtual ~Icmpv6Redirection ()
 Destructor.
virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet.
Ipv6Address GetDestination () const
 Get the IPv6 destination address.
virtual TypeId GetInstanceTypeId () const
 Get the instance type ID.
uint32_t GetReserved () const
 Get the reserved field.
virtual uint32_t GetSerializedSize () const
 Get the serialized size.
Ipv6Address GetTarget () const
 Get the IPv6 target address.
virtual void Print (std::ostream &os) const
 Print informations.
virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet.
void SetDestination (Ipv6Address destination)
 Set the IPv6 destination address.
void SetReserved (uint32_t reserved)
 Set the reserved field.
void SetTarget (Ipv6Address target)
 Set the IPv6 target address.
- Public Member Functions inherited from ns3::Icmpv6Header
 Icmpv6Header ()
 Constructor.
virtual ~Icmpv6Header ()
 Destructor.
void CalculatePseudoHeaderChecksum (Ipv6Address src, Ipv6Address dst, uint16_t length, uint8_t protocol)
 Calculate pseudo header checksum for IPv6.
uint16_t GetChecksum () const
 Get the checksum.
uint8_t GetCode () const
 Get the code field.
uint8_t GetType () const
 Get the type field.
void SetChecksum (uint16_t checksum)
 Set the checksum.
void SetCode (uint8_t code)
 Set the code field.
void SetType (uint8_t type)
 Set the type.
- Public Member Functions inherited from ns3::Header
virtual ~Header ()

Static Public Member Functions

static TypeId GetTypeId ()
 Get the UID of this class.

Private Attributes

Ipv6Address m_destination
 IPv6 destination address.
uint32_t m_reserved
 Reserved value.
Ipv6Address m_target
 IPv6 target address.

Additional Inherited Members

- Public Types inherited from ns3::Icmpv6Header
enum  ErrorDestinationUnreachable_e {
  ICMPV6_NO_ROUTE = 0, ICMPV6_ADM_PROHIBITED, ICMPV6_NOT_NEIGHBOUR, ICMPV6_ADDR_UNREACHABLE,
  ICMPV6_PORT_UNREACHABLE
}
 ICMPv6 error code : Destination Unreachable. More...
enum  ErrorParameterError_e { ICMPV6_MALFORMED_HEADER = 0, ICMPV6_UNKNOWN_NEXT_HEADER, ICMPV6_UNKNOWN_OPTION }
 ICMPv6 error code : Parameter Error. More...
enum  ErrorTimeExceeded_e { ICMPV6_HOPLIMIT = 0, ICMPV6_FRAGTIME }
 ICMPv6 error code : Time Exceeded. More...
enum  OptionType_e {
  ICMPV6_OPT_LINK_LAYER_SOURCE = 1, ICMPV6_OPT_LINK_LAYER_TARGET, ICMPV6_OPT_PREFIX, ICMPV6_OPT_REDIRECTED,
  ICMPV6_OPT_MTU
}
 ICMPv6 Option type code. More...
enum  Type_e {
  ICMPV6_ERROR_DESTINATION_UNREACHABLE = 1, ICMPV6_ERROR_PACKET_TOO_BIG, ICMPV6_ERROR_TIME_EXCEEDED, ICMPV6_ERROR_PARAMETER_ERROR,
  ICMPV6_ECHO_REQUEST = 128, ICMPV6_ECHO_REPLY, ICMPV6_SUBSCRIBE_REQUEST, ICMPV6_SUBSCRIBE_REPORT,
  ICMPV6_SUBSCRIVE_END, ICMPV6_ND_ROUTER_SOLICITATION, ICMPV6_ND_ROUTER_ADVERTISEMENT, ICMPV6_ND_NEIGHBOR_SOLICITATION,
  ICMPV6_ND_NEIGHBOR_ADVERTISEMENT, ICMPV6_ND_REDIRECTION, ICMPV6_ROUTER_RENUMBER, ICMPV6_INFORMATION_REQUEST,
  ICMPV6_INFORMATION_RESPONSE, ICMPV6_INVERSE_ND_SOLICITATION, ICMPV6_INVERSE_ND_ADVERSTISEMENT, ICMPV6_MLDV2_SUBSCRIBE_REPORT,
  ICMPV6_MOBILITY_HA_DISCOVER_REQUEST, ICMPV6_MOBILITY_HA_DISCOVER_RESPONSE, ICMPV6_MOBILITY_MOBILE_PREFIX_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_SOLICITATION,
  ICMPV6_SECURE_ND_CERTIFICATE_PATH_ADVERTISEMENT, ICMPV6_EXPERIMENTAL_MOBILITY
}
 ICMPv6 type code. More...
- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
virtual void NotifyConstructionCompleted (void)
- Protected Attributes inherited from ns3::Icmpv6Header
bool m_calcChecksum
 Checksum enable or not.
uint16_t m_checksum
 The checksum.

Detailed Description

ICMPv6 Redirection header.

Definition at line 834 of file icmpv6-header.h.

Constructor & Destructor Documentation

ns3::Icmpv6Redirection::Icmpv6Redirection ( )

Constructor.

Definition at line 731 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_ND_REDIRECTION, ns3::Icmpv6Header::m_checksum, ns3::Icmpv6Header::SetCode(), and ns3::Icmpv6Header::SetType().

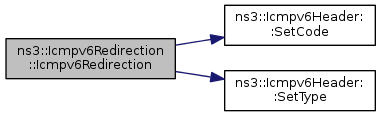

+ Here is the call graph for this function:

ns3::Icmpv6Redirection::~Icmpv6Redirection ( )
virtual

Destructor.

Definition at line 741 of file icmpv6-header.cc.

Member Function Documentation

uint32_t ns3::Icmpv6Redirection::Deserialize ( Buffer::Iterator  start)
virtual

Deserialize the packet.

Parameters
startstart offset
Returns
length of packet

Reimplemented from ns3::Icmpv6Header.

Definition at line 813 of file icmpv6-header.cc.

References GetSerializedSize(), ns3::Icmpv6Header::m_checksum, m_destination, m_target, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6Address::Set(), ns3::Icmpv6Header::SetCode(), SetReserved(), ns3::Icmpv6Header::SetType(), and visualizer.core::start().

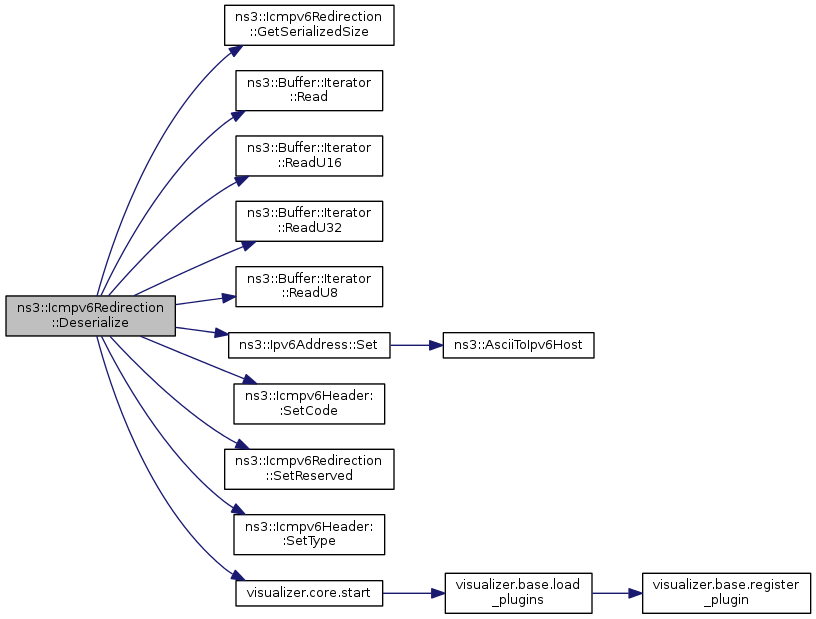

+ Here is the call graph for this function:

Ipv6Address ns3::Icmpv6Redirection::GetDestination ( void  ) const

Get the IPv6 destination address.

Returns
the IPv6 destination address

Definition at line 765 of file icmpv6-header.cc.

References m_destination.

Referenced by ns3::Icmpv6L4Protocol::HandleRedirection().

+ Here is the caller graph for this function:

TypeId ns3::Icmpv6Redirection::GetInstanceTypeId ( void  ) const
virtual

Get the instance type ID.

Returns
instance type ID

Reimplemented from ns3::Icmpv6Header.

Definition at line 726 of file icmpv6-header.cc.

References GetTypeId().

+ Here is the call graph for this function:

uint32_t ns3::Icmpv6Redirection::GetReserved ( ) const

Get the reserved field.

Returns
reserved value

Definition at line 750 of file icmpv6-header.cc.

References m_reserved.

uint32_t ns3::Icmpv6Redirection::GetSerializedSize ( void  ) const
virtual

Get the serialized size.

Returns
serialized size

Reimplemented from ns3::Icmpv6Header.

Definition at line 780 of file icmpv6-header.cc.

Referenced by Deserialize().

+ Here is the caller graph for this function:

Ipv6Address ns3::Icmpv6Redirection::GetTarget ( ) const

Get the IPv6 target address.

Returns
the IPv6 target address

Definition at line 755 of file icmpv6-header.cc.

References m_target.

Referenced by ns3::Icmpv6L4Protocol::HandleRedirection().

+ Here is the caller graph for this function:

TypeId ns3::Icmpv6Redirection::GetTypeId ( void  )
static

Get the UID of this class.

This method returns the TypeId associated to ns3::Icmpv6Redirection.

Returns
UID

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Icmpv6Header.

Definition at line 717 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::Icmpv6Redirection::Print ( std::ostream &  os) const
virtual

Print informations.

Parameters
osoutput stream

Reimplemented from ns3::Icmpv6Header.

Definition at line 775 of file icmpv6-header.cc.

References ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), ns3::Icmpv6Header::GetType(), m_destination, and m_target.

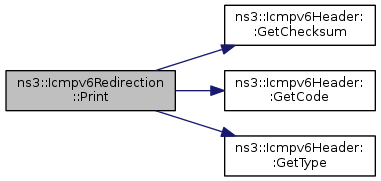

+ Here is the call graph for this function:

void ns3::Icmpv6Redirection::Serialize ( Buffer::Iterator  start) const
virtual

Serialize the packet.

Parameters
startstart offset

Reimplemented from ns3::Icmpv6Header.

Definition at line 785 of file icmpv6-header.cc.

References ns3::Buffer::Iterator::CalculateIpChecksum(), ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), ns3::Buffer::Iterator::GetSize(), ns3::Icmpv6Header::GetType(), ns3::Icmpv6Header::m_calcChecksum, m_destination, m_reserved, m_target, ns3::Buffer::Iterator::Next(), ns3::Ipv6Address::Serialize(), visualizer.core::start(), ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteU16(), ns3::Buffer::Iterator::WriteU32(), and ns3::Buffer::Iterator::WriteU8().

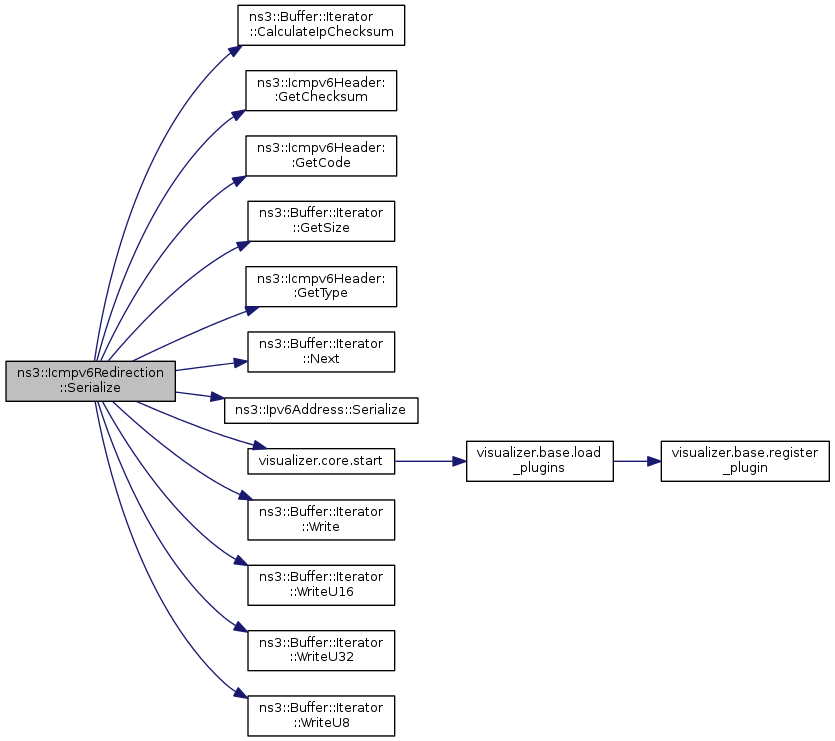

+ Here is the call graph for this function:

void ns3::Icmpv6Redirection::SetDestination ( Ipv6Address  destination)

Set the IPv6 destination address.

Parameters
destinationIPv6 destination address

Definition at line 770 of file icmpv6-header.cc.

References m_destination.

Referenced by ns3::Icmpv6L4Protocol::SendRedirection().

+ Here is the caller graph for this function:

void ns3::Icmpv6Redirection::SetReserved ( uint32_t  reserved)

Set the reserved field.

Parameters
reservedthe reserved value

Definition at line 745 of file icmpv6-header.cc.

References m_reserved.

Referenced by Deserialize().

+ Here is the caller graph for this function:

void ns3::Icmpv6Redirection::SetTarget ( Ipv6Address  target)

Set the IPv6 target address.

Parameters
targetIPv6 target address

Definition at line 760 of file icmpv6-header.cc.

References m_target.

Referenced by ns3::Icmpv6L4Protocol::SendRedirection().

+ Here is the caller graph for this function:

Member Data Documentation

Ipv6Address ns3::Icmpv6Redirection::m_destination
private

IPv6 destination address.

Definition at line 929 of file icmpv6-header.h.

Referenced by Deserialize(), GetDestination(), Print(), Serialize(), and SetDestination().

uint32_t ns3::Icmpv6Redirection::m_reserved
private

Reserved value.

Definition at line 934 of file icmpv6-header.h.

Referenced by GetReserved(), Serialize(), and SetReserved().

Ipv6Address ns3::Icmpv6Redirection::m_target
private

IPv6 target address.

Definition at line 924 of file icmpv6-header.h.

Referenced by Deserialize(), GetTarget(), Print(), Serialize(), and SetTarget().

The documentation for this class was generated from the following files:
