ns3::IdealControlMessage Class Reference

#include <ideal-control-messages.h>

Inheritance diagram for ns3::IdealControlMessage:

Collaboration diagram for ns3::IdealControlMessage:

Public Types
enum	MessageType {   CQI_FEEDBACKS, ALLOCATION_MAP, DL_DCI, UL_DCI,   DL_CQI, UL_CQI, BSR }

Public Member Functions
	IdealControlMessage (void)
virtual	~IdealControlMessage (void)
Ptr< LteNetDevice >	GetDestinationDevice (void)
	Get the destination device of the message.
MessageType	GetMessageType (void)
	Get the type of the message.
Ptr< LteNetDevice >	GetSourceDevice (void)
	Get the source device of the message.
void	SetDestinationDevice (Ptr< LteNetDevice > dst)
	Set the destination device of the message.
void	SetMessageType (MessageType type)
	Set the type of the message.
void	SetSourceDevice (Ptr< LteNetDevice > src)
	Set the source device of the message.
Public Member Functions inherited from ns3::SimpleRefCount< IdealControlMessage >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Private Attributes
Ptr< LteNetDevice >	m_destination
Ptr< LteNetDevice >	m_source
MessageType	m_type

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< IdealControlMessage >
static void	Cleanup (void)

Detailed Description

The IdealControlMessage provides a basic implementations for control messages (such as PDCCH allocation map, CQI feedbacks) that are exchanged among eNodeB and UEs.

Definition at line 41 of file ideal-control-messages.h.

Member Enumeration Documentation

enum ns3::IdealControlMessage::MessageType

The type of the message

Enumerator:

CQI_FEEDBACKS
ALLOCATION_MAP
DL_DCI
UL_DCI
DL_CQI
UL_CQI
BSR

Definition at line 47 of file ideal-control-messages.h.

Constructor & Destructor Documentation

ns3::IdealControlMessage::IdealControlMessage

(

void

)

Definition at line 34 of file ideal-control-messages.cc.

ns3::IdealControlMessage::~IdealControlMessage ( void  )

virtual

Definition at line 41 of file ideal-control-messages.cc.

References m_destination, and m_source.

Member Function Documentation

Ptr< LteNetDevice > ns3::IdealControlMessage::GetDestinationDevice

(

void

)

Get the destination device of the message.

Returns

the pointer to the device that receives the message

Definition at line 70 of file ideal-control-messages.cc.

References m_destination.

IdealControlMessage::MessageType ns3::IdealControlMessage::GetMessageType

(

void

)

Get the type of the message.

Returns

the type of the message

Definition at line 84 of file ideal-control-messages.cc.

References m_type.

Referenced by ns3::LteUeMac::DoReceiveIdealControlMessage(), ns3::LteEnbMac::DoReceiveIdealControlMessage(), ns3::LteUePhy::ReceiveIdealControlMessage(), and ns3::LteEnbPhy::StartSubFrame().

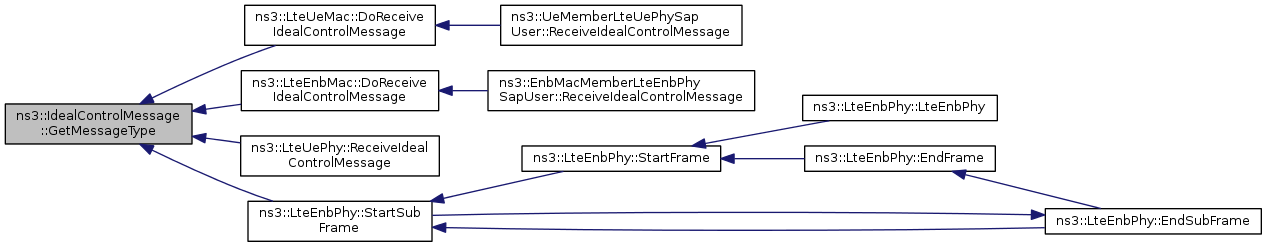

Here is the caller graph for this function:

Ptr< LteNetDevice > ns3::IdealControlMessage::GetSourceDevice

(

void

)

Get the source device of the message.

Returns

the pointer to the device that sends the message

Definition at line 63 of file ideal-control-messages.cc.

References m_source.

void ns3::IdealControlMessage::SetDestinationDevice

(

Ptr< LteNetDevice >

dst

)

Set the destination device of the message.

Parameters

dst	the device that receives the message

Definition at line 56 of file ideal-control-messages.cc.

References m_destination.

Referenced by ns3::LteUePhy::DoSendIdealControlMessage().

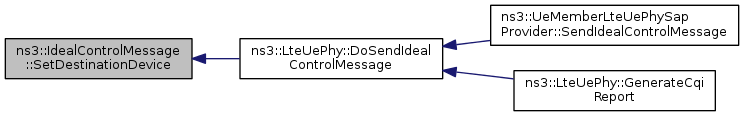

Here is the caller graph for this function:

void ns3::IdealControlMessage::SetMessageType

(

IdealControlMessage::MessageType

type

)

Set the type of the message.

Parameters

type	the type of the message

Definition at line 77 of file ideal-control-messages.cc.

References m_type.

Referenced by ns3::BsrIdealControlMessage::BsrIdealControlMessage(), ns3::DlCqiIdealControlMessage::DlCqiIdealControlMessage(), ns3::DlDciIdealControlMessage::DlDciIdealControlMessage(), and ns3::UlDciIdealControlMessage::UlDciIdealControlMessage().

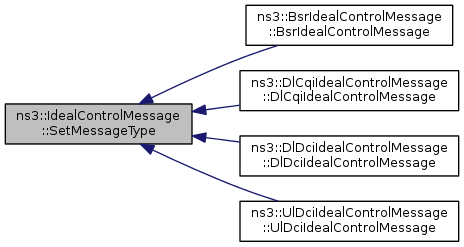

Here is the caller graph for this function:

void ns3::IdealControlMessage::SetSourceDevice

(

Ptr< LteNetDevice >

src

)

Set the source device of the message.

Parameters

src	the device that sends the message

Definition at line 49 of file ideal-control-messages.cc.

References m_source.

Referenced by ns3::LteUePhy::DoSendIdealControlMessage().

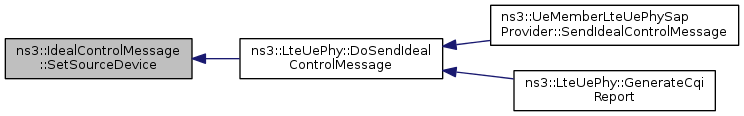

Here is the caller graph for this function:

Member Data Documentation

Ptr<LteNetDevice> ns3::IdealControlMessage::m_destination

private

Definition at line 93 of file ideal-control-messages.h.

Referenced by GetDestinationDevice(), SetDestinationDevice(), and ~IdealControlMessage().

Ptr<LteNetDevice> ns3::IdealControlMessage::m_source

private

Definition at line 92 of file ideal-control-messages.h.

Referenced by GetSourceDevice(), SetSourceDevice(), and ~IdealControlMessage().

MessageType ns3::IdealControlMessage::m_type

private

Definition at line 94 of file ideal-control-messages.h.

Referenced by GetMessageType(), and SetMessageType().

---

The documentation for this class was generated from the following files:

• src/lte/model/ideal-control-messages.h
• src/lte/model/ideal-control-messages.cc
