An IPv6 end point, four tuples identification. More...

#include <ipv6-end-point.h>

Collaboration diagram for ns3::Ipv6EndPoint:

Public Member Functions
	Ipv6EndPoint (Ipv6Address addr, uint16_t port)
	Constructor.
	~Ipv6EndPoint ()
	Destructor.
void	ForwardIcmp (Ipv6Address src, uint8_t ttl, uint8_t type, uint8_t code, uint32_t info)
	Function called from an L4Protocol implementation to notify an endpoint of an icmp message reception.
void	ForwardUp (Ptr< Packet > p, Ipv6Address srcAddr, Ipv6Address dstAddr, uint16_t port)
	Forward the packet to the upper level.
Ipv6Address	GetLocalAddress ()
	Get the local address.
uint16_t	GetLocalPort ()
	Get the local port.
Ipv6Address	GetPeerAddress ()
	Get the peer address.
uint16_t	GetPeerPort ()
	Get the peer port.
void	SetDestroyCallback (Callback< void > callback)
	Set the default destroy callback.
void	SetIcmpCallback (Callback< void, Ipv6Address, uint8_t, uint8_t, uint8_t, uint32_t > callback)
	Set the ICMP callback.
void	SetLocalAddress (Ipv6Address addr)
	Set the local address.
void	SetLocalPort (uint16_t port)
	Set the local port.
void	SetPeer (Ipv6Address addr, uint16_t port)
	Set the peer informations (address and port).
void	SetRxCallback (Callback< void, Ptr< Packet >, Ipv6Address, Ipv6Address, uint16_t > callback)
	Set the reception callback.

Private Member Functions
void	DoForwardIcmp (Ipv6Address src, uint8_t ttl, uint8_t type, uint8_t code, uint32_t info)
	ForwardIcmp wrapper.
void	DoForwardUp (Ptr< Packet > p, Ipv6Address saddr, Ipv6Address daddr, uint16_t sport)
	ForwardUp wrapper.

Private Attributes
Callback< void >	m_destroyCallback
	The destroy callback.
Callback< void, Ipv6Address, uint8_t, uint8_t, uint8_t, uint32_t >	m_icmpCallback
	The ICMPv6 callback.
Ipv6Address	m_localAddr
	The local address.
uint16_t	m_localPort
	The local port.
Ipv6Address	m_peerAddr
	The peer address.
uint16_t	m_peerPort
	The peer port.
Callback< void, Ptr< Packet > , Ipv6Address, Ipv6Address, uint16_t >	m_rxCallback
	The RX callback.

Detailed Description

An IPv6 end point, four tuples identification.

Definition at line 39 of file ipv6-end-point.h.

Constructor & Destructor Documentation

ns3::Ipv6EndPoint::Ipv6EndPoint	(	Ipv6Address	addr,
		uint16_t	port
	)

Constructor.

Parameters

addr	the IPv6 address
port	the port

Definition at line 32 of file ipv6-end-point.cc.

ns3::Ipv6EndPoint::~Ipv6EndPoint ( )

Destructor.

Definition at line 40 of file ipv6-end-point.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_destroyCallback, m_icmpCallback, m_rxCallback, and ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify().

Here is the call graph for this function:

Member Function Documentation

void ns3::Ipv6EndPoint::DoForwardIcmp	(	Ipv6Address	src,
		uint8_t	ttl,
		uint8_t	type,
		uint8_t	code,
		uint32_t	info
	)

private

ForwardIcmp wrapper.

Parameters

src	source IPv6 address
ttl	time-to-live
type	ICMPv6 type
code	ICMPv6 code
info	ICMPv6 info

Definition at line 125 of file ipv6-end-point.cc.

References m_icmpCallback.

Referenced by ForwardIcmp().

Here is the caller graph for this function:

void ns3::Ipv6EndPoint::DoForwardUp	(	Ptr< Packet >	p,
		Ipv6Address	saddr,
		Ipv6Address	daddr,
		uint16_t	sport
	)

private

ForwardUp wrapper.

Parameters

p	packet
saddr	source IPv6 address
daddr	dest IPv6 address
sport	source port

Definition at line 120 of file ipv6-end-point.cc.

References m_rxCallback.

void ns3::Ipv6EndPoint::ForwardIcmp	(	Ipv6Address	src,
		uint8_t	ttl,
		uint8_t	type,
		uint8_t	code,
		uint32_t	info
	)

Function called from an L4Protocol implementation to notify an endpoint of an icmp message reception.

Parameters

src	source IPv6 address
ttl	time-to-live
type	ICMPv6 type
code	ICMPv6 code
info	ICMPv6 info

Definition at line 110 of file ipv6-end-point.cc.

References DoForwardIcmp(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_icmpCallback, and ns3::Simulator::ScheduleNow().

Referenced by ns3::UdpL4Protocol::ReceiveIcmp().

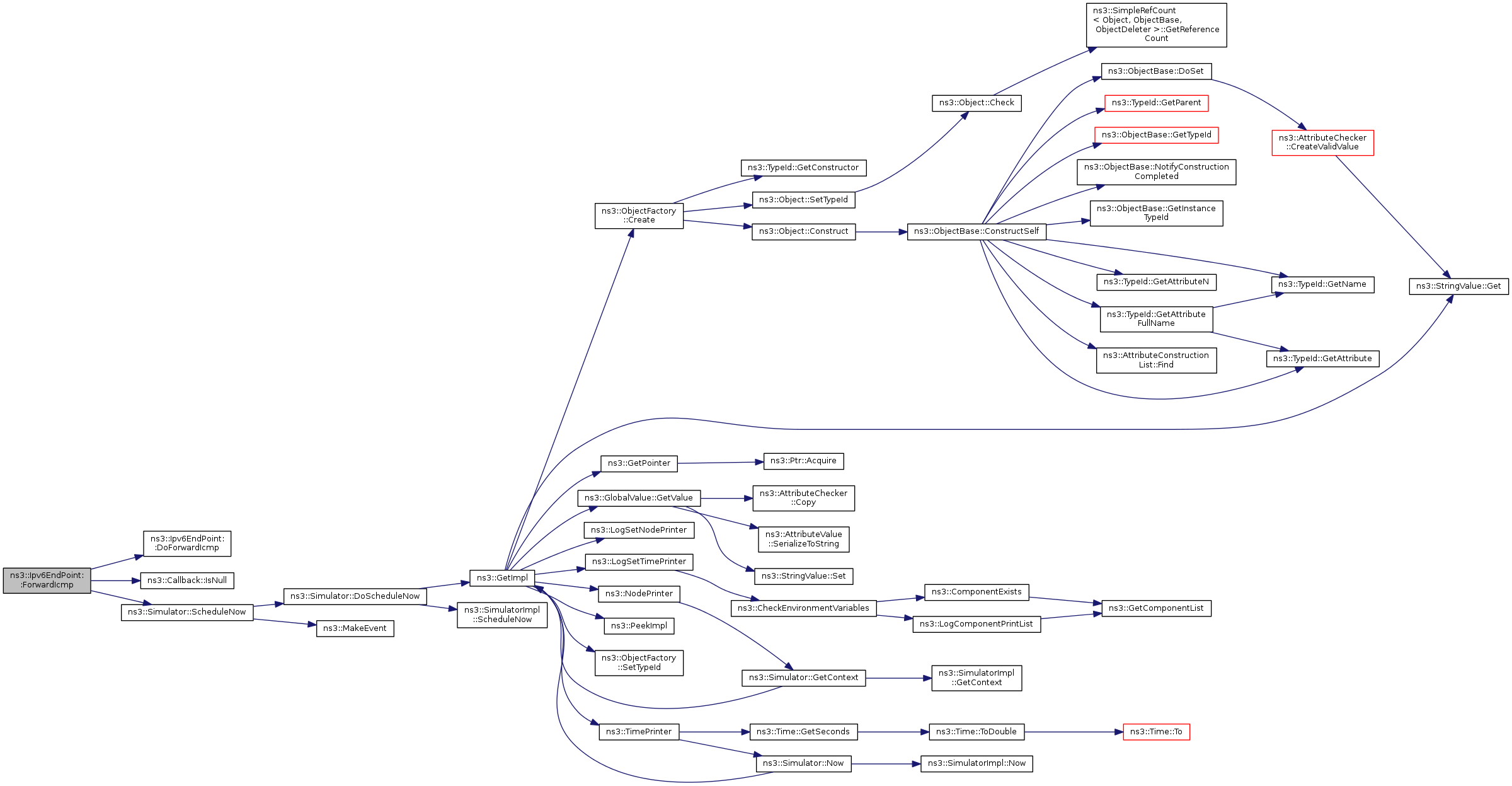

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6EndPoint::ForwardUp	(	Ptr< Packet >	p,
		Ipv6Address	srcAddr,
		Ipv6Address	dstAddr,
		uint16_t	port
	)

Forward the packet to the upper level.

Parameters

p	the packet
srcAddr	source address
dstAddr	source address
port	source port

Definition at line 102 of file ipv6-end-point.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), and m_rxCallback.

Here is the call graph for this function:

Ipv6Address ns3::Ipv6EndPoint::GetLocalAddress ( void )

Get the local address.

Returns: the local address

Definition at line 51 of file ipv6-end-point.cc.

References m_localAddr.

Referenced by ns3::TcpSocketBase::DoForwardUp(), ns3::UdpSocketImpl::DoSendTo(), ns3::TcpSocketBase::GetSockName(), ns3::Ipv6EndPointDemux::Lookup(), ns3::TcpSocketBase::PersistTimeout(), ns3::TcpSocketBase::SendDataPacket(), and ns3::TcpSocketBase::SendEmptyPacket().

Here is the caller graph for this function:

uint16_t ns3::Ipv6EndPoint::GetLocalPort ( void )

Get the local port.

Returns: the local port

Definition at line 61 of file ipv6-end-point.cc.

References m_localPort.

Referenced by ns3::TcpSocketBase::DoForwardUp(), ns3::UdpSocketImpl::DoSendTo(), ns3::TcpSocketBase::GetSockName(), ns3::Ipv6EndPointDemux::Lookup(), ns3::TcpSocketBase::PersistTimeout(), ns3::TcpSocketBase::SendDataPacket(), and ns3::TcpSocketBase::SendEmptyPacket().

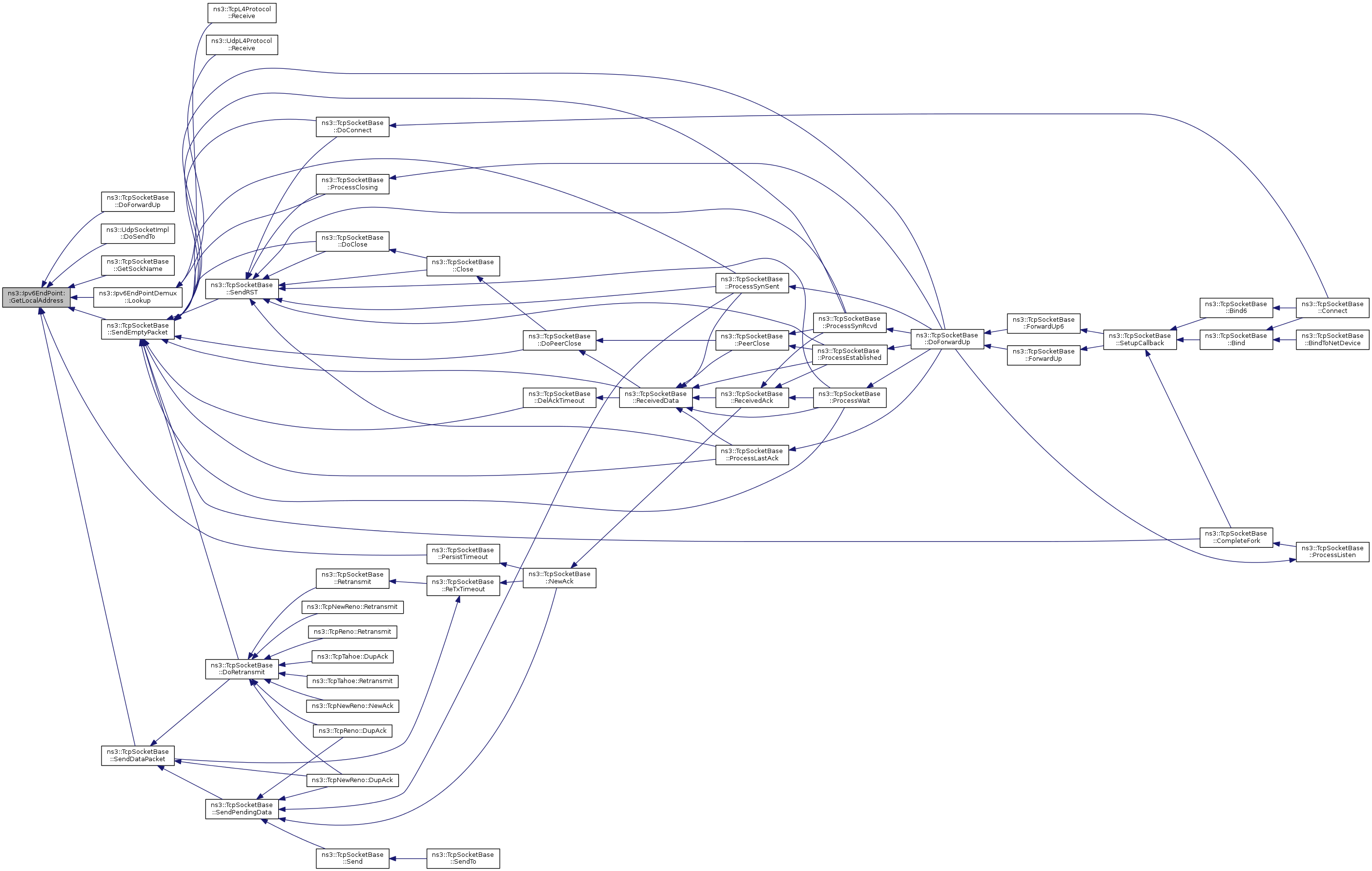

Here is the caller graph for this function:

Ipv6Address ns3::Ipv6EndPoint::GetPeerAddress ( void )

Get the peer address.

Returns: the peer address

Definition at line 71 of file ipv6-end-point.cc.

References m_peerAddr.

Referenced by ns3::TcpSocketBase::DoForwardUp(), ns3::Ipv6EndPointDemux::Lookup(), ns3::TcpSocketBase::PersistTimeout(), ns3::TcpSocketBase::Recv(), ns3::TcpSocketBase::RecvFrom(), ns3::TcpSocketBase::SendDataPacket(), ns3::TcpSocketBase::SendEmptyPacket(), and ns3::TcpSocketBase::SetupEndpoint6().

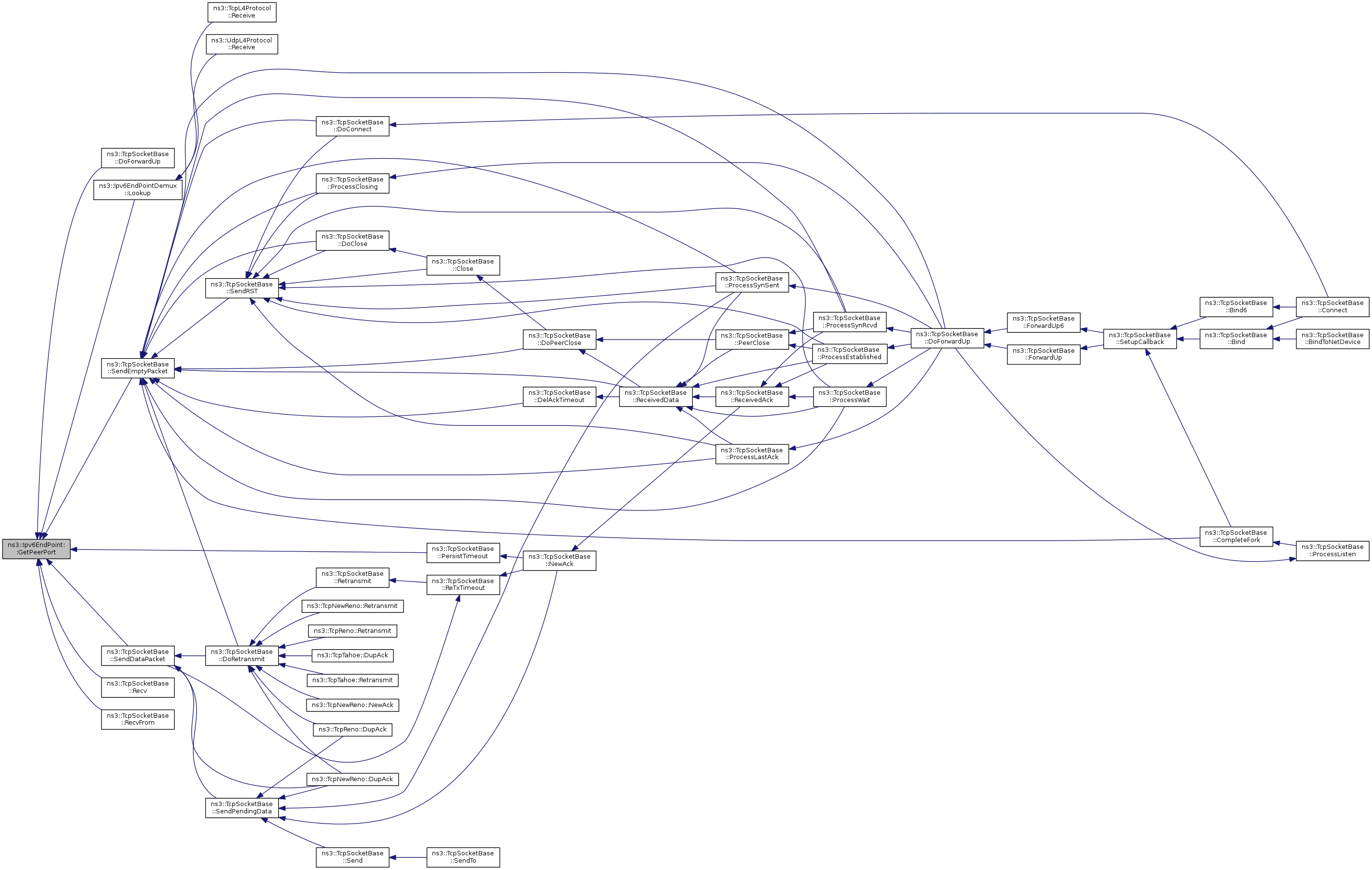

Here is the caller graph for this function:

uint16_t ns3::Ipv6EndPoint::GetPeerPort ( void )

Get the peer port.

Returns: the peer port

Definition at line 76 of file ipv6-end-point.cc.

References m_peerPort.

Referenced by ns3::TcpSocketBase::DoForwardUp(), ns3::Ipv6EndPointDemux::Lookup(), ns3::TcpSocketBase::PersistTimeout(), ns3::TcpSocketBase::Recv(), ns3::TcpSocketBase::RecvFrom(), ns3::TcpSocketBase::SendDataPacket(), and ns3::TcpSocketBase::SendEmptyPacket().

Here is the caller graph for this function:

void ns3::Ipv6EndPoint::SetDestroyCallback ( Callback< void > callback )

Set the default destroy callback.

Parameters

callback callback function

Definition at line 97 of file ipv6-end-point.cc.

References m_destroyCallback.

Referenced by ns3::TcpSocketBase::DeallocateEndPoint(), ns3::UdpSocketImpl::FinishBind(), and ns3::TcpSocketBase::SetupCallback().

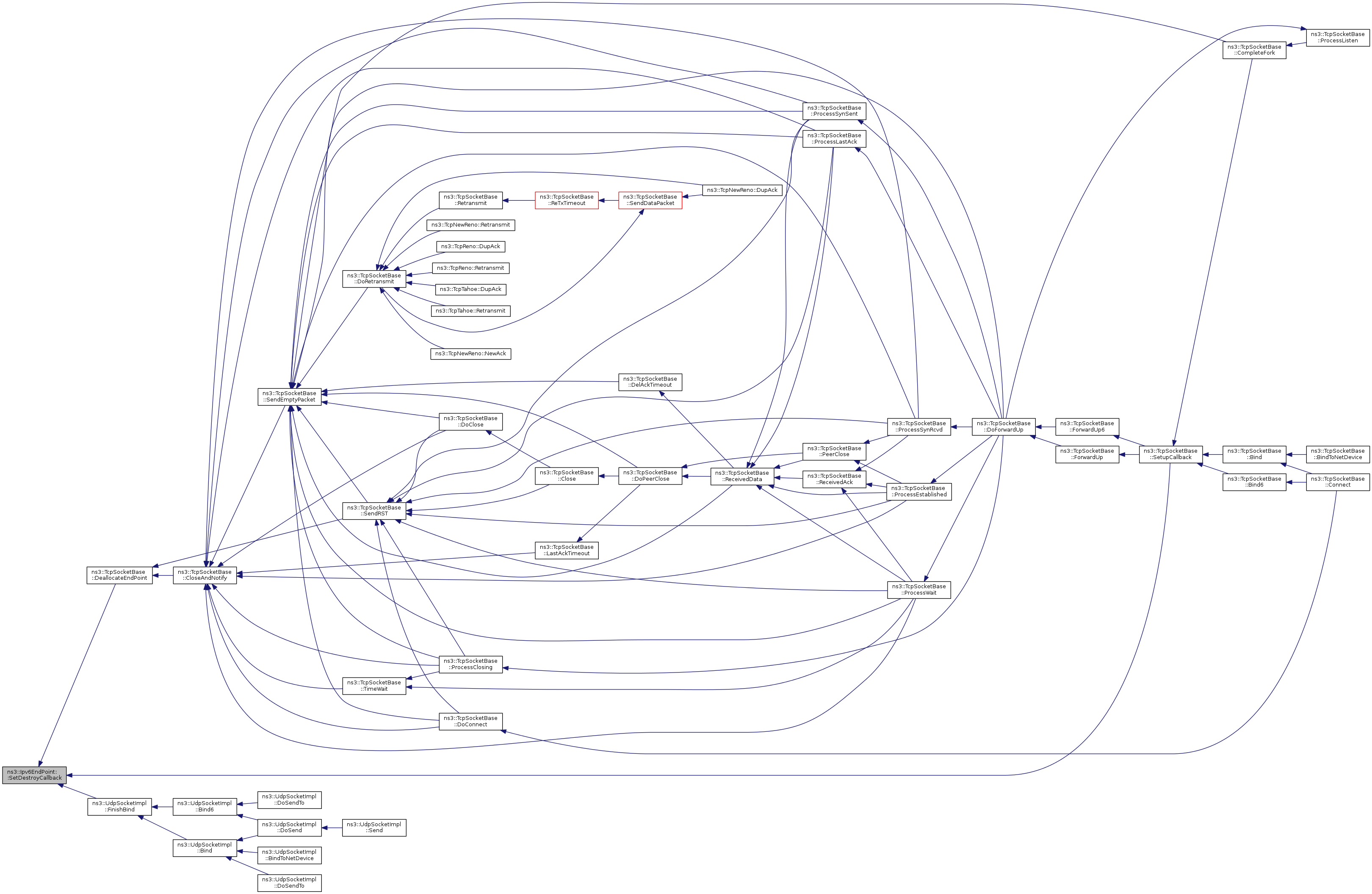

Here is the caller graph for this function:

void ns3::Ipv6EndPoint::SetIcmpCallback ( Callback< void, Ipv6Address, uint8_t, uint8_t, uint8_t, uint32_t > callback )

Set the ICMP callback.

Parameters

callback callback function

Definition at line 92 of file ipv6-end-point.cc.

References m_icmpCallback.

Referenced by ns3::UdpSocketImpl::FinishBind().

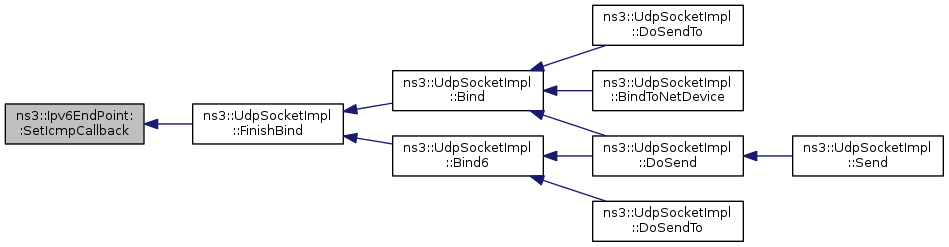

Here is the caller graph for this function:

void ns3::Ipv6EndPoint::SetLocalAddress ( Ipv6Address addr )

Set the local address.

Parameters

addr	the address to set

Definition at line 56 of file ipv6-end-point.cc.

References m_localAddr.

Referenced by ns3::TcpSocketBase::SetupEndpoint6().

Here is the caller graph for this function:

void ns3::Ipv6EndPoint::SetLocalPort ( uint16_t port )

Set the local port.

Parameters

port	the port to set

Definition at line 66 of file ipv6-end-point.cc.

References m_localPort, and port.

void ns3::Ipv6EndPoint::SetPeer	(	Ipv6Address	addr,
		uint16_t	port
	)

Set the peer informations (address and port).

Parameters

addr	peer address
port	peer port

Definition at line 81 of file ipv6-end-point.cc.

References m_peerAddr, m_peerPort, and port.

Referenced by ns3::Ipv6EndPointDemux::Allocate(), ns3::TcpSocketBase::Connect(), and ns3::TcpSocketBase::ProcessSynRcvd().

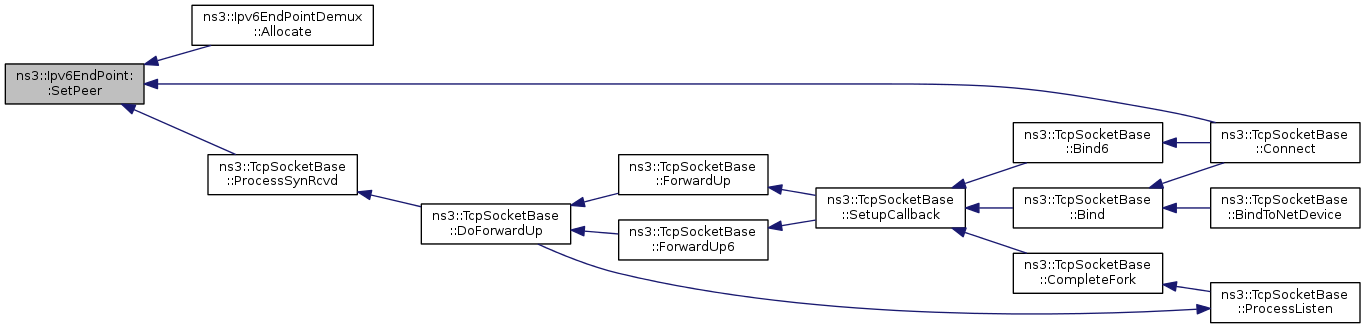

Here is the caller graph for this function:

void ns3::Ipv6EndPoint::SetRxCallback ( Callback< void, Ptr< Packet >, Ipv6Address, Ipv6Address, uint16_t > callback )

Set the reception callback.

Parameters

callback callback function

Definition at line 87 of file ipv6-end-point.cc.

References m_rxCallback.

Referenced by ns3::UdpSocketImpl::FinishBind(), and ns3::TcpSocketBase::SetupCallback().

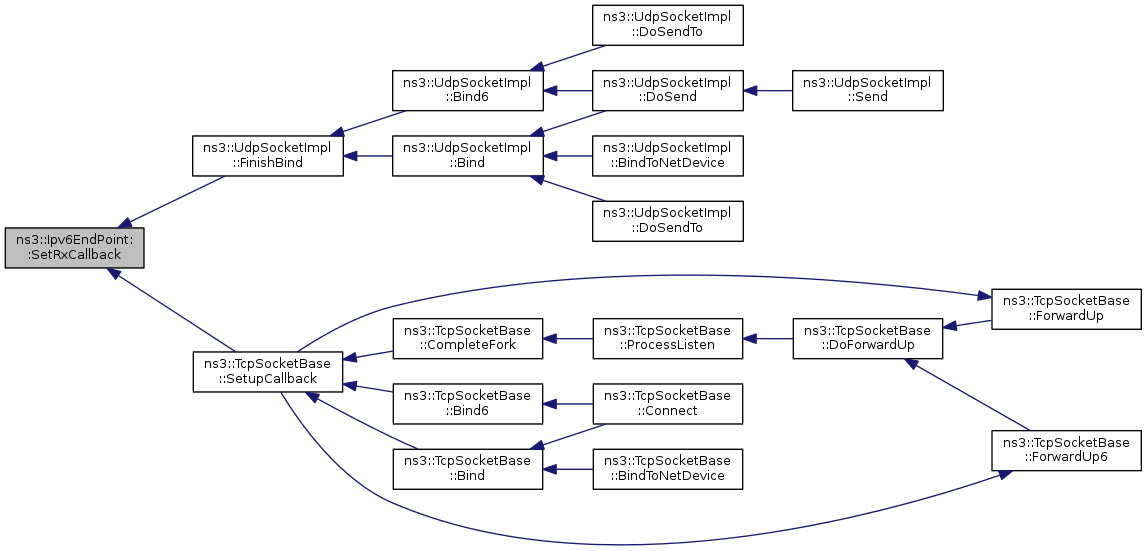

Here is the caller graph for this function:

Member Data Documentation

Callback<void> ns3::Ipv6EndPoint::m_destroyCallback

private

The destroy callback.

Definition at line 190 of file ipv6-end-point.h.

Referenced by SetDestroyCallback(), and ~Ipv6EndPoint().

Callback<void, Ipv6Address, uint8_t, uint8_t, uint8_t, uint32_t> ns3::Ipv6EndPoint::m_icmpCallback

private

The ICMPv6 callback.

Definition at line 185 of file ipv6-end-point.h.

Referenced by DoForwardIcmp(), ForwardIcmp(), SetIcmpCallback(), and ~Ipv6EndPoint().

Ipv6Address ns3::Ipv6EndPoint::m_localAddr

private

The local address.

Definition at line 160 of file ipv6-end-point.h.

Referenced by GetLocalAddress(), and SetLocalAddress().

uint16_t ns3::Ipv6EndPoint::m_localPort

private

The local port.

Definition at line 165 of file ipv6-end-point.h.

Referenced by GetLocalPort(), and SetLocalPort().

Ipv6Address ns3::Ipv6EndPoint::m_peerAddr

private

The peer address.

Definition at line 170 of file ipv6-end-point.h.

Referenced by GetPeerAddress(), and SetPeer().

uint16_t ns3::Ipv6EndPoint::m_peerPort

private

The peer port.

Definition at line 175 of file ipv6-end-point.h.

Referenced by GetPeerPort(), and SetPeer().

Callback<void, Ptr<Packet>, Ipv6Address, Ipv6Address, uint16_t> ns3::Ipv6EndPoint::m_rxCallback

private

The RX callback.

Definition at line 180 of file ipv6-end-point.h.

Referenced by DoForwardUp(), ForwardUp(), SetRxCallback(), and ~Ipv6EndPoint().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-end-point.h
src/internet/model/ipv6-end-point.cc
