Header of IPv6 Extension Fragment. More...

#include <ipv6-extension-header.h>

Inheritance diagram for ns3::Ipv6ExtensionFragmentHeader:

Collaboration diagram for ns3::Ipv6ExtensionFragmentHeader:

Public Member Functions
	Ipv6ExtensionFragmentHeader ()
	Constructor.
virtual	~Ipv6ExtensionFragmentHeader ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
uint32_t	GetIdentification () const
	Get the field "Identification".
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
bool	GetMoreFragment () const
	Get the status of "More Fragment" bit.
uint16_t	GetOffset () const
	Get the field "Offset".
virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet.
virtual void	Print (std::ostream &os) const
	Print some informations about the packet.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
void	SetIdentification (uint32_t identification)
	Set the "Identification" field.
void	SetMoreFragment (bool moreFragment)
	Set the status of "More Fragment" bit.
void	SetOffset (uint16_t offset)
	Set the "Offset" field.
Public Member Functions inherited from ns3::Ipv6ExtensionHeader
	Ipv6ExtensionHeader ()
	Constructor.
virtual	~Ipv6ExtensionHeader ()
	Destructor.
uint16_t	GetLength () const
	Get the length of the extension.
uint8_t	GetNextHeader () const
	Get the next header.
void	SetLength (uint16_t length)
void	SetNextHeader (uint8_t nextHeader)
	Set the "Next header" field.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.

Private Attributes
uint32_t	m_identification
	Identifier of the packet.
uint16_t	m_offset
	Offset of the fragment and More Fragment bit.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Header of IPv6 Extension Fragment.

Definition at line 329 of file ipv6-extension-header.h.

Constructor & Destructor Documentation

ns3::Ipv6ExtensionFragmentHeader::Ipv6ExtensionFragmentHeader ( )

Constructor.

Definition at line 329 of file ipv6-extension-header.cc.

ns3::Ipv6ExtensionFragmentHeader::~Ipv6ExtensionFragmentHeader ( )

virtual

Destructor.

Definition at line 335 of file ipv6-extension-header.cc.

Member Function Documentation

uint32_t ns3::Ipv6ExtensionFragmentHeader::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 392 of file ipv6-extension-header.cc.

References GetSerializedSize(), m_identification, m_offset, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6ExtensionHeader::SetLength(), ns3::Ipv6ExtensionHeader::SetNextHeader(), and visualizer.core::start().

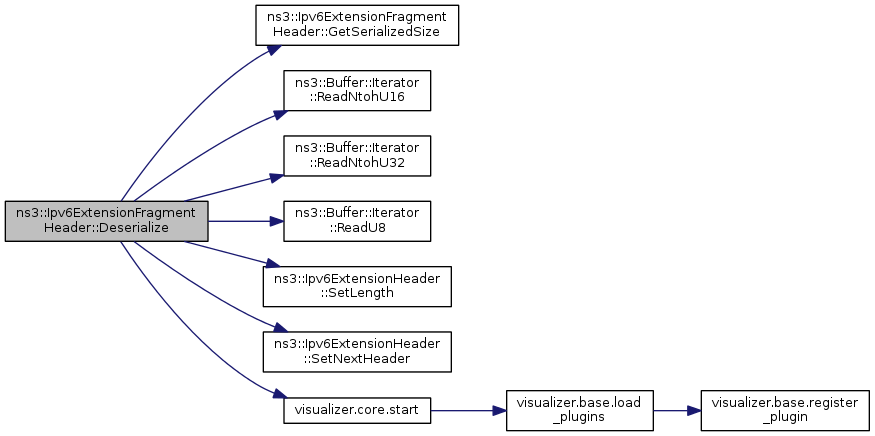

Here is the call graph for this function:

uint32_t ns3::Ipv6ExtensionFragmentHeader::GetIdentification ( void ) const

Get the field "Identification".

Returns: the identifier of the fragment

Definition at line 366 of file ipv6-extension-header.cc.

References m_identification.

Referenced by ns3::Ipv6ExtensionFragment::Process().

Here is the caller graph for this function:

TypeId ns3::Ipv6ExtensionFragmentHeader::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 324 of file ipv6-extension-header.cc.

References GetTypeId().

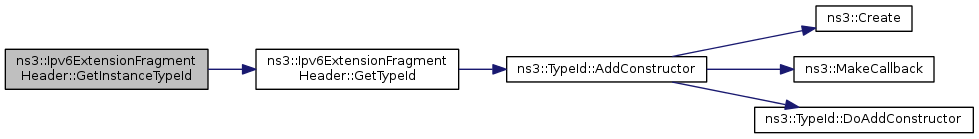

Here is the call graph for this function:

bool ns3::Ipv6ExtensionFragmentHeader::GetMoreFragment ( ) const

Get the status of "More Fragment" bit.

Returns: the status of "More Fragment" bit.

Definition at line 356 of file ipv6-extension-header.cc.

References m_offset.

Referenced by Print(), and ns3::Ipv6ExtensionFragment::Process().

Here is the caller graph for this function:

uint16_t ns3::Ipv6ExtensionFragmentHeader::GetOffset ( ) const

Get the field "Offset".

Returns: the offset of the fragment

Definition at line 346 of file ipv6-extension-header.cc.

References m_offset.

Referenced by Print(), and ns3::Ipv6ExtensionFragment::Process().

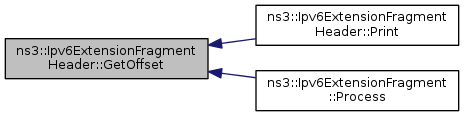

Here is the caller graph for this function:

uint32_t ns3::Ipv6ExtensionFragmentHeader::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 377 of file ipv6-extension-header.cc.

Referenced by Deserialize(), and ns3::Ipv6ExtensionFragment::GetFragments().

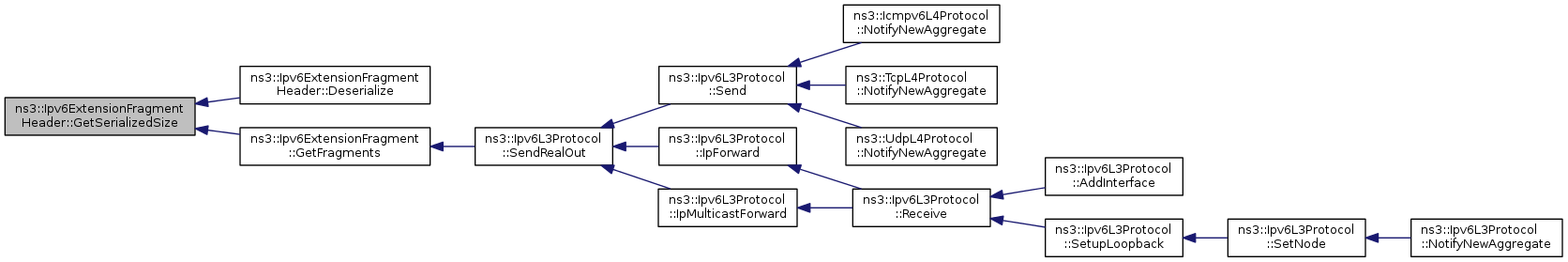

Here is the caller graph for this function:

TypeId ns3::Ipv6ExtensionFragmentHeader::GetTypeId ( void )

static

Get the type identificator.

This method returns the TypeId associated to ns3::Ipv6ExtensionFragmentHeader.

Returns: type identificator

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 315 of file ipv6-extension-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

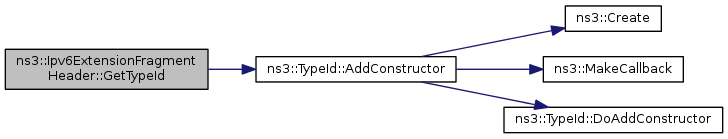

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6ExtensionFragmentHeader::Print ( std::ostream & os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns: info about this packet

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 371 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetLength(), GetMoreFragment(), ns3::Ipv6ExtensionHeader::GetNextHeader(), GetOffset(), and m_identification.

Here is the call graph for this function:

void ns3::Ipv6ExtensionFragmentHeader::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start Buffer iterator

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 382 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetLength(), ns3::Ipv6ExtensionHeader::GetNextHeader(), m_identification, m_offset, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

void ns3::Ipv6ExtensionFragmentHeader::SetIdentification ( uint32_t identification )

Set the "Identification" field.

Parameters

identification the identifier of the fragment

Definition at line 361 of file ipv6-extension-header.cc.

References m_identification.

Referenced by ns3::Ipv6ExtensionFragment::GetFragments().

Here is the caller graph for this function:

void ns3::Ipv6ExtensionFragmentHeader::SetMoreFragment ( bool moreFragment )

Set the status of "More Fragment" bit.

Parameters

moreFragment the bit "More Fragment"

Definition at line 351 of file ipv6-extension-header.cc.

References m_offset.

Referenced by ns3::Ipv6ExtensionFragment::GetFragments().

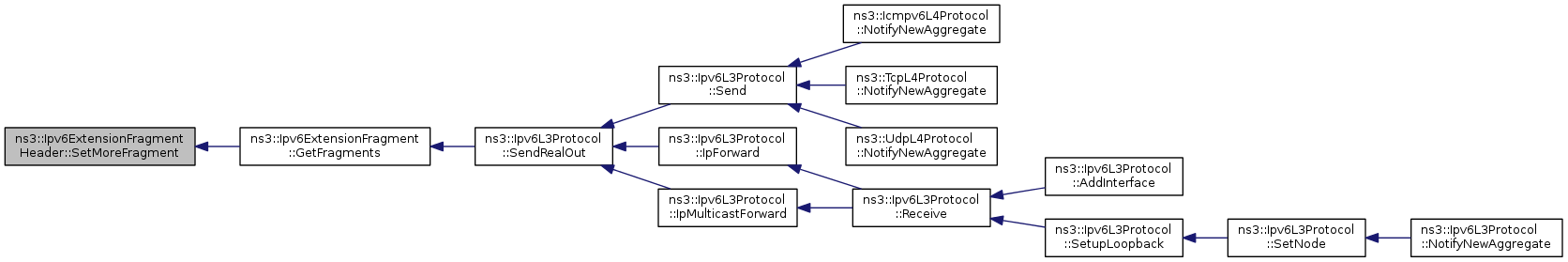

Here is the caller graph for this function:

void ns3::Ipv6ExtensionFragmentHeader::SetOffset ( uint16_t offset )

Set the "Offset" field.

Parameters

offset the offset of the fragment

Definition at line 339 of file ipv6-extension-header.cc.

References m_offset.

Referenced by ns3::Ipv6ExtensionFragment::GetFragments().

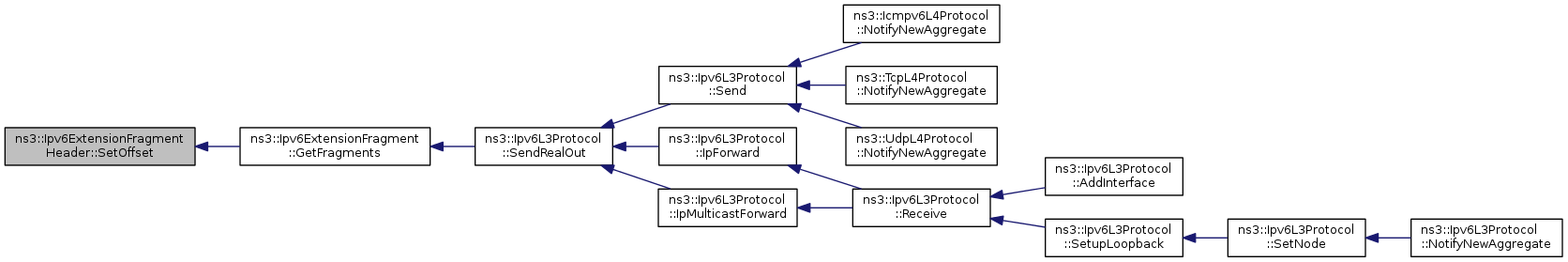

Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::Ipv6ExtensionFragmentHeader::m_identification

private

Identifier of the packet.

Definition at line 425 of file ipv6-extension-header.h.

Referenced by Deserialize(), GetIdentification(), Print(), Serialize(), and SetIdentification().

uint16_t ns3::Ipv6ExtensionFragmentHeader::m_offset

private

Offset of the fragment and More Fragment bit.

Definition at line 420 of file ipv6-extension-header.h.

Referenced by Deserialize(), GetMoreFragment(), GetOffset(), Serialize(), SetMoreFragment(), and SetOffset().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-extension-header.h
doc/introspected-doxygen.h
src/internet/model/ipv6-extension-header.cc
