ns3::LenaPhyErrorModelTestCase Class Reference

#include <lte-test-phy-error-model.h>

Inheritance diagram for ns3::LenaPhyErrorModelTestCase:

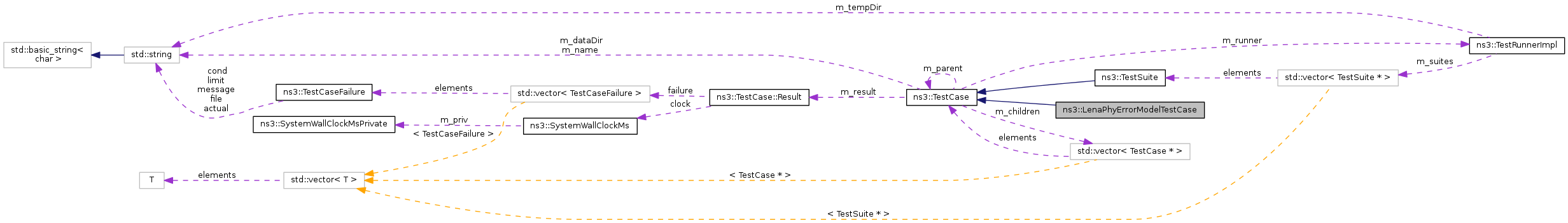

Collaboration diagram for ns3::LenaPhyErrorModelTestCase:

Public Member Functions
	LenaPhyErrorModelTestCase (uint16_t nUser, uint16_t dist, uint16_t tbSize, double refBer, uint16_t bernQuantile)
virtual	~LenaPhyErrorModelTestCase ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()

Private Member Functions
virtual void	DoRun (void)

Static Private Member Functions
static std::string	BuildNameString (uint16_t nUser, uint16_t dist)

Private Attributes
uint16_t	m_bernQuantile
double	m_berRef
uint16_t	m_dist
uint16_t	m_nUser
uint16_t	m_tbSize

Additional Inherited Members
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase)
	Add an individual test case to this test suite.
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)
bool	GetErrorStatus (void) const NS_DEPRECATED
std::string	GetName (void) const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
void	SetDataDir (std::string directory)

Detailed Description

This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. In each test case, the UEs see the same SINR from the eNB; different test cases are implemented obtained by using different SINR values and different numbers of UEs. The test consists on ...

Definition at line 38 of file lte-test-phy-error-model.h.

Constructor & Destructor Documentation

ns3::LenaPhyErrorModelTestCase::LenaPhyErrorModelTestCase	(	uint16_t	nUser,
		uint16_t	dist,
		uint16_t	tbSize,
		double	refBer,
		uint16_t	bernQuantile
	)

Definition at line 90 of file lte-test-phy-error-model.cc.

ns3::LenaPhyErrorModelTestCase::~LenaPhyErrorModelTestCase ( )

virtual

Definition at line 100 of file lte-test-phy-error-model.cc.

Member Function Documentation

std::string ns3::LenaPhyErrorModelTestCase::BuildNameString ( uint16_t  nUser, uint16_t  dist  )

staticprivate

Definition at line 83 of file lte-test-phy-error-model.cc.

void ns3::LenaPhyErrorModelTestCase::DoRun ( void  )

privatevirtual

Initialize Simulation Scenario: 1 eNB and m_nUser UEs

Check that the assignation is done in a RR fashion

Definition at line 105 of file lte-test-phy-error-model.cc.

References ns3::LteHelper::ActivateEpsBearer(), ns3::LteHelper::Attach(), ns3::NodeContainer::Create(), ns3::EpcTft::Default(), ns3::Simulator::Destroy(), ns3::LteHelper::EnableRlcTraces(), ns3::EpsBearer::GBR_CONV_VOICE, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::RadioBearerStatsCalculator::GetDlRxData(), ns3::RadioBearerStatsCalculator::GetDlTxData(), ns3::Object::GetObject(), ns3::LteEnbNetDevice::GetPhy(), ns3::LteHelper::GetRlcStats(), ns3::MobilityHelper::Install(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), ns3::LOG_LEVEL_ALL, ns3::LogComponentDisableAll(), ns3::LogComponentEnable(), m_bernQuantile, m_berRef, m_dist, m_nUser, m_tbSize, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, NS_UNUSED, ns3::LteAmc::PiroEW2010, ns3::TestCase::Run(), ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::MobilityHelper::SetMobilityModel(), ns3::LteHelper::SetPathlossModelAttribute(), ns3::MobilityModel::SetPosition(), ns3::LteHelper::SetSchedulerType(), and ns3::Simulator::Stop().

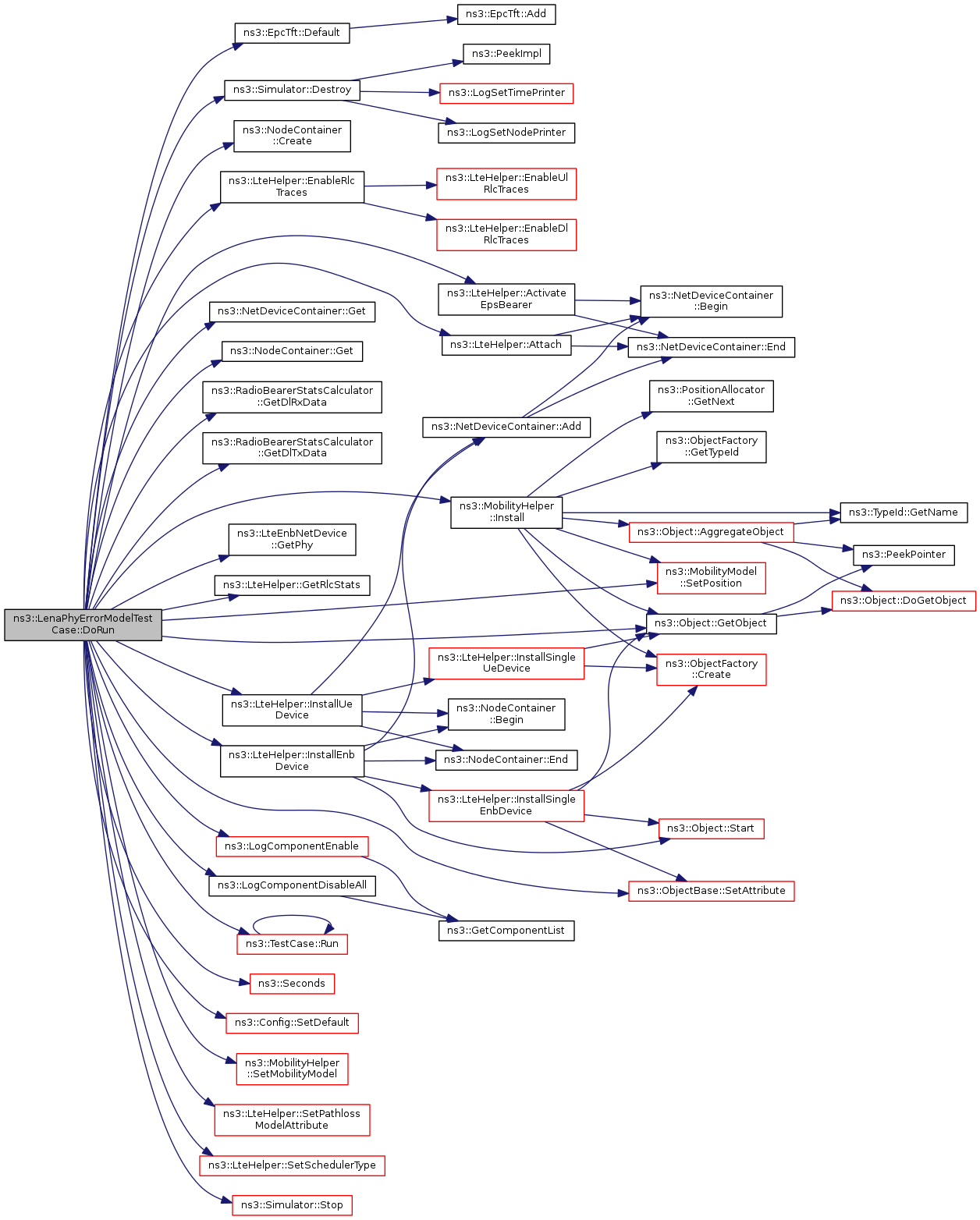

Here is the call graph for this function:

Member Data Documentation

uint16_t ns3::LenaPhyErrorModelTestCase::m_bernQuantile

private

Definition at line 51 of file lte-test-phy-error-model.h.

Referenced by DoRun().

double ns3::LenaPhyErrorModelTestCase::m_berRef

private

Definition at line 50 of file lte-test-phy-error-model.h.

Referenced by DoRun().

uint16_t ns3::LenaPhyErrorModelTestCase::m_dist

private

Definition at line 48 of file lte-test-phy-error-model.h.

Referenced by DoRun().

uint16_t ns3::LenaPhyErrorModelTestCase::m_nUser

private

Definition at line 47 of file lte-test-phy-error-model.h.

Referenced by DoRun().

uint16_t ns3::LenaPhyErrorModelTestCase::m_tbSize

private

Definition at line 49 of file lte-test-phy-error-model.h.

Referenced by DoRun().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-phy-error-model.h
• src/lte/test/lte-test-phy-error-model.cc
