ns3::LteInterferenceTestCase Class Reference

#include <lte-test-interference.h>

Inheritance diagram for ns3::LteInterferenceTestCase:

Collaboration diagram for ns3::LteInterferenceTestCase:

Public Member Functions
	LteInterferenceTestCase (std::string name, double d1, double d2, double dlSinr, double ulSinr, double dlSe, double ulSe, uint16_t dlMcs, uint16_t ulMcs)
virtual	~LteInterferenceTestCase ()
void	DlScheduling (uint32_t frameNo, uint32_t subframeNo, uint16_t rnti, uint8_t mcsTb1, uint16_t sizeTb1, uint8_t mcsTb2, uint16_t sizeTb2)
void	UlScheduling (uint32_t frameNo, uint32_t subframeNo, uint16_t rnti, uint8_t mcs, uint16_t sizeTb)
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()

Private Member Functions
virtual void	DoRun (void)

Private Attributes
double	m_d1
double	m_d2
uint16_t	m_dlMcs
double	m_dlSe
double	m_dlSinrDb
uint16_t	m_ulMcs
double	m_ulSe
double	m_ulSinrDb

Additional Inherited Members
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase)
	Add an individual test case to this test suite.
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)
bool	GetErrorStatus (void) const NS_DEPRECATED
std::string	GetName (void) const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
void	SetDataDir (std::string directory)

Detailed Description

Definition at line 41 of file lte-test-interference.h.

Constructor & Destructor Documentation

ns3::LteInterferenceTestCase::LteInterferenceTestCase	(	std::string	name,
		double	d1,
		double	d2,
		double	dlSinr,
		double	ulSinr,
		double	dlSe,
		double	ulSe,
		uint16_t	dlMcs,
		uint16_t	ulMcs
	)

TestCase

Definition at line 96 of file lte-test-interference.cc.

ns3::LteInterferenceTestCase::~LteInterferenceTestCase ( )

virtual

Definition at line 109 of file lte-test-interference.cc.

Member Function Documentation

void ns3::LteInterferenceTestCase::DlScheduling	(	uint32_t	frameNo,
		uint32_t	subframeNo,
		uint16_t	rnti,
		uint8_t	mcsTb1,
		uint16_t	sizeTb1,
		uint8_t	mcsTb2,
		uint16_t	sizeTb2
	)

Note: For first 4 subframeNo in the first frameNo, the MCS cannot be properly evaluated, because CQI feedback is still not available at the eNB.

Definition at line 227 of file lte-test-interference.cc.

References m_dlMcs, and NS_TEST_ASSERT_MSG_EQ.

Referenced by ns3::LteTestDlSchedulingCallback().

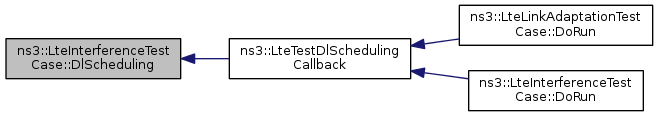

Here is the caller graph for this function:

void ns3::LteInterferenceTestCase::DoRun ( void  )

privatevirtual

Definition at line 114 of file lte-test-interference.cc.

References ns3::LteHelper::ActivateEpsBearer(), ns3::LteSpectrumPhy::AddSinrChunkProcessor(), ns3::LteHelper::Attach(), ns3::Config::Connect(), ns3::NodeContainer::Create(), ns3::EpcTft::Default(), ns3::Simulator::Destroy(), ns3::LteHelper::EnableMacTraces(), ns3::LteHelper::EnableRlcTraces(), ns3::EpsBearer::GBR_CONV_VOICE, ns3::NetDeviceContainer::Get(), ns3::LtePhy::GetDownlinkSpectrumPhy(), ns3::Object::GetObject(), ns3::LtePhy::GetUplinkSpectrumPhy(), ns3::MobilityHelper::Install(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), ns3::LteTestDlSchedulingCallback(), ns3::LteTestUlSchedulingCallback(), m_d1, m_d2, m_dlSinrDb, m_ulSinrDb, ns3::MakeBoundCallback(), NS_TEST_ASSERT_MSG_EQ_TOL, ns3::LteAmc::PiroEW2010, ns3::TestCase::Run(), ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::MobilityHelper::SetMobilityModel(), ns3::MobilityHelper::SetPositionAllocator(), ns3::LteHelper::SetSchedulerType(), and ns3::Simulator::Stop().

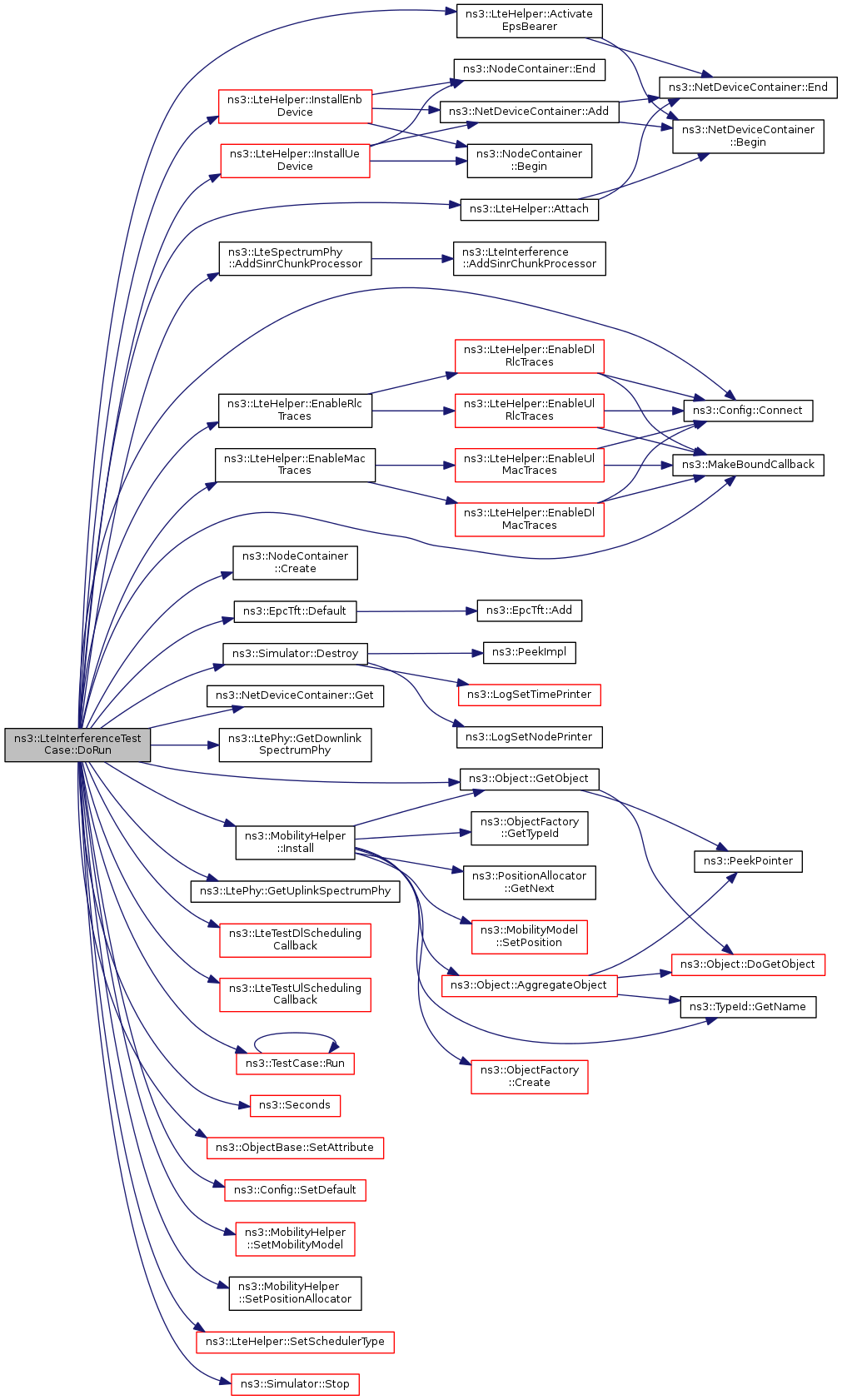

Here is the call graph for this function:

void ns3::LteInterferenceTestCase::UlScheduling	(	uint32_t	frameNo,
		uint32_t	subframeNo,
		uint16_t	rnti,
		uint8_t	mcs,
		uint16_t	sizeTb
	)

Note: For first 5 subframeNo in the first frameNo, the MCS cannot be properly evaluated, because CQI feedback is still not available at the eNB.

Definition at line 242 of file lte-test-interference.cc.

References m_ulMcs, and NS_TEST_ASSERT_MSG_EQ.

Referenced by ns3::LteTestUlSchedulingCallback().

Here is the caller graph for this function:

Member Data Documentation

double ns3::LteInterferenceTestCase::m_d1

private

Definition at line 57 of file lte-test-interference.h.

Referenced by DoRun().

double ns3::LteInterferenceTestCase::m_d2

private

Definition at line 58 of file lte-test-interference.h.

Referenced by DoRun().

uint16_t ns3::LteInterferenceTestCase::m_dlMcs

private

Definition at line 63 of file lte-test-interference.h.

Referenced by DlScheduling().

double ns3::LteInterferenceTestCase::m_dlSe

private

Definition at line 61 of file lte-test-interference.h.

double ns3::LteInterferenceTestCase::m_dlSinrDb

private

Definition at line 59 of file lte-test-interference.h.

Referenced by DoRun().

uint16_t ns3::LteInterferenceTestCase::m_ulMcs

private

Definition at line 64 of file lte-test-interference.h.

Referenced by UlScheduling().

double ns3::LteInterferenceTestCase::m_ulSe

private

Definition at line 62 of file lte-test-interference.h.

double ns3::LteInterferenceTestCase::m_ulSinrDb

private

Definition at line 60 of file lte-test-interference.h.

Referenced by DoRun().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-interference.h
• src/lte/test/lte-test-interference.cc
