#include <lte-rlc.h>

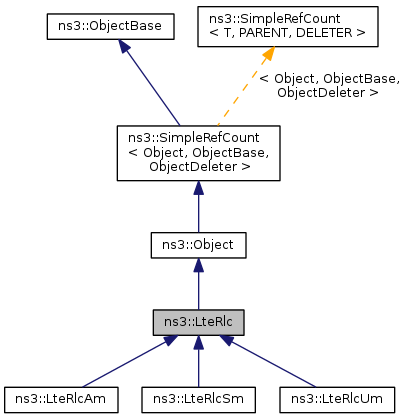

Inheritance diagram for ns3::LteRlc:

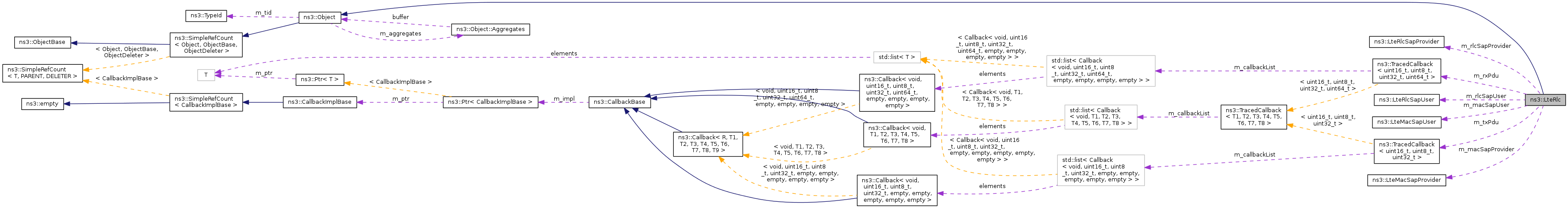

Collaboration diagram for ns3::LteRlc:

Public Member Functions
	LteRlc ()
virtual	~LteRlc ()
LteMacSapUser *	GetLteMacSapUser ()
LteRlcSapProvider *	GetLteRlcSapProvider ()
void	SetLcId (uint8_t lcId)
void	SetLteMacSapProvider (LteMacSapProvider *s)
void	SetLteRlcSapUser (LteRlcSapUser *s)
void	SetRnti (uint16_t rnti)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::LteRlc.

Protected Member Functions
virtual void	DoNotifyHarqDeliveryFailure ()=0
virtual void	DoNotifyTxOpportunity (uint32_t bytes, uint8_t layer)=0
virtual void	DoReceivePdu (Ptr< Packet > p)=0
virtual void	DoTransmitPdcpPdu (Ptr< Packet > p)=0
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Protected Attributes
uint8_t	m_lcid
LteMacSapProvider *	m_macSapProvider
LteMacSapUser *	m_macSapUser
LteRlcSapProvider *	m_rlcSapProvider
LteRlcSapUser *	m_rlcSapUser
uint16_t	m_rnti
TracedCallback< uint16_t, uint8_t, uint32_t, uint64_t >	m_rxPdu
TracedCallback< uint16_t, uint8_t, uint32_t >	m_txPdu

Friends
class	LteRlcSpecificLteMacSapUser
class	LteRlcSpecificLteRlcSapProvider< LteRlc >

Detailed Description

This abstract base class defines the API to interact with the Radio Link Control (LTE_RLC) in LTE, see 3GPP TS 36.322

Definition at line 50 of file lte-rlc.h.

Constructor & Destructor Documentation

ns3::LteRlc::LteRlc ( )

Definition at line 86 of file lte-rlc.cc.

References LteRlcSpecificLteMacSapUser, m_macSapUser, m_rlcSapProvider, and NS_LOG_FUNCTION.

ns3::LteRlc::~LteRlc ( )

virtual

Definition at line 125 of file lte-rlc.cc.

References m_macSapUser, m_rlcSapProvider, and NS_LOG_FUNCTION.

Member Function Documentation

virtual void ns3::LteRlc::DoNotifyHarqDeliveryFailure ( )

protectedpure virtual

Implemented in ns3::LteRlcSm, ns3::LteRlcAm, and ns3::LteRlcUm.

Referenced by ns3::LteRlcSpecificLteMacSapUser::NotifyHarqDeliveryFailure().

Here is the caller graph for this function:

virtual void ns3::LteRlc::DoNotifyTxOpportunity	(	uint32_t	bytes,
		uint8_t	layer
	)

protectedpure virtual

Implemented in ns3::LteRlcSm, ns3::LteRlcAm, and ns3::LteRlcUm.

Referenced by ns3::LteRlcSpecificLteMacSapUser::NotifyTxOpportunity().

Here is the caller graph for this function:

virtual void ns3::LteRlc::DoReceivePdu ( Ptr< Packet > p )

protectedpure virtual

Implemented in ns3::LteRlcSm, ns3::LteRlcAm, and ns3::LteRlcUm.

Referenced by ns3::LteRlcSpecificLteMacSapUser::ReceivePdu().

Here is the caller graph for this function:

virtual void ns3::LteRlc::DoTransmitPdcpPdu ( Ptr< Packet > p )

protectedpure virtual

Implemented in ns3::LteRlcSm, ns3::LteRlcAm, and ns3::LteRlcUm.

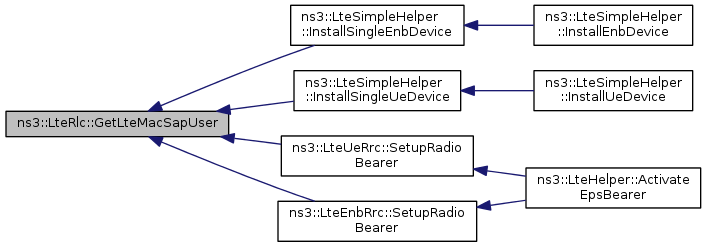

LteMacSapUser * ns3::LteRlc::GetLteMacSapUser ( )

Parameters

s	the MAC SAP User interface offered to the MAC by this LTE_RLC

Definition at line 154 of file lte-rlc.cc.

References m_macSapUser, and NS_LOG_FUNCTION.

Referenced by ns3::LteSimpleHelper::InstallSingleEnbDevice(), ns3::LteSimpleHelper::InstallSingleUeDevice(), ns3::LteUeRrc::SetupRadioBearer(), and ns3::LteEnbRrc::SetupRadioBearer().

Here is the caller graph for this function:

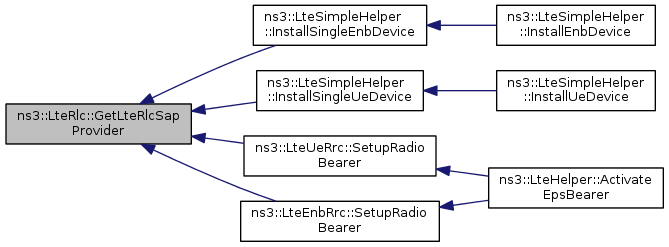

LteRlcSapProvider * ns3::LteRlc::GetLteRlcSapProvider ( )

Parameters

s	the RLC SAP Provider interface offered to the PDCP by this LTE_RLC

Definition at line 140 of file lte-rlc.cc.

References m_rlcSapProvider, and NS_LOG_FUNCTION.

Referenced by ns3::LteSimpleHelper::InstallSingleEnbDevice(), ns3::LteSimpleHelper::InstallSingleUeDevice(), ns3::LteUeRrc::SetupRadioBearer(), and ns3::LteEnbRrc::SetupRadioBearer().

Here is the caller graph for this function:

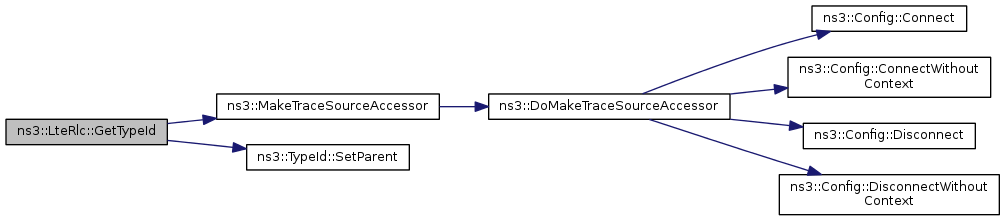

TypeId ns3::LteRlc::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::LteRlc.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/RadioBearerMap/[i]/LteRlc
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/RadioBearerMap/[i]/LteRlc
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/RadioBearerMap/[i]/LteRlc
/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/RadioBearerMap/[i]/LteRlc

No Attributes defined for this type.
TraceSources defined for this type:
