ns3::Mac64Address Class Reference

an EUI-64 address More...

#include <mac64-address.h>

Public Member Functions
	Mac64Address ()
	Mac64Address (const char *str)
void	CopyFrom (const uint8_t buffer[8])
void	CopyTo (uint8_t buffer[8]) const
	operator Address () const

Static Public Member Functions
static Mac64Address	Allocate (void)
static Mac64Address	ConvertFrom (const Address &address)
static bool	IsMatchingType (const Address &address)

Private Member Functions
Address	ConvertTo (void) const

Static Private Member Functions
static uint8_t	GetType (void)

Private Attributes
uint8_t	m_address [8]

Detailed Description

an EUI-64 address

This class can contain 64 bit IEEE addresses.

Definition at line 37 of file mac64-address.h.

Constructor & Destructor Documentation

ns3::Mac64Address::Mac64Address

(

)

Definition at line 49 of file mac64-address.cc.

References m_address.

ns3::Mac64Address::Mac64Address

(

const char *

str

)

Parameters

str	a string representing the new Mac64Address

The format of the string is "xx:xx:xx:xx:xx:xx"

Definition at line 53 of file mac64-address.cc.

References ASCII_a, ASCII_COLON, ASCII_ZERO, ns3::AsciiToLowCase(), m_address, and NS_ASSERT.

Here is the call graph for this function:

Member Function Documentation

Mac64Address ns3::Mac64Address::Allocate ( void  )

static

Allocate a new Mac64Address.

Definition at line 118 of file mac64-address.cc.

References m_address.

Mac64Address ns3::Mac64Address::ConvertFrom ( const Address &  address )

static

Parameters

address

a polymorphic address

Returns

a new Mac64Address from the polymorphic address

This function performs a type check and asserts if the type of the input address is not compatible with an Mac64Address.

Definition at line 104 of file mac64-address.cc.

References ns3::Address::CheckCompatible(), ns3::Address::CopyTo(), GetType(), and NS_ASSERT.

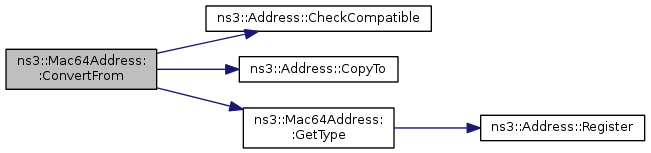

Here is the call graph for this function:

Address ns3::Mac64Address::ConvertTo ( void  ) const

private

Returns

a new Address instance

Convert an instance of this class to a polymorphic Address instance.

Definition at line 112 of file mac64-address.cc.

References GetType(), and m_address.

Here is the call graph for this function:

void ns3::Mac64Address::CopyFrom

(

const uint8_t

buffer[8]

)

Parameters

buffer

address in network order

Copy the input address to our internal buffer.

Definition at line 84 of file mac64-address.cc.

References m_address.

void ns3::Mac64Address::CopyTo

(

uint8_t

buffer[8]

)

const

Parameters

buffer

address in network order

Copy the internal address to the input buffer.

Definition at line 89 of file mac64-address.cc.

References m_address.

Referenced by ns3::operator<<(), and ns3::operator==().

Here is the caller graph for this function:

uint8_t ns3::Mac64Address::GetType ( void  )

staticprivate

Definition at line 134 of file mac64-address.cc.

References ns3::Address::Register().

Referenced by ConvertFrom(), ConvertTo(), and IsMatchingType().

Here is the call graph for this function:

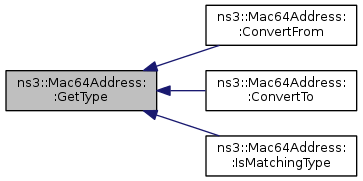

Here is the caller graph for this function:

bool ns3::Mac64Address::IsMatchingType ( const Address &  address )

static

Parameters

address

address to test

Returns

true if the address matches, false otherwise.

Definition at line 95 of file mac64-address.cc.

References ns3::Address::CheckCompatible(), and GetType().

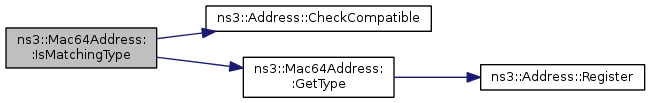

Here is the call graph for this function:

ns3::Mac64Address::operator Address

(

)

const

Returns

a new Address instance

Convert an instance of this class to a polymorphic Address instance.

Definition at line 99 of file mac64-address.cc.

Member Data Documentation

uint8_t ns3::Mac64Address::m_address[8]

private

Definition at line 92 of file mac64-address.h.

Referenced by Allocate(), ConvertTo(), CopyFrom(), CopyTo(), and Mac64Address().

---

The documentation for this class was generated from the following files:

• src/network/utils/mac64-address.h
• src/network/utils/mac64-address.cc
