ns3::MapScheduler Class Reference

a std::map event scheduler More...

#include <map-scheduler.h>

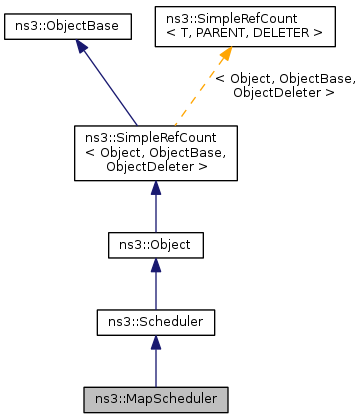

Inheritance diagram for ns3::MapScheduler:

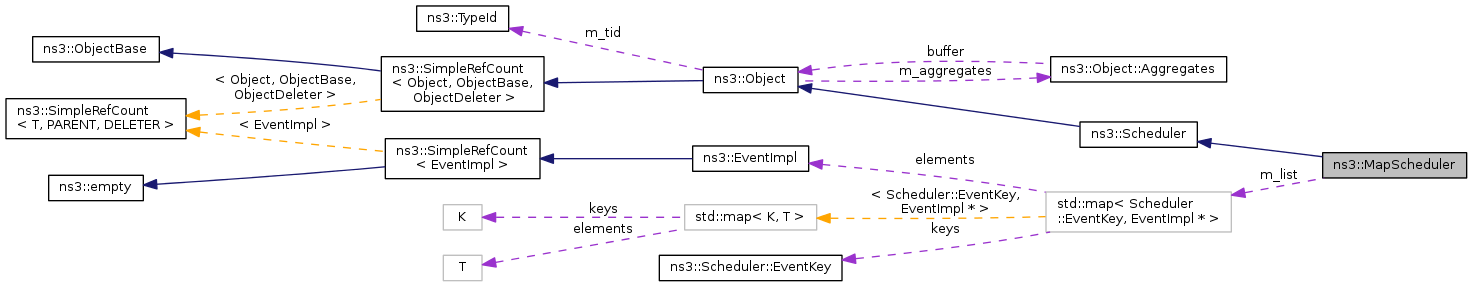

Collaboration diagram for ns3::MapScheduler:

Public Member Functions
	MapScheduler ()
virtual	~MapScheduler ()
virtual void	Insert (const Event &ev)
virtual bool	IsEmpty (void) const
virtual Event	PeekNext (void) const
virtual void	Remove (const Event &ev)
virtual Event	RemoveNext (void)
Public Member Functions inherited from ns3::Scheduler
virtual	~Scheduler ()=0
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::MapScheduler.

Private Types
typedef std::map < Scheduler::EventKey, EventImpl * >	EventMap
typedef std::map < Scheduler::EventKey, EventImpl * >::const_iterator	EventMapCI
typedef std::map < Scheduler::EventKey, EventImpl * >::iterator	EventMapI

Private Attributes
EventMap	m_list

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

a std::map event scheduler

This class implements the an event scheduler using an std::map data structure.

Definition at line 38 of file map-scheduler.h.

Member Typedef Documentation

typedef std::map<Scheduler::EventKey, EventImpl*> ns3::MapScheduler::EventMap

private

Definition at line 52 of file map-scheduler.h.

typedef std::map<Scheduler::EventKey, EventImpl*>::const_iterator ns3::MapScheduler::EventMapCI

private

Definition at line 54 of file map-scheduler.h.

typedef std::map<Scheduler::EventKey, EventImpl*>::iterator ns3::MapScheduler::EventMapI

private

Definition at line 53 of file map-scheduler.h.

Constructor & Destructor Documentation

ns3::MapScheduler::MapScheduler

(

)

Definition at line 44 of file map-scheduler.cc.

ns3::MapScheduler::~MapScheduler ( )

virtual

Definition at line 47 of file map-scheduler.cc.

Member Function Documentation

TypeId ns3::MapScheduler::GetTypeId ( void  )

static

This method returns the TypeId associated to ns3::MapScheduler.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Scheduler.

Definition at line 35 of file map-scheduler.cc.

References ns3::TypeId::SetParent().

Referenced by ns3::SimulatorTestSuite::SimulatorTestSuite().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::MapScheduler::Insert ( const Event &  ev )

virtual

Parameters

ev	event to store in the event list

Implements ns3::Scheduler.

Definition at line 52 of file map-scheduler.cc.

References ns3::Scheduler::Event::impl, ns3::Scheduler::Event::key, m_list, ns3::Scheduler::EventKey::m_ts, ns3::Scheduler::EventKey::m_uid, NS_ASSERT, and NS_LOG_FUNCTION.

bool ns3::MapScheduler::IsEmpty ( void  ) const

virtual

Returns

true if the event list is empty and false otherwise.

Implements ns3::Scheduler.

Definition at line 61 of file map-scheduler.cc.

References m_list.

Scheduler::Event ns3::MapScheduler::PeekNext ( void  ) const

virtual

Returns

a pointer to the next earliest event. The caller takes ownership of the returned pointer.

This method cannot be invoked if the list is empty.

Implements ns3::Scheduler.

Definition at line 67 of file map-scheduler.cc.

References ns3::Scheduler::Event::impl, m_list, NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

void ns3::MapScheduler::Remove ( const Event &  ev )

virtual

Parameters

ev	the event to remove

This methods cannot be invoked if the list is empty.

Implements ns3::Scheduler.

Definition at line 94 of file map-scheduler.cc.

References ns3::Scheduler::Event::impl, ns3::Scheduler::Event::key, m_list, ns3::Scheduler::EventKey::m_ts, ns3::Scheduler::EventKey::m_uid, NS_ASSERT, and NS_LOG_FUNCTION.

Scheduler::Event ns3::MapScheduler::RemoveNext ( void  )

virtual

This method cannot be invoked if the list is empty. Remove the next earliest event from the event list.

Implements ns3::Scheduler.

Definition at line 80 of file map-scheduler.cc.

References ns3::Scheduler::Event::impl, m_list, NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Member Data Documentation

EventMap ns3::MapScheduler::m_list

private

Definition at line 57 of file map-scheduler.h.

Referenced by Insert(), IsEmpty(), PeekNext(), Remove(), and RemoveNext().

---

The documentation for this class was generated from the following files:

• src/core/model/map-scheduler.h
• doc/introspected-doxygen.h
• src/core/model/map-scheduler.cc
