#include <mgt-headers.h>

Inheritance diagram for ns3::MgtAddBaRequestHeader:

Collaboration diagram for ns3::MgtAddBaRequestHeader:

Public Member Functions
	MgtAddBaRequestHeader ()
virtual uint32_t	Deserialize (Buffer::Iterator start)
uint16_t	GetBufferSize (void) const
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
uint16_t	GetStartingSequence (void) const
uint8_t	GetTid (void) const
uint16_t	GetTimeout (void) const
bool	IsAmsduSupported (void) const
bool	IsImmediateBlockAck (void) const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (Buffer::Iterator start) const
void	SetAmsduSupport (bool supported)
void	SetBufferSize (uint16_t size)
void	SetDelayedBlockAck ()
void	SetImmediateBlockAck ()
void	SetStartingSequence (uint16_t seq)
void	SetTid (uint8_t tid)
void	SetTimeout (uint16_t timeout)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::MgtAddBaRequestHeader.

Private Member Functions
uint16_t	GetParameterSet (void) const
uint16_t	GetStartingSequenceControl (void) const
void	SetParameterSet (uint16_t params)
void	SetStartingSequenceControl (uint16_t seqControl)

Private Attributes
uint8_t	m_amsduSupport
uint16_t	m_bufferSize
uint8_t	m_dialogToken
uint8_t	m_policy
uint16_t	m_startingSeq
uint8_t	m_tid
uint16_t	m_timeoutValue

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Implement the header for management frames of type add block ack request.

Definition at line 263 of file mgt-headers.h.

Constructor & Destructor Documentation

ns3::MgtAddBaRequestHeader::MgtAddBaRequestHeader ( )

Definition at line 578 of file mgt-headers.cc.

Member Function Documentation

uint32_t ns3::MgtAddBaRequestHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 627 of file mgt-headers.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_dialogToken, m_timeoutValue, ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadU8(), SetParameterSet(), SetStartingSequenceControl(), and visualizer.core::start().

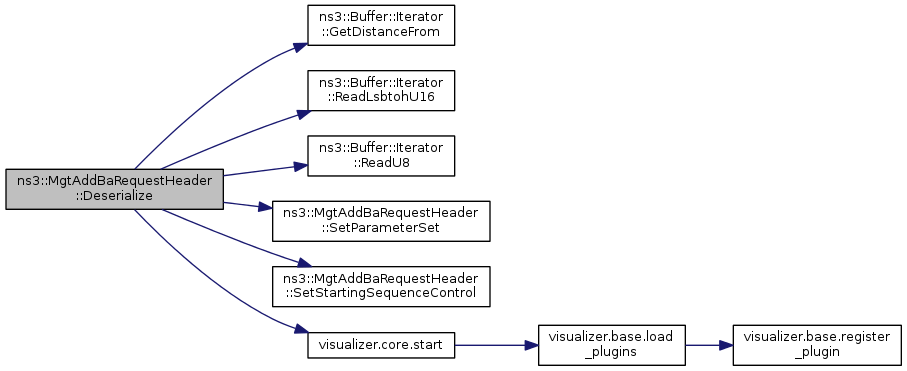

Here is the call graph for this function:

uint16_t ns3::MgtAddBaRequestHeader::GetBufferSize ( void ) const

Definition at line 699 of file mgt-headers.cc.

References m_bufferSize.

TypeId ns3::MgtAddBaRequestHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 595 of file mgt-headers.cc.

References GetTypeId().

Here is the call graph for this function:

uint16_t ns3::MgtAddBaRequestHeader::GetParameterSet ( void ) const

private

Definition at line 729 of file mgt-headers.cc.

References m_amsduSupport, m_bufferSize, m_policy, and m_tid.

Referenced by Serialize().

Here is the caller graph for this function:

uint32_t ns3::MgtAddBaRequestHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 606 of file mgt-headers.cc.

uint16_t ns3::MgtAddBaRequestHeader::GetStartingSequence ( void ) const

Definition at line 711 of file mgt-headers.cc.

References m_startingSeq.

Referenced by ns3::BlockAckManager::CreateAgreement(), and ns3::RegularWifiMac::SendAddBaResponse().

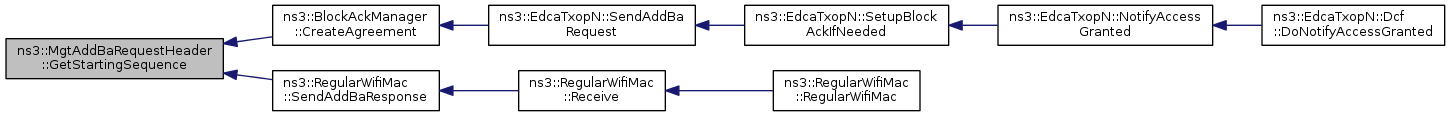

Here is the caller graph for this function:

uint16_t ns3::MgtAddBaRequestHeader::GetStartingSequenceControl ( void ) const

private

Definition at line 717 of file mgt-headers.cc.

References m_startingSeq.

Referenced by Serialize().

Here is the caller graph for this function:

uint8_t ns3::MgtAddBaRequestHeader::GetTid ( void ) const

Definition at line 681 of file mgt-headers.cc.

References m_tid.

Referenced by ns3::BlockAckManager::CreateAgreement(), and ns3::RegularWifiMac::SendAddBaResponse().

Here is the caller graph for this function:

uint16_t ns3::MgtAddBaRequestHeader::GetTimeout ( void ) const

Definition at line 693 of file mgt-headers.cc.

References m_timeoutValue.

Referenced by ns3::BlockAckManager::CreateAgreement(), and ns3::RegularWifiMac::SendAddBaResponse().

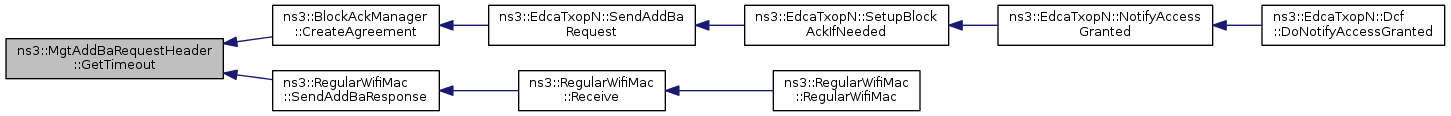

Here is the caller graph for this function:

TypeId ns3::MgtAddBaRequestHeader::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::MgtAddBaRequestHeader.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 586 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::MgtAddBaRequestHeader::IsAmsduSupported ( void ) const

Definition at line 705 of file mgt-headers.cc.

References m_amsduSupport.

Referenced by ns3::BlockAckManager::CreateAgreement(), and ns3::RegularWifiMac::SendAddBaResponse().

Here is the caller graph for this function:

bool ns3::MgtAddBaRequestHeader::IsImmediateBlockAck ( void ) const

Definition at line 687 of file mgt-headers.cc.

References m_policy.

Referenced by ns3::BlockAckManager::CreateAgreement(), and ns3::RegularWifiMac::SendAddBaResponse().

Here is the caller graph for this function:

void ns3::MgtAddBaRequestHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 601 of file mgt-headers.cc.

void ns3::MgtAddBaRequestHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 617 of file mgt-headers.cc.

References GetParameterSet(), GetStartingSequenceControl(), m_dialogToken, m_timeoutValue, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::Buffer::Iterator::WriteU8().

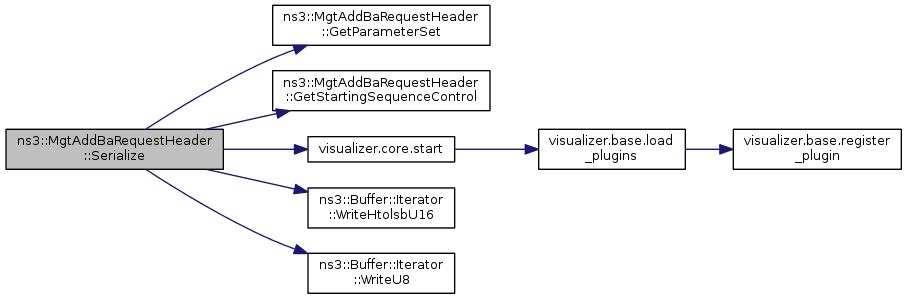

Here is the call graph for this function:
