#include <mgt-headers.h>

Inheritance diagram for ns3::MgtAssocResponseHeader:

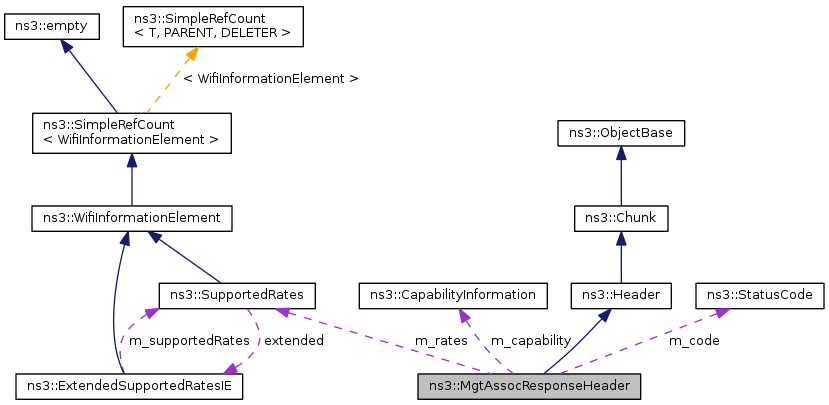

Collaboration diagram for ns3::MgtAssocResponseHeader:

Public Member Functions
	MgtAssocResponseHeader ()
	~MgtAssocResponseHeader ()
virtual uint32_t	Deserialize (Buffer::Iterator start)
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
StatusCode	GetStatusCode (void)
SupportedRates	GetSupportedRates (void)
virtual void	Print (std::ostream &os) const
virtual void	Serialize (Buffer::Iterator start) const
void	SetStatusCode (StatusCode code)
void	SetSupportedRates (SupportedRates rates)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::MgtAssocResponseHeader.

Private Attributes
uint16_t	m_aid
CapabilityInformation	m_capability
StatusCode	m_code
SupportedRates	m_rates

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Implement the header for management frames of type association response.

Definition at line 72 of file mgt-headers.h.

Constructor & Destructor Documentation

ns3::MgtAssocResponseHeader::MgtAssocResponseHeader ( )

Definition at line 330 of file mgt-headers.cc.

ns3::MgtAssocResponseHeader::~MgtAssocResponseHeader ( )

Definition at line 334 of file mgt-headers.cc.

Member Function Documentation

uint32_t ns3::MgtAssocResponseHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 402 of file mgt-headers.cc.

References ns3::StatusCode::Deserialize(), ns3::CapabilityInformation::Deserialize(), ns3::WifiInformationElement::Deserialize(), ns3::WifiInformationElement::DeserializeIfPresent(), ns3::SupportedRates::extended, ns3::Buffer::Iterator::GetDistanceFrom(), m_aid, m_capability, m_code, m_rates, ns3::Buffer::Iterator::ReadLsbtohU16(), and visualizer.core::start().

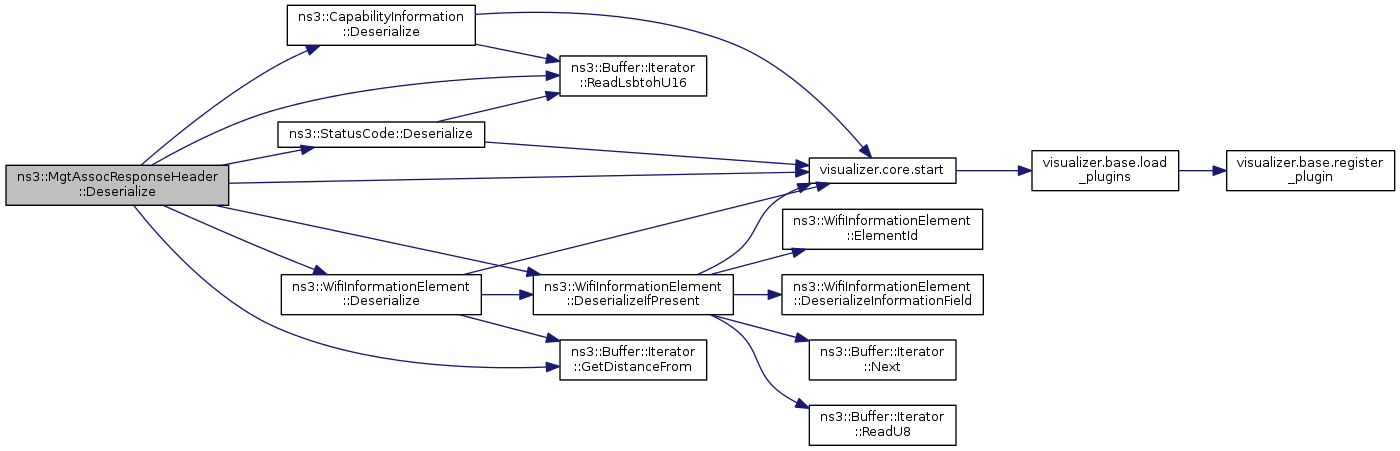

Here is the call graph for this function:

TypeId ns3::MgtAssocResponseHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 369 of file mgt-headers.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::MgtAssocResponseHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 374 of file mgt-headers.cc.

References ns3::SupportedRates::extended, ns3::StatusCode::GetSerializedSize(), ns3::CapabilityInformation::GetSerializedSize(), ns3::ExtendedSupportedRatesIE::GetSerializedSize(), ns3::WifiInformationElement::GetSerializedSize(), m_capability, m_code, and m_rates.

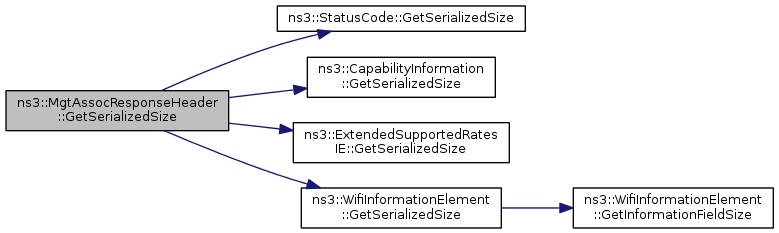

Here is the call graph for this function:

StatusCode ns3::MgtAssocResponseHeader::GetStatusCode ( void )

Definition at line 339 of file mgt-headers.cc.

References m_code.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

SupportedRates ns3::MgtAssocResponseHeader::GetSupportedRates ( void )

Definition at line 344 of file mgt-headers.cc.

References m_rates.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

TypeId ns3::MgtAssocResponseHeader::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::MgtAssocResponseHeader.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Header.

Definition at line 360 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::MgtAssocResponseHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 386 of file mgt-headers.cc.

References m_code, and m_rates.

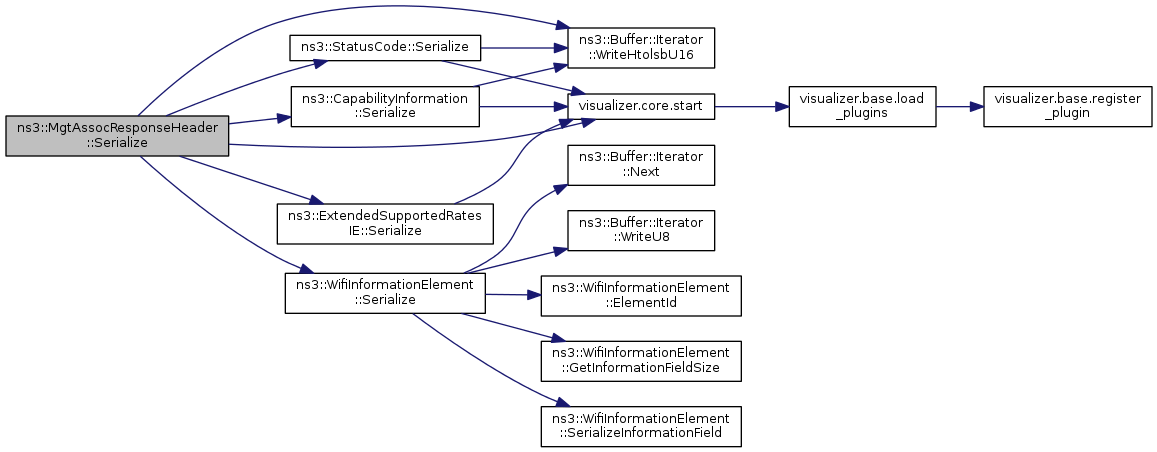

void ns3::MgtAssocResponseHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 392 of file mgt-headers.cc.

References ns3::SupportedRates::extended, m_aid, m_capability, m_code, m_rates, ns3::StatusCode::Serialize(), ns3::CapabilityInformation::Serialize(), ns3::ExtendedSupportedRatesIE::Serialize(), ns3::WifiInformationElement::Serialize(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtolsbU16().
