ns3::MsduAggregator Class Reference
Wifi Models

Abstract class that concrete msdu aggregators have to implement. More...

#include <msdu-aggregator.h>

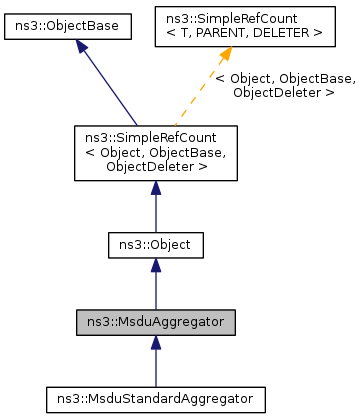

+ Inheritance diagram for ns3::MsduAggregator:

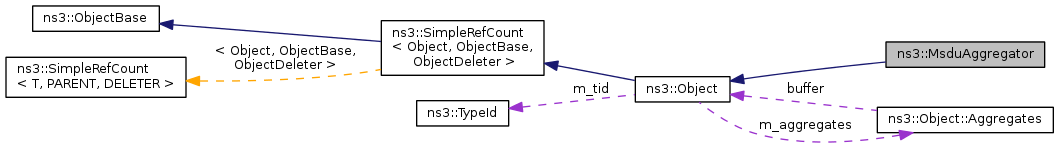

+ Collaboration diagram for ns3::MsduAggregator:

Public Types

typedef std::list< std::pair
< Ptr< Packet >
, AmsduSubframeHeader > > 		DeaggregatedMsdus
typedef std::list< std::pair
< Ptr< Packet >
, AmsduSubframeHeader >
>::const_iterator 		DeaggregatedMsdusCI

Public Member Functions

virtual bool Aggregate (Ptr< const Packet > packet, Ptr< Packet > aggregatedPacket, Mac48Address src, Mac48Address dest)=0
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Start (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static DeaggregatedMsdus Deaggregate (Ptr< Packet > aggregatedPacket)
static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::MsduAggregator.

Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void DoDispose (void)
virtual void DoStart (void)
virtual void NotifyNewAggregate (void)

Detailed Description

Abstract class that concrete msdu aggregators have to implement.

Definition at line 39 of file msdu-aggregator.h.

Member Typedef Documentation

typedef std::list<std::pair<Ptr<Packet>, AmsduSubframeHeader> > ns3::MsduAggregator::DeaggregatedMsdus

Definition at line 42 of file msdu-aggregator.h.

typedef std::list<std::pair<Ptr<Packet>, AmsduSubframeHeader> >::const_iterator ns3::MsduAggregator::DeaggregatedMsdusCI

Definition at line 43 of file msdu-aggregator.h.

Member Function Documentation

virtual bool ns3::MsduAggregator::Aggregate ( Ptr< const Packet >  packet,
Ptr< Packet >  aggregatedPacket,
Mac48Address  src,
Mac48Address  dest
)
pure virtual

Implemented in ns3::MsduStandardAggregator.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted().

+ Here is the caller graph for this function:

MsduAggregator::DeaggregatedMsdus ns3::MsduAggregator::Deaggregate ( Ptr< Packet >  aggregatedPacket)
static

Definition at line 41 of file msdu-aggregator.cc.

References ns3::Packet::CreateFragment(), ns3::AmsduSubframeHeader::GetLength(), ns3::Packet::GetSize(), NS_LOG_FUNCTION_NOARGS, NS_LOG_INFO, ns3::Packet::RemoveAtStart(), and ns3::Packet::RemoveHeader().

Referenced by ns3::ApWifiMac::DeaggregateAmsduAndForward(), and ns3::RegularWifiMac::DeaggregateAmsduAndForward().

+ Here is the call graph for this function:

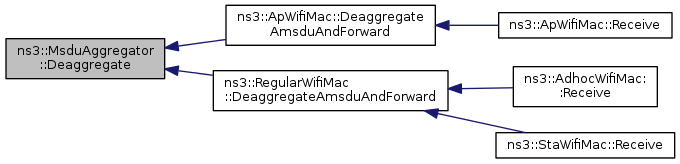

+ Here is the caller graph for this function:

TypeId ns3::MsduAggregator::GetTypeId ( void  )
static

This method returns the TypeId associated to ns3::MsduAggregator.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

Reimplemented in ns3::MsduStandardAggregator.

Definition at line 32 of file msdu-aggregator.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

The documentation for this class was generated from the following files:
