IPv6 Neighbor Discovery cache. More...

#include <ndisc-cache.h>

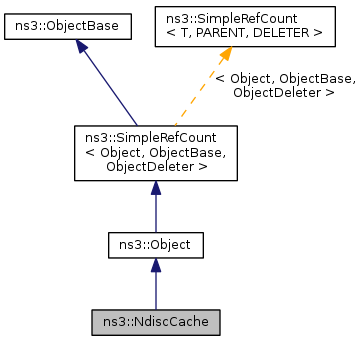

Inheritance diagram for ns3::NdiscCache:

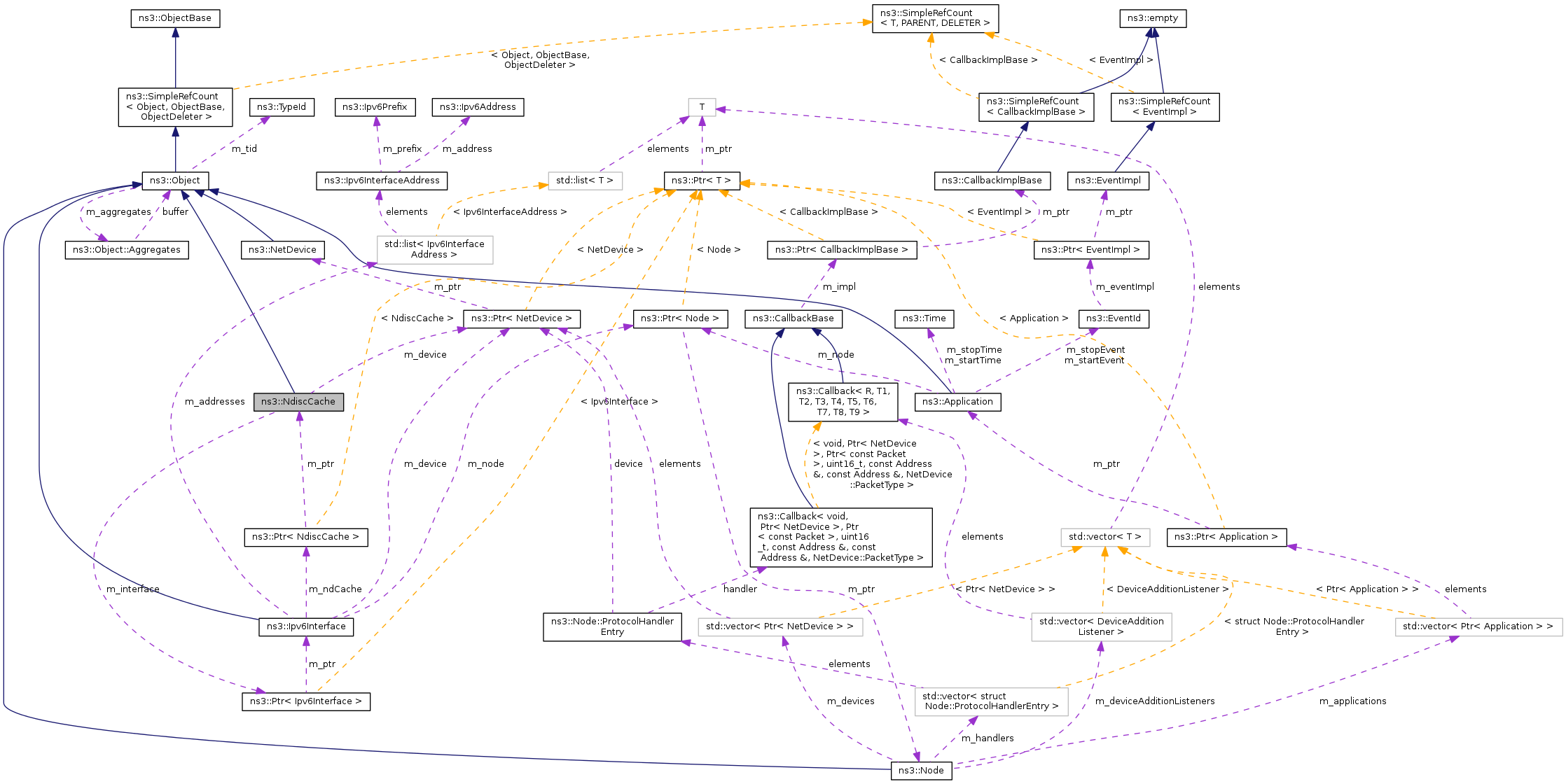

Collaboration diagram for ns3::NdiscCache:

Classes
class	Entry
	A record that holds information about an NdiscCache entry. More...

Public Member Functions
	NdiscCache ()
	Constructor.
	~NdiscCache ()
	Destructor.
NdiscCache::Entry *	Add (Ipv6Address to)
	Add an entry.
void	Flush ()
	Flush the cache.
Ptr< NetDevice >	GetDevice () const
	Get the NetDevice associated with this cache.
Ptr< Ipv6Interface >	GetInterface () const
	Get the Ipv6Interface associated with this cache.
uint32_t	GetUnresQlen ()
	Get the max number of waiting packet.
NdiscCache::Entry *	Lookup (Ipv6Address dst)
	Lookup in the cache.
void	Remove (NdiscCache::Entry *entry)
	Delete an entry.
void	SetDevice (Ptr< NetDevice > device, Ptr< Ipv6Interface > interface)
	Set the device and interface.
void	SetUnresQlen (uint32_t unresQlen)
	Set the max number of waiting packet.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Attributes
static const uint32_t	DEFAULT_UNRES_QLEN = 3
	Default value for unres qlen.

Private Types
typedef sgi::hash_map < Ipv6Address, NdiscCache::Entry *, Ipv6AddressHash >	Cache
typedef sgi::hash_map < Ipv6Address, NdiscCache::Entry *, Ipv6AddressHash >::iterator	CacheI

Private Member Functions
	NdiscCache (NdiscCache const &a)
	Copy constructor.
void	DoDispose ()
	Dispose this object.
NdiscCache &	operator= (NdiscCache const &a)
	Equal operator.

Private Attributes
Ptr< NetDevice >	m_device
	The NetDevice.
Ptr< Ipv6Interface >	m_interface
	the interface.
Cache	m_ndCache
	A list of Entry.
uint32_t	m_unresQlen
	Max number of packet stored in m_waiting.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

IPv6 Neighbor Discovery cache.

Definition at line 46 of file ndisc-cache.h.

Member Typedef Documentation

typedef sgi::hash_map<Ipv6Address, NdiscCache::Entry *, Ipv6AddressHash> ns3::NdiscCache::Cache

private

Definition at line 415 of file ndisc-cache.h.

typedef sgi::hash_map<Ipv6Address, NdiscCache::Entry *, Ipv6AddressHash>::iterator ns3::NdiscCache::CacheI

private

Definition at line 416 of file ndisc-cache.h.

Constructor & Destructor Documentation

ns3::NdiscCache::NdiscCache ( )

Constructor.

Definition at line 50 of file ndisc-cache.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::NdiscCache::~NdiscCache ( )

Destructor.

Definition at line 55 of file ndisc-cache.cc.

References Flush(), and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

ns3::NdiscCache::NdiscCache ( NdiscCache const & a )

private

Copy constructor.

Parameters

a	cache to copy

Member Function Documentation

NdiscCache::Entry * ns3::NdiscCache::Add ( Ipv6Address to )

Add an entry.

Parameters

to	address to add

Returns: an new Entry

Definition at line 101 of file ndisc-cache.cc.

References m_ndCache, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleNS(), ns3::Icmpv6L4Protocol::HandleRedirection(), ns3::Icmpv6L4Protocol::HandleRS(), ns3::Icmpv6L4Protocol::Lookup(), and ns3::Icmpv6L4Protocol::ReceiveLLA().

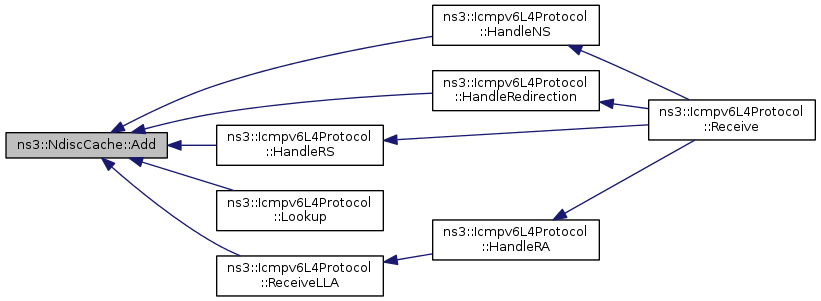

Here is the caller graph for this function:

void ns3::NdiscCache::DoDispose ( void )

private

Dispose this object.

Definition at line 61 of file ndisc-cache.cc.

References Flush(), m_device, m_interface, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

void ns3::NdiscCache::Flush ( void )

Flush the cache.

Definition at line 128 of file ndisc-cache.cc.

References m_ndCache, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::CreateCache(), DoDispose(), and ~NdiscCache().

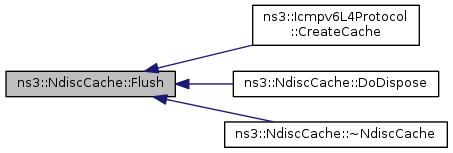

Here is the caller graph for this function:

Ptr< NetDevice > ns3::NdiscCache::GetDevice ( void ) const

Get the NetDevice associated with this cache.

Returns: NetDevice

Definition at line 83 of file ndisc-cache.cc.

References m_device, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::Lookup().

Here is the caller graph for this function:

Ptr< Ipv6Interface > ns3::NdiscCache::GetInterface ( void ) const

Get the Ipv6Interface associated with this cache.

Definition at line 77 of file ndisc-cache.cc.

References m_interface, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::Lookup(), and ns3::Icmpv6L4Protocol::ReceiveLLA().

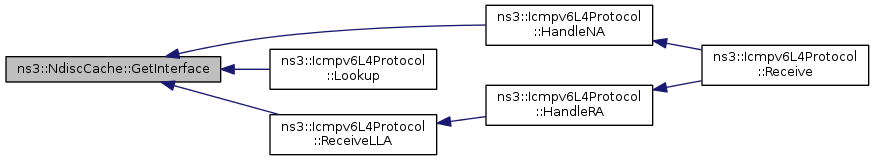

Here is the caller graph for this function:

TypeId ns3::NdiscCache::GetTypeId ( void )

static

Get the type ID.

This method returns the TypeId associated to ns3::NdiscCache.

Returns: type ID

Attributes defined for this type:

UnresolvedQueueSize: Size of the queue for packets pending an NA reply.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 3
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Definition at line 37 of file ndisc-cache.cc.

References DEFAULT_UNRES_QLEN, m_unresQlen, and ns3::TypeId::SetParent().

Here is the call graph for this function:
