ns3::Ns3NscStack Class Reference

#include <nsc-sysctl.h>

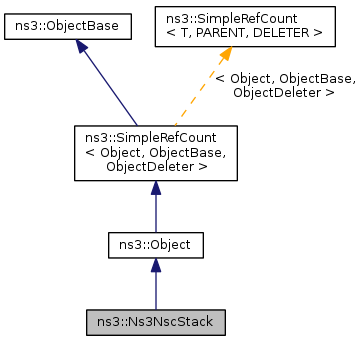

+ Inheritance diagram for ns3::Ns3NscStack:

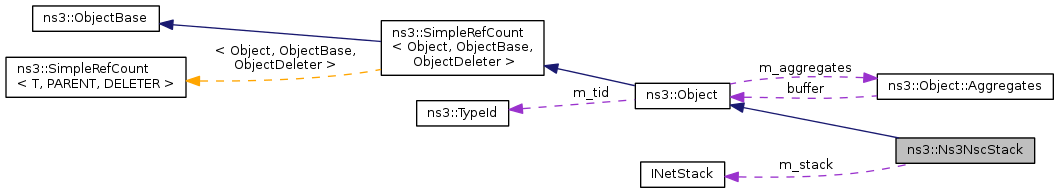

+ Collaboration diagram for ns3::Ns3NscStack:

Public Member Functions

virtual TypeId GetInstanceTypeId (void) const
void SetStack (INetStack *stack)
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Start (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::Object.

Private Member Functions

std::string Get (std::string name) const
void Set (std::string name, std::string value)

Private Attributes

INetStack * m_stack

Friends

class NscStackStringAccessor

Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void DoDispose (void)
virtual void DoStart (void)
virtual void NotifyNewAggregate (void)

Detailed Description

Definition at line 31 of file nsc-sysctl.h.

Member Function Documentation

std::string ns3::Ns3NscStack::Get ( std::string  name) const
private

Definition at line 125 of file nsc-sysctl.cc.

References m_stack, and INetStack::sysctl_get().

Referenced by ns3::NscStackStringAccessor::Get().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

TypeId ns3::Ns3NscStack::GetInstanceTypeId ( void  ) const
virtual
Returns
the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Reimplemented from ns3::Object.

Definition at line 84 of file nsc-sysctl.cc.

References ns3::TypeId::AddAttribute(), INetStack::get_name(), GetTypeId(), ns3::TypeId::LookupByNameFailSafe(), m_stack, ns3::TypeId::SetParent(), INetStack::sysctl_get(), and INetStack::sysctl_getnum().

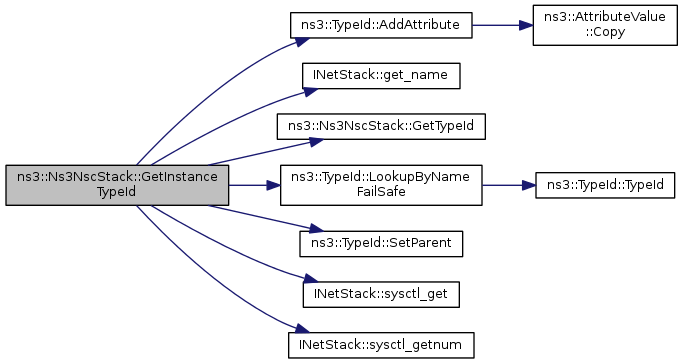

+ Here is the call graph for this function:

static TypeId ns3::Ns3NscStack::GetTypeId ( void  )
static

This method returns the TypeId associated to ns3::Object.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

Referenced by GetInstanceTypeId().

+ Here is the caller graph for this function:

void ns3::Ns3NscStack::Set ( std::string  name,
std::string  value
)
private

Definition at line 136 of file nsc-sysctl.cc.

References m_stack, NS_FATAL_ERROR, and INetStack::sysctl_set().

Referenced by ns3::NscStackStringAccessor::Set().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::Ns3NscStack::SetStack ( INetStack *  stack)
inline

Definition at line 36 of file nsc-sysctl.h.

References m_stack.

Friends And Related Function Documentation

friend class NscStackStringAccessor
friend

Definition at line 39 of file nsc-sysctl.h.

Member Data Documentation

INetStack* ns3::Ns3NscStack::m_stack
private

Definition at line 42 of file nsc-sysctl.h.

Referenced by Get(), GetInstanceTypeId(), Set(), and SetStack().

The documentation for this class was generated from the following files:
