ns3::PacketBurst Class Reference

#include <packet-burst.h>

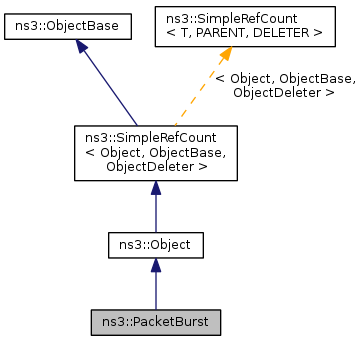

+ Inheritance diagram for ns3::PacketBurst:

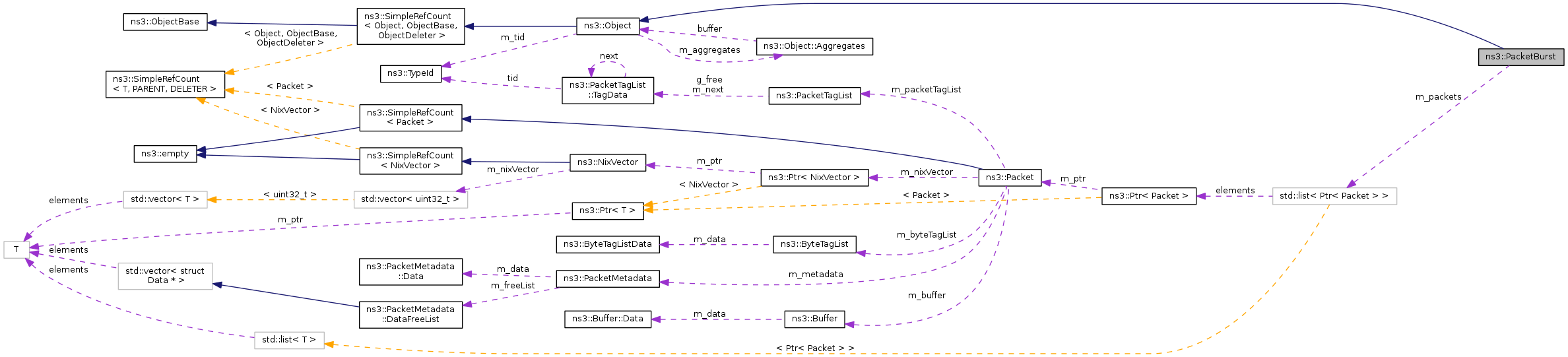

+ Collaboration diagram for ns3::PacketBurst:

Public Member Functions

 PacketBurst (void)
virtual ~PacketBurst (void)
void AddPacket (Ptr< Packet > packet)
 add a packet to the list of packet
std::list< Ptr< Packet >
>::const_iterator 		Begin (void) const
Ptr< PacketBurst > Copy (void) const
std::list< Ptr< Packet >
>::const_iterator 		End (void) const
uint32_t GetNPackets (void) const
std::list< Ptr< Packet > > GetPackets (void) const
uint32_t GetSize (void) const
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Start (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)
 this class implement a burst as a list of packets

Private Member Functions

void DoDispose (void)

Private Attributes

std::list< Ptr< Packet > > m_packets

Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void DoDispose (void)
virtual void DoStart (void)
virtual void NotifyNewAggregate (void)

Detailed Description

Definition at line 32 of file packet-burst.h.

Constructor & Destructor Documentation

ns3::PacketBurst::PacketBurst ( void  )

Definition at line 43 of file packet-burst.cc.

ns3::PacketBurst::~PacketBurst ( void  )
virtual

Definition at line 47 of file packet-burst.cc.

References list, and m_packets.

Member Function Documentation

void ns3::PacketBurst::AddPacket ( Ptr< Packet >  packet)

add a packet to the list of packet

Parameters
packetthe packet to add

Definition at line 77 of file packet-burst.cc.

References m_packets.

Referenced by ns3::BSSchedulerRtps::BSSchedulerBasicConnection(), ns3::BSSchedulerRtps::BSSchedulerBEConnection(), ns3::BSSchedulerRtps::BSSchedulerBroadcastConnection(), ns3::BSSchedulerRtps::BSSchedulerInitialRangingConnection(), ns3::BSSchedulerRtps::BSSchedulerNRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerPrimaryConnection(), ns3::BSSchedulerRtps::BSSchedulerRTPSConnection(), ns3::SimpleOfdmWimaxPhy::ConvertBitsToBurst(), Copy(), ns3::BSSchedulerSimple::CreateUgsBurst(), ns3::BSSchedulerRtps::CreateUgsBurst(), ns3::LteUplinkSinrTestCase::DoRun(), ns3::LteDownlinkSinrTestCase::DoRun(), ns3::SSScheduler::Schedule(), and ns3::BSSchedulerSimple::Schedule().

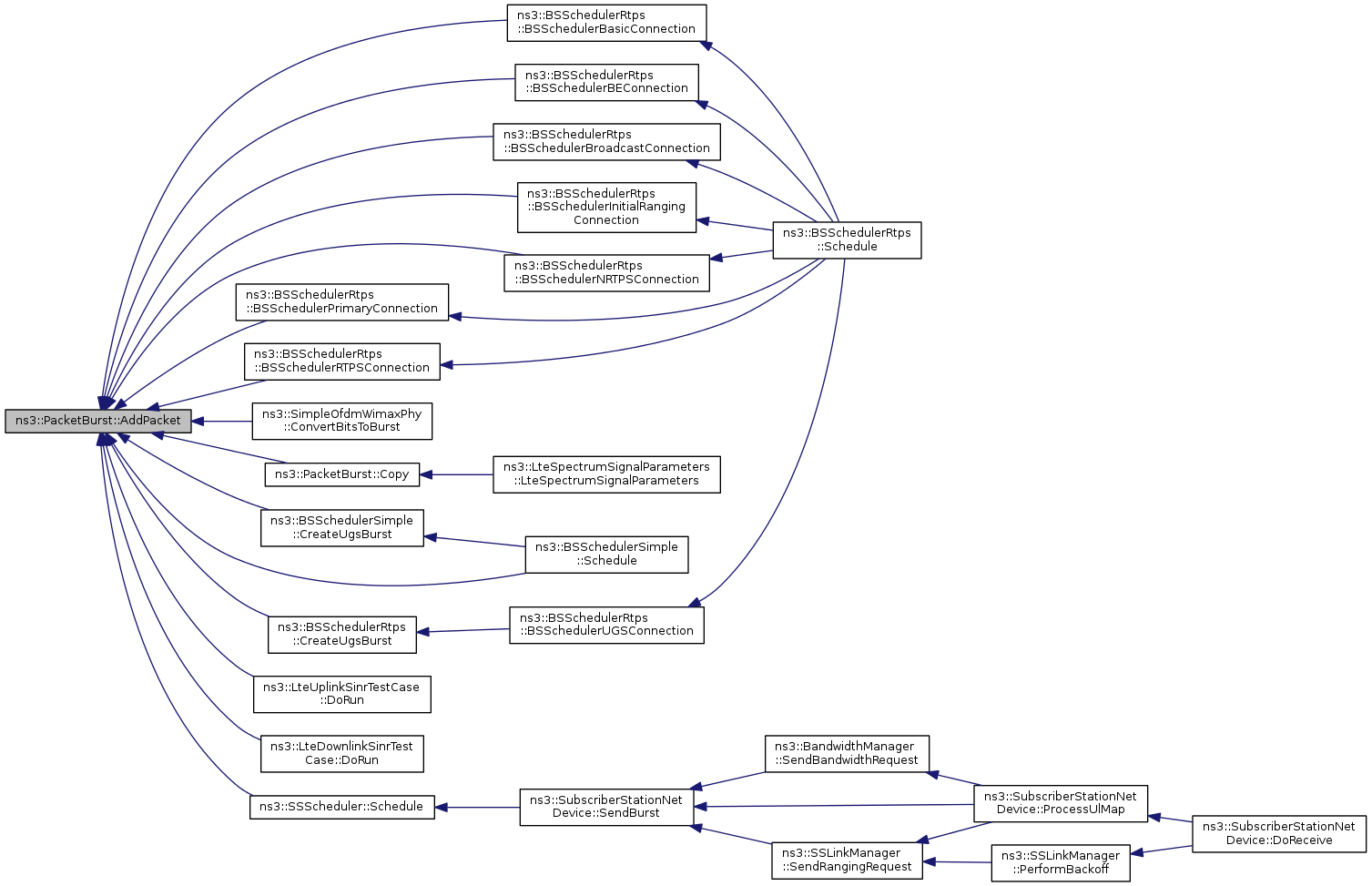

+ Here is the caller graph for this function:

std::list< Ptr< Packet > >::const_iterator ns3::PacketBurst::Begin ( void  ) const

Definition at line 111 of file packet-burst.cc.

References m_packets.

Referenced by ns3::LteSpectrumPhy::EndTx(), ns3::WimaxNetDevice::Receive(), and ns3::LteSpectrumPhy::StartTx().

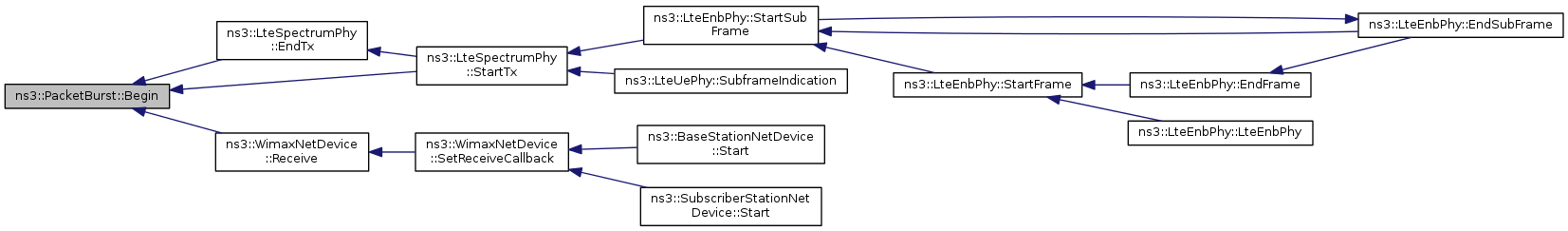

+ Here is the caller graph for this function:

Ptr< PacketBurst > ns3::PacketBurst::Copy ( void  ) const
Returns
a copy the packetBurst

Definition at line 63 of file packet-burst.cc.

References AddPacket(), ns3::Packet::Copy(), list, and m_packets.

Referenced by ns3::LteSpectrumSignalParameters::LteSpectrumSignalParameters().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::PacketBurst::DoDispose ( void  )
private

Definition at line 58 of file packet-burst.cc.

References m_packets.

std::list< Ptr< Packet > >::const_iterator ns3::PacketBurst::End ( void  ) const

Definition at line 117 of file packet-burst.cc.

References m_packets.

Referenced by ns3::LteSpectrumPhy::EndTx(), ns3::WimaxNetDevice::Receive(), and ns3::LteSpectrumPhy::StartTx().

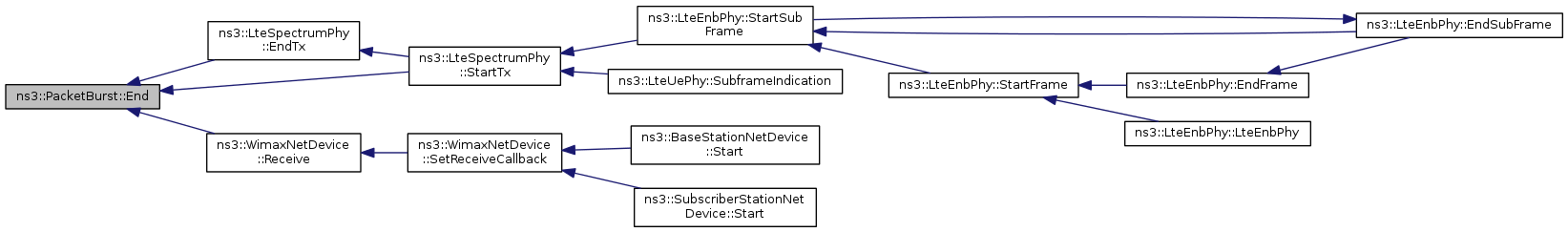

+ Here is the caller graph for this function:

uint32_t ns3::PacketBurst::GetNPackets ( void  ) const
Returns
the number of packet in the burst

Definition at line 92 of file packet-burst.cc.

References m_packets.

Referenced by ns3::BSSchedulerSimple::AddDownlinkBurst(), ns3::BSSchedulerRtps::AddDownlinkBurst(), ns3::BSSchedulerRtps::BSSchedulerBasicConnection(), ns3::BSSchedulerRtps::BSSchedulerBEConnection(), ns3::BSSchedulerRtps::BSSchedulerBroadcastConnection(), ns3::BSSchedulerRtps::BSSchedulerInitialRangingConnection(), ns3::BSSchedulerRtps::BSSchedulerNRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerPrimaryConnection(), ns3::BSSchedulerRtps::BSSchedulerRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerUGSConnection(), ns3::BSSchedulerSimple::Schedule(), and ns3::SubscriberStationNetDevice::SendBurst().

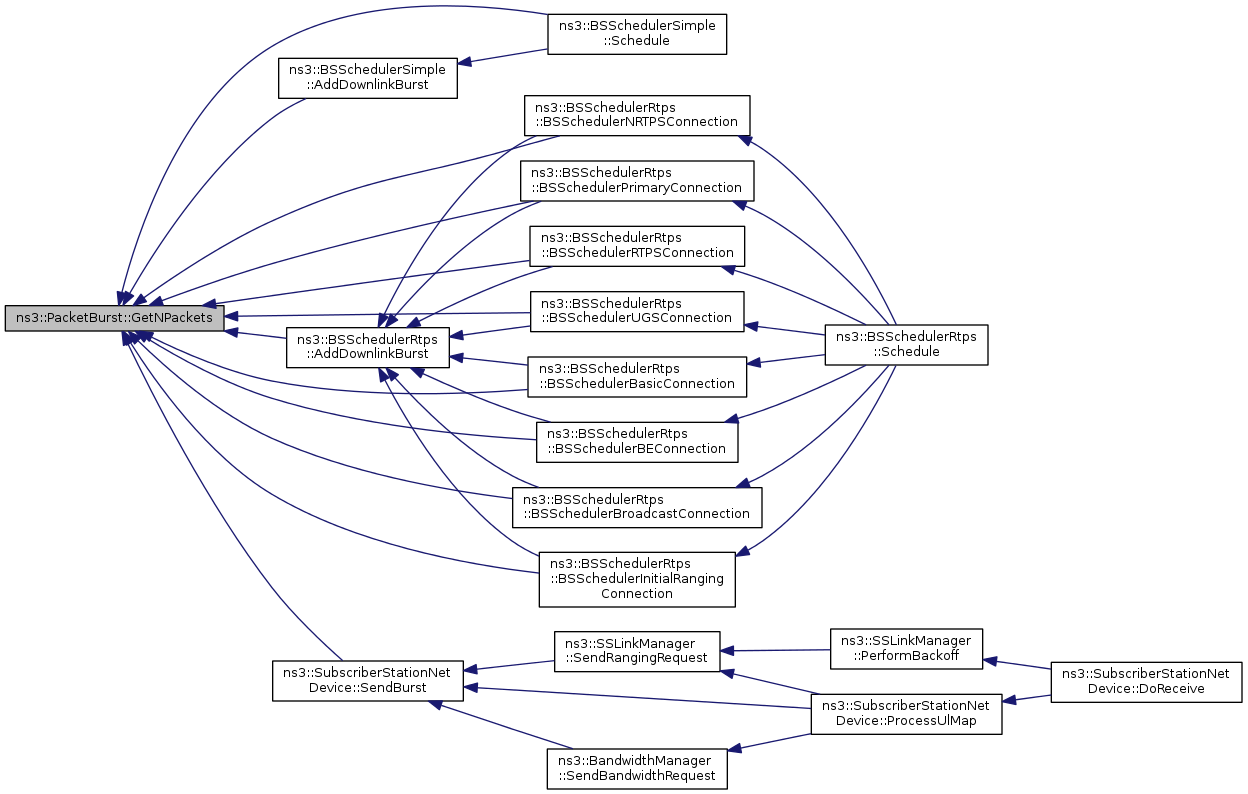

+ Here is the caller graph for this function:

std::list< Ptr< Packet > > ns3::PacketBurst::GetPackets ( void  ) const
Returns
the list of packet of this burst

Definition at line 86 of file packet-burst.cc.

References m_packets.

Referenced by ns3::PcapSniffTxRxEvent().

+ Here is the caller graph for this function:

uint32_t ns3::PacketBurst::GetSize ( void  ) const
Returns
the size of the burst in byte (the size of all packets)

Definition at line 98 of file packet-burst.cc.

References ns3::Packet::GetSize(), list, and m_packets.

Referenced by ns3::BSSchedulerSimple::AddDownlinkBurst(), ns3::BSSchedulerRtps::AddDownlinkBurst(), ns3::BSSchedulerSimple::Schedule(), ns3::SimpleOfdmWimaxPhy::Send(), ns3::SubscriberStationNetDevice::SendBurst(), and ns3::BaseStationNetDevice::SendBursts().

+ Here is the call graph for this function:

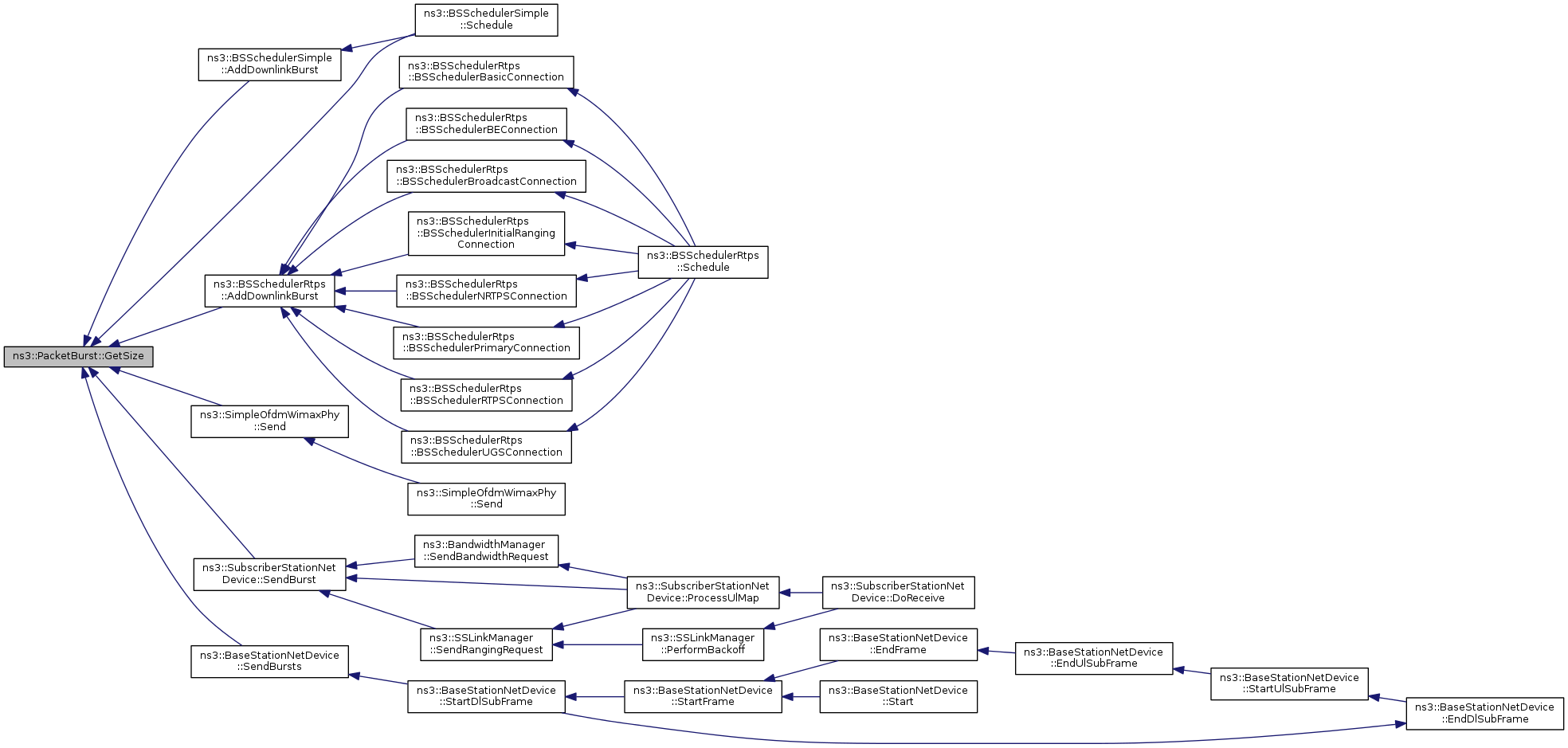

+ Here is the caller graph for this function:

TypeId ns3::PacketBurst::GetTypeId ( void  )
static

this class implement a burst as a list of packets

This method returns the TypeId associated to ns3::PacketBurst.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

Definition at line 34 of file packet-burst.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

Member Data Documentation

std::list<Ptr<Packet> > ns3::PacketBurst::m_packets
private

Definition at line 67 of file packet-burst.h.

Referenced by AddPacket(), Begin(), Copy(), DoDispose(), End(), GetNPackets(), GetPackets(), GetSize(), and ~PacketBurst().

The documentation for this class was generated from the following files:
