the propagation delay is random More...

#include <propagation-delay-model.h>

Inheritance diagram for ns3::RandomPropagationDelayModel:

Collaboration diagram for ns3::RandomPropagationDelayModel:

Public Member Functions
	RandomPropagationDelayModel ()
virtual	~RandomPropagationDelayModel ()
virtual Time	GetDelay (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Public Member Functions inherited from ns3::PropagationDelayModel
virtual	~PropagationDelayModel ()
int64_t	AssignStreams (int64_t stream)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::RandomPropagationDelayModel.

Private Member Functions
virtual int64_t	DoAssignStreams (int64_t stream)

Private Attributes
Ptr< RandomVariableStream >	m_variable

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

the propagation delay is random

Definition at line 74 of file propagation-delay-model.h.

Constructor & Destructor Documentation

ns3::RandomPropagationDelayModel::RandomPropagationDelayModel ( )

Use the default parameters from PropagationDelayRandomDistribution.

Definition at line 68 of file propagation-delay-model.cc.

ns3::RandomPropagationDelayModel::~RandomPropagationDelayModel ( )

virtual

Definition at line 71 of file propagation-delay-model.cc.

Member Function Documentation

int64_t ns3::RandomPropagationDelayModel::DoAssignStreams ( int64_t stream )

privatevirtual

Definition at line 81 of file propagation-delay-model.cc.

References m_variable, and ns3::RandomVariableStream::SetStream().

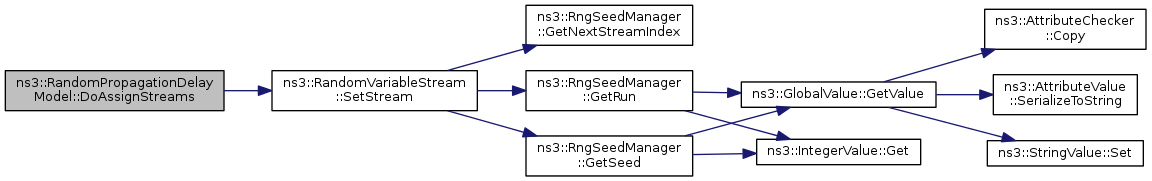

Here is the call graph for this function:

Time ns3::RandomPropagationDelayModel::GetDelay	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

virtual

Parameters

a	the source
b	the destination

Returns: the calculated propagation delay

Calculate the propagation delay between the specified source and destination.

Implements ns3::PropagationDelayModel.

Definition at line 75 of file propagation-delay-model.cc.

References ns3::RandomVariableStream::GetValue(), m_variable, and ns3::Seconds().

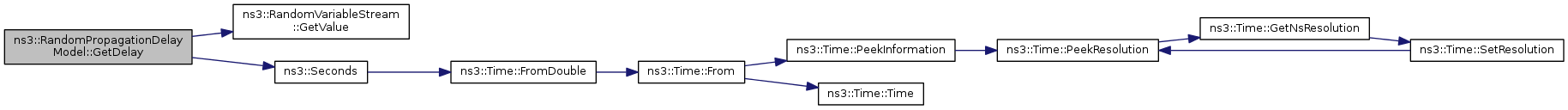

Here is the call graph for this function:

TypeId ns3::RandomPropagationDelayModel::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::RandomPropagationDelayModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel

Attributes defined for this type:

Variable: The random variable which generates random delays (s).
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::RandomVariableStream >
- Initial value: ns3::UniformRandomVariable
- Flags: construct write read
