The propagation loss depends only on the distance (range) between transmitter and receiver. More...

#include <propagation-loss-model.h>

Inheritance diagram for ns3::RangePropagationLossModel:

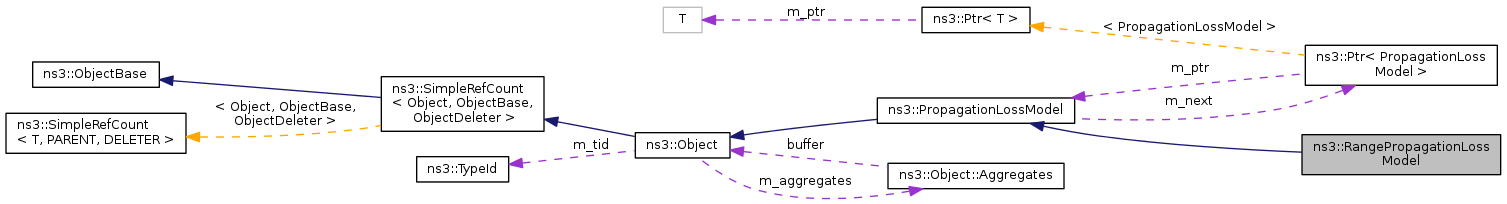

Collaboration diagram for ns3::RangePropagationLossModel:

Public Member Functions
	RangePropagationLossModel ()
Public Member Functions inherited from ns3::PropagationLossModel
	PropagationLossModel ()
virtual	~PropagationLossModel ()
int64_t	AssignStreams (int64_t stream)
double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal.
void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::RangePropagationLossModel.

Private Member Functions
	RangePropagationLossModel (const RangePropagationLossModel &o)
virtual int64_t	DoAssignStreams (int64_t stream)
virtual double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
RangePropagationLossModel &	operator= (const RangePropagationLossModel &o)

Private Attributes
double	m_range

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

The propagation loss depends only on the distance (range) between transmitter and receiver.

The single MaxRange attribute (units of meters) determines path loss. Receivers at or within MaxRange meters receive the transmission at the transmit power level. Receivers beyond MaxRange receive at power -1000 dBm (effectively zero).

Definition at line 590 of file propagation-loss-model.h.

Constructor & Destructor Documentation

ns3::RangePropagationLossModel::RangePropagationLossModel ( )

Definition at line 897 of file propagation-loss-model.cc.

ns3::RangePropagationLossModel::RangePropagationLossModel ( const RangePropagationLossModel & o )

private

Member Function Documentation

int64_t ns3::RangePropagationLossModel::DoAssignStreams ( int64_t stream )

privatevirtual

Definition at line 918 of file propagation-loss-model.cc.

double ns3::RangePropagationLossModel::DoCalcRxPower	(	double	txPowerDbm,
		Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

privatevirtual

Definition at line 902 of file propagation-loss-model.cc.

References ns3::MobilityModel::GetDistanceFrom(), and m_range.

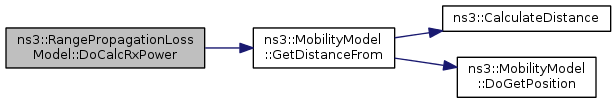

Here is the call graph for this function:

TypeId ns3::RangePropagationLossModel::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::RangePropagationLossModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RangePropagationLossModel

Attributes defined for this type:

MaxRange: Maximum Transmission Range (meters)
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 250
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::PropagationLossModel.

Definition at line 883 of file propagation-loss-model.cc.

References m_range, and ns3::TypeId::SetParent().

Here is the call graph for this function:
