#include <time-data-calculators.h>

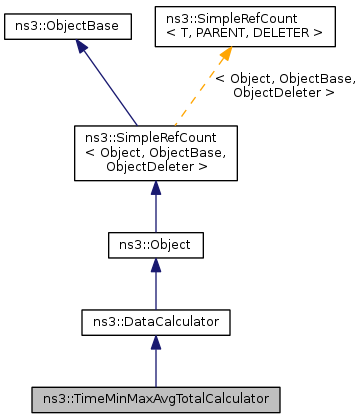

Inheritance diagram for ns3::TimeMinMaxAvgTotalCalculator:

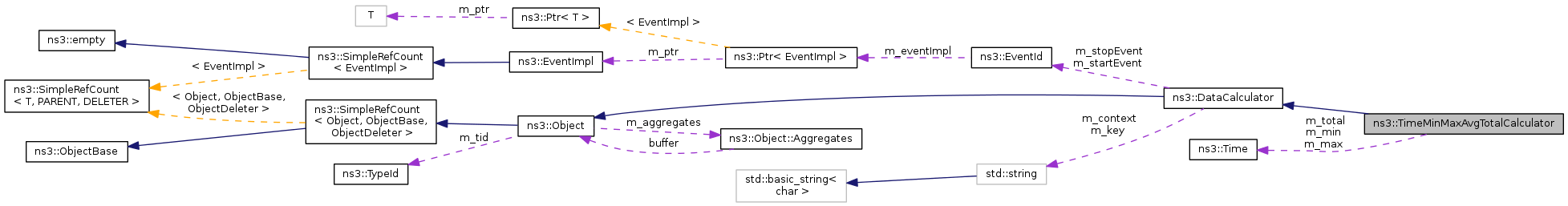

Collaboration diagram for ns3::TimeMinMaxAvgTotalCalculator:

Public Member Functions
	TimeMinMaxAvgTotalCalculator ()
virtual	~TimeMinMaxAvgTotalCalculator ()
virtual void	Output (DataOutputCallback &callback) const
void	Update (const Time i)
Public Member Functions inherited from ns3::DataCalculator
	DataCalculator ()
virtual	~DataCalculator ()
void	Disable ()
void	Enable ()
std::string	GetContext () const
bool	GetEnabled () const
std::string	GetKey () const
void	SetContext (const std::string context)
void	SetKey (const std::string key)
virtual void	Start (const Time &startTime)
virtual void	Stop (const Time &stopTime)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Protected Member Functions
virtual void	DoDispose (void)

Protected Attributes
uint32_t	m_count
Time	m_max
Time	m_min
Time	m_total
Protected Attributes inherited from ns3::DataCalculator
std::string	m_context
bool	m_enabled
std::string	m_key

Additional Inherited Members
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::Object.

Detailed Description

Unfortunately, templating the base MinMaxAvgTotalCalculator to operate over Time values isn't straightforward. The main issues are setting the maximum value, which can be worked around easily as it done here, and dividing to get the average, which is not as easily worked around.

Definition at line 42 of file time-data-calculators.h.

Constructor & Destructor Documentation

TimeMinMaxAvgTotalCalculator::TimeMinMaxAvgTotalCalculator ( )

Definition at line 33 of file time-data-calculators.cc.

References m_count.

TimeMinMaxAvgTotalCalculator::~TimeMinMaxAvgTotalCalculator ( )

virtual

Definition at line 37 of file time-data-calculators.cc.

Member Function Documentation

void TimeMinMaxAvgTotalCalculator::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::DataCalculator.

Definition at line 41 of file time-data-calculators.cc.

void TimeMinMaxAvgTotalCalculator::Output ( DataOutputCallback & callback ) const

virtual

Implements ns3::DataCalculator.

Definition at line 71 of file time-data-calculators.cc.

References ns3::DataCalculator::m_context, m_count, ns3::DataCalculator::m_key, m_max, m_min, m_total, and ns3::DataOutputCallback::OutputSingleton().

Here is the call graph for this function:
