hold a list of per-remote-station state. More...

#include <wifi-remote-station-manager.h>

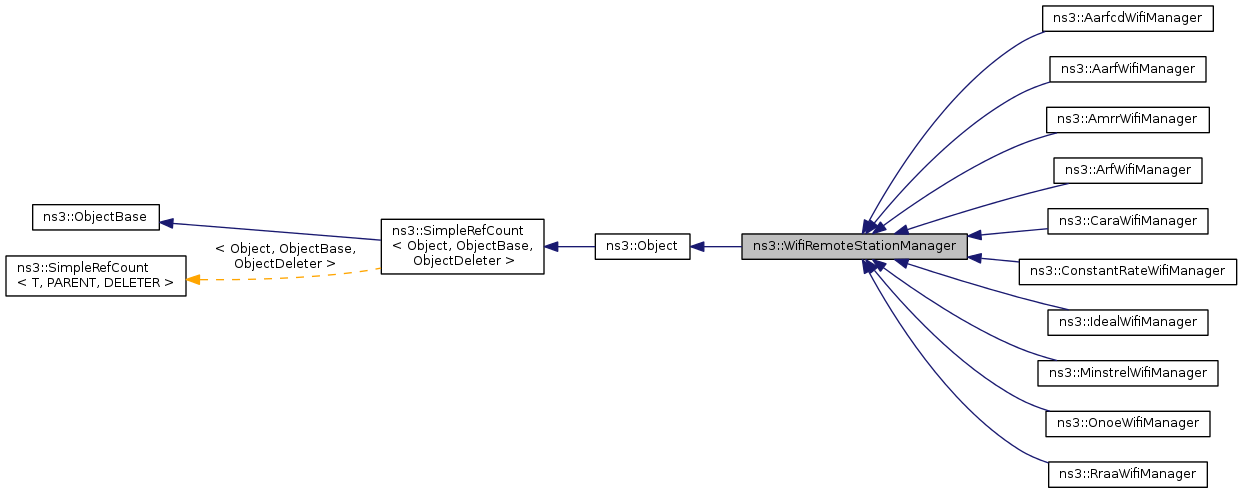

Inheritance diagram for ns3::WifiRemoteStationManager:

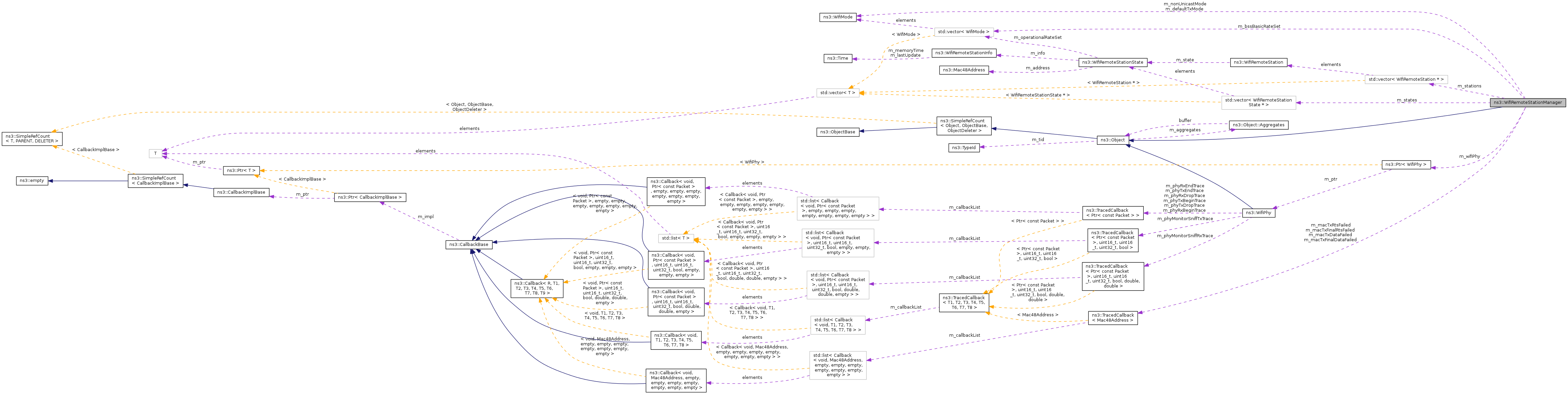

Collaboration diagram for ns3::WifiRemoteStationManager:

Public Member Functions
	WifiRemoteStationManager ()
virtual	~WifiRemoteStationManager ()
void	AddBasicMode (WifiMode mode)
void	AddSupportedMode (Mac48Address address, WifiMode mode)
WifiMode	GetAckMode (Mac48Address address, WifiMode dataMode)
WifiMode	GetBasicMode (uint32_t i) const
WifiMode	GetCtsMode (Mac48Address address, WifiMode rtsMode)
WifiMode	GetDataMode (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)
WifiMode	GetDefaultMode (void) const
uint32_t	GetFragmentationThreshold (void) const
uint32_t	GetFragmentOffset (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)

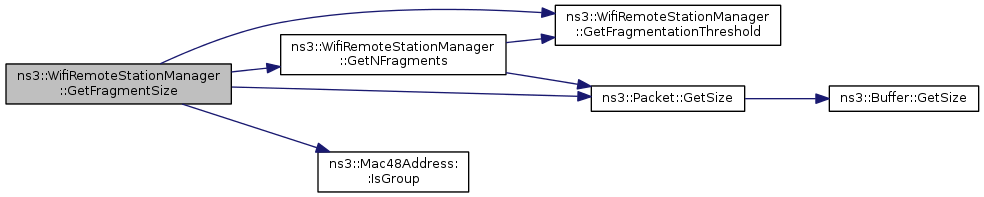

uint32_t	GetFragmentSize (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)
WifiRemoteStationInfo	GetInfo (Mac48Address address)

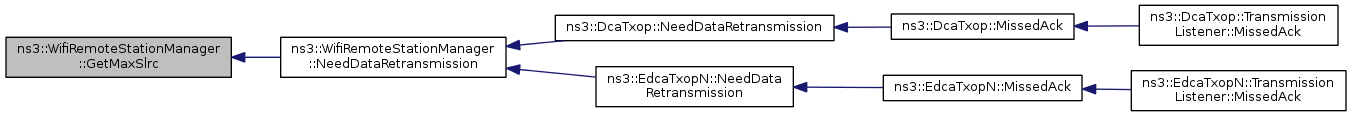

uint32_t	GetMaxSlrc (void) const
uint32_t	GetMaxSsrc (void) const
uint32_t	GetNBasicModes (void) const
WifiMode	GetNonUnicastMode (void) const
uint32_t	GetRtsCtsThreshold (void) const
WifiMode	GetRtsMode (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool	IsAssociated (Mac48Address address) const
bool	IsBrandNew (Mac48Address address) const
bool	IsLastFragment (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)
bool	IsWaitAssocTxOk (Mac48Address address) const

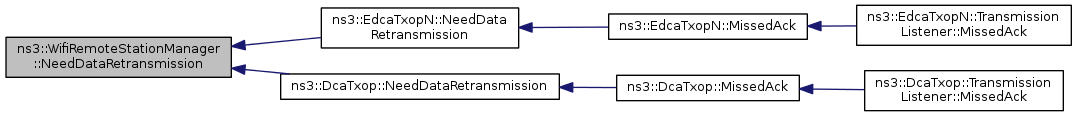

bool	NeedDataRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool	NeedFragmentation (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)

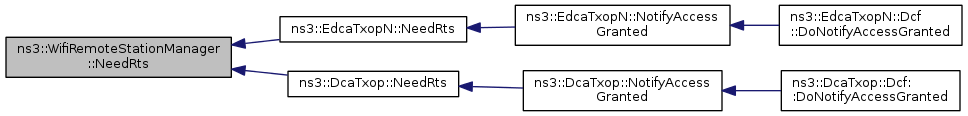

bool	NeedRts (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool	NeedRtsRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
void	PrepareForQueue (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)

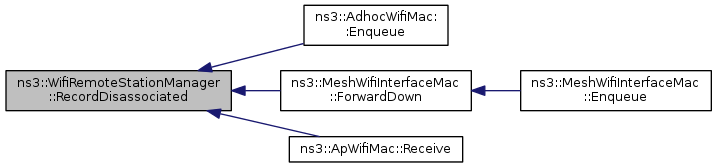

void	RecordDisassociated (Mac48Address address)
void	RecordGotAssocTxFailed (Mac48Address address)
void	RecordGotAssocTxOk (Mac48Address address)
void	RecordWaitAssocTxOk (Mac48Address address)
void	ReportDataFailed (Mac48Address address, const WifiMacHeader *header)
void	ReportDataOk (Mac48Address address, const WifiMacHeader *header, double ackSnr, WifiMode ackMode, double dataSnr)
void	ReportFinalDataFailed (Mac48Address address, const WifiMacHeader *header)
void	ReportFinalRtsFailed (Mac48Address address, const WifiMacHeader *header)
void	ReportRtsFailed (Mac48Address address, const WifiMacHeader *header)
void	ReportRtsOk (Mac48Address address, const WifiMacHeader *header, double ctsSnr, WifiMode ctsMode, double rtsSnr)
void	ReportRxOk (Mac48Address address, const WifiMacHeader *header, double rxSnr, WifiMode txMode)
void	Reset (void)
void	Reset (Mac48Address address)
void	SetFragmentationThreshold (uint32_t threshold)
void	SetMaxSlrc (uint32_t maxSlrc)
void	SetMaxSsrc (uint32_t maxSsrc)
void	SetRtsCtsThreshold (uint32_t threshold)
virtual void	SetupPhy (Ptr< WifiPhy > phy)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::WifiRemoteStationManager.

Protected Member Functions
virtual void	DoDispose (void)
uint32_t	GetNSupported (const WifiRemoteStation *station) const
WifiMode	GetSupported (const WifiRemoteStation *station, uint32_t i) const
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Private Types
typedef std::vector < WifiRemoteStation * >	Stations
typedef std::vector < WifiRemoteStationState * >	StationStates

Private Member Functions
virtual WifiRemoteStation *	DoCreateStation (void) const =0
virtual WifiMode	DoGetDataMode (WifiRemoteStation *station, uint32_t size)=0
virtual WifiMode	DoGetRtsMode (WifiRemoteStation *station)=0
virtual bool	DoNeedDataRetransmission (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)
virtual bool	DoNeedFragmentation (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)
virtual bool	DoNeedRts (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)
virtual bool	DoNeedRtsRetransmission (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)
virtual void	DoReportDataFailed (WifiRemoteStation *station)=0
virtual void	DoReportDataOk (WifiRemoteStation *station, double ackSnr, WifiMode ackMode, double dataSnr)=0

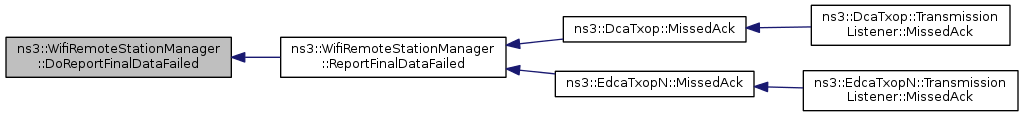

virtual void	DoReportFinalDataFailed (WifiRemoteStation *station)=0
virtual void	DoReportFinalRtsFailed (WifiRemoteStation *station)=0
virtual void	DoReportRtsFailed (WifiRemoteStation *station)=0
virtual void	DoReportRtsOk (WifiRemoteStation *station, double ctsSnr, WifiMode ctsMode, double rtsSnr)=0
virtual void	DoReportRxOk (WifiRemoteStation *station, double rxSnr, WifiMode txMode)=0
WifiMode	GetControlAnswerMode (Mac48Address address, WifiMode reqMode)
uint32_t	GetNFragments (Ptr< const Packet > packet)
virtual bool	IsLowLatency (void) const =0
WifiRemoteStation *	Lookup (Mac48Address address, uint8_t tid) const
WifiRemoteStation *	Lookup (Mac48Address address, const WifiMacHeader *header) const

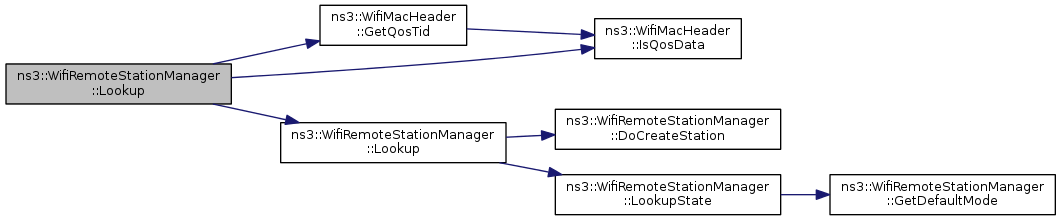

	Find a remote station by its remote address and TID taken from MAC header.
WifiRemoteStationState *	LookupState (Mac48Address address) const

Private Attributes
double	m_avgSlrcCoefficient
WifiModeList	m_bssBasicRateSet
WifiMode	m_defaultTxMode
uint32_t	m_fragmentationThreshold
bool	m_isLowLatency
TracedCallback< Mac48Address >	m_macTxDataFailed
TracedCallback< Mac48Address >	m_macTxFinalDataFailed
TracedCallback< Mac48Address >	m_macTxFinalRtsFailed
TracedCallback< Mac48Address >	m_macTxRtsFailed
uint32_t	m_maxSlrc
uint32_t	m_maxSsrc
WifiMode	m_nonUnicastMode
uint32_t	m_rtsCtsThreshold
StationStates	m_states
Stations	m_stations
Ptr< WifiPhy >	m_wifiPhy

Detailed Description

hold a list of per-remote-station state.

See Also: ns3::WifiRemoteStation.

Definition at line 81 of file wifi-remote-station-manager.h.

Member Typedef Documentation

typedef std::vector<WifiRemoteStation *> ns3::WifiRemoteStationManager::Stations

private

Definition at line 398 of file wifi-remote-station-manager.h.

typedef std::vector<WifiRemoteStationState *> ns3::WifiRemoteStationManager::StationStates

private

Definition at line 399 of file wifi-remote-station-manager.h.

Constructor & Destructor Documentation

ns3::WifiRemoteStationManager::WifiRemoteStationManager ( )

Definition at line 190 of file wifi-remote-station-manager.cc.

ns3::WifiRemoteStationManager::~WifiRemoteStationManager ( )

virtual

Definition at line 194 of file wifi-remote-station-manager.cc.

Member Function Documentation

void ns3::WifiRemoteStationManager::AddBasicMode ( WifiMode mode )

Definition at line 743 of file wifi-remote-station-manager.cc.

References GetBasicMode(), GetNBasicModes(), and m_bssBasicRateSet.

Referenced by ns3::StaWifiMac::Receive(), and ns3::MeshWifiInterfaceMac::Receive().

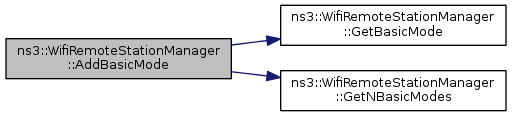

Here is the call graph for this function:

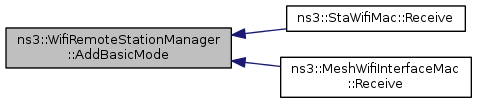

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::AddSupportedMode	(	Mac48Address	address,
		WifiMode	mode
	)

Invoked in a STA or AP to store the set of modes supported by a destination which is also supported locally. The set of supported modes includes the BSSBasicRateSet.

Definition at line 274 of file wifi-remote-station-manager.cc.

References ns3::Mac48Address::IsGroup(), LookupState(), and NS_ASSERT.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), and Reset().

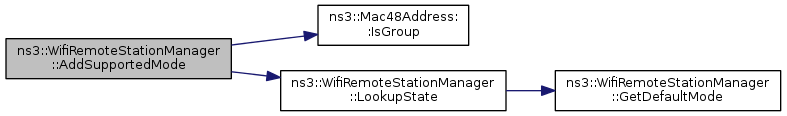

Here is the call graph for this function:

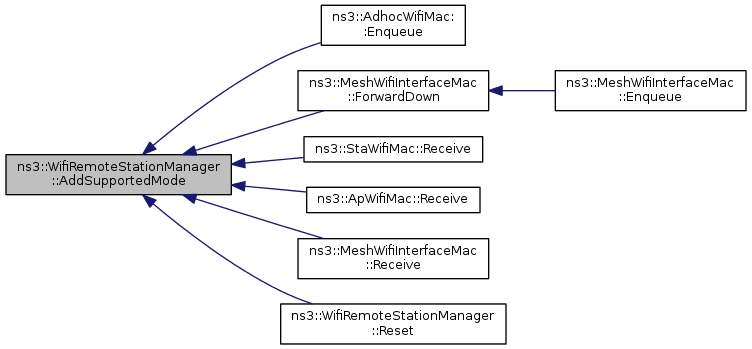

Here is the caller graph for this function:

virtual WifiRemoteStation* ns3::WifiRemoteStationManager::DoCreateStation ( void ) const

privatepure virtual

Returns: a new station data structure

Referenced by Lookup().

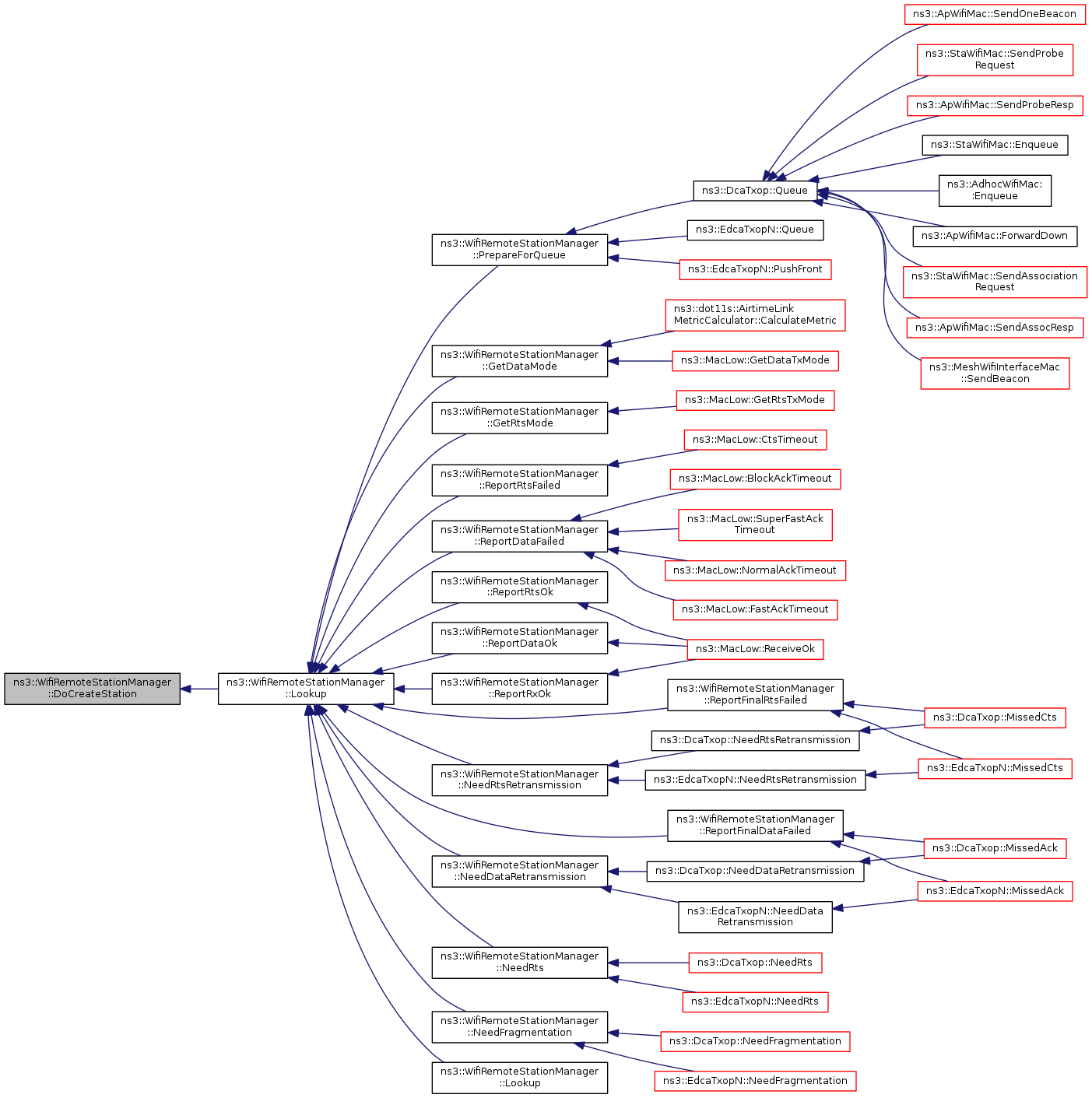

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 198 of file wifi-remote-station-manager.cc.

References m_states, and m_stations.

virtual WifiMode ns3::WifiRemoteStationManager::DoGetDataMode	(	WifiRemoteStation *	station,
		uint32_t	size
	)

privatepure virtual

Parameters

station	the station with which we need to communicate
size	size of the packet or fragment we want to send

Returns: the transmission mode to use to send a packet to the station

Note: This method is called before sending a unicast packet or a fragment of a unicast packet to decide which transmission mode to use.

Referenced by GetDataMode(), and PrepareForQueue().

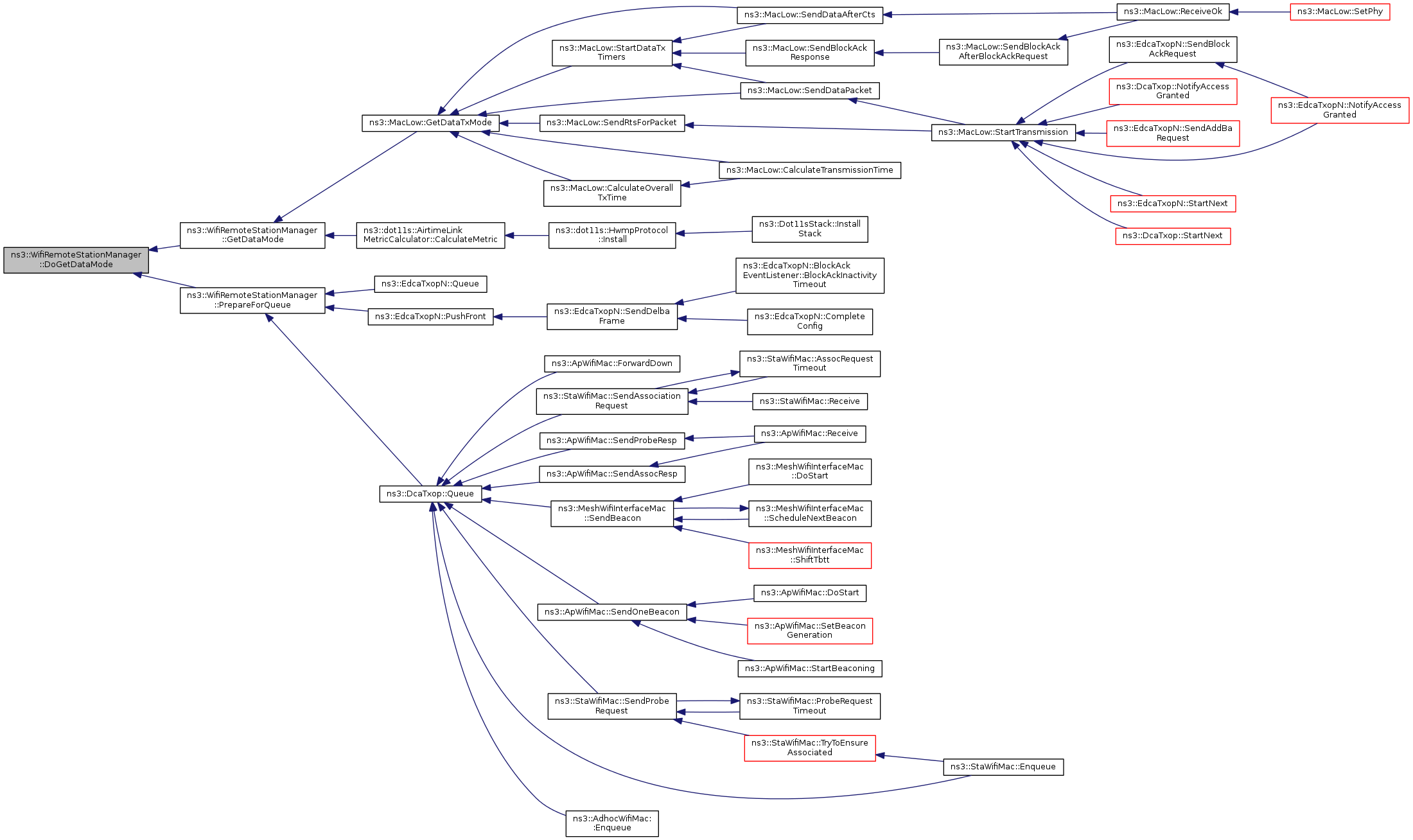

Here is the caller graph for this function:

virtual WifiMode ns3::WifiRemoteStationManager::DoGetRtsMode ( WifiRemoteStation * station )

privatepure virtual

Parameters

station the station with which we need to communicate

Returns: the transmission mode to use to send an rts to the station

Note: This method is called before sending an rts to a station to decide which transmission mode to use for the rts.

Referenced by GetRtsMode(), and PrepareForQueue().

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoNeedDataRetransmission	(	WifiRemoteStation *	station,
		Ptr< const Packet >	packet,
		bool	normally
	)

privatevirtual

Parameters

station	the station with which we need to communicate
packet	the packet to send
normally	indicates whether the normal 802.11 data retransmission mechanism would request that the data is retransmitted or not.

Returns: true if we want to resend a packet after a failed transmission attempt, false otherwise.

Note: This method is called after a unicast packet transmission has been attempted and has failed.

Definition at line 791 of file wifi-remote-station-manager.cc.

Referenced by NeedDataRetransmission().

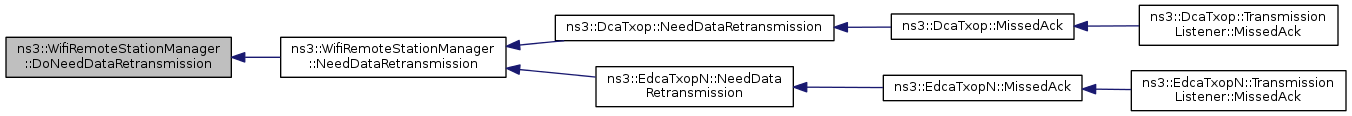

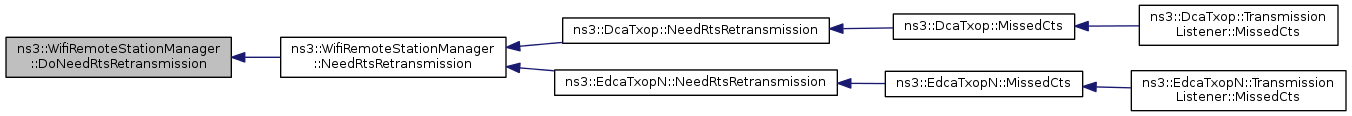

Here is the caller graph for this function:

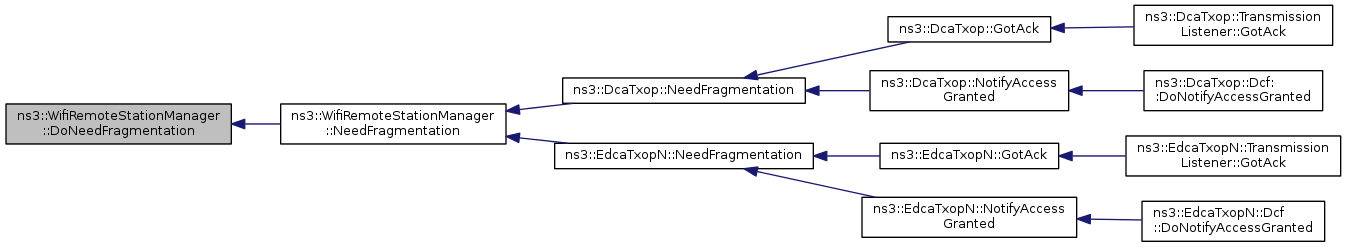

bool ns3::WifiRemoteStationManager::DoNeedFragmentation	(	WifiRemoteStation *	station,
		Ptr< const Packet >	packet,
		bool	normally
	)

privatevirtual

Parameters

station	the station with which we need to communicate
packet	the packet to send
normally	indicates whether the normal 802.11 data fragmentation mechanism would request that the data packet is fragmented or not.

Returns: true if this packet should be fragmented, false otherwise.

Note: This method is called before sending a unicast packet.

Definition at line 797 of file wifi-remote-station-manager.cc.

Referenced by NeedFragmentation().

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoNeedRts	(	WifiRemoteStation *	station,
		Ptr< const Packet >	packet,
		bool	normally
	)

privatevirtual

Parameters

station	the station with which we need to communicate
packet	the packet to send
normally	indicates whether the normal 802.11 rts enable mechanism would request that the rts is sent or not.

Returns: true if we want to use an RTS/CTS handshake for this packet before sending it, false otherwise.

Note: This method is called before a unicast packet is sent on the medium.

Definition at line 779 of file wifi-remote-station-manager.cc.

Referenced by NeedRts().

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::DoNeedRtsRetransmission	(	WifiRemoteStation *	station,
		Ptr< const Packet >	packet,
		bool	normally
	)

privatevirtual

Parameters

station	the station with which we need to communicate
packet	the packet to send
normally	indicates whether the normal 802.11 rts enable mechanism would request that the rts is retransmitted or not.

Returns: true if we want to restart a failed RTS/CTS handshake, false otherwise.

Note: This method is called after an rts/cts handshake has been attempted and has failed.

Definition at line 785 of file wifi-remote-station-manager.cc.

Referenced by NeedRtsRetransmission().

Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportDataFailed ( WifiRemoteStation * station )

privatepure virtual

Referenced by ReportDataFailed().

Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportDataOk	(	WifiRemoteStation *	station,
		double	ackSnr,
		WifiMode	ackMode,
		double	dataSnr
	)

privatepure virtual

Referenced by ReportDataOk().

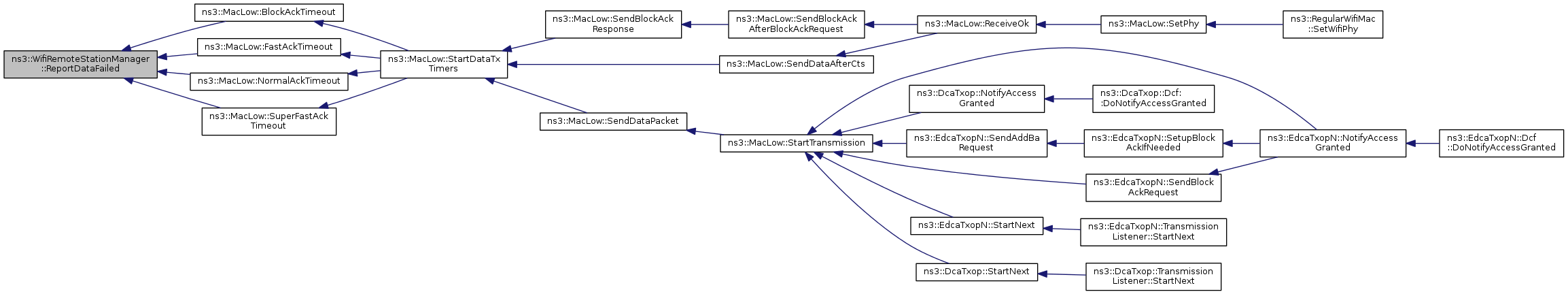

Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportFinalDataFailed ( WifiRemoteStation * station )

privatepure virtual

Referenced by ReportFinalDataFailed().

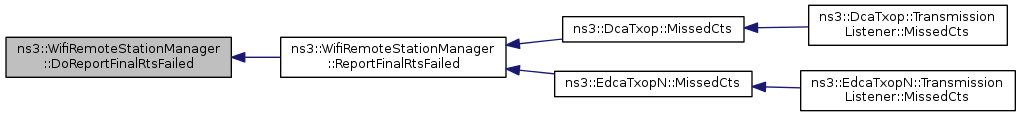

Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportFinalRtsFailed ( WifiRemoteStation * station )

privatepure virtual

Referenced by ReportFinalRtsFailed().

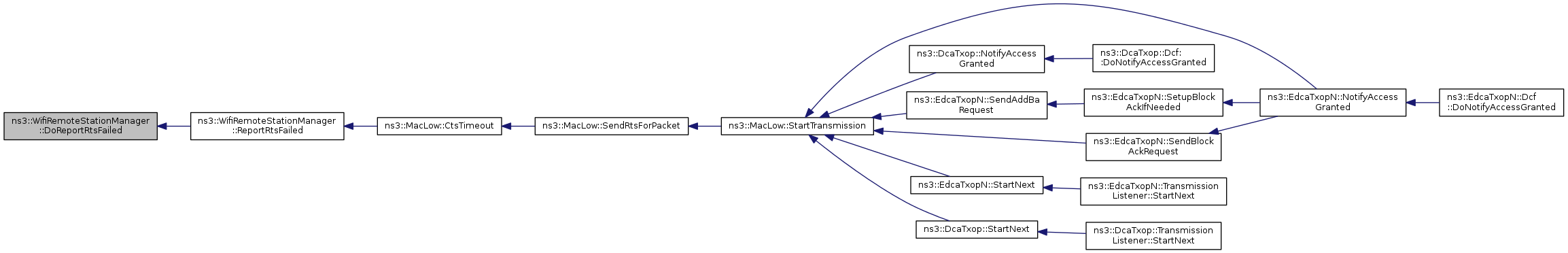

Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportRtsFailed ( WifiRemoteStation * station )

privatepure virtual

Referenced by ReportRtsFailed().

Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportRtsOk	(	WifiRemoteStation *	station,
		double	ctsSnr,
		WifiMode	ctsMode,
		double	rtsSnr
	)

privatepure virtual

Referenced by ReportRtsOk().

Here is the caller graph for this function:

virtual void ns3::WifiRemoteStationManager::DoReportRxOk	(	WifiRemoteStation *	station,
		double	rxSnr,
		WifiMode	txMode
	)

privatepure virtual

Referenced by ReportRxOk().

Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetAckMode	(	Mac48Address	address,
		WifiMode	dataMode
	)

Parameters

address
dataMode	the transmission mode used to send an ACK we just received

Returns: the transmission mode to use for the ACK to complete the data/ACK handshake.

Definition at line 657 of file wifi-remote-station-manager.cc.

References GetControlAnswerMode(), ns3::Mac48Address::IsGroup(), and NS_ASSERT.

Referenced by ns3::MacLow::GetAckTxModeForData().

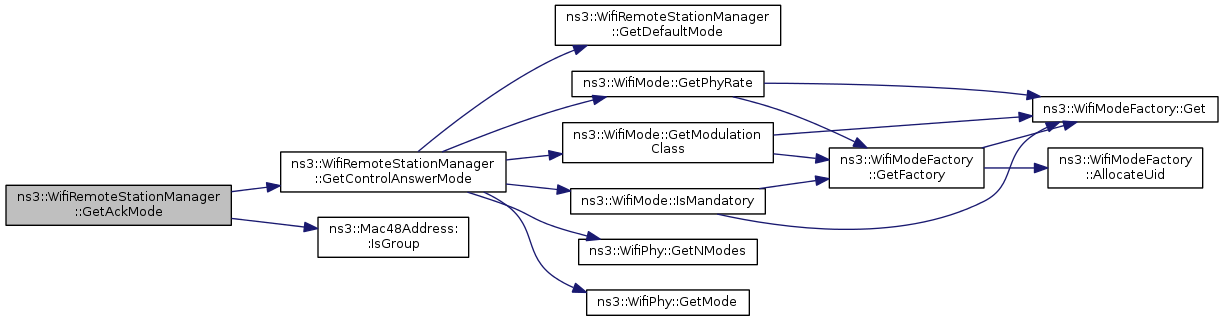

Here is the call graph for this function:

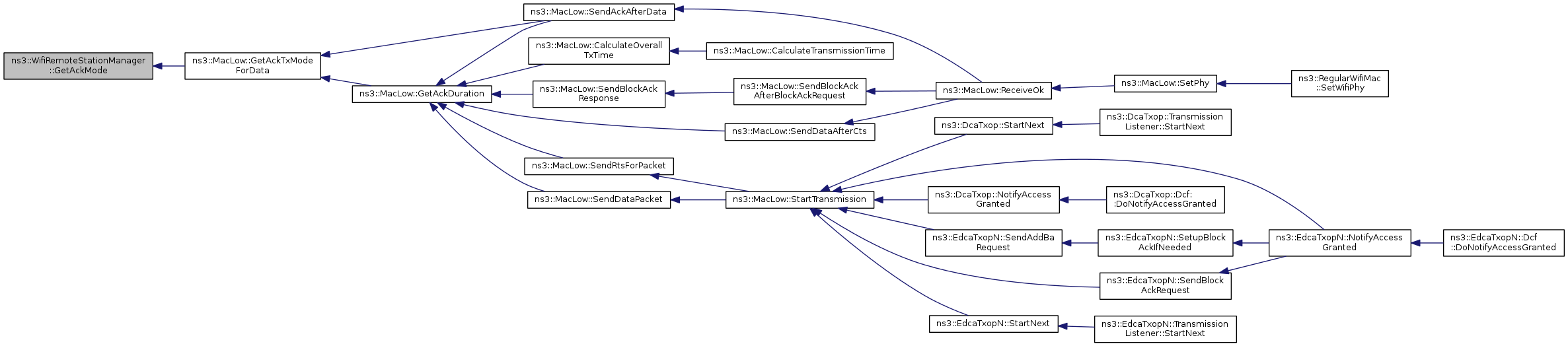

Here is the caller graph for this function:

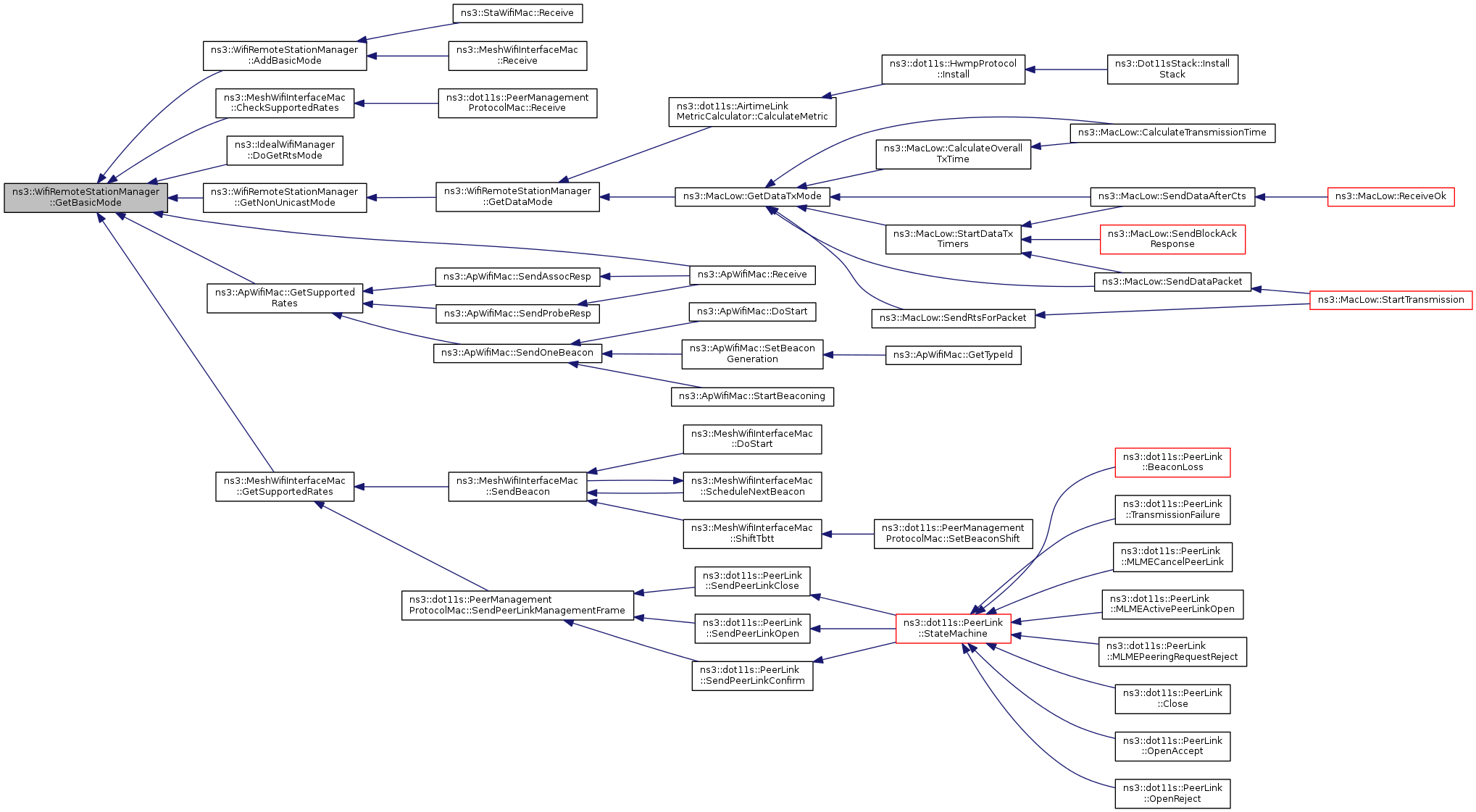

WifiMode ns3::WifiRemoteStationManager::GetBasicMode ( uint32_t i ) const

Definition at line 760 of file wifi-remote-station-manager.cc.

References m_bssBasicRateSet, and NS_ASSERT.

Referenced by AddBasicMode(), ns3::MeshWifiInterfaceMac::CheckSupportedRates(), ns3::IdealWifiManager::DoGetRtsMode(), GetNonUnicastMode(), ns3::ApWifiMac::GetSupportedRates(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), and ns3::ApWifiMac::Receive().

Here is the caller graph for this function:

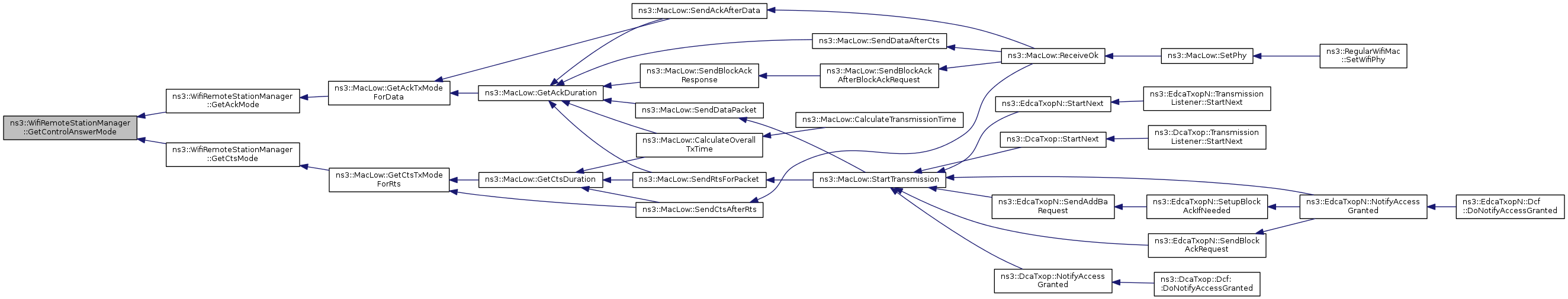

WifiMode ns3::WifiRemoteStationManager::GetControlAnswerMode	(	Mac48Address	address,
		WifiMode	reqMode
	)

private

The standard has relatively unambiguous rules for selecting a control response rate (the below is quoted from IEEE 802.11-2007, Section 9.6):

To allow the transmitting STA to calculate the contents of the Duration/ID field, a STA responding to a received frame shall transmit its Control Response frame (either CTS or ACK), other than the BlockAck control frame, at the highest rate in the BSSBasicRateSet parameter that is less than or equal to the rate of the immediately previous frame in the frame exchange sequence (as defined in 9.12) and that is of the same modulation class (see 9.6.1) as the received frame...

If no suitable basic rate was found, we search the mandatory rates. The standard (IEEE 802.11-2007, Section 9.6) says:

...If no rate contained in the BSSBasicRateSet parameter meets these conditions, then the control frame sent in response to a received frame shall be transmitted at the highest mandatory rate of the PHY that is less than or equal to the rate of the received frame, and that is of the same modulation class as the received frame. In addition, the Control Response frame shall be sent using the same PHY options as the received frame, unless they conflict with the requirement to use the BSSBasicRateSet parameter.

TODO: Note that we're ignoring the last sentence for now, because there is not yet any manipulation here of PHY options.

If we still haven't found a suitable rate for the response then someone has messed up the simulation config. This probably means that the WifiPhyStandard is not set correctly, or that a rate that is not supported by the PHY has been explicitly requested in a WifiRemoteStationManager (or descendant) configuration.

Either way, it is serious - we can either disobey the standard or fail, and I have chosen to do the latter...

Definition at line 545 of file wifi-remote-station-manager.cc.

References GetDefaultMode(), ns3::WifiPhy::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::WifiPhy::GetNModes(), ns3::WifiMode::GetPhyRate(), ns3::WifiMode::IsMandatory(), m_bssBasicRateSet, m_wifiPhy, and NS_FATAL_ERROR.

Referenced by GetAckMode(), and GetCtsMode().

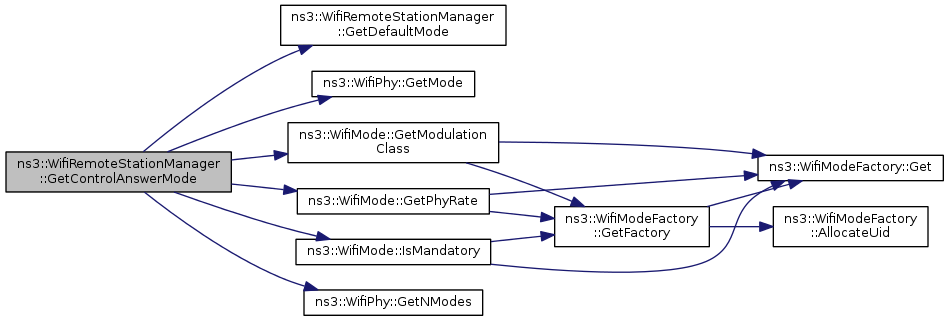

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetCtsMode	(	Mac48Address	address,
		WifiMode	rtsMode
	)

Parameters

address	remote address
rtsMode	the transmission mode used to send an RTS we just received

Returns: the transmission mode to use for the CTS to complete the RTS/CTS handshake.

Definition at line 651 of file wifi-remote-station-manager.cc.

References GetControlAnswerMode(), ns3::Mac48Address::IsGroup(), and NS_ASSERT.

Referenced by ns3::MacLow::GetCtsTxModeForRts().

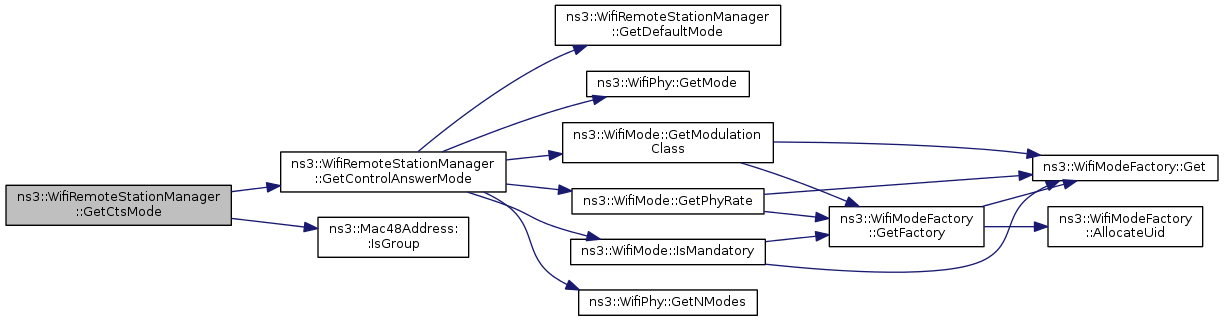

Here is the call graph for this function:

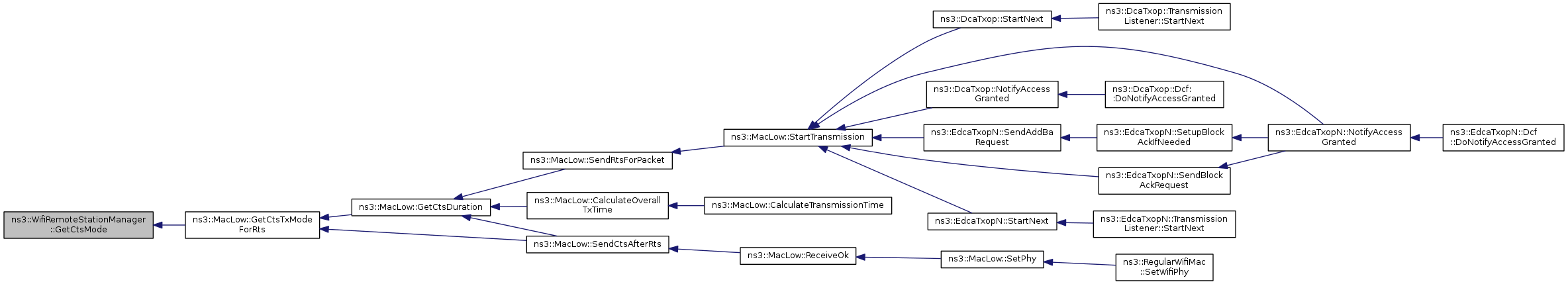

Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetDataMode	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet,
		uint32_t	fullPacketSize
	)

Parameters

address	remote address
header	MAC header
packet	the packet to send
fullPacketSize	the size of the packet after its 802.11 MAC header has been added.

Returns: the transmission mode to use to send this packet

Definition at line 358 of file wifi-remote-station-manager.cc.

References DoGetDataMode(), ns3::TxModeTag::GetDataMode(), GetNonUnicastMode(), ns3::Mac48Address::IsGroup(), IsLowLatency(), Lookup(), and NS_ASSERT.

Referenced by ns3::dot11s::AirtimeLinkMetricCalculator::CalculateMetric(), and ns3::MacLow::GetDataTxMode().

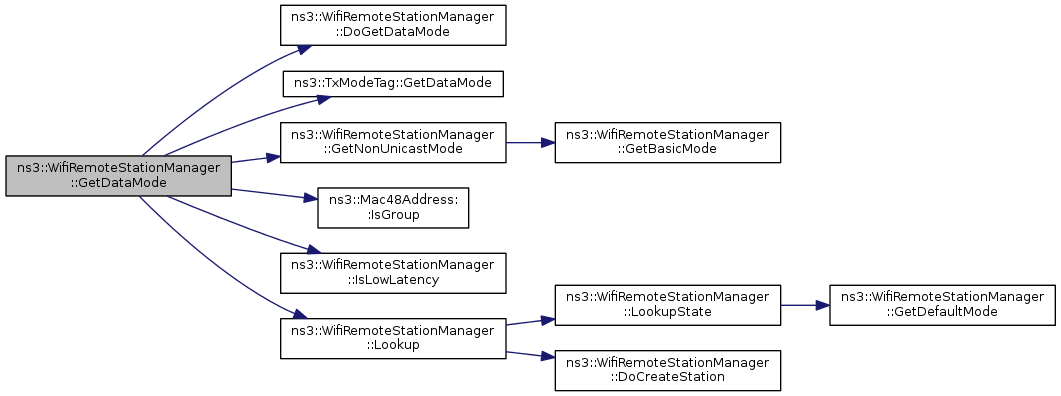

Here is the call graph for this function:

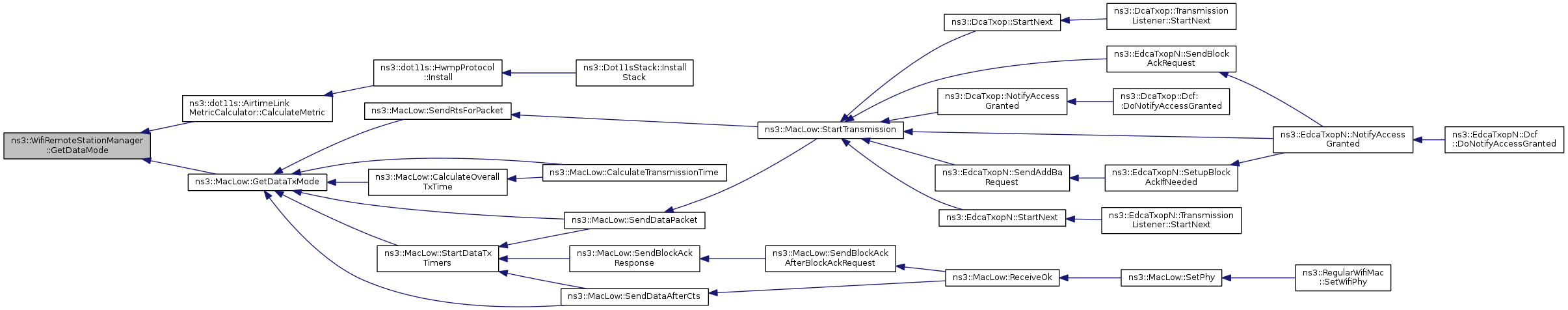

Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetDefaultMode ( void ) const

Definition at line 726 of file wifi-remote-station-manager.cc.

References m_defaultTxMode.

Referenced by ns3::IdealWifiManager::DoGetDataMode(), ns3::IdealWifiManager::DoGetRtsMode(), GetControlAnswerMode(), LookupState(), and Reset().

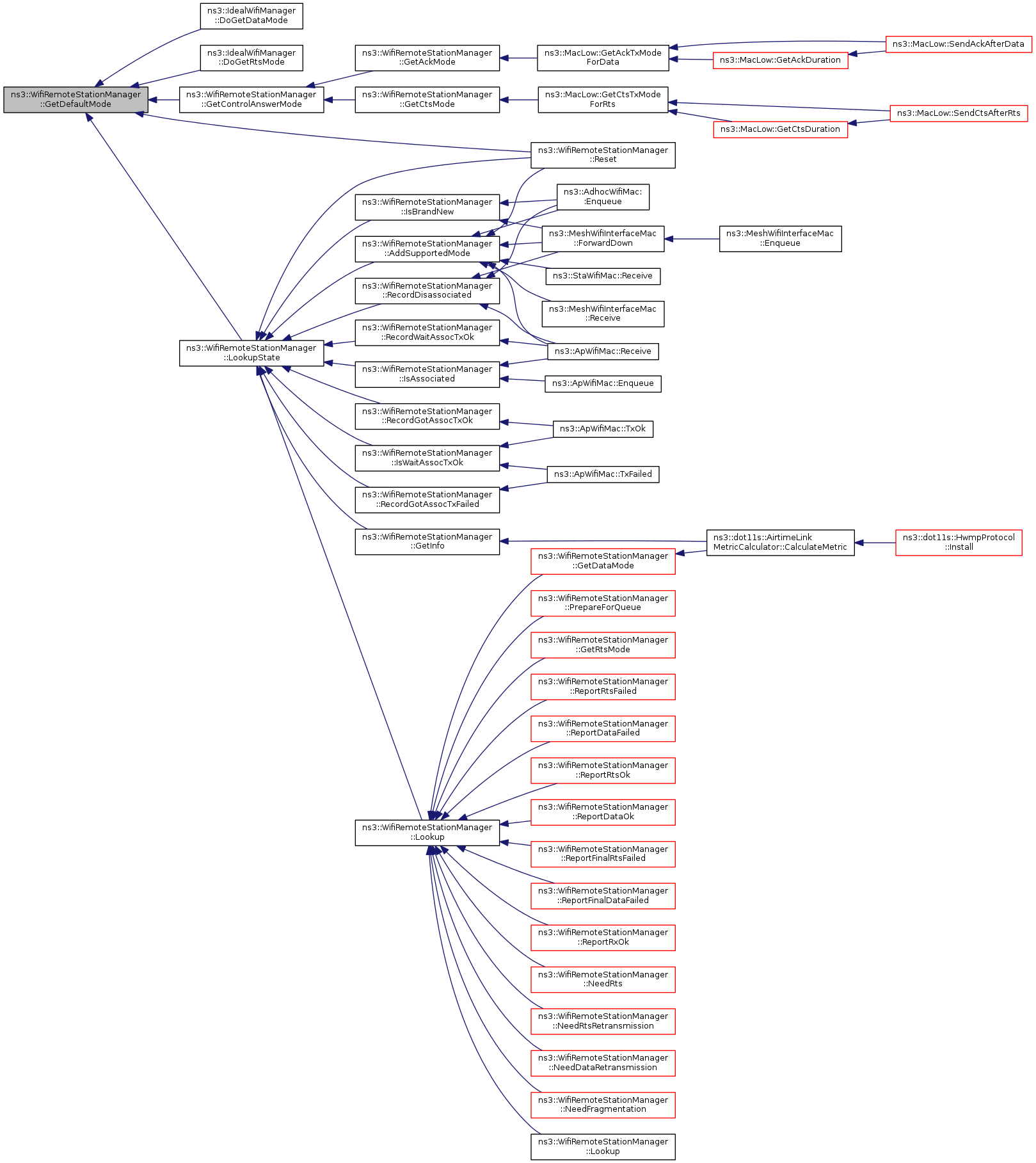

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetFragmentationThreshold ( void ) const

Definition at line 240 of file wifi-remote-station-manager.cc.

References m_fragmentationThreshold.

Referenced by GetFragmentOffset(), GetFragmentSize(), GetNFragments(), and NeedFragmentation().

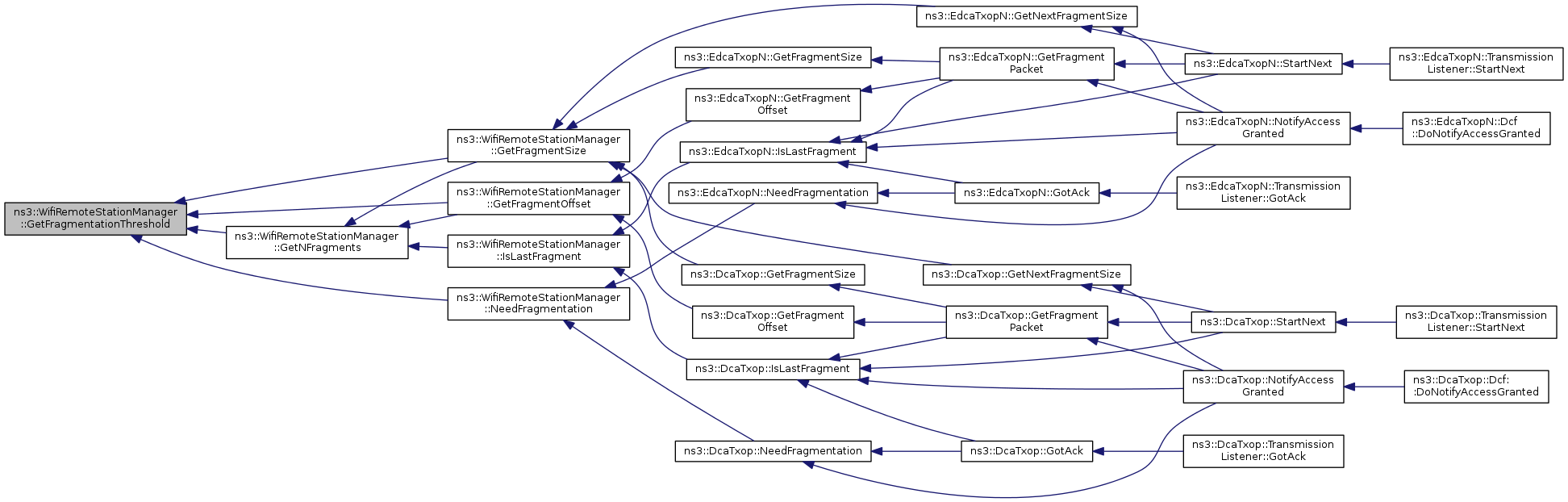

Here is the caller graph for this function:

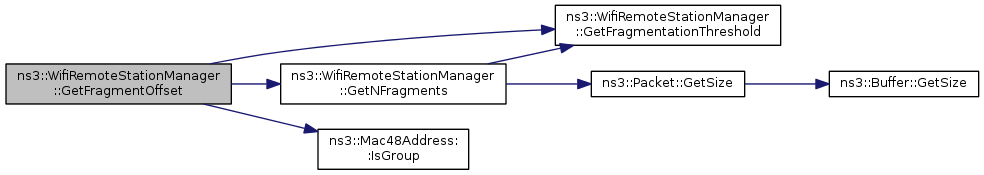

uint32_t ns3::WifiRemoteStationManager::GetFragmentOffset	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet,
		uint32_t	fragmentNumber
	)

Parameters

address	remote address
header	MAC header
packet	the packet to send
fragmentNumber	the fragment index of the next fragment to send (starts at zero).

Returns: the offset within the original packet where this fragment starts.

Definition at line 528 of file wifi-remote-station-manager.cc.

References GetFragmentationThreshold(), GetNFragments(), ns3::Mac48Address::IsGroup(), and NS_ASSERT.

Referenced by ns3::EdcaTxopN::GetFragmentOffset(), and ns3::DcaTxop::GetFragmentOffset().

Here is the call graph for this function:

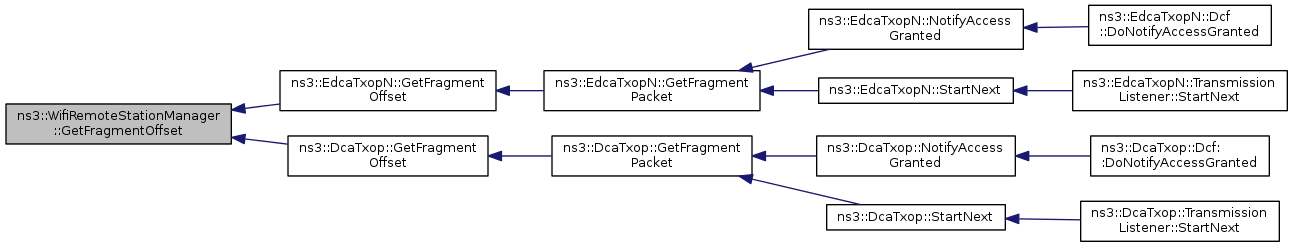

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetFragmentSize	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet,
		uint32_t	fragmentNumber
	)

Parameters

address	remote address
header	MAC header
packet	the packet to send
fragmentNumber	the fragment index of the next fragment to send (starts at zero).

Returns: the size of the corresponding fragment.

Definition at line 508 of file wifi-remote-station-manager.cc.

References GetFragmentationThreshold(), GetNFragments(), ns3::Packet::GetSize(), ns3::Mac48Address::IsGroup(), and NS_ASSERT.

Referenced by ns3::EdcaTxopN::GetFragmentSize(), ns3::DcaTxop::GetFragmentSize(), ns3::EdcaTxopN::GetNextFragmentSize(), and ns3::DcaTxop::GetNextFragmentSize().

Here is the call graph for this function:

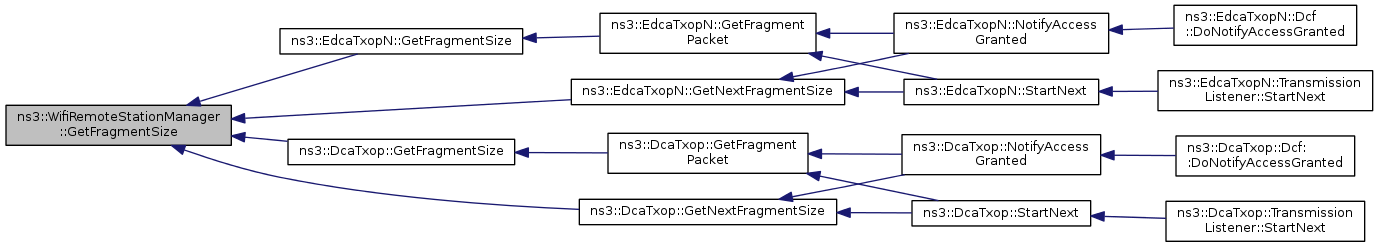

Here is the caller graph for this function:

WifiRemoteStationInfo ns3::WifiRemoteStationManager::GetInfo ( Mac48Address address )

Definition at line 664 of file wifi-remote-station-manager.cc.

References LookupState(), and ns3::WifiRemoteStationState::m_info.

Referenced by ns3::dot11s::AirtimeLinkMetricCalculator::CalculateMetric().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetMaxSlrc ( void ) const

Definition at line 230 of file wifi-remote-station-manager.cc.

References m_maxSlrc.

Referenced by NeedDataRetransmission().

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetMaxSsrc ( void ) const

Definition at line 225 of file wifi-remote-station-manager.cc.

References m_maxSsrc.

Referenced by NeedRtsRetransmission().

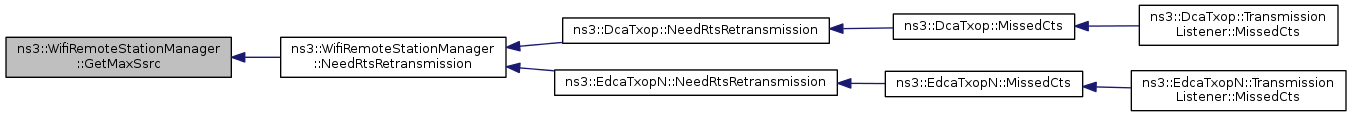

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNBasicModes ( void ) const

Definition at line 755 of file wifi-remote-station-manager.cc.

References m_bssBasicRateSet.

Referenced by AddBasicMode(), ns3::MeshWifiInterfaceMac::CheckSupportedRates(), ns3::IdealWifiManager::DoGetRtsMode(), ns3::ApWifiMac::GetSupportedRates(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), and ns3::ApWifiMac::Receive().

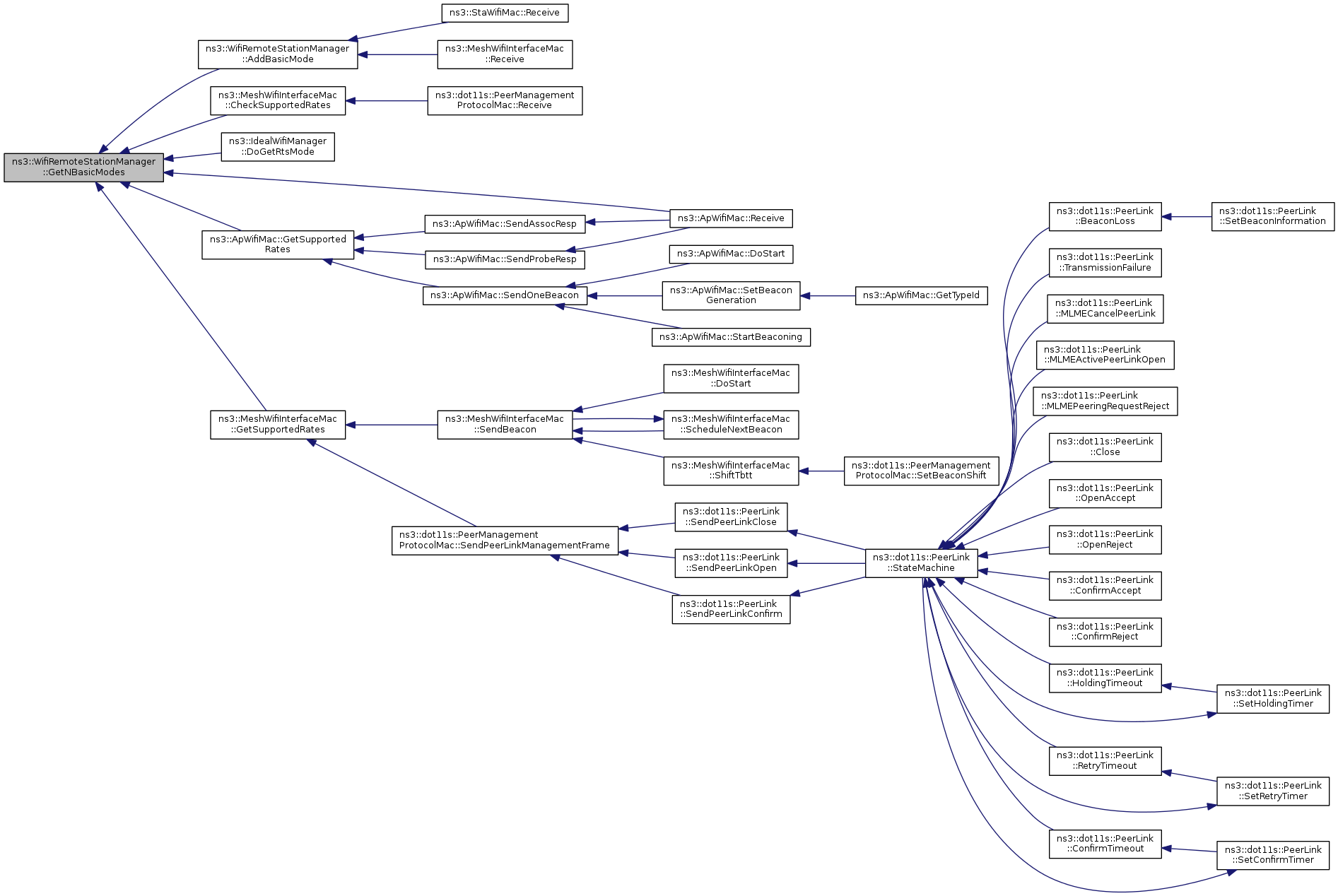

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNFragments ( Ptr< const Packet > packet )

private

Definition at line 501 of file wifi-remote-station-manager.cc.

References GetFragmentationThreshold(), and ns3::Packet::GetSize().

Referenced by GetFragmentOffset(), GetFragmentSize(), and IsLastFragment().

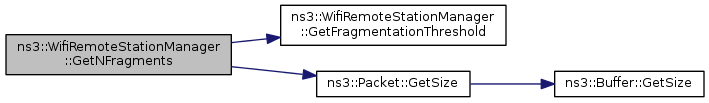

Here is the call graph for this function:

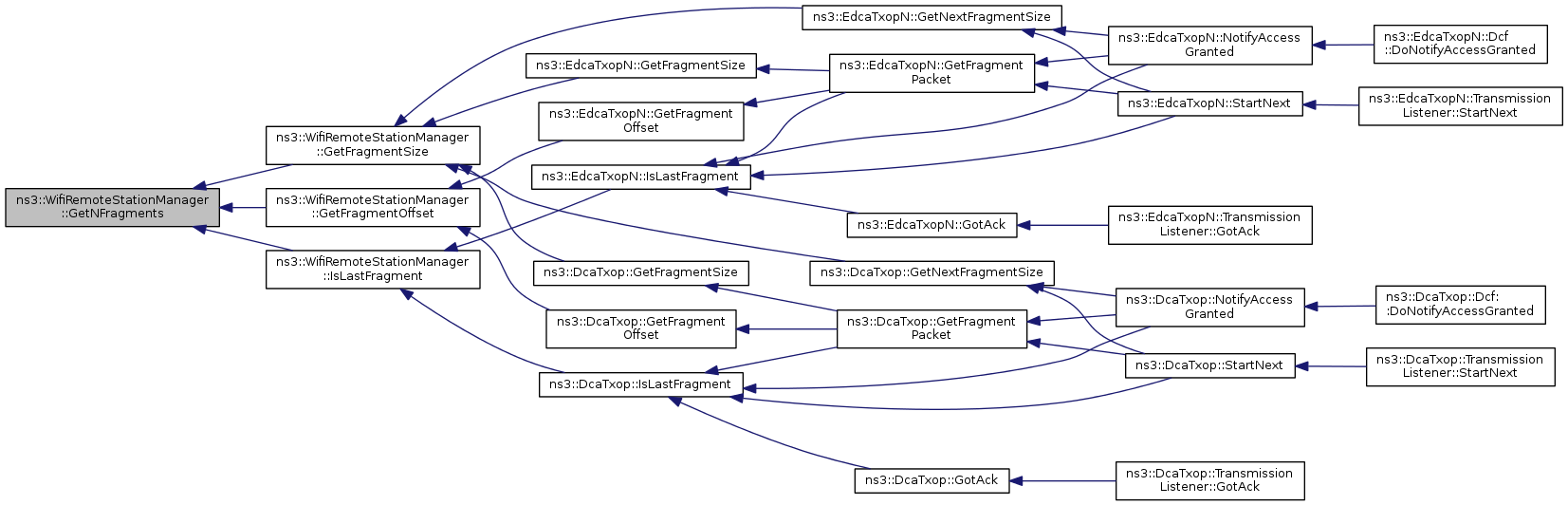

Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetNonUnicastMode ( void ) const

Definition at line 766 of file wifi-remote-station-manager.cc.

References GetBasicMode(), and m_nonUnicastMode.

Referenced by GetDataMode().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetNSupported ( const WifiRemoteStation * station ) const

protected

Definition at line 810 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::m_operationalRateSet, and ns3::WifiRemoteStation::m_state.

Referenced by ns3::MinstrelWifiManager::CheckInit(), ns3::AmrrWifiManager::DoGetDataMode(), ns3::OnoeWifiManager::DoGetDataMode(), ns3::IdealWifiManager::DoGetDataMode(), ns3::AarfWifiManager::DoReportDataOk(), ns3::AarfcdWifiManager::DoReportDataOk(), ns3::CaraWifiManager::DoReportDataOk(), ns3::RraaWifiManager::GetMaxRate(), GetSupported(), ns3::AmrrWifiManager::IncreaseRate(), ns3::AmrrWifiManager::IsMaxRate(), ns3::AmrrWifiManager::UpdateMode(), and ns3::OnoeWifiManager::UpdateMode().

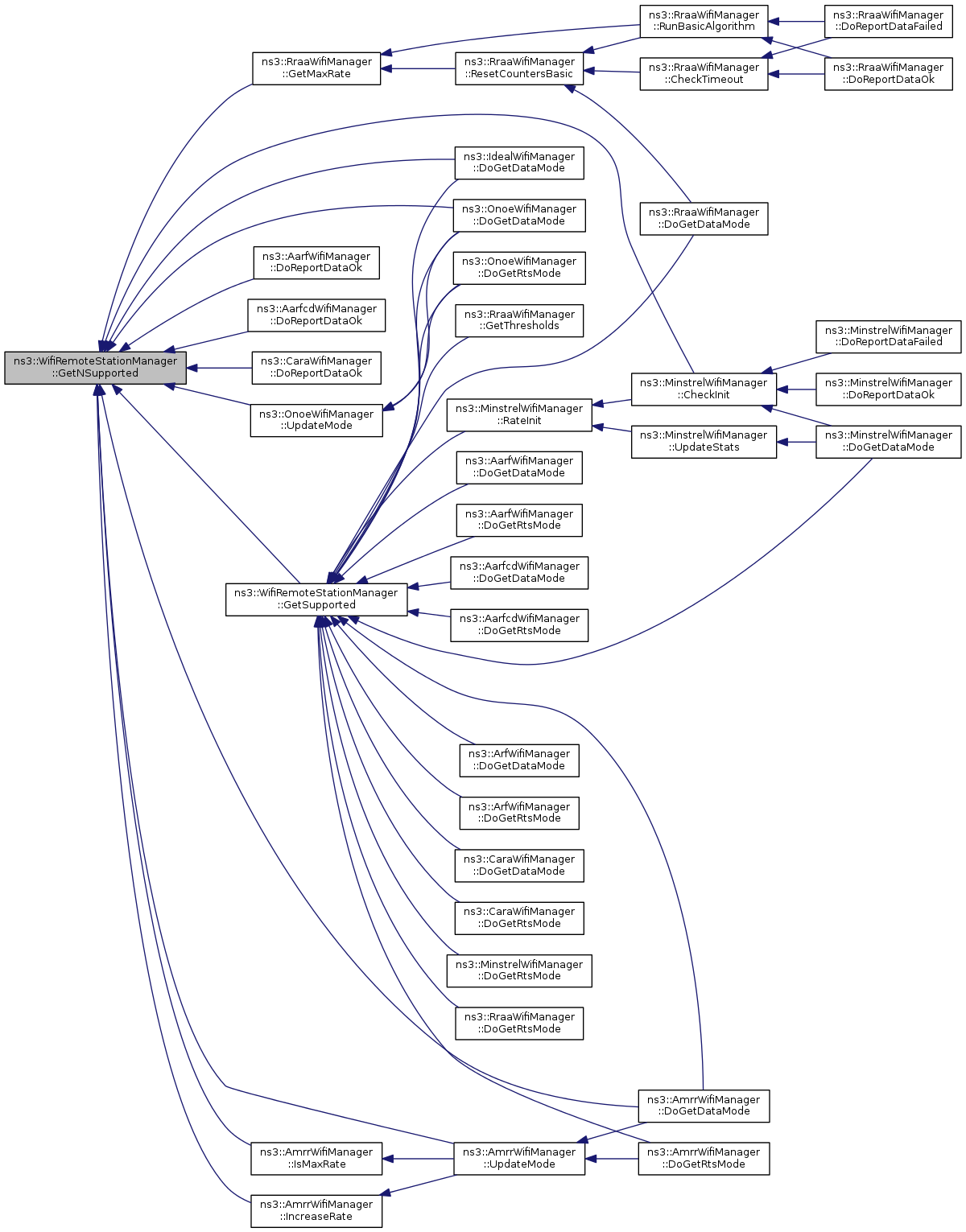

Here is the caller graph for this function:

uint32_t ns3::WifiRemoteStationManager::GetRtsCtsThreshold ( void ) const

Definition at line 235 of file wifi-remote-station-manager.cc.

References m_rtsCtsThreshold.

Referenced by NeedRts().

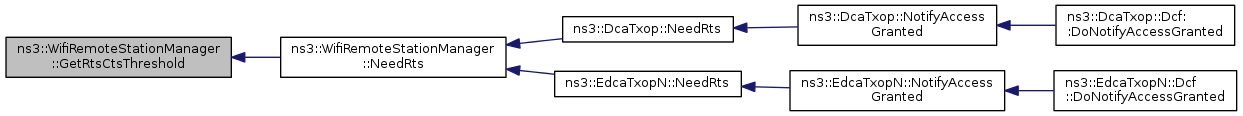

Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetRtsMode	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet
	)

Parameters

address	remote address
header	MAC header
packet	the packet to send

Returns: the transmission mode to use to send the RTS prior to the transmission of the data packet itself.

Definition at line 376 of file wifi-remote-station-manager.cc.

References DoGetRtsMode(), ns3::TxModeTag::GetRtsMode(), ns3::Mac48Address::IsGroup(), IsLowLatency(), Lookup(), and NS_ASSERT.

Referenced by ns3::MacLow::GetRtsTxMode().

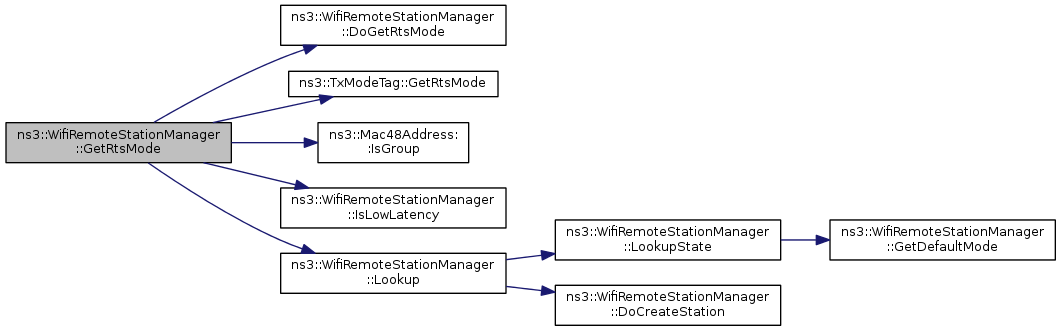

Here is the call graph for this function:

Here is the caller graph for this function:

WifiMode ns3::WifiRemoteStationManager::GetSupported	(	const WifiRemoteStation *	station,
		uint32_t	i
	)		const

protected

Definition at line 804 of file wifi-remote-station-manager.cc.

References GetNSupported(), ns3::WifiRemoteStationState::m_operationalRateSet, ns3::WifiRemoteStation::m_state, and NS_ASSERT.

Referenced by ns3::AarfWifiManager::DoGetDataMode(), ns3::CaraWifiManager::DoGetDataMode(), ns3::AarfcdWifiManager::DoGetDataMode(), ns3::AmrrWifiManager::DoGetDataMode(), ns3::OnoeWifiManager::DoGetDataMode(), ns3::ArfWifiManager::DoGetDataMode(), ns3::IdealWifiManager::DoGetDataMode(), ns3::RraaWifiManager::DoGetDataMode(), ns3::MinstrelWifiManager::DoGetDataMode(), ns3::AarfWifiManager::DoGetRtsMode(), ns3::AarfcdWifiManager::DoGetRtsMode(), ns3::CaraWifiManager::DoGetRtsMode(), ns3::AmrrWifiManager::DoGetRtsMode(), ns3::OnoeWifiManager::DoGetRtsMode(), ns3::ArfWifiManager::DoGetRtsMode(), ns3::RraaWifiManager::DoGetRtsMode(), ns3::MinstrelWifiManager::DoGetRtsMode(), ns3::RraaWifiManager::GetThresholds(), and ns3::MinstrelWifiManager::RateInit().

Here is the call graph for this function:

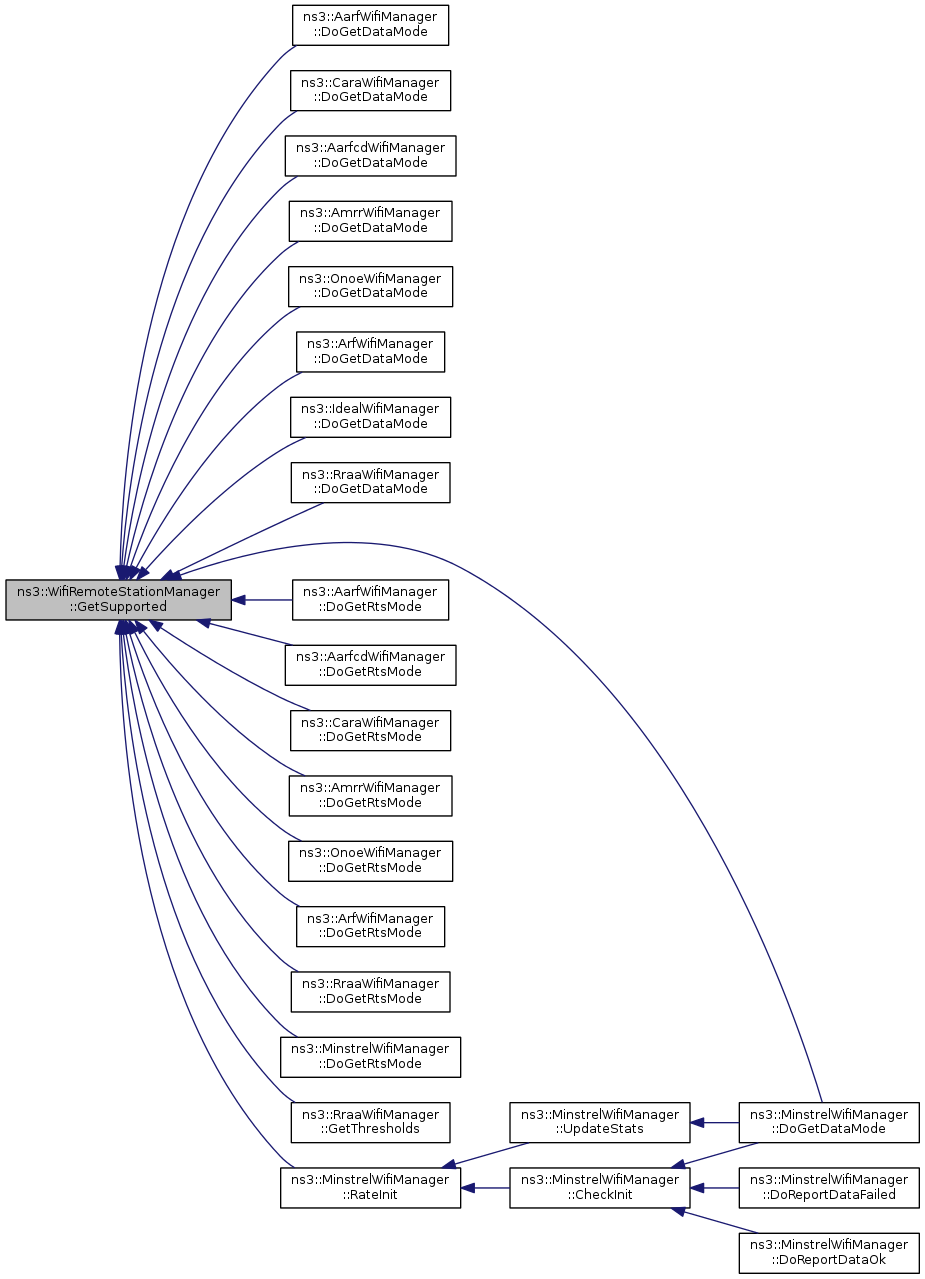

Here is the caller graph for this function:

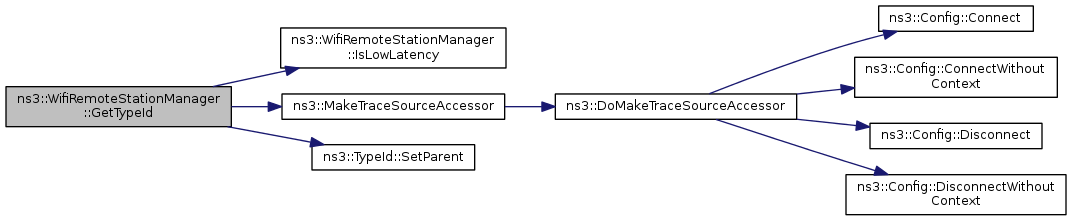

TypeId ns3::WifiRemoteStationManager::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::WifiRemoteStationManager.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManager

Attributes defined for this type:

IsLowLatency: If true, we attempt to modelize a so-called low-latency device: a device where decisions about tx parameters can be made on a per-packet basis and feedback about the transmission of each packet is obtained before sending the next. Otherwise, we modelize a high-latency device, that is a device where we cannot update our decision about tx parameters after every packet transmission.
- Set with class: BooleanValue
- Underlying type: bool
- Flags: read
MaxSsrc: The maximum number of retransmission attempts for an RTS. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 7
- Flags: construct write read
MaxSlrc: The maximum number of retransmission attempts for a DATA packet. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 7
- Flags: construct write read
RtsCtsThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is bigger than this value, we use an RTS/CTS handshake before sending the data, as per IEEE Std. 802.11-2007, Section 9.2.6. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2346
- Flags: construct write read
FragmentationThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is biggerthan this value, we fragment it such that the size of the fragments are equal or smaller than this value, as per IEEE Std. 802.11-2007, Section 9.4. This value will not have any effect on some rate control algorithms.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2346
- Flags: construct write read
NonUnicastMode: Wifi mode used for non-unicast transmissions.
- Set with class: WifiModeValue
- Underlying type: WifiMode
- Initial value: Invalid-WifiMode
- Flags: construct write read

TraceSources defined for this type:

MacTxRtsFailed: The transmission of a RTS by the MAC layer has failed
MacTxDataFailed: The transmission of a data packet by the MAC layer has failed
MacTxFinalRtsFailed: The transmission of a RTS has exceeded the maximum number of attempts
MacTxFinalDataFailed: The transmission of a data packet has exceeded the maximum number of attempts

Reimplemented from ns3::Object.

Reimplemented in ns3::MinstrelWifiManager, ns3::IdealWifiManager, ns3::ArfWifiManager, ns3::OnoeWifiManager, ns3::AmrrWifiManager, ns3::RraaWifiManager, ns3::AarfcdWifiManager, ns3::CaraWifiManager, ns3::AarfWifiManager, and ns3::ConstantRateWifiManager.

Definition at line 135 of file wifi-remote-station-manager.cc.

References IsLowLatency(), m_fragmentationThreshold, m_macTxDataFailed, m_macTxFinalDataFailed, m_macTxFinalRtsFailed, m_macTxRtsFailed, m_maxSlrc, m_maxSsrc, m_nonUnicastMode, m_rtsCtsThreshold, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::WifiRemoteStationManager::IsAssociated ( Mac48Address address ) const

Definition at line 298 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::GOT_ASSOC_TX_OK, ns3::Mac48Address::IsGroup(), LookupState(), and ns3::WifiRemoteStationState::m_state.

Referenced by ns3::ApWifiMac::Enqueue(), and ns3::ApWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::IsBrandNew ( Mac48Address address ) const

Definition at line 289 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::BRAND_NEW, ns3::Mac48Address::IsGroup(), LookupState(), and ns3::WifiRemoteStationState::m_state.

Referenced by ns3::AdhocWifiMac::Enqueue(), and ns3::MeshWifiInterfaceMac::ForwardDown().

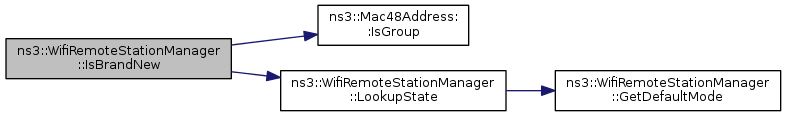

Here is the call graph for this function:

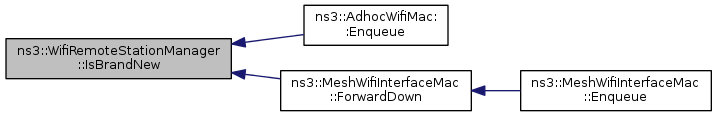

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::IsLastFragment	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet,
		uint32_t	fragmentNumber
	)

Parameters

address	remote address
header	MAC header
packet	the packet to send
fragmentNumber	the fragment index of the next fragment to send (starts at zero).

Returns: true if this is the last fragment, false otherwise.

Definition at line 537 of file wifi-remote-station-manager.cc.

References GetNFragments(), ns3::Mac48Address::IsGroup(), and NS_ASSERT.

Referenced by ns3::EdcaTxopN::IsLastFragment(), and ns3::DcaTxop::IsLastFragment().

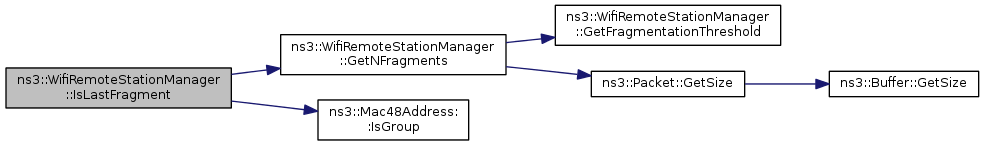

Here is the call graph for this function:

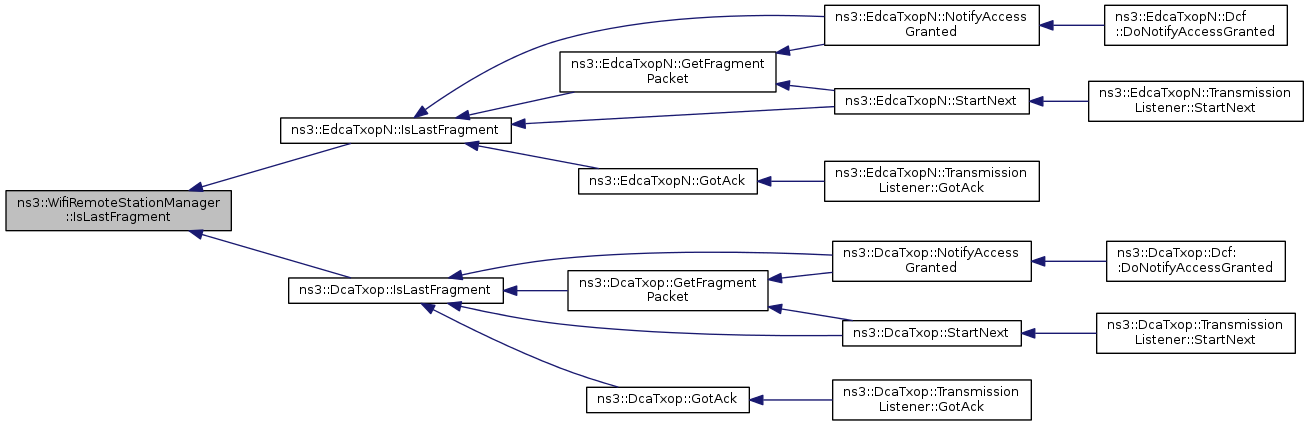

Here is the caller graph for this function:

virtual bool ns3::WifiRemoteStationManager::IsLowLatency ( void ) const

privatepure virtual

Returns: whether this manager is a manager designed to work in low-latency environments.

Note: In this context, low vs high latency is defined in IEEE 802.11 Rate Adaptation: A Practical Approach, by M. Lacage, M.H. Manshaei, and T. Turletti.

Referenced by GetDataMode(), GetRtsMode(), GetTypeId(), and PrepareForQueue().

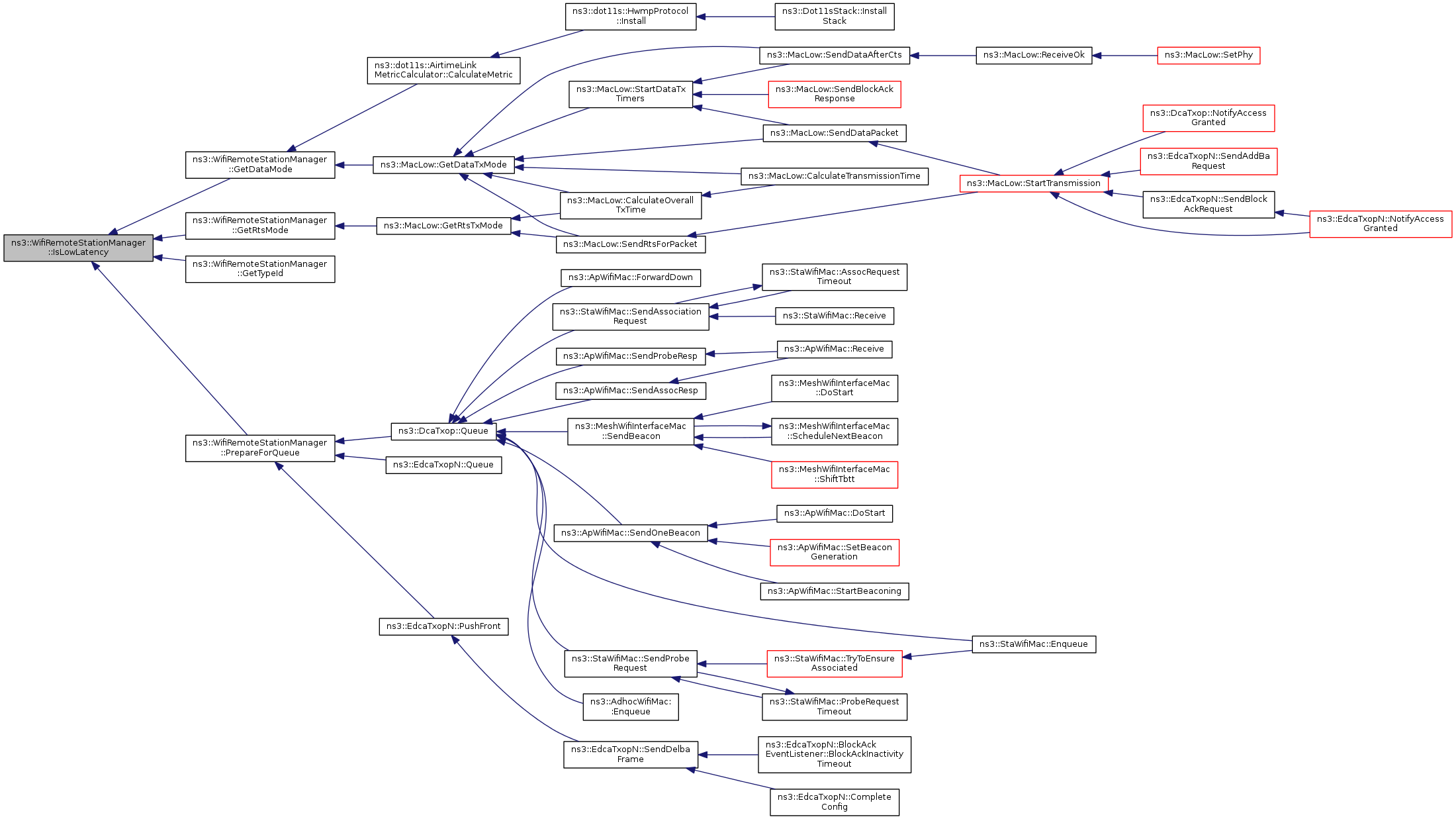

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::IsWaitAssocTxOk ( Mac48Address address ) const

Definition at line 307 of file wifi-remote-station-manager.cc.

References ns3::Mac48Address::IsGroup(), LookupState(), ns3::WifiRemoteStationState::m_state, and ns3::WifiRemoteStationState::WAIT_ASSOC_TX_OK.

Referenced by ns3::ApWifiMac::TxFailed(), and ns3::ApWifiMac::TxOk().

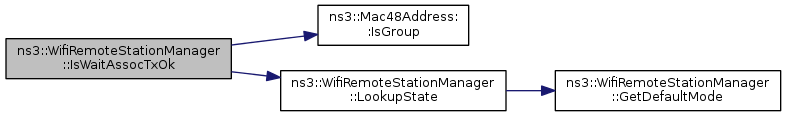

Here is the call graph for this function:

Here is the caller graph for this function:

WifiRemoteStation * ns3::WifiRemoteStationManager::Lookup	(	Mac48Address	address,
		uint8_t	tid
	)		const

private

Definition at line 702 of file wifi-remote-station-manager.cc.

References DoCreateStation(), LookupState(), ns3::WifiRemoteStation::m_slrc, ns3::WifiRemoteStation::m_ssrc, ns3::WifiRemoteStation::m_state, m_stations, and ns3::WifiRemoteStation::m_tid.

Referenced by GetDataMode(), GetRtsMode(), Lookup(), NeedDataRetransmission(), NeedFragmentation(), NeedRts(), NeedRtsRetransmission(), PrepareForQueue(), ReportDataFailed(), ReportDataOk(), ReportFinalDataFailed(), ReportFinalRtsFailed(), ReportRtsFailed(), ReportRtsOk(), and ReportRxOk().

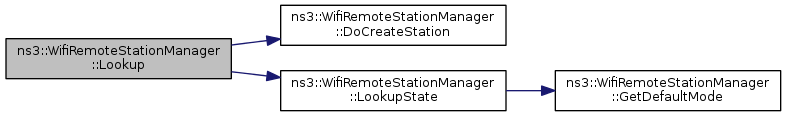

Here is the call graph for this function:

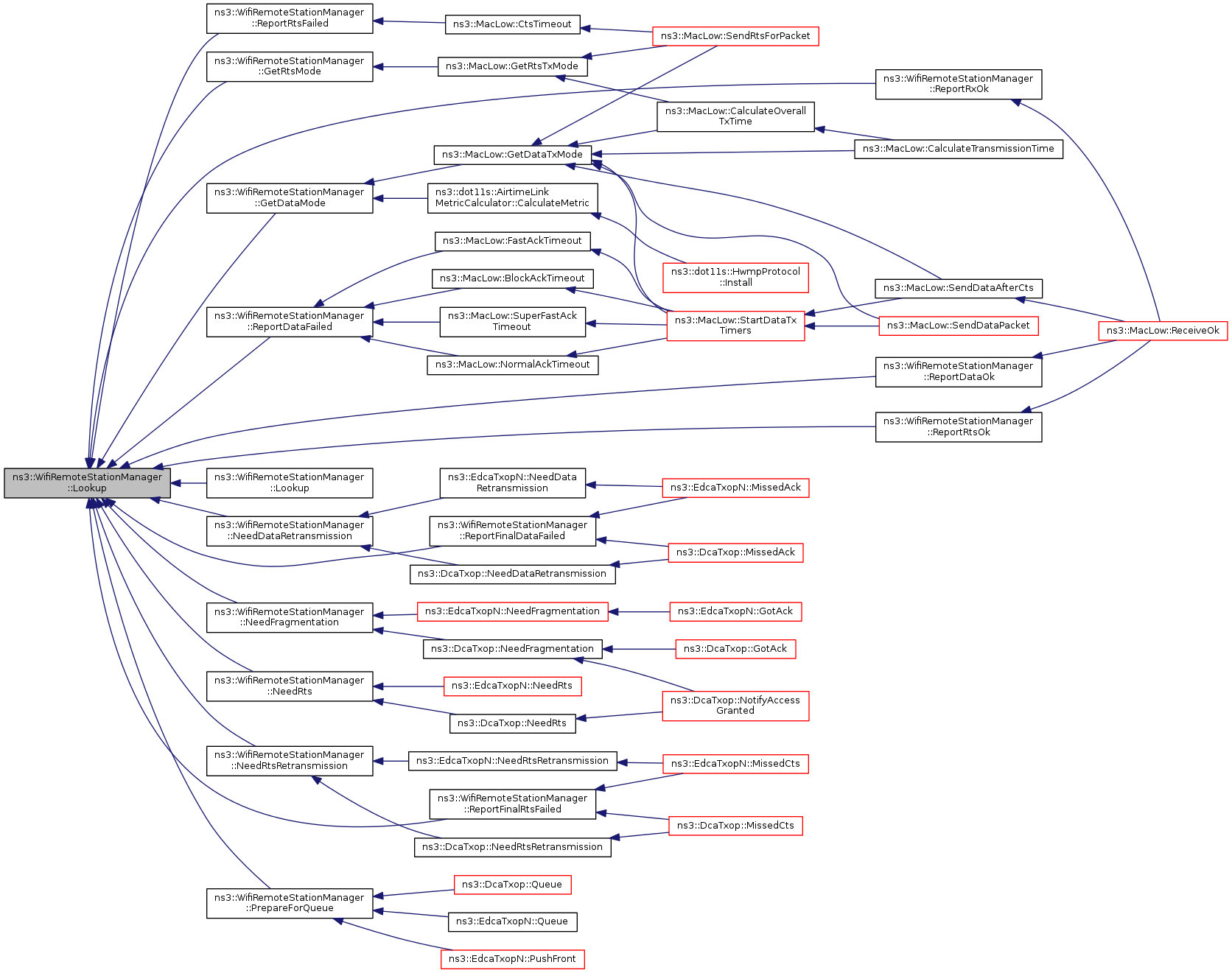

Here is the caller graph for this function:

WifiRemoteStation * ns3::WifiRemoteStationManager::Lookup	(	Mac48Address	address,
		const WifiMacHeader *	header
	)		const

private

Find a remote station by its remote address and TID taken from MAC header.

Definition at line 688 of file wifi-remote-station-manager.cc.

References ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::IsQosData(), and Lookup().

Here is the call graph for this function:

WifiRemoteStationState * ns3::WifiRemoteStationManager::LookupState ( Mac48Address address ) const

private

Definition at line 671 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::BRAND_NEW, GetDefaultMode(), ns3::WifiRemoteStationState::m_address, ns3::WifiRemoteStationState::m_operationalRateSet, ns3::WifiRemoteStationState::m_state, and m_states.

Referenced by AddSupportedMode(), GetInfo(), IsAssociated(), IsBrandNew(), IsWaitAssocTxOk(), Lookup(), RecordDisassociated(), RecordGotAssocTxFailed(), RecordGotAssocTxOk(), RecordWaitAssocTxOk(), and Reset().

Here is the call graph for this function:

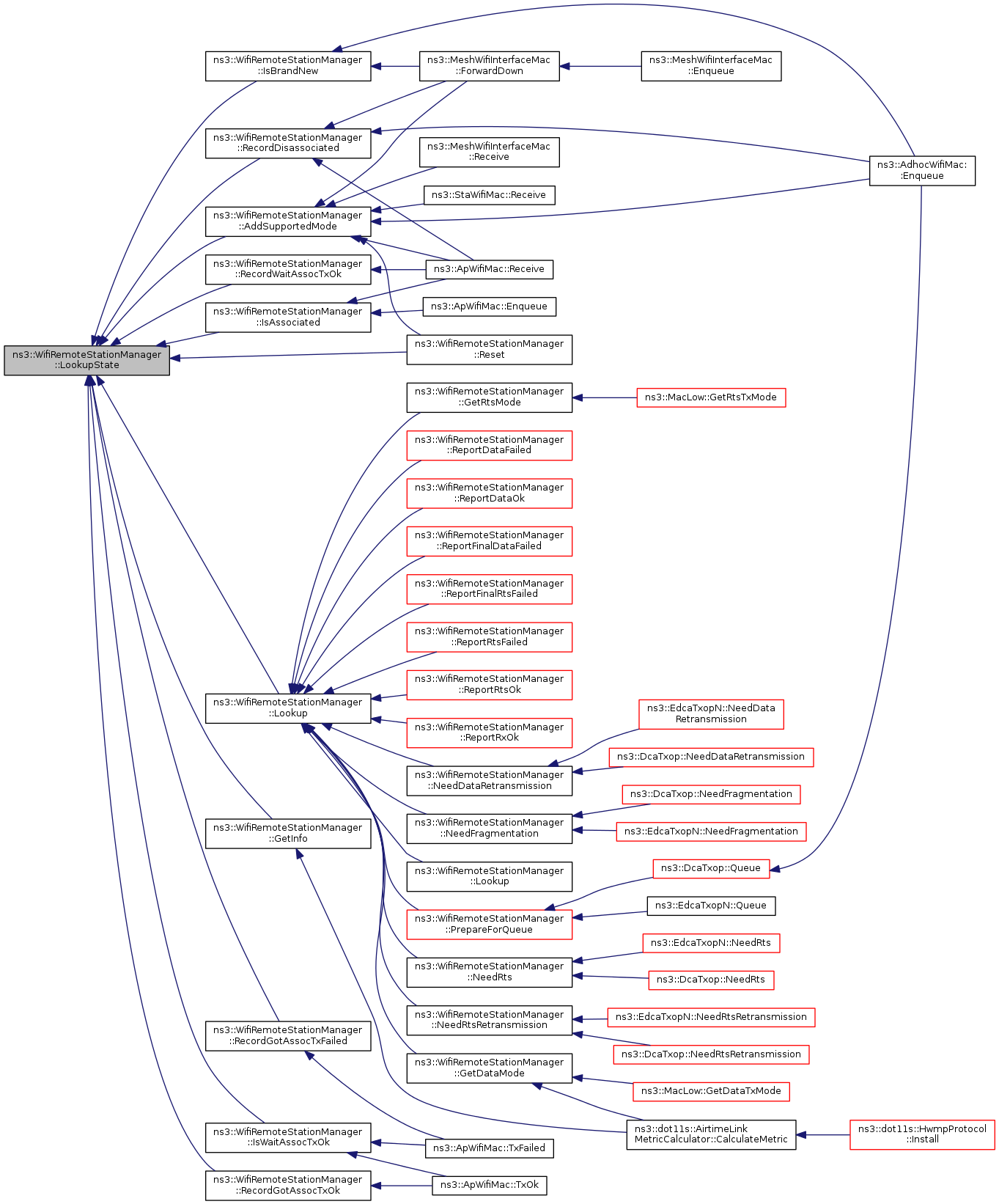

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::NeedDataRetransmission	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet
	)

Parameters

address	remote address
header	MAC header
packet	the packet to send

Returns: true if we want to resend a packet after a failed transmission attempt, false otherwise.

Definition at line 480 of file wifi-remote-station-manager.cc.

References DoNeedDataRetransmission(), GetMaxSlrc(), ns3::Mac48Address::IsGroup(), Lookup(), and NS_ASSERT.

Referenced by ns3::EdcaTxopN::NeedDataRetransmission(), and ns3::DcaTxop::NeedDataRetransmission().

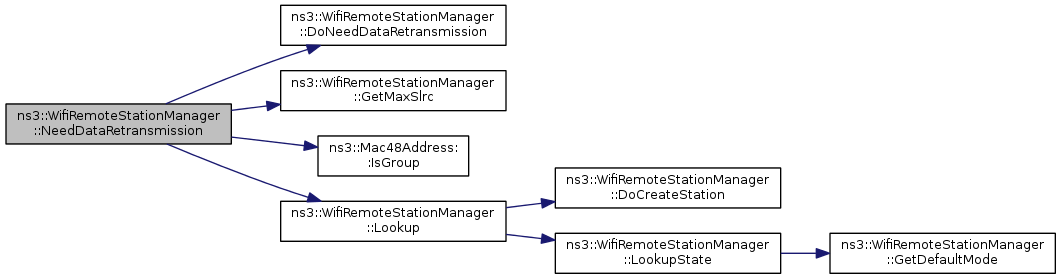

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::NeedFragmentation	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet
	)

Parameters

address	remote address
header	MAC header
packet	the packet to send

Returns: true if this packet should be fragmented, false otherwise.

Definition at line 489 of file wifi-remote-station-manager.cc.

References DoNeedFragmentation(), GetFragmentationThreshold(), ns3::WifiMacHeader::GetSize(), ns3::Packet::GetSize(), ns3::Mac48Address::IsGroup(), Lookup(), and ns3::WIFI_MAC_FCS_LENGTH.

Referenced by ns3::EdcaTxopN::NeedFragmentation(), and ns3::DcaTxop::NeedFragmentation().

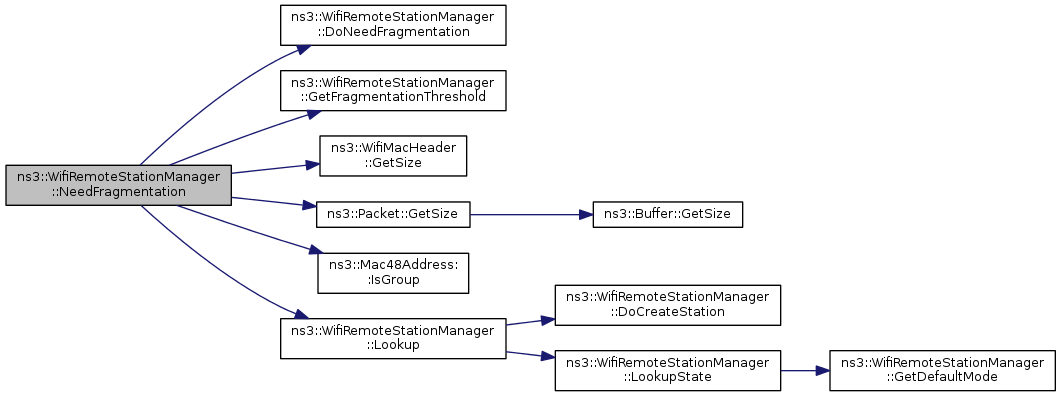

Here is the call graph for this function:

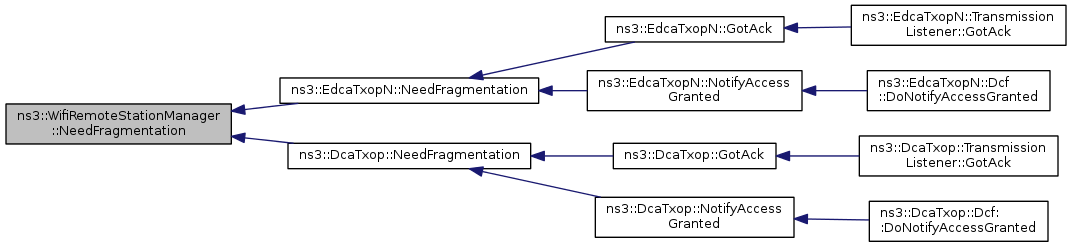

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::NeedRts	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet
	)

Parameters

address	remote address
header	MAC header
packet	the packet to send

Returns: true if we want to use an RTS/CTS handshake for this packet before sending it, false otherwise.

Definition at line 460 of file wifi-remote-station-manager.cc.

References DoNeedRts(), GetRtsCtsThreshold(), ns3::WifiMacHeader::GetSize(), ns3::Packet::GetSize(), ns3::Mac48Address::IsGroup(), Lookup(), and ns3::WIFI_MAC_FCS_LENGTH.

Referenced by ns3::EdcaTxopN::NeedRts(), and ns3::DcaTxop::NeedRts().

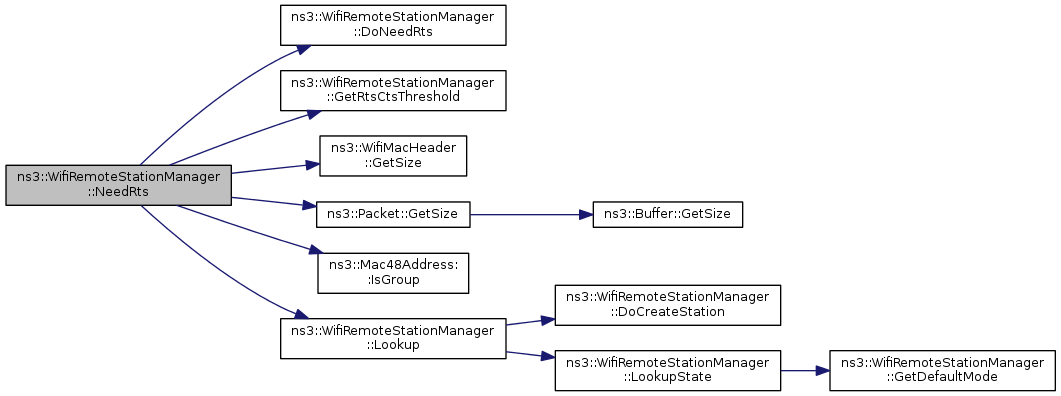

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiRemoteStationManager::NeedRtsRetransmission	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet
	)

Parameters

address	remote address
header	MAC header
packet	the packet to send

Returns: true if we want to restart a failed RTS/CTS handshake, false otherwise.

Definition at line 471 of file wifi-remote-station-manager.cc.

References DoNeedRtsRetransmission(), GetMaxSsrc(), ns3::Mac48Address::IsGroup(), Lookup(), and NS_ASSERT.

Referenced by ns3::EdcaTxopN::NeedRtsRetransmission(), and ns3::DcaTxop::NeedRtsRetransmission().

Here is the call graph for this function:

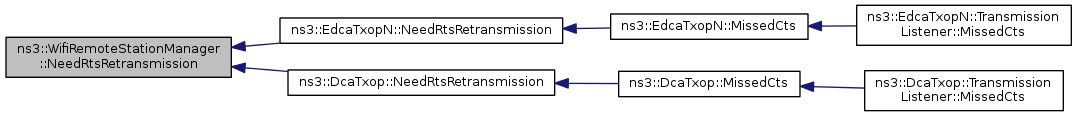

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::PrepareForQueue	(	Mac48Address	address,
		const WifiMacHeader *	header,
		Ptr< const Packet >	packet,
		uint32_t	fullPacketSize
	)

Parameters

address	remote address
header	MAC header
packet	the packet to queue
fullPacketSize	the size of the packet after its 802.11 MAC header has been added.

This method is typically invoked just before queuing a packet for transmission. It is a no-op unless the IsLowLatency attribute of the attached ns3::WifiRemoteStationManager is set to false, in which case, the tx parameters of the packet are calculated and stored in the packet as a tag. These tx parameters are later retrieved from GetDadaMode and GetRtsMode.

Definition at line 340 of file wifi-remote-station-manager.cc.

References ns3::Packet::AddPacketTag(), data, DoGetDataMode(), DoGetRtsMode(), ns3::Mac48Address::IsGroup(), IsLowLatency(), and Lookup().

Referenced by ns3::EdcaTxopN::PushFront(), ns3::DcaTxop::Queue(), and ns3::EdcaTxopN::Queue().

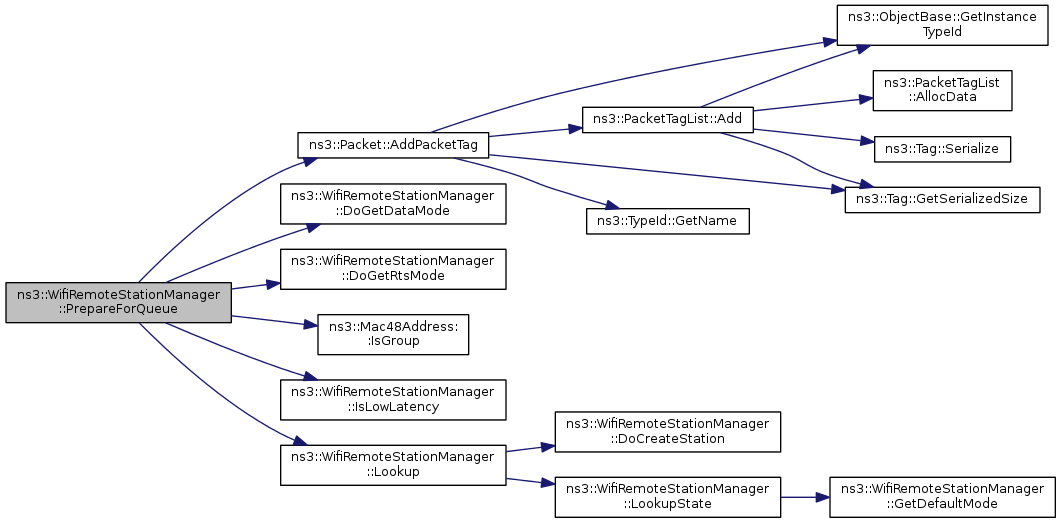

Here is the call graph for this function:

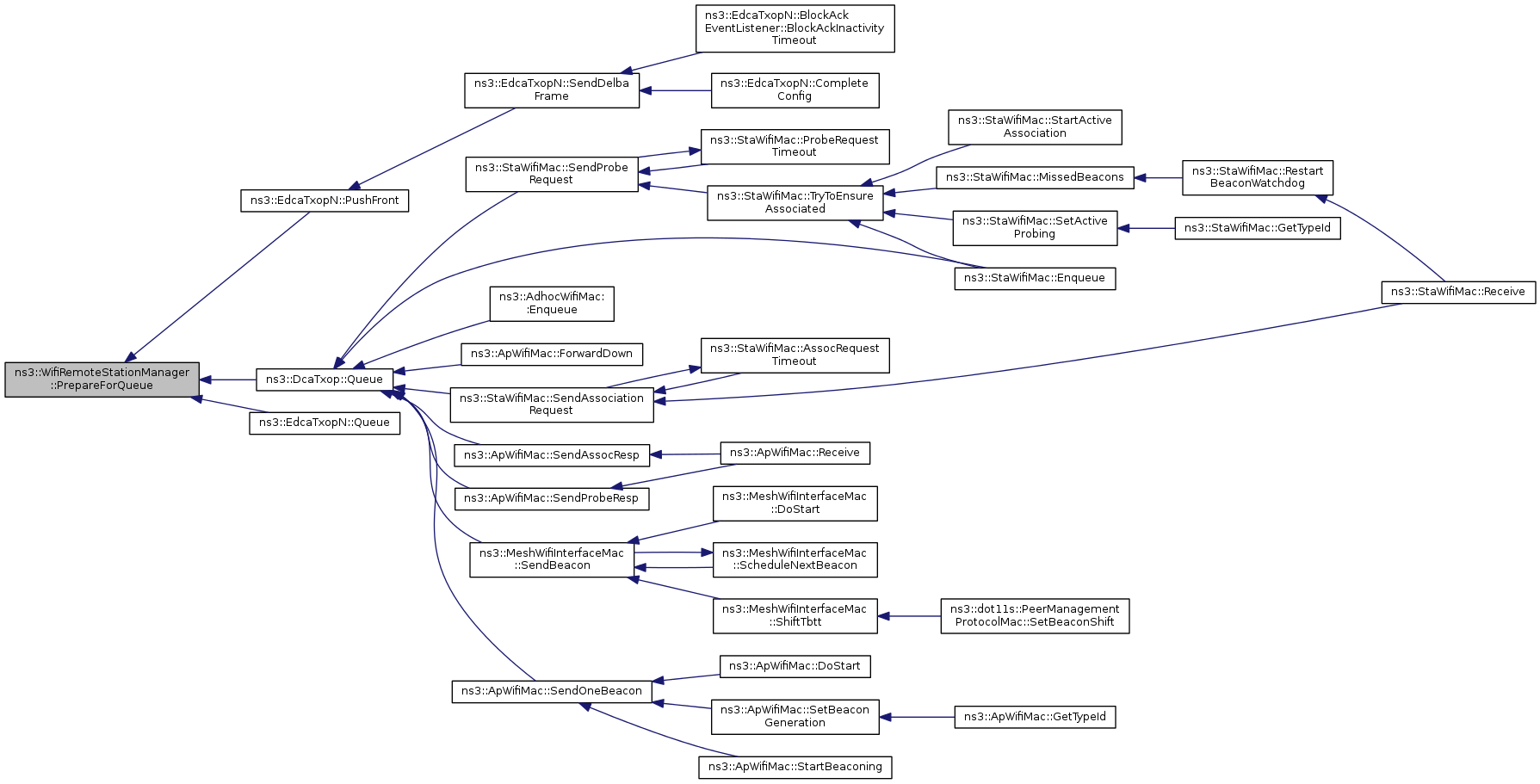

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::RecordDisassociated ( Mac48Address address )

Definition at line 334 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::DISASSOC, ns3::Mac48Address::IsGroup(), LookupState(), ns3::WifiRemoteStationState::m_state, and NS_ASSERT.

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), and ns3::ApWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::RecordGotAssocTxFailed ( Mac48Address address )

Definition at line 328 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::DISASSOC, ns3::Mac48Address::IsGroup(), LookupState(), ns3::WifiRemoteStationState::m_state, and NS_ASSERT.

Referenced by ns3::ApWifiMac::TxFailed().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::RecordGotAssocTxOk ( Mac48Address address )

Definition at line 322 of file wifi-remote-station-manager.cc.

References ns3::WifiRemoteStationState::GOT_ASSOC_TX_OK, ns3::Mac48Address::IsGroup(), LookupState(), ns3::WifiRemoteStationState::m_state, and NS_ASSERT.

Referenced by ns3::ApWifiMac::TxOk().

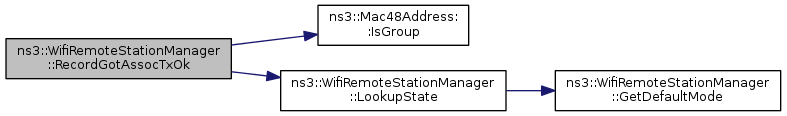

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::RecordWaitAssocTxOk ( Mac48Address address )

Definition at line 316 of file wifi-remote-station-manager.cc.

References ns3::Mac48Address::IsGroup(), LookupState(), ns3::WifiRemoteStationState::m_state, NS_ASSERT, and ns3::WifiRemoteStationState::WAIT_ASSOC_TX_OK.

Referenced by ns3::ApWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::ReportDataFailed	(	Mac48Address	address,
		const WifiMacHeader *	header
	)

Should be invoked whenever the AckTimeout associated to a transmission attempt expires.

Definition at line 400 of file wifi-remote-station-manager.cc.

References DoReportDataFailed(), ns3::Mac48Address::IsGroup(), Lookup(), m_macTxDataFailed, and NS_ASSERT.

Referenced by ns3::MacLow::BlockAckTimeout(), ns3::MacLow::FastAckTimeout(), ns3::MacLow::NormalAckTimeout(), and ns3::MacLow::SuperFastAckTimeout().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::ReportDataOk	(	Mac48Address	address,
		const WifiMacHeader *	header,
		double	ackSnr,
		WifiMode	ackMode,
		double	dataSnr
	)

Should be invoked whenever we receive the Ack associated to a data packet we just sent.

Definition at line 419 of file wifi-remote-station-manager.cc.

References DoReportDataOk(), ns3::Mac48Address::IsGroup(), Lookup(), and NS_ASSERT.

Referenced by ns3::MacLow::ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::ReportFinalDataFailed	(	Mac48Address	address,
		const WifiMacHeader *	header
	)

Should be invoked after calling ReportDataFailed if NeedDataRetransmission returns false

Definition at line 439 of file wifi-remote-station-manager.cc.

References DoReportFinalDataFailed(), ns3::Mac48Address::IsGroup(), Lookup(), m_macTxFinalDataFailed, and NS_ASSERT.

Referenced by ns3::EdcaTxopN::MissedAck(), and ns3::DcaTxop::MissedAck().

Here is the call graph for this function:

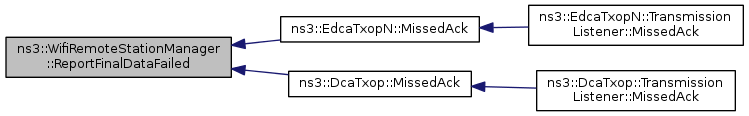

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::ReportFinalRtsFailed	(	Mac48Address	address,
		const WifiMacHeader *	header
	)

Should be invoked after calling ReportRtsFailed if NeedRtsRetransmission returns false

Definition at line 429 of file wifi-remote-station-manager.cc.

References DoReportFinalRtsFailed(), ns3::Mac48Address::IsGroup(), Lookup(), m_macTxFinalRtsFailed, and NS_ASSERT.

Referenced by ns3::EdcaTxopN::MissedCts(), and ns3::DcaTxop::MissedCts().

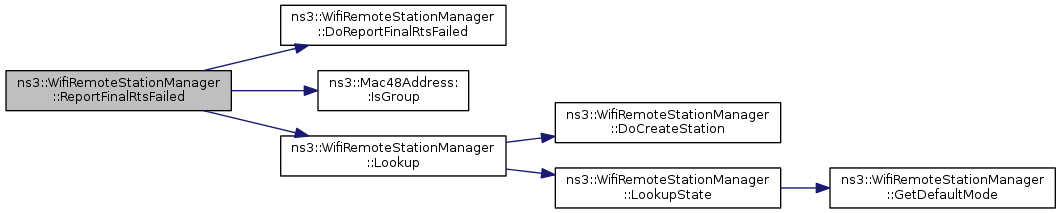

Here is the call graph for this function:

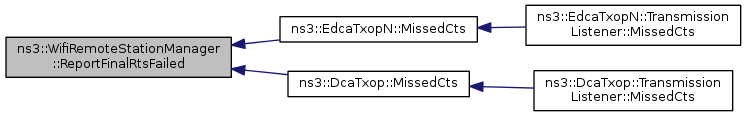

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::ReportRtsFailed	(	Mac48Address	address,
		const WifiMacHeader *	header
	)

Should be invoked whenever the RtsTimeout associated to a transmission attempt expires.

Definition at line 391 of file wifi-remote-station-manager.cc.

References DoReportRtsFailed(), ns3::Mac48Address::IsGroup(), Lookup(), m_macTxRtsFailed, and NS_ASSERT.

Referenced by ns3::MacLow::CtsTimeout().

Here is the call graph for this function:

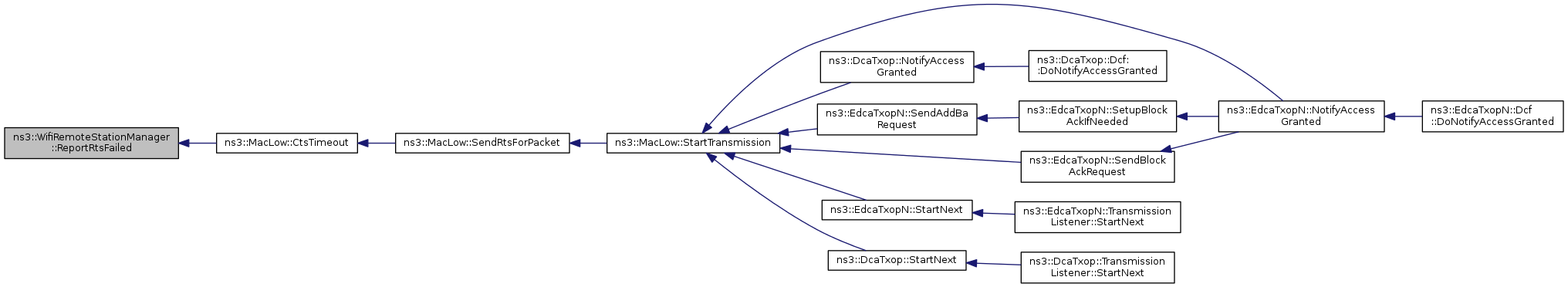

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::ReportRtsOk	(	Mac48Address	address,
		const WifiMacHeader *	header,
		double	ctsSnr,
		WifiMode	ctsMode,
		double	rtsSnr
	)

Should be invoked whenever we receive the Cts associated to an RTS we just sent.

Definition at line 409 of file wifi-remote-station-manager.cc.

References DoReportRtsOk(), ns3::Mac48Address::IsGroup(), Lookup(), and NS_ASSERT.

Referenced by ns3::MacLow::ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::ReportRxOk	(	Mac48Address	address,
		const WifiMacHeader *	header,
		double	rxSnr,
		WifiMode	txMode
	)

Parameters

address	remote address
header	MAC header
rxSnr	the snr of the packet received
txMode	the transmission mode used for the packet received.

Should be invoked whenever a packet is successfully received.

Definition at line 449 of file wifi-remote-station-manager.cc.

References DoReportRxOk(), ns3::Mac48Address::IsGroup(), and Lookup().

Referenced by ns3::MacLow::ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::Reset ( void )

Definition at line 731 of file wifi-remote-station-manager.cc.

References ns3::WifiMode::IsMandatory(), m_bssBasicRateSet, m_defaultTxMode, m_stations, and NS_ASSERT.

Referenced by ns3::MacLow::NotifySwitchingStartNow(), and SetupPhy().

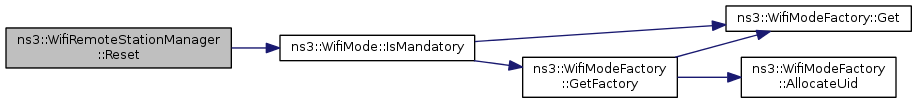

Here is the call graph for this function:

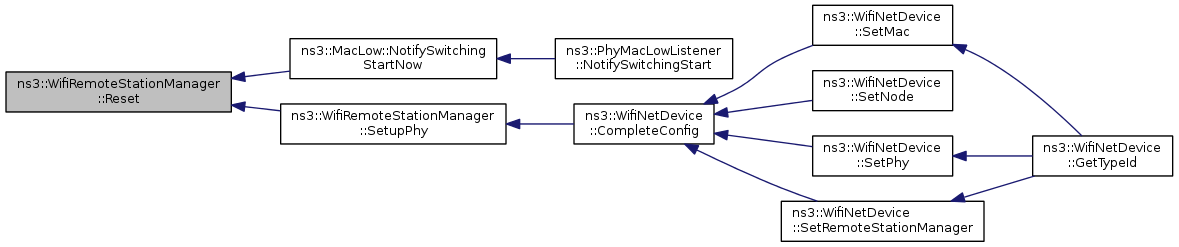

Here is the caller graph for this function:

void ns3::WifiRemoteStationManager::Reset ( Mac48Address address )

Invoked in an AP upon disassociation of a specific STA.

Definition at line 266 of file wifi-remote-station-manager.cc.

References AddSupportedMode(), GetDefaultMode(), ns3::Mac48Address::IsGroup(), LookupState(), and NS_ASSERT.

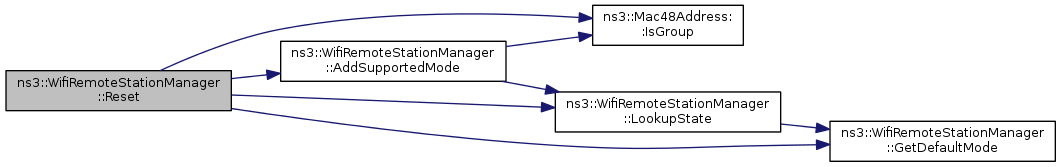

Here is the call graph for this function:

void ns3::WifiRemoteStationManager::SetFragmentationThreshold ( uint32_t threshold )

Definition at line 260 of file wifi-remote-station-manager.cc.

References m_fragmentationThreshold.

void ns3::WifiRemoteStationManager::SetMaxSlrc ( uint32_t maxSlrc )

Definition at line 250 of file wifi-remote-station-manager.cc.

References m_maxSlrc.

void ns3::WifiRemoteStationManager::SetMaxSsrc ( uint32_t maxSsrc )

Definition at line 245 of file wifi-remote-station-manager.cc.

References m_maxSsrc.

void ns3::WifiRemoteStationManager::SetRtsCtsThreshold ( uint32_t threshold )

Definition at line 255 of file wifi-remote-station-manager.cc.

References m_rtsCtsThreshold.

void ns3::WifiRemoteStationManager::SetupPhy ( Ptr< WifiPhy > phy )

virtual

Reimplemented in ns3::MinstrelWifiManager, and ns3::IdealWifiManager.

Definition at line 212 of file wifi-remote-station-manager.cc.

References ns3::WifiPhy::GetMode(), m_defaultTxMode, m_wifiPhy, and Reset().

Referenced by ns3::WifiNetDevice::CompleteConfig().

Here is the call graph for this function:

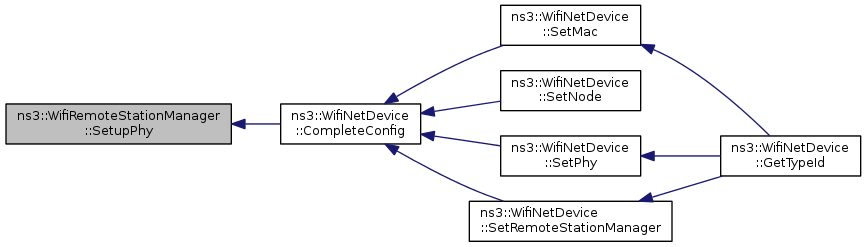

Here is the caller graph for this function:

Member Data Documentation

double ns3::WifiRemoteStationManager::m_avgSlrcCoefficient

private

Definition at line 430 of file wifi-remote-station-manager.h.

WifiModeList ns3::WifiRemoteStationManager::m_bssBasicRateSet

private

This member is the list of WifiMode objects that comprise the BSSBasicRateSet parameter. This list is constructed through calls to WifiRemoteStationManager::AddBasicMode(), and an API that allows external access to it is available through WifiRemoteStationManager::GetNBasicModes() and WifiRemoteStationManager::GetBasicMode().

Definition at line 422 of file wifi-remote-station-manager.h.

Referenced by AddBasicMode(), GetBasicMode(), GetControlAnswerMode(), GetNBasicModes(), and Reset().

WifiMode ns3::WifiRemoteStationManager::m_defaultTxMode

private

Definition at line 412 of file wifi-remote-station-manager.h.

Referenced by GetDefaultMode(), Reset(), and SetupPhy().

uint32_t ns3::WifiRemoteStationManager::m_fragmentationThreshold

private

Definition at line 428 of file wifi-remote-station-manager.h.

Referenced by GetFragmentationThreshold(), GetTypeId(), and SetFragmentationThreshold().

bool ns3::WifiRemoteStationManager::m_isLowLatency

private

Definition at line 424 of file wifi-remote-station-manager.h.

TracedCallback<Mac48Address> ns3::WifiRemoteStationManager::m_macTxDataFailed

private

The trace source fired when the transmission of a single data packet has failed

Definition at line 438 of file wifi-remote-station-manager.h.

Referenced by GetTypeId(), and ReportDataFailed().

TracedCallback<Mac48Address> ns3::WifiRemoteStationManager::m_macTxFinalDataFailed

private

The trace source fired when the transmission of a data packet has exceeded the maximum number of attempts

Definition at line 448 of file wifi-remote-station-manager.h.

Referenced by GetTypeId(), and ReportFinalDataFailed().

TracedCallback<Mac48Address> ns3::WifiRemoteStationManager::m_macTxFinalRtsFailed

private

The trace source fired when the transmission of a RTS has exceeded the maximum number of attempts

Definition at line 443 of file wifi-remote-station-manager.h.

Referenced by GetTypeId(), and ReportFinalRtsFailed().

TracedCallback<Mac48Address> ns3::WifiRemoteStationManager::m_macTxRtsFailed

private

The trace source fired when the transmission of a single RTS has failed

Definition at line 434 of file wifi-remote-station-manager.h.

Referenced by GetTypeId(), and ReportRtsFailed().

uint32_t ns3::WifiRemoteStationManager::m_maxSlrc

private

Definition at line 426 of file wifi-remote-station-manager.h.

Referenced by GetMaxSlrc(), GetTypeId(), and SetMaxSlrc().

uint32_t ns3::WifiRemoteStationManager::m_maxSsrc

private

Definition at line 425 of file wifi-remote-station-manager.h.

Referenced by GetMaxSsrc(), GetTypeId(), and SetMaxSsrc().

WifiMode ns3::WifiRemoteStationManager::m_nonUnicastMode

private

Definition at line 429 of file wifi-remote-station-manager.h.

Referenced by GetNonUnicastMode(), and GetTypeId().

uint32_t ns3::WifiRemoteStationManager::m_rtsCtsThreshold

private

Definition at line 427 of file wifi-remote-station-manager.h.

Referenced by GetRtsCtsThreshold(), GetTypeId(), and SetRtsCtsThreshold().

StationStates ns3::WifiRemoteStationManager::m_states

private

Definition at line 401 of file wifi-remote-station-manager.h.

Referenced by DoDispose(), and LookupState().

Stations ns3::WifiRemoteStationManager::m_stations

private

Definition at line 402 of file wifi-remote-station-manager.h.

Referenced by DoDispose(), Lookup(), and Reset().

Ptr<WifiPhy> ns3::WifiRemoteStationManager::m_wifiPhy

private

This is a pointer to the WifiPhy associated with this WifiRemoteStationManager that is set on call to WifiRemoteStationManager::SetupPhy(). Through this pointer the station manager can determine PHY characteristics, such as the set of all transmission rates that may be supported (the "DeviceRateSet").

Definition at line 411 of file wifi-remote-station-manager.h.

Referenced by GetControlAnswerMode(), and SetupPhy().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-remote-station-manager.h
doc/introspected-doxygen.h
src/wifi/model/wifi-remote-station-manager.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
