ns3::WimaxConnection Class Reference
WiMAX Models

#include <wimax-connection.h>

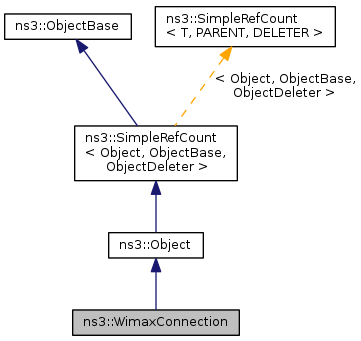

+ Inheritance diagram for ns3::WimaxConnection:

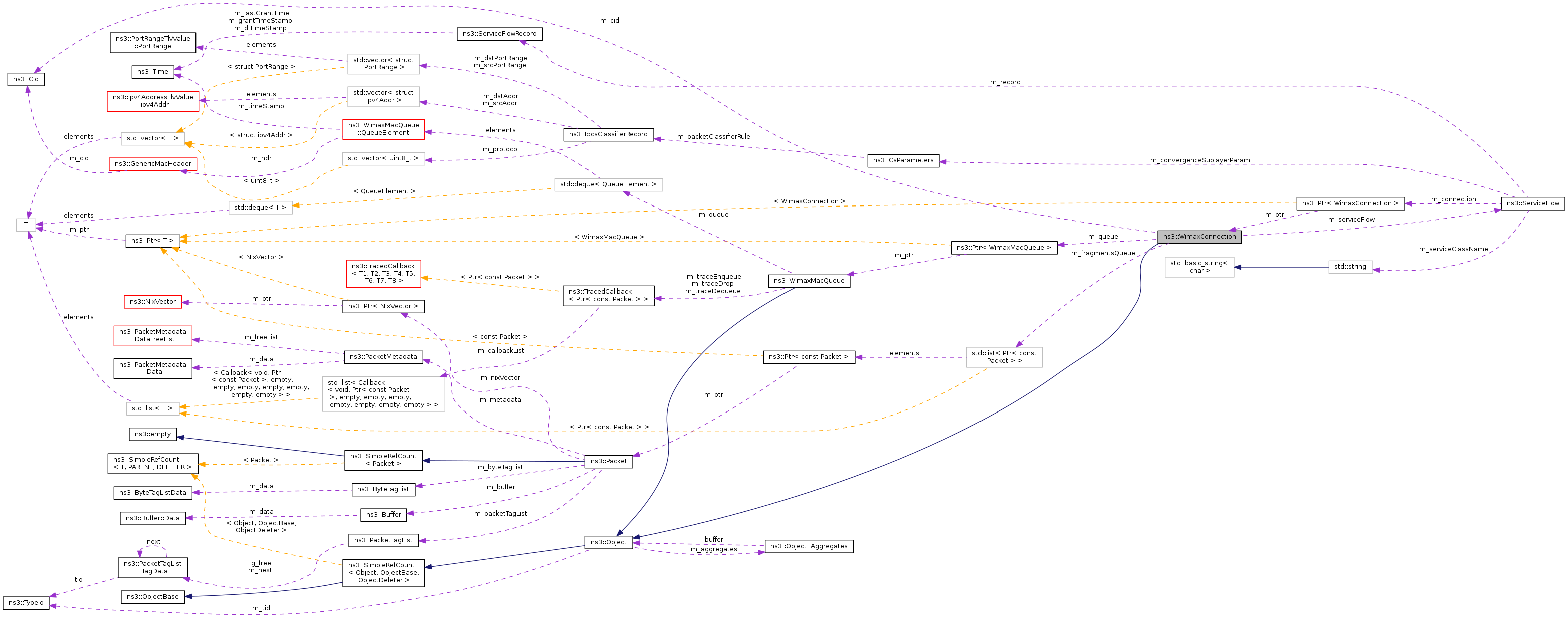

+ Collaboration diagram for ns3::WimaxConnection:

Public Types

typedef std::list< Ptr< const
Packet > > 		FragmentsQueue

Public Member Functions

 WimaxConnection (Cid cid, enum Cid::Type type)
 ~WimaxConnection (void)
void ClearFragmentsQueue (void)
 delete all enqueued fragments
Ptr< Packet > Dequeue (MacHeaderType::HeaderType packetType=MacHeaderType::HEADER_TYPE_GENERIC)
 dequeue a packet from the queue of the connection
Ptr< Packet > Dequeue (MacHeaderType::HeaderType packetType, uint32_t availableByte)
bool Enqueue (Ptr< Packet > packet, const MacHeaderType &hdrType, const GenericMacHeader &hdr)
 enqueue a packet in the queue of the connection
void FragmentEnqueue (Ptr< const Packet > fragment)
 enqueue a received packet (that is a fragment) into the fragments queue
Cid GetCid (void) const
const FragmentsQueue GetFragmentsQueue (void) const
 get a queue of received fragments
Ptr< WimaxMacQueue > GetQueue (void) const
uint8_t GetSchedulingType (void) const
ServiceFlow * GetServiceFlow (void) const
enum Cid::Type GetType (void) const
std::string GetTypeStr (void) const
bool HasPackets (void) const
bool HasPackets (MacHeaderType::HeaderType packetType) const
void SetServiceFlow (ServiceFlow *serviceFlow)
 set the service flow associated to this connection
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Start (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::WimaxConnection.

Private Member Functions

virtual void DoDispose (void)

Private Attributes

Cid m_cid
enum Cid::Type m_cidType
FragmentsQueue m_fragmentsQueue
Ptr< WimaxMacQueue > m_queue
ServiceFlow * m_serviceFlow

Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void DoDispose (void)
virtual void DoStart (void)
virtual void NotifyNewAggregate (void)

Detailed Description

Definition at line 41 of file wimax-connection.h.

Member Typedef Documentation

typedef std::list<Ptr<const Packet> > ns3::WimaxConnection::FragmentsQueue

Definition at line 97 of file wimax-connection.h.

Constructor & Destructor Documentation

ns3::WimaxConnection::WimaxConnection ( Cid  cid,
enum Cid::Type  type
)

Definition at line 65 of file wimax-connection.cc.

ns3::WimaxConnection::~WimaxConnection ( void  )

Definition at line 73 of file wimax-connection.cc.

Member Function Documentation

void ns3::WimaxConnection::ClearFragmentsQueue ( void  )

delete all enqueued fragments

Definition at line 195 of file wimax-connection.cc.

References m_fragmentsQueue.

Referenced by ns3::BaseStationNetDevice::DoReceive(), ns3::SubscriberStationNetDevice::DoReceive(), and Ns3WimaxFragmentationTestCase::DoRun().

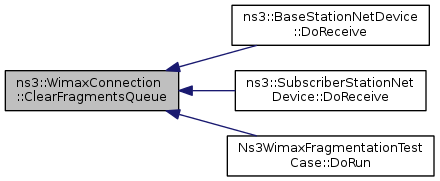

+ Here is the caller graph for this function:

Ptr< Packet > ns3::WimaxConnection::Dequeue ( MacHeaderType::HeaderType  packetType = MacHeaderType::HEADER_TYPE_GENERIC)

dequeue a packet from the queue of the connection

Parameters
packetTypethe type of the packet to dequeue

Definition at line 128 of file wimax-connection.cc.

References ns3::WimaxMacQueue::Dequeue(), and m_queue.

Referenced by ns3::BSSchedulerRtps::BSSchedulerBasicConnection(), ns3::BSSchedulerRtps::BSSchedulerBEConnection(), ns3::BSSchedulerRtps::BSSchedulerBroadcastConnection(), ns3::BSSchedulerRtps::BSSchedulerInitialRangingConnection(), ns3::BSSchedulerRtps::BSSchedulerNRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerPrimaryConnection(), ns3::BSSchedulerRtps::BSSchedulerRTPSConnection(), ns3::ServiceFlow::CleanUpQueue(), ns3::BSSchedulerSimple::CreateUgsBurst(), ns3::BSSchedulerRtps::CreateUgsBurst(), Ns3WimaxFragmentationTestCase::DoRun(), ns3::SSScheduler::Schedule(), and ns3::BSSchedulerSimple::Schedule().

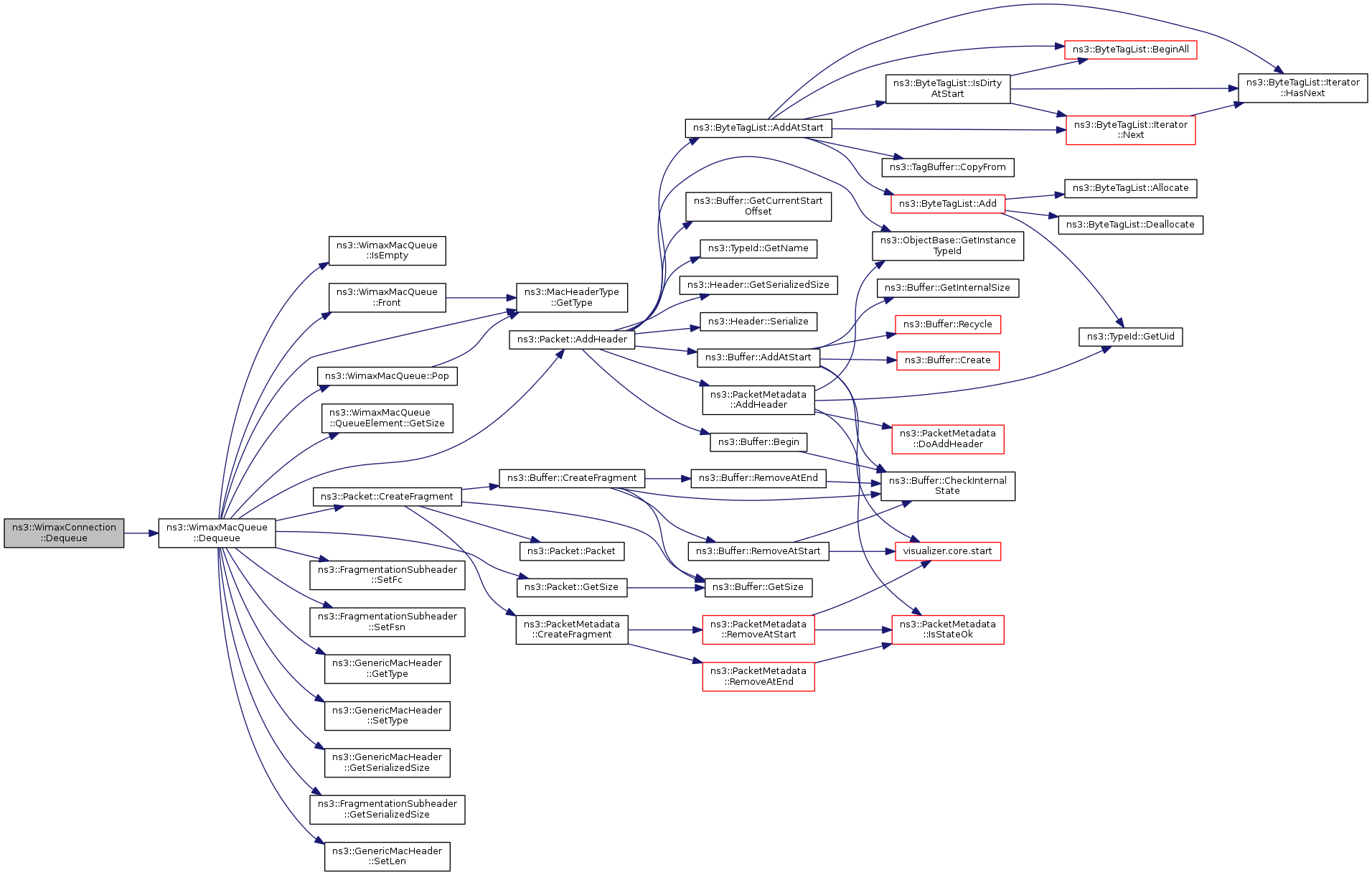

+ Here is the call graph for this function:

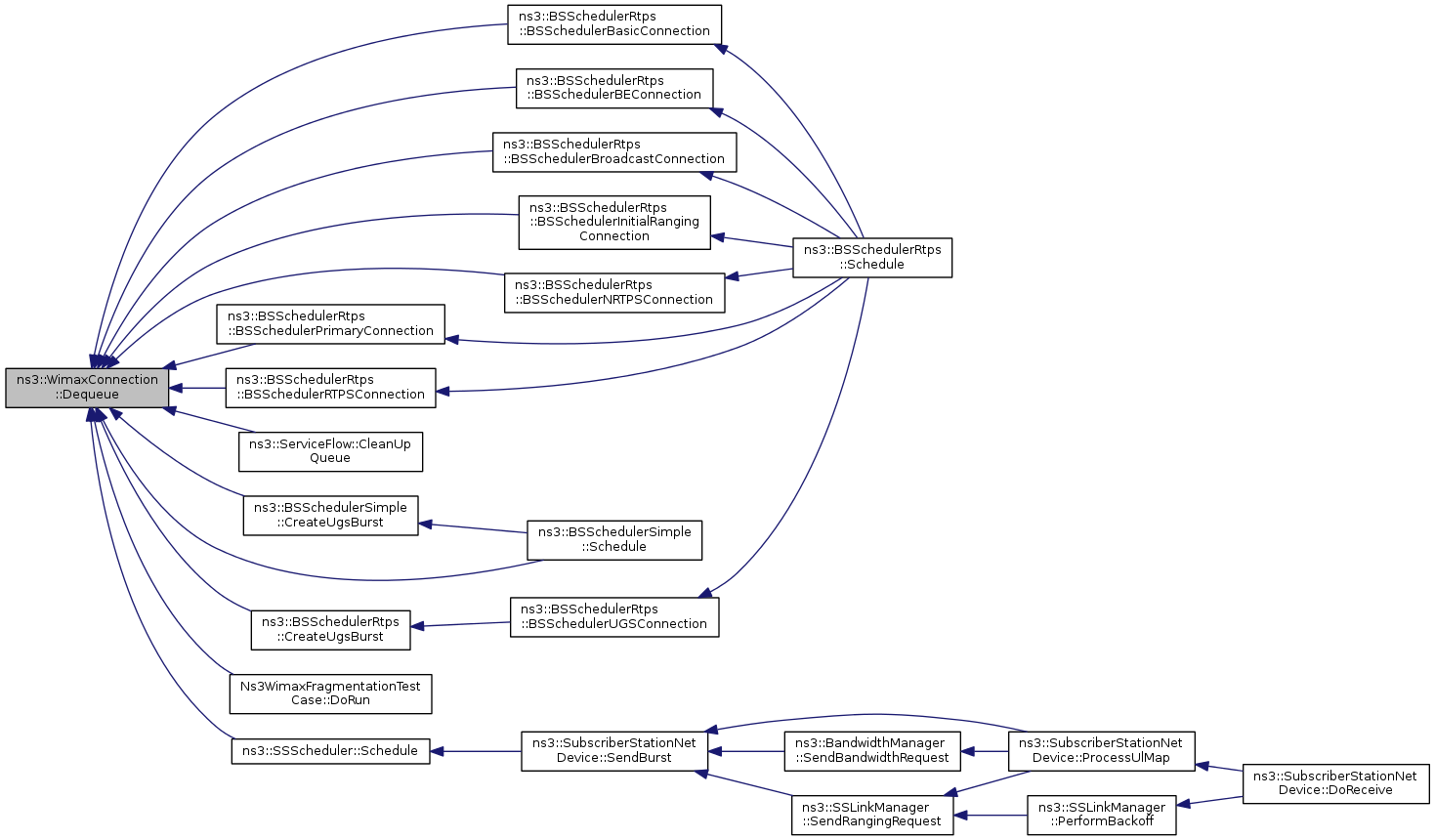

+ Here is the caller graph for this function:

Ptr< Packet > ns3::WimaxConnection::Dequeue ( MacHeaderType::HeaderType  packetType,
uint32_t  availableByte
)

Definition at line 134 of file wimax-connection.cc.

References ns3::WimaxMacQueue::Dequeue(), and m_queue.

+ Here is the call graph for this function:

void ns3::WimaxConnection::DoDispose ( void  )
privatevirtual

Definition at line 78 of file wimax-connection.cc.

References m_queue.

bool ns3::WimaxConnection::Enqueue ( Ptr< Packet >  packet,
const MacHeaderType &  hdrType,
const GenericMacHeader &  hdr
)

enqueue a packet in the queue of the connection

Parameters
packetthe packet to be enqueued
hdrTypethe header type of the packet
hdrthe header of the packet

Definition at line 121 of file wimax-connection.cc.

References ns3::WimaxMacQueue::Enqueue(), and m_queue.

Referenced by Ns3WimaxFragmentationTestCase::DoRun(), ns3::BaseStationNetDevice::Enqueue(), and ns3::SubscriberStationNetDevice::Enqueue().

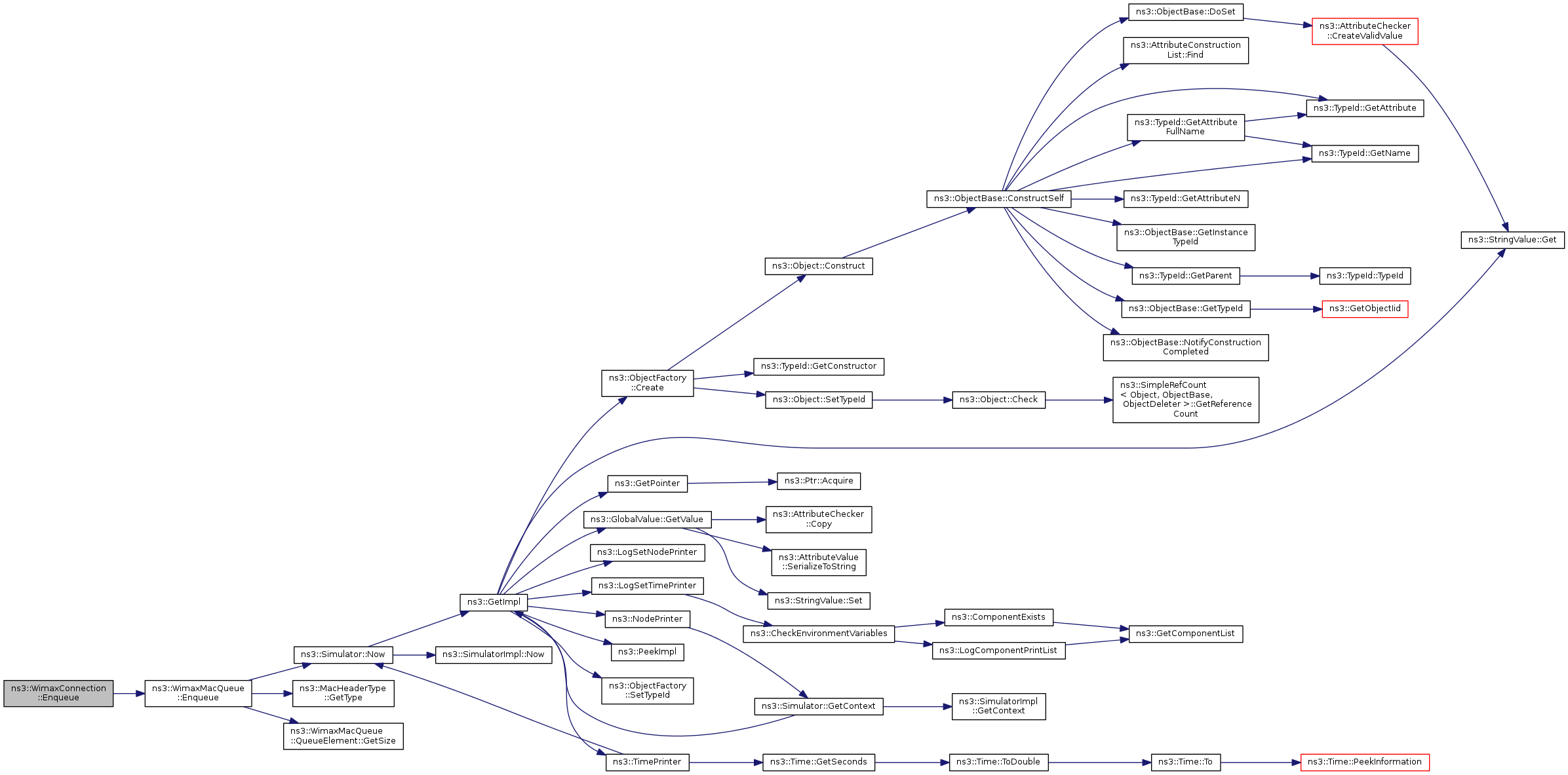

+ Here is the call graph for this function:

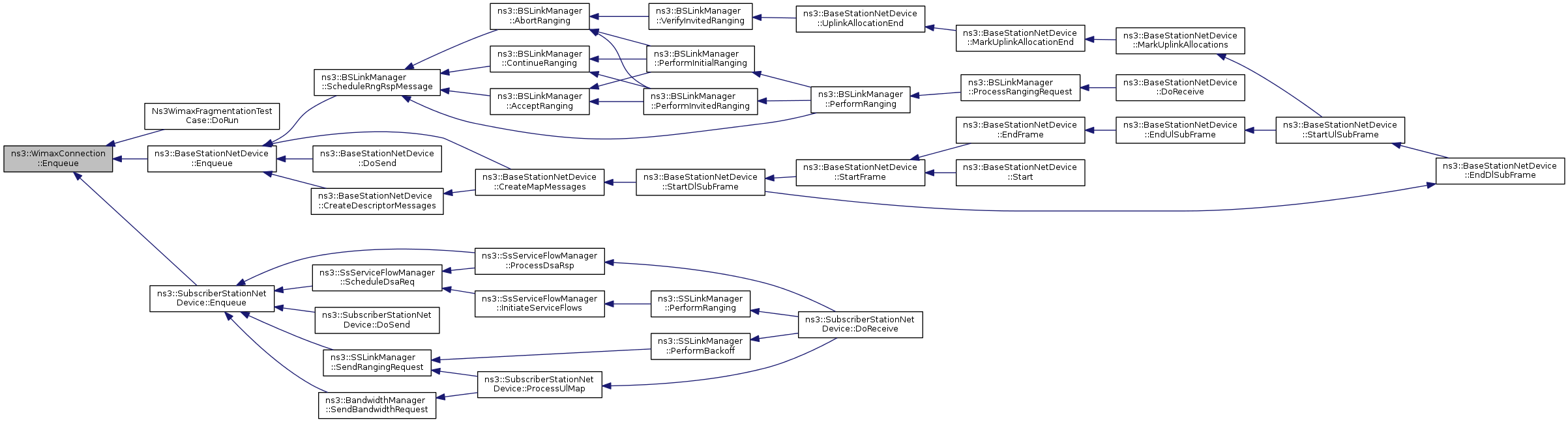

+ Here is the caller graph for this function:

void ns3::WimaxConnection::FragmentEnqueue ( Ptr< const Packet >  fragment)

enqueue a received packet (that is a fragment) into the fragments queue

Parameters
fragmentreceived fragment

Definition at line 189 of file wimax-connection.cc.

References m_fragmentsQueue.

Referenced by ns3::BaseStationNetDevice::DoReceive(), ns3::SubscriberStationNetDevice::DoReceive(), and Ns3WimaxFragmentationTestCase::DoRun().

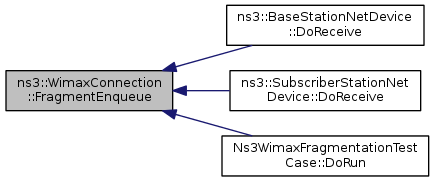

+ Here is the caller graph for this function:

Cid ns3::WimaxConnection::GetCid ( void  ) const

Definition at line 85 of file wimax-connection.cc.

References m_cid.

Referenced by ns3::ConnectionManager::AllocateManagementConnections(), ns3::BSSchedulerRtps::BSSchedulerBasicConnection(), ns3::BSSchedulerRtps::BSSchedulerBEConnection(), ns3::BSSchedulerRtps::BSSchedulerBroadcastConnection(), ns3::BSSchedulerRtps::BSSchedulerInitialRangingConnection(), ns3::BSSchedulerRtps::BSSchedulerNRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerPrimaryConnection(), ns3::BSSchedulerRtps::BSSchedulerRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerUGSConnection(), ns3::SubscriberStationNetDevice::DoReceive(), Ns3WimaxFragmentationTestCase::DoRun(), ns3::SubscriberStationNetDevice::DoSend(), ns3::BaseStationNetDevice::Enqueue(), ns3::SubscriberStationNetDevice::Enqueue(), ns3::SubscriberStationNetDevice::GetBasicCid(), ns3::ServiceFlow::GetCid(), ns3::SubscriberStationNetDevice::GetPrimaryCid(), ns3::SSLinkManager::PerformRanging(), ns3::SubscriberStationNetDevice::ProcessDlMap(), ns3::SubscriberStationNetDevice::ProcessUlMap(), ns3::BSSchedulerSimple::Schedule(), ns3::BandwidthManager::SendBandwidthRequest(), ns3::SubscriberStationNetDevice::SendBurst(), ns3::UplinkSchedulerRtps::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequestsBytes(), ns3::UplinkSchedulerSimple::ServiceUnsolicitedGrants(), ns3::UplinkSchedulerRtps::ServiceUnsolicitedGrants(), and ns3::UplinkSchedulerMBQoS::ServiceUnsolicitedGrants().

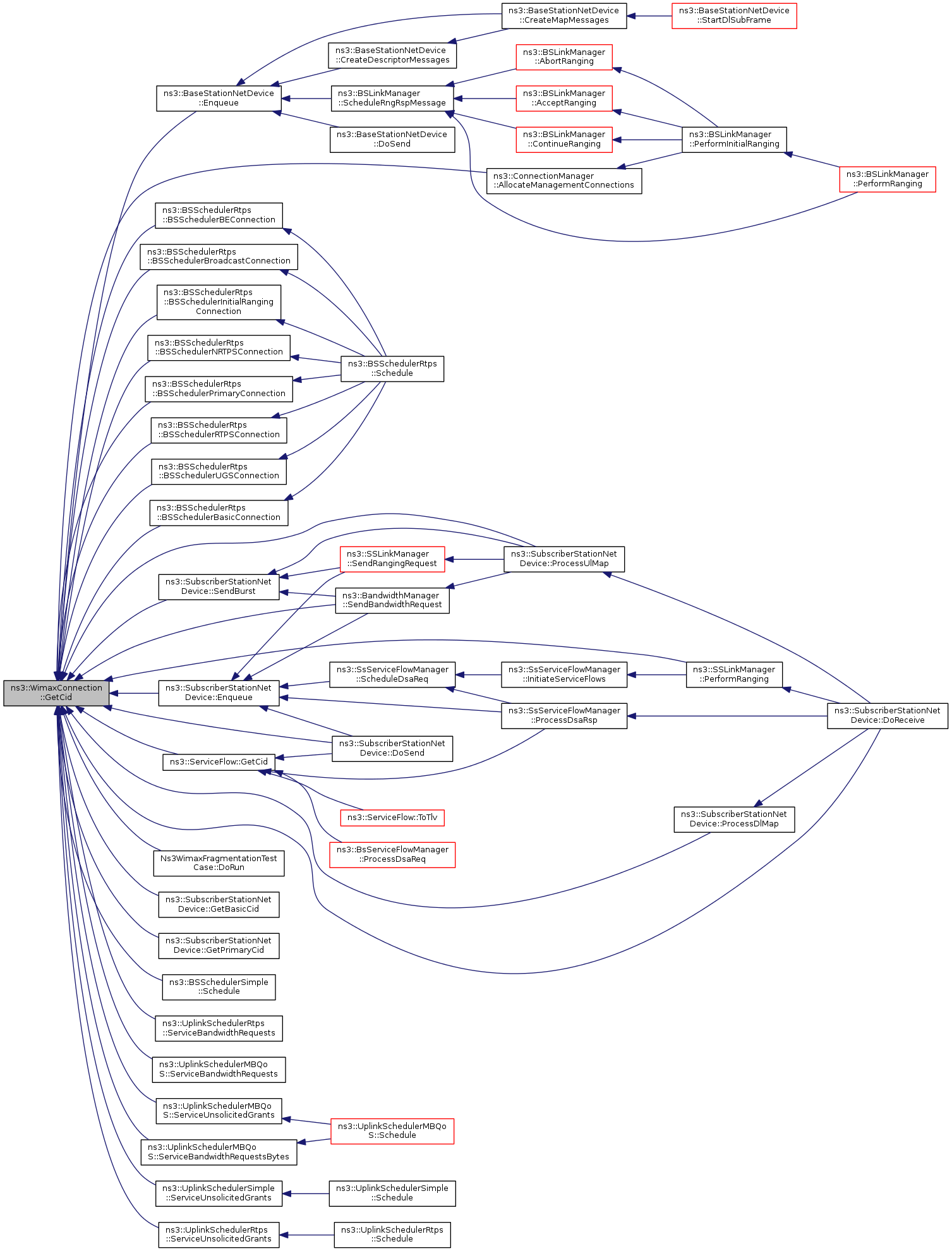

+ Here is the caller graph for this function:

const WimaxConnection::FragmentsQueue ns3::WimaxConnection::GetFragmentsQueue ( void  ) const

get a queue of received fragments

Definition at line 183 of file wimax-connection.cc.

References m_fragmentsQueue.

Referenced by ns3::BaseStationNetDevice::DoReceive(), and Ns3WimaxFragmentationTestCase::DoRun().

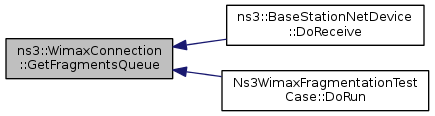

+ Here is the caller graph for this function:

Ptr< WimaxMacQueue > ns3::WimaxConnection::GetQueue ( void  ) const
Returns
the queue of the connection

Definition at line 97 of file wimax-connection.cc.

References m_queue.

Referenced by ns3::BSSchedulerRtps::BSSchedulerBasicConnection(), ns3::BSSchedulerRtps::BSSchedulerBEConnection(), ns3::BSSchedulerRtps::BSSchedulerBroadcastConnection(), ns3::BSSchedulerRtps::BSSchedulerInitialRangingConnection(), ns3::BSSchedulerRtps::BSSchedulerNRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerPrimaryConnection(), ns3::BSSchedulerRtps::BSSchedulerRTPSConnection(), ns3::BSScheduler::CheckForFragmentation(), ns3::ServiceFlow::CleanUpQueue(), ns3::BSSchedulerSimple::CreateUgsBurst(), ns3::BSSchedulerRtps::CreateUgsBurst(), Ns3WimaxFragmentationTestCase::DoRun(), ns3::ServiceFlow::GetQueue(), GetTypeId(), ns3::SSScheduler::Schedule(), ns3::BSSchedulerSimple::Schedule(), and ns3::BSSchedulerRtps::Schedule().

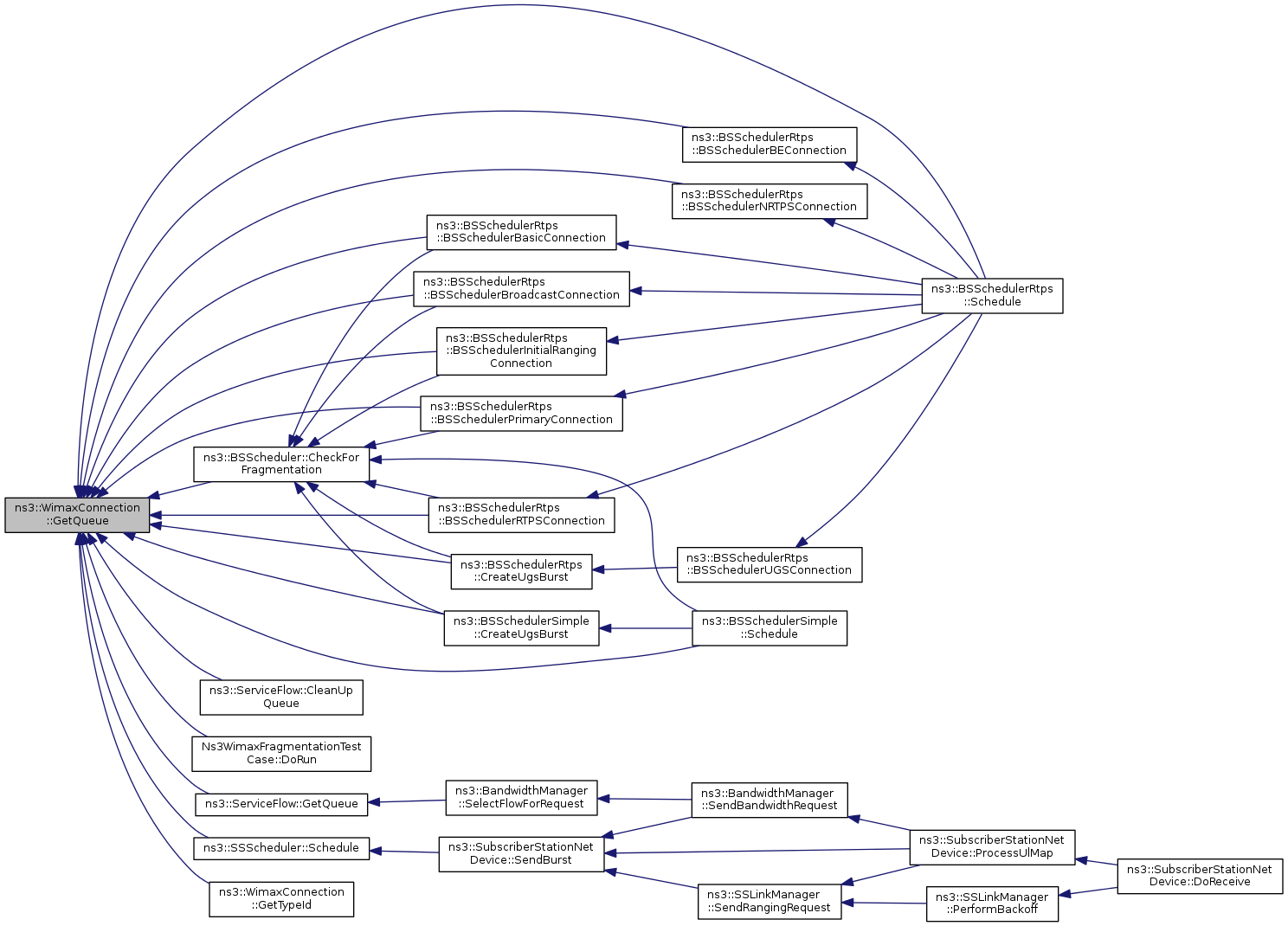

+ Here is the caller graph for this function:

uint8_t ns3::WimaxConnection::GetSchedulingType ( void  ) const
Returns
the scheduling type of this connection

Definition at line 115 of file wimax-connection.cc.

References ns3::ServiceFlow::GetSchedulingType(), and m_serviceFlow.

Referenced by ns3::SubscriberStationNetDevice::Enqueue(), and ns3::BSSchedulerSimple::Schedule().

+ Here is the call graph for this function:

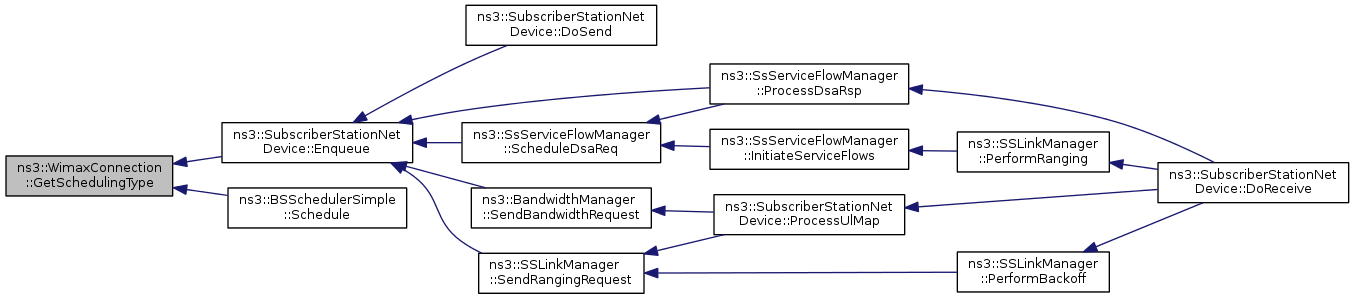

+ Here is the caller graph for this function:

ServiceFlow * ns3::WimaxConnection::GetServiceFlow ( void  ) const
Returns
the service flow associated to this connection

Definition at line 109 of file wimax-connection.cc.

References m_serviceFlow.

Referenced by ns3::BSSchedulerRtps::BSSchedulerBEConnection(), ns3::BSSchedulerRtps::BSSchedulerNRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerUGSConnection(), ns3::SubscriberStationNetDevice::DoReceive(), ns3::BSSchedulerSimple::Schedule(), and ns3::SubscriberStationNetDevice::SendBurst().

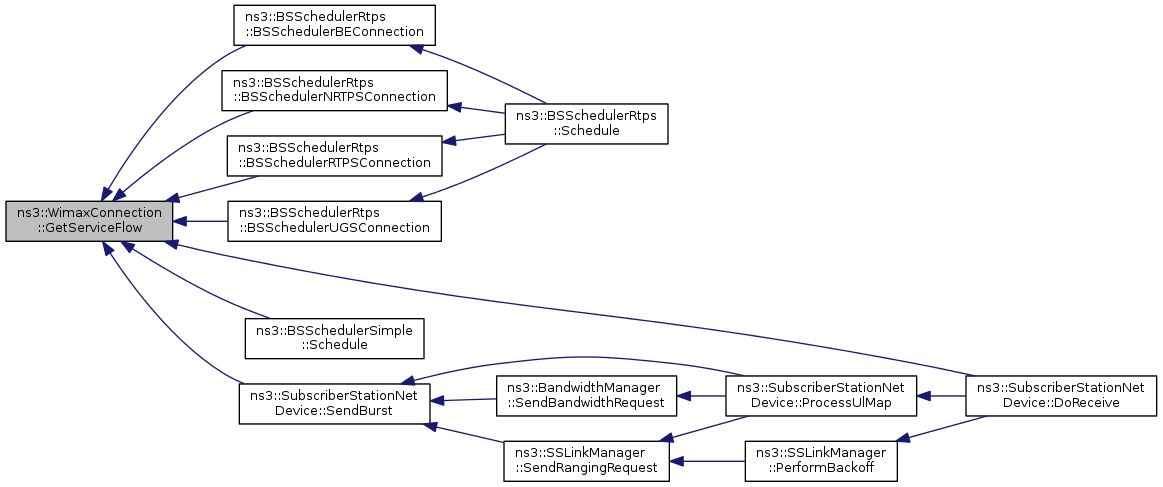

+ Here is the caller graph for this function:

enum Cid::Type ns3::WimaxConnection::GetType ( void  ) const

Definition at line 91 of file wimax-connection.cc.

References m_cidType.

Referenced by ns3::BSSchedulerRtps::BSSchedulerBEConnection(), ns3::BSSchedulerRtps::BSSchedulerNRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerUGSConnection(), ns3::BSScheduler::CheckForFragmentation(), ns3::SubscriberStationNetDevice::Enqueue(), GetTypeId(), ns3::SSScheduler::Schedule(), ns3::BSSchedulerSimple::Schedule(), and ns3::SubscriberStationNetDevice::SendBurst().

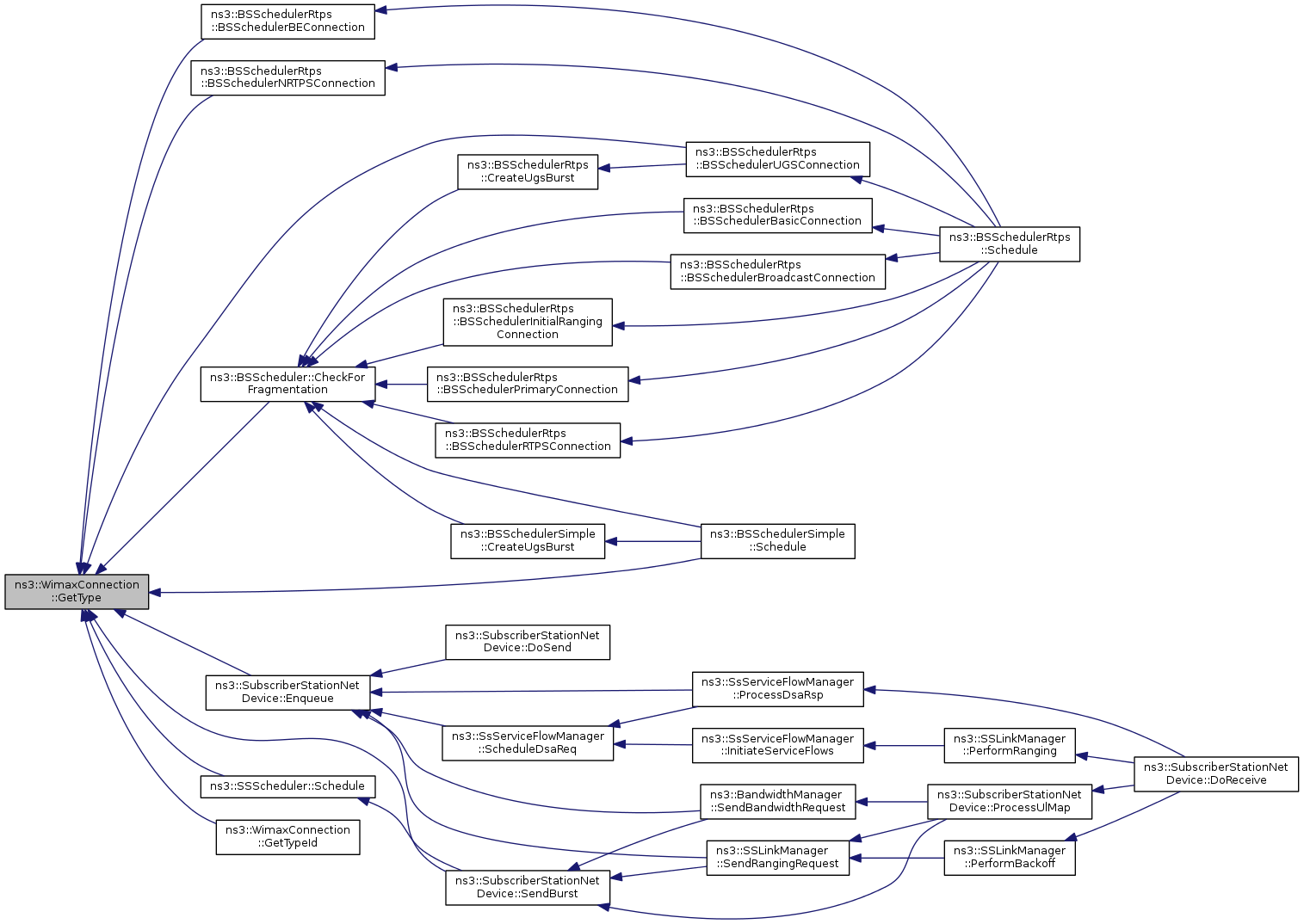

+ Here is the caller graph for this function:

TypeId ns3::WimaxConnection::GetTypeId ( void  )
static

This method returns the TypeId associated to ns3::WimaxConnection.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/BasicConnection
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/PrimaryConnection
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/BasicConnection
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/PrimaryConnection
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BroadcastConnection
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/InitialRangingConnection

Attributes defined for this type:

No TraceSources defined for this type.

Reimplemented from ns3::Object.

Definition at line 32 of file wimax-connection.cc.

References ns3::Cid::BASIC, ns3::Cid::BROADCAST, GetQueue(), GetType(), ns3::Cid::INITIAL_RANGING, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::Cid::MULTICAST, ns3::Cid::PADDING, ns3::Cid::PRIMARY, ns3::TypeId::SetParent(), and ns3::Cid::TRANSPORT.

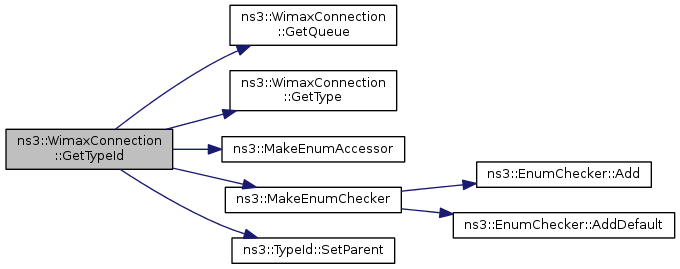

+ Here is the call graph for this function:

std::string ns3::WimaxConnection::GetTypeStr ( void  ) const

Definition at line 152 of file wimax-connection.cc.

References ns3::Cid::BASIC, ns3::Cid::BROADCAST, ns3::Cid::INITIAL_RANGING, m_cidType, ns3::Cid::MULTICAST, NS_FATAL_ERROR, ns3::Cid::PRIMARY, and ns3::Cid::TRANSPORT.

bool ns3::WimaxConnection::HasPackets ( void  ) const
Returns
true if the connection has at least one packet in its queue, false otherwise

Definition at line 140 of file wimax-connection.cc.

References ns3::WimaxMacQueue::IsEmpty(), and m_queue.

Referenced by ns3::BSSchedulerRtps::BSSchedulerBroadcastConnection(), ns3::BSSchedulerRtps::BSSchedulerInitialRangingConnection(), ns3::ServiceFlow::CleanUpQueue(), ns3::ServiceFlow::HasPackets(), ns3::SSScheduler::Schedule(), ns3::BSSchedulerSimple::Schedule(), and ns3::SSScheduler::SelectConnection().

+ Here is the call graph for this function:

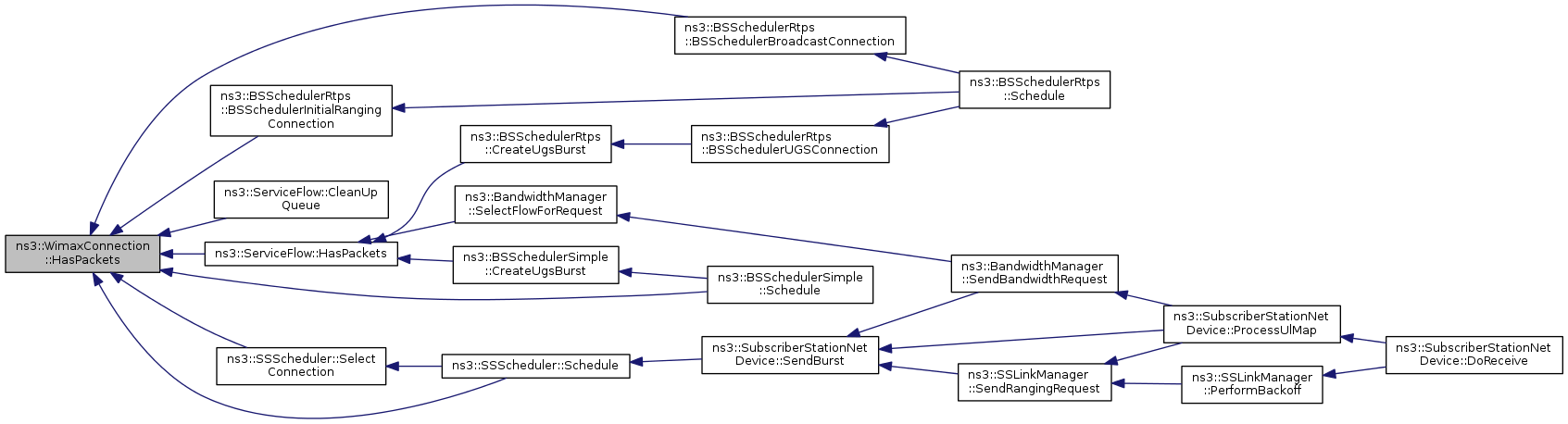

+ Here is the caller graph for this function:

bool ns3::WimaxConnection::HasPackets ( MacHeaderType::HeaderType  packetType) const
Returns
true if the connection has at least one packet of type packetType in its queue, false otherwise
Parameters
packetTypetype of packet to check in the queue

Definition at line 146 of file wimax-connection.cc.

References ns3::WimaxMacQueue::IsEmpty(), and m_queue.

+ Here is the call graph for this function:

void ns3::WimaxConnection::SetServiceFlow ( ServiceFlow *  serviceFlow)

set the service flow associated to this connection

Parameters
serviceFlowThe service flow to be associated to this connection

Definition at line 103 of file wimax-connection.cc.

References m_serviceFlow.

Referenced by ns3::BsServiceFlowManager::ProcessDsaReq(), ns3::SsServiceFlowManager::ProcessDsaRsp(), ns3::ServiceFlow::ServiceFlow(), and ns3::ServiceFlow::SetConnection().

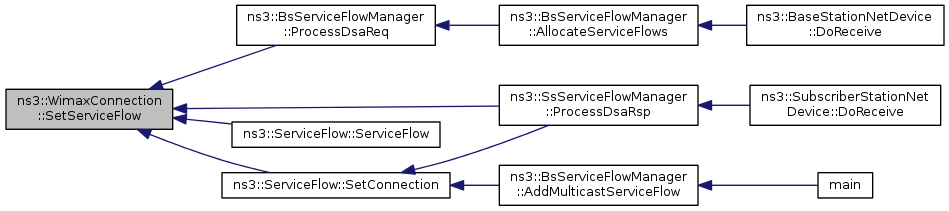

+ Here is the caller graph for this function:

Member Data Documentation

Cid ns3::WimaxConnection::m_cid
private

Definition at line 115 of file wimax-connection.h.

Referenced by GetCid().

enum Cid::Type ns3::WimaxConnection::m_cidType
private

Definition at line 116 of file wimax-connection.h.

Referenced by GetType(), and GetTypeStr().

FragmentsQueue ns3::WimaxConnection::m_fragmentsQueue
private

Definition at line 121 of file wimax-connection.h.

Referenced by ClearFragmentsQueue(), FragmentEnqueue(), and GetFragmentsQueue().

Ptr<WimaxMacQueue> ns3::WimaxConnection::m_queue
private

Definition at line 117 of file wimax-connection.h.

Referenced by Dequeue(), DoDispose(), Enqueue(), GetQueue(), and HasPackets().

ServiceFlow* ns3::WimaxConnection::m_serviceFlow
private

Definition at line 118 of file wimax-connection.h.

Referenced by GetSchedulingType(), GetServiceFlow(), and SetServiceFlow().

The documentation for this class was generated from the following files:
