ns3::dsr::GraReply Class Reference

maintain the gratuitous reply More...

#include <dsr-gratuitous-reply-table.h>

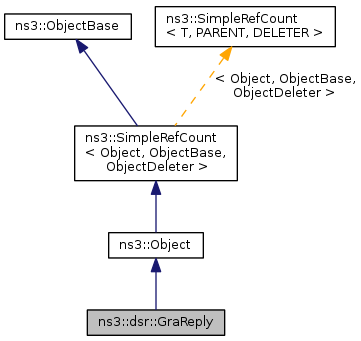

Inheritance diagram for ns3::dsr::GraReply:

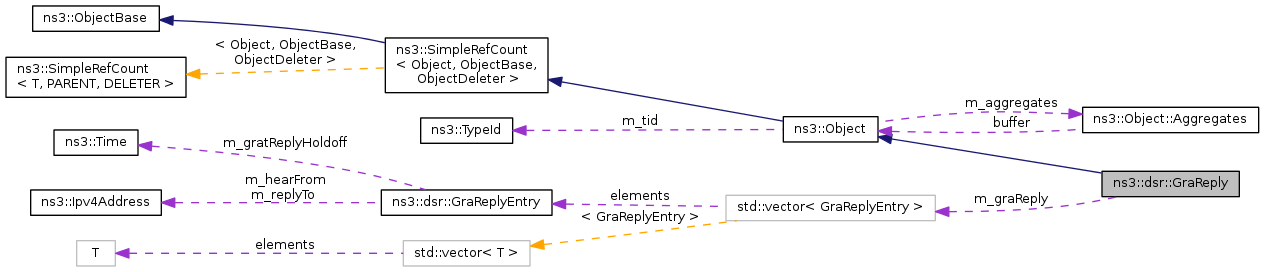

Collaboration diagram for ns3::dsr::GraReply:

Classes
struct	IsExpired

Public Member Functions
	GraReply ()
	Constructor.
virtual	~GraReply ()
	Destructor.
bool	AddEntry (GraReplyEntry &graTableEntry)
void	Clear ()
bool	FindAndUpdate (Ipv4Address replyTo, Ipv4Address replyFrom, Time gratReplyHoldoff)
uint32_t	GetGraTableSize () const
void	Purge ()
void	SetGraTableSize (uint32_t g)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.

Private Attributes
uint32_t	GraReplyTableSize
std::vector< GraReplyEntry >	m_graReply

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

maintain the gratuitous reply

Definition at line 65 of file dsr-gratuitous-reply-table.h.

Constructor & Destructor Documentation

ns3::dsr::GraReply::GraReply

(

)

Constructor.

Definition at line 52 of file dsr-gratuitous-reply-table.cc.

ns3::dsr::GraReply::~GraReply ( )

virtual

Destructor.

Definition at line 56 of file dsr-gratuitous-reply-table.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

bool ns3::dsr::GraReply::AddEntry

(

GraReplyEntry &

graTableEntry

)

Definition at line 79 of file dsr-gratuitous-reply-table.cc.

References m_graReply.

Referenced by ns3::dsr::DsrRouting::SendGratuitousReply().

Here is the caller graph for this function:

void ns3::dsr::GraReply::Clear ( void  )

inline

Definition at line 99 of file dsr-gratuitous-reply-table.h.

References m_graReply.

bool ns3::dsr::GraReply::FindAndUpdate	(	Ipv4Address	replyTo,
		Ipv4Address	replyFrom,
		Time	gratReplyHoldoff
	)

Definition at line 62 of file dsr-gratuitous-reply-table.cc.

References m_graReply, ns3::Simulator::Now(), NS_LOG_DEBUG, and Purge().

Referenced by ns3::dsr::DsrRouting::SendGratuitousReply().

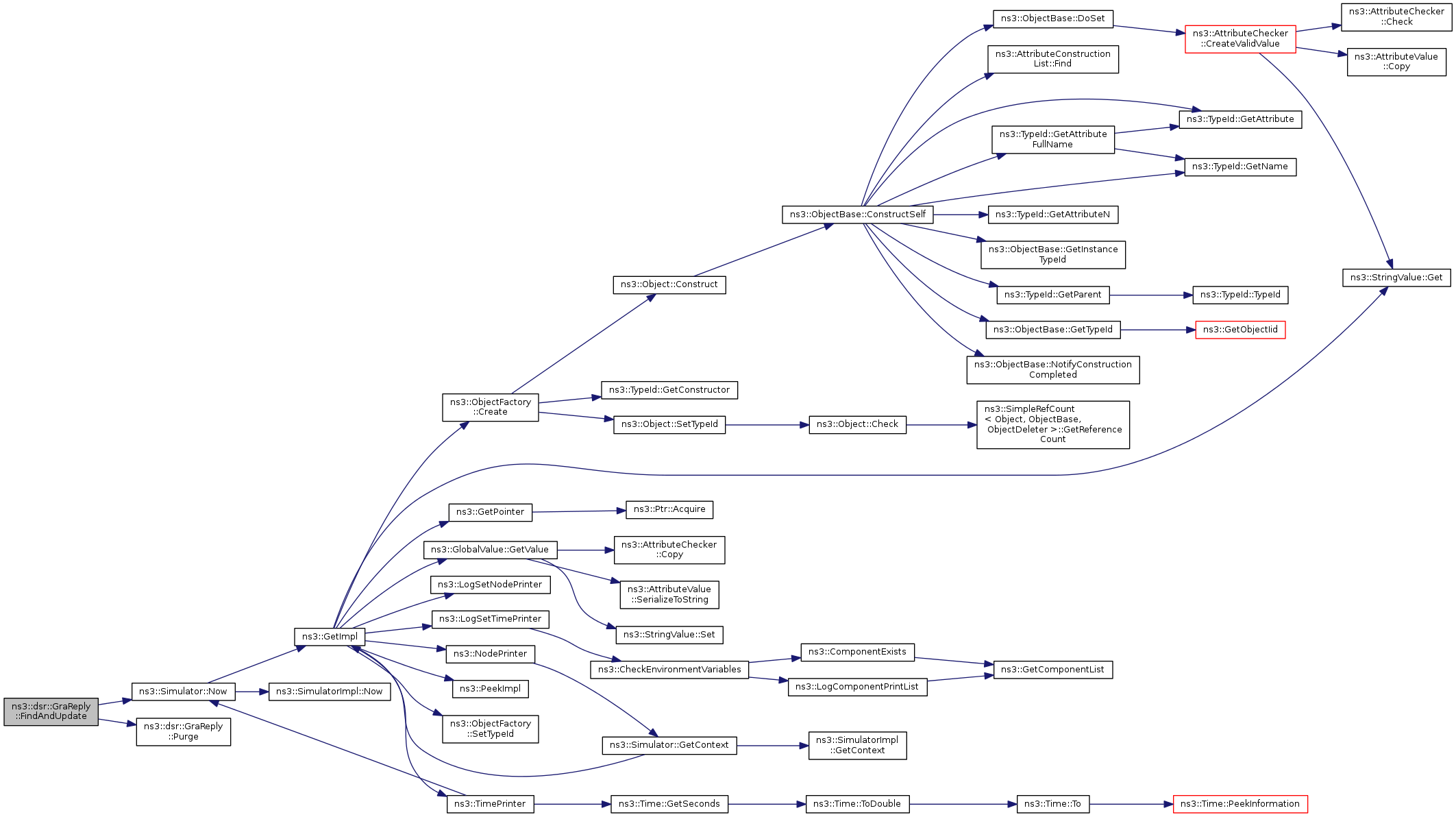

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::dsr::GraReply::GetGraTableSize ( ) const

inline

Definition at line 88 of file dsr-gratuitous-reply-table.h.

References GraReplyTableSize.

TypeId ns3::dsr::GraReply::GetTypeId ( void  )

static

Get the type identificator.

This method returns the TypeId associated to ns3::dsr::GraReply.

Returns

type identificator

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

Definition at line 43 of file dsr-gratuitous-reply-table.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::dsr::GraReply::Purge

(

)

Definition at line 86 of file dsr-gratuitous-reply-table.cc.

References m_graReply.

Referenced by FindAndUpdate().

Here is the caller graph for this function:

void ns3::dsr::GraReply::SetGraTableSize ( uint32_t  g )

inline

Definition at line 83 of file dsr-gratuitous-reply-table.h.

References GraReplyTableSize.

Referenced by ns3::dsr::DsrRouting::Start().

Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::dsr::GraReply::GraReplyTableSize

private

Definition at line 108 of file dsr-gratuitous-reply-table.h.

Referenced by GetGraTableSize(), and SetGraTableSize().

std::vector<GraReplyEntry> ns3::dsr::GraReply::m_graReply

private

Definition at line 106 of file dsr-gratuitous-reply-table.h.

Referenced by AddEntry(), Clear(), FindAndUpdate(), and Purge().

---

The documentation for this class was generated from the following files:

• src/dsr/model/dsr-gratuitous-reply-table.h
• doc/introspected-doxygen.h
• src/dsr/model/dsr-gratuitous-reply-table.cc
